product name

LG LFC23760SB.AWB4LGA

Model: LFC23760SB.AWB4LGA

Save Part Not Listed?
product name

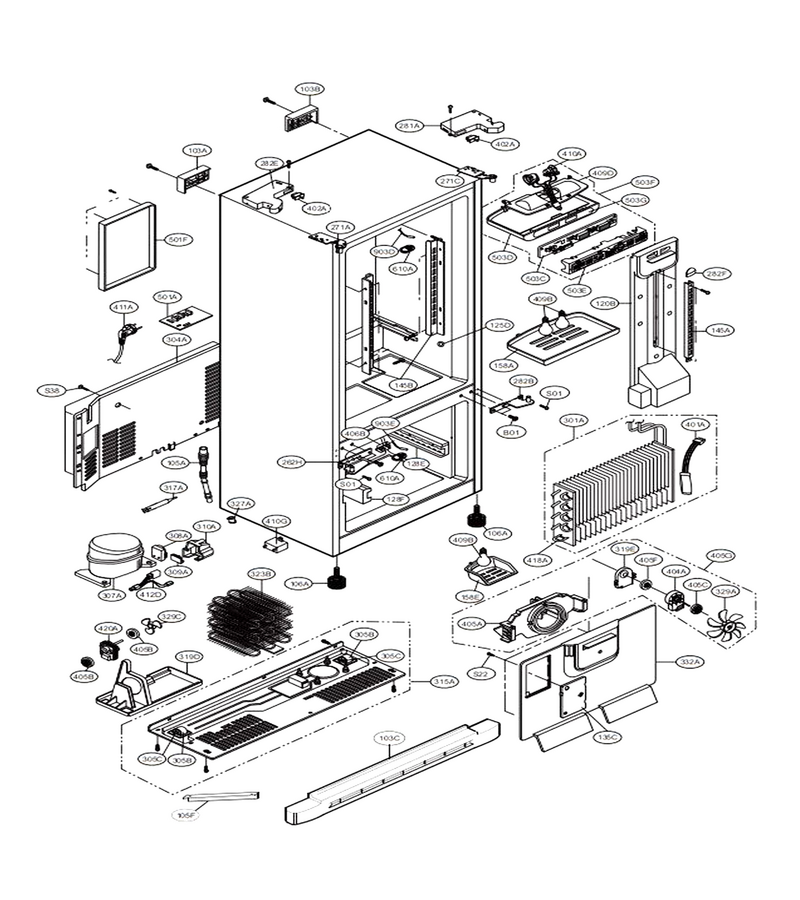

Case Parts

...
...
S01
Refrigerator Screw L-G-1SZZJJ3010A
...
S22
Refrigerator Screw L-G-J471-00001J
...
103A
Refrigerator Door Handle L-G-3650JJ2003M
...
103B
Refrigerator Handle L-G-3650JJ2003L
...
103C
Refrigerator Toe Grille L-G-3550JJ0006C
...
105A
Refrigerator Drain Tube L-G-5251JA3003D
...
105F
Refrigerator Skirt L-G-5070JJ3002A
...
106A
Refrigerator Leveling Leg L-G-AFC73249601
...
120B
Refrigerator Air Duct L-G-5209JJ1002A
...
125D
Refrigerator Shelf Bracket Holder L-G-4930JJ3007A
...
128E
Holder,rail L-G-MEG54557902
...
128F
Holder,rail L-G-MEG54557901
...
135C
Cover,grille Fan L-G-3550JJ2046A
...
145A
Refrigerator Shutter Knob L-G-4930JJ2003A
...
145B
Refrigerator Shelf Holder L-G-4930JJ2004A
...
158A
Refrigerator Lamp Cover L-G-3550JJ1040A
...
158E
Refrigerator Light Cover L-G-MCK30060901
...
262H
Refrigerator Door Hinge, Center (black) L-G-4775JJ2019D
...
271A
Hinge Assembly,upper L-G-AEH36437001
...
271C
Hinge Assembly,upper L-G-AEH36437002
...
281A
Cover Assembly,hinge L-G-ACQ36833803
...
282B
Refrigerator Door Hinge L-G-4775JJ2019C
...
282E
Cover Assembly,hinge L-G-ACQ36833804
...
282F
Decor,duct L-G-3806JL2006H
...
301A
Refrigerator Evaporator L-G-5421JJ1001B
...
304A
Refrigerator Compressor Access Cover L-G-3551JJ2008B
...
305B
Refrigerator Roller L-G-4580JJ3001A
...
305C
Refrigerator Roller Wheel Pin L-G-4J04238A
...
307A
Compressor,set Assembly L-G-TCA33414102
...
308A
Refrigerator Temperature Sensor L-G-EBG42993601
...
309A
Refrigerator Compressor Overload Protector L-G-6750C-0005P
...
310A
Refrigerator Compressor Start Relay Cover L-G-3550JA2042C
...
315A
Compressor Base Assembly L-G-3103JJ1001Z
...
317A
Refrigerator Filter Dryer L-G-5851JA2007E
...
319D
Refrigerator Fan Guide L-G-AEC72997401
...
319E
Refrigerator Evaporator Fan Motor Bracket L-G-4810JJ2005A
...
323B
Refrigerator Condenser Coil L-G-ACG73746801
...
327A
Refrigerator Drain Cap L-G-5006JA3049A
...
329A
Refrigerator Evaporator Fan Blade L-G-5901JJ1005A
...
332A
Refrigerator Fan Grille Assembly L-G-3531JJ1004Q
...
401A
Refrigerator Defrost Sensor Assembly L-G-6615JB2005C
...
402A
Refrigerator Light Switch L-G-6600JB3007E
...
404A
Refrigerator Air Damper Motor L-G-4681JK1004A
...
405A
Refrigerator Evaporator Fan Motor Bracket L-G-4811JJ2002A
...
405B
Refrigerator Fan Motor Grommet L-G-5040JJ2001A
...
405C
Refrigerator Motor Support Damper L-G-5040JA2009B
...
405F
Refrigerator Motor Support Damper L-G-5040JA2004B
...
405G
Refrigerator Evaporator Fan Motor And Bracket A... L-G-4811JJ2002H
...
406B
Refrigerator Door Switch L-G-6600JB1010A
...
409B
Refrigerator Light Bulb L-G-6912JK2002E
...
409D
Refrigerator Light Reflector L-G-3034JJ1002B
...
410A
Refrigerator Light Socket L-G-6621JK2002D
...
410G
Refrigerator Run Capacitor L-G-0CZZJB2014L
...
411A
Refrigerator Power Cord L-G-6411JK1006A
...
412D
Refrigerator Wire Harness L-G-6877JK2011A
...
418A
Refrigerator Defrost Heater L-G-5300JB1100J
...
420A
Refrigerator Condenser Fan Motor L-G-4681JB1029J
...
501A
Pcb Assembly,main L-G-EBR41531302
...
501F
Cover Assembly,pcb L-G-ACQ75453701
...
503C
Refrigerator Display Board And Control Box Asse... L-G-6871JB2047A
...
503D
Refrigerator Dispenser Display Assembly L-G-3110JJ1005A
...
503E
Refrigerator Display Control Board Cover L-G-3550JJ2031A
...
503F
Refrigerator Display Case L-G-ABQ33905312
...
503G
Refrigerator Control Panel Overlay L-G-3806JL1049A
...
610A
Refrigerator Temperature Sensor Cover L-G-3550JJ2020A
...
903D
Refrigerator Temperature Sensor Cover L-G-6500JK1003A
...
903E
Refrigerator Temperature Sensor L-G-6500JK1004A

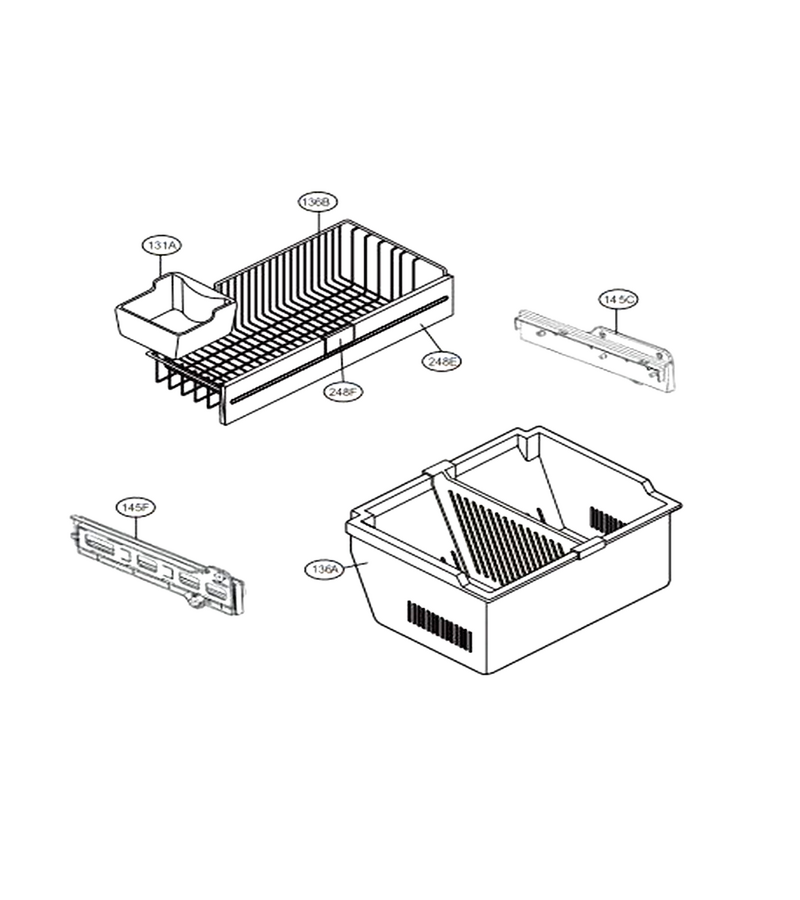

Freezer Parts

...
...
131A
Bucket,ice L-G-5074JJ1055A
...
136A
Tray Assembly,drawer L-G-AJP73194902
...
136B
Tray,drawer L-G-3390JJ1090B
...
145C
Guide Assembly,rail L-G-4975JJ2028C
...
145F
Guide Assembly,rail L-G-4975JJ2028D
...
248E
Decor,tray L-G-3806JJ1048A
...
248F
Decor,tray L-G-3806JL2011D

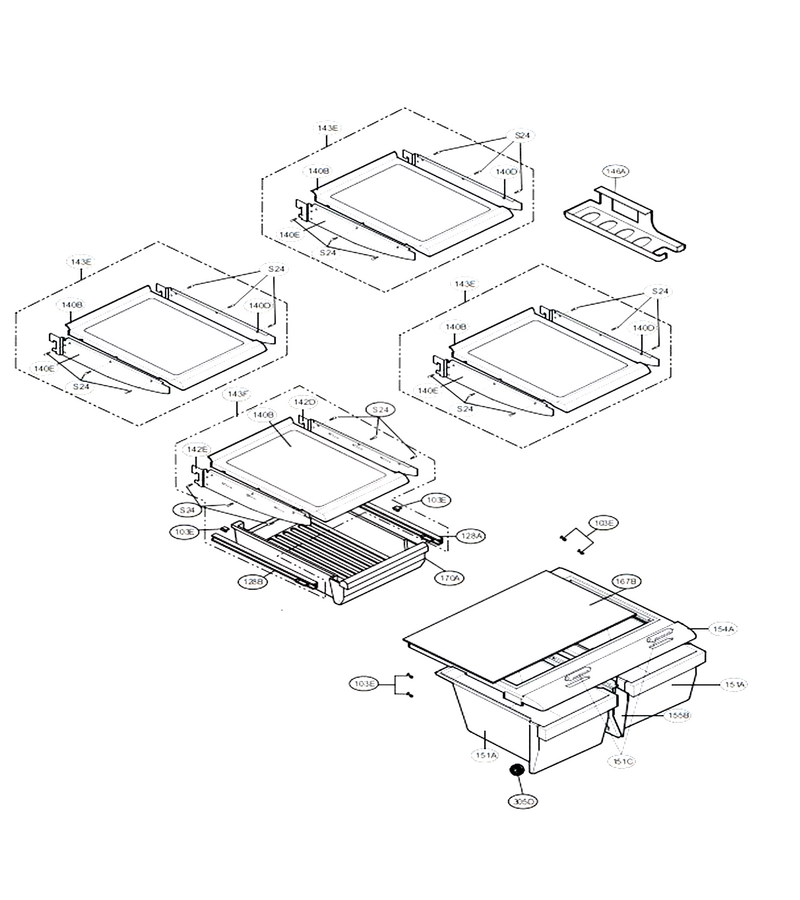

Refrigerator Parts

...
...
S24
Refrigerator Screw L-G-1SZZJA3011B
...
103E
Refrigerator Drawer Slide Rail L-G-5218JJ3001A
...
128A
Refrigerator Deli Drawer Slide Rail L-G-4975JJ2002A
...
128B
Refrigerator Drawer Slide Rail And Cover Assembly L-G-4975JJ2002B
...
140B
Refrigerator Shelf L-G-5027JJ2007B
...
140D
Refrigerator Shelf Net L-G-MHL38615403
...
140E
Refrigerator Shelf Net L-G-MHL38615404
...
142D
Refrigerator Meat Shelf Support, Right L-G-5026JJ2001L
...
142E
Refrigerator Meat Shelf Support, Left L-G-5026JJ2001M
...
143E
Shelf Assembly,refrigerator L-G-5027JJ1008K
...
143F
Refrigerator Shelf L-G-AHT72996103
...
146A
Refrigerator Storage L-G-5047JJ1001A
...
151A
Tray Assembly,vegetable L-G-3391JJ1038B
...
151C
Knob,shutter L-G-4940JJ2010A
...
154A
Cover,tv L-G-3550JJ1108A
...
155B
Refrigerator Crisper Drawer Cover Support L-G-4980JJ1016A
...
167B
Shelf,glass L-G-MHL61952303
...
170A
Tray Assembly,meat L-G-3391JJ2018D
...
305D
Roller Assembly L-G-AHJ72989901

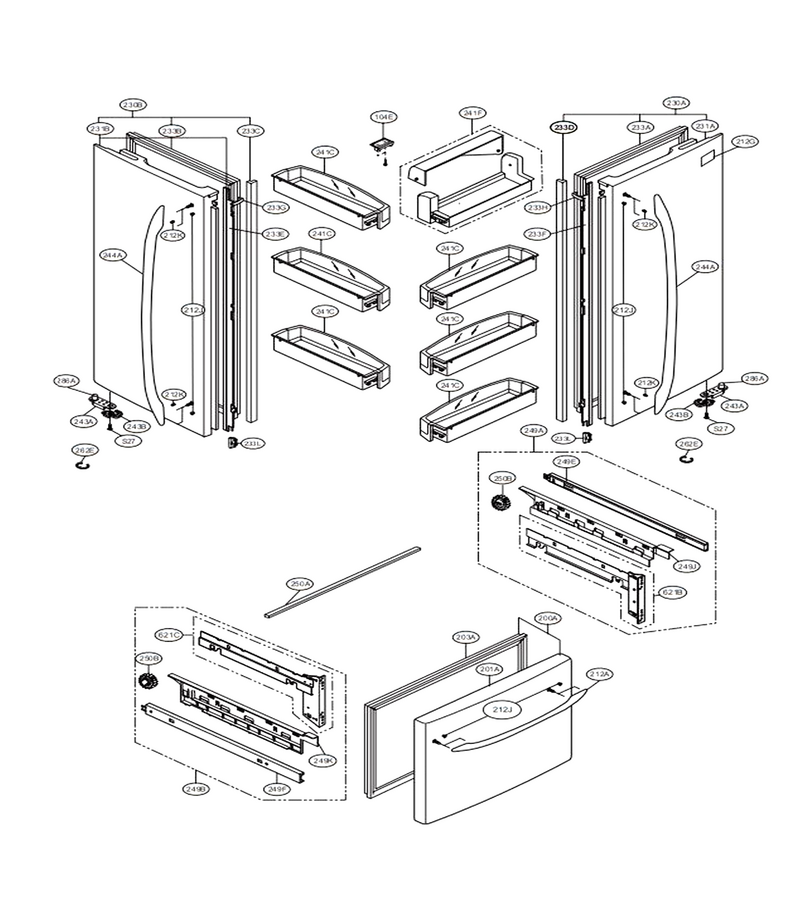

Door Parts

...
...
S27
Refrigerator Freezer Door Stop Screw L-G-4J01424C
...
104E
Refrigerator Door Gasket Retainer L-G-4931JJ3002A
...
200A
Door Assembly,freezer L-G-3581JJ8721V
...
201A
Door Foam Assembly,freezer L-G-ADD56666203
...
203A
Gasket Assembly,door L-G-ADX73350926
...
212A
Handle Assembly,freezer L-G-AED37133106
...
212G
Refrigerator Nameplate L-G-MFT62346501
...
212K
Refrigerator Handle Mount Set Screw L-G-FAB30138101
...
230A
Door Assembly,refrigerator(right) L-G-ADC56693201
...
230B
Door Assembly,refrigerator(left) L-G-3581JJ8055V
...
231A
Door Foam Assembly,refrigerator L-G-5433JJ0063X
...
231B
Door Foam Assembly,refrigerator L-G-5433JJ0061Z
...
233A
Refrigerator Door Gasket, Right L-G-4987JJ2003F
...
233B
Refrigerator Door Gasket, Left L-G-4987JJ2003H
...
233C
Cover Assembly,front L-G-ACQ67902601
...
233D
Cover Assembly,front L-G-ACQ67902602
...
233E
Holder,gasket L-G-4930JJ2028B
...
233F
Holder,gasket L-G-4930JJ2028A
...
233G
Cam,shaft L-G-4430JJ2005B
...
233H
Cam,shaft L-G-4430JJ2005A
...
233L
Supporter,holder L-G-4980JJ2019A
...
241C
Refrigerator Door Deep Bin L-G-5005JJ2022A
...
241F
Basket Assembly,door L-G-5005JJ2021E
...
243A
Refrigerator Door Stop L-G-4620JJ3006C
...
243B
Refrigerator Door Stop L-G-4620JJ2009A
...
244A
Refrigerator Door Handle Assembly L-G-AED37082930
...
249A
Connector Assembly L-G-5098JJ1002F
...
249B
Connector Assembly L-G-5098JJ1002E
...
249J
Cover,connector L-G-3550JJ1111A
...
249K
Cover,connector L-G-3550JJ1111B
...
250B
Refrigerator Freezer Drawer Gear L-G-4403JJ3001A
...
262E
Refrigerator Door Hinge Snap Ring L-G-4350JA3005B
...
286A
Refrigerator Door Hinge Bushing L-G-4984JJ3003A
...
621B
Connector,rail L-G-MCD36888904
...
621C
Connector,rail L-G-MCD36888903

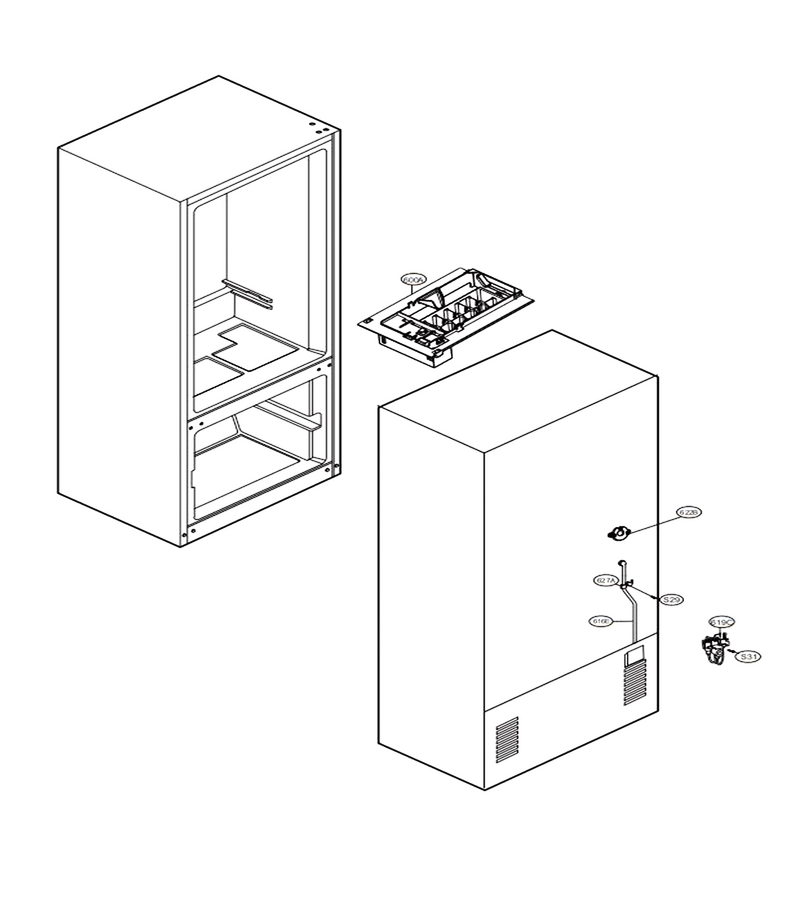

Ice Maker Parts

...
...
S31
Special Screw(earth) D4.0 L10 L-G-4000W4A003A
...
616E
Tube Assembly,inject L-G-AJR73342301
...
619C
Valve Assembly,water L-G-AJU55759303
...
622B
Refrigerator Ice Maker Water Fill Tube Grommet L-G-5006JJ2009A
...
627A
Refrigerator Clamp L-G-4930JA3054A
