LG LFC20770SB.AWBCNA1

Model: LFC20770SB.AWBCNA1

Save Part Not Listed?
product name

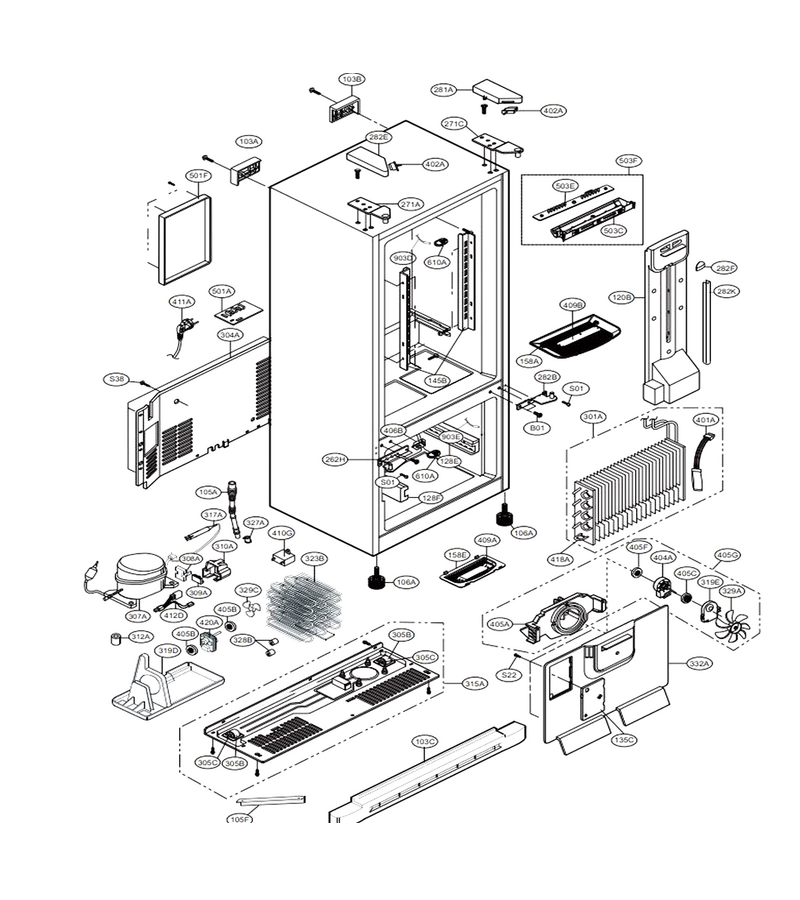

Case Parts

...
...
S01
Refrigerator Screw L-G-1SZZJJ3010A
...
S22
Refrigerator Screw L-G-J471-00001J
...
103A
Refrigerator Door Handle L-G-3650JJ2003M
...
103B
Refrigerator Handle L-G-3650JJ2003L
...
103C
Refrigerator Toe Grille L-G-3550JJ0005C
...
105A
Refrigerator Drain Tube L-G-5251JA3003D
...
105F
Refrigerator Skirt L-G-5070JJ3002A
...
106A
Refrigerator Leveling Leg L-G-AFC73249601
...
120B
Duct Assembly,multi L-G-ADJ72910602
...
128E
Holder,rail L-G-MEG62798704
...
128F
Holder,rail L-G-MEG62798703
...
135C
Cover,grille Fan L-G-3550JJ2046A
...
145B
Refrigerator Shelf Holder L-G-4930JJ2004A
...
158A
Cover Assembly,lamp L-G-ACQ85659301
...
158E
Cover Assembly,lamp L-G-ACQ85659401
...
262H
Refrigerator Door Hinge, Center (black) L-G-4775JJ2019D
...
271A
Hinge Assembly,upper L-G-AEH36437001
...
271C
Hinge Assembly,upper L-G-AEH36437002
...
281A
Cover Assembly,hinge L-G-ACQ36833821
...
282B
Refrigerator Door Hinge L-G-4775JJ2019C
...
282E
Cover Assembly,hinge L-G-ACQ36833822
...
282F
Decor,duct L-G-3806JL2006M
...
282K
Refrigerator Duct Cap L-G-5006JJ2006A
...
301A
Refrigerator Evaporator L-G-5421JJ1001A
...
304A
Cover Assembly,machinery(rear) L-G-ACQ76219902
...
305B
Roller L-G-MHA61893201
...
305C
Refrigerator Roller Wheel Axle Pin L-G-1PZZJA3013B
...
307A
Refrigerator Compressor L-G-TCA33414101
...
308A
Refrigerator Compressor Start Relay L-G-6748C-0004D
...
309A
Refrigerator Compressor Overload Protector L-G-6750C-0005P
...
310A
Refrigerator Compressor Start Relay Cover L-G-3550JA2042C
...
312A
Refrigerator Compressor Grommet L-G-5040JA3031A
...
315A
Base Assembly,compressor L-G-3103JJ1001Y
...
317A
Refrigerator Filter Dryer L-G-5851JA2007E
...
319D
Refrigerator Fan Guide L-G-AEC72997401
...
319E
Refrigerator Evaporator Fan Motor Bracket L-G-4810JJ2005A
...
323B
Condenser Assembly,wire L-G-ACG73746701
...
327A
Refrigerator Drain Cap L-G-5006JA3049A
...
328B
Rubber, Damping L-G-4J04328A
...
329A
Refrigerator Evaporator Fan Blade L-G-5901JJ1005A
...
329C
Refrigerator Condenser Fan Blade L-G-ADP36665702
...
332A
Grille Assembly,fan L-G-3531JJ1004N
...
401A
Refrigerator Defrost Sensor Assembly L-G-6615JB2005C
...
402A
Refrigerator Door Light Switch L-G-6600JB3007J
...
404A
Motor,dc L-G-4681JB1027N
...
405A
Refrigerator Evaporator Fan Motor Bracket L-G-4811JJ2002A
...
405B
Refrigerator Fan Motor Grommet L-G-5040JJ2001A
...
405C
Refrigerator Motor Support Damper L-G-5040JA2009B
...
405F
Refrigerator Motor Support Damper L-G-5040JA2004B
...
405G
Bracket Assembly,motor L-G-4811JJ2002K
...
406B
Refrigerator Door Switch L-G-6600JB1010K
...
409A
Led Assembly L-G-EAV60892210
...
409B
Led Assembly L-G-EAV61711901
...
410G
Refrigerator Run Capacitor L-G-0CZZJB2014L
...
411A
Refrigerator Power Cord L-G-6411JK1006A
...
412D
Refrigerator Wire Harness L-G-6877JK2011A
...
418A
Refrigerator Heater L-G-5300JB1100D
...
420A
Refrigerator Condenser Fan Motor L-G-4681JB1029J
...
501A
Pcb Assembly,main L-G-EBR64110551
...
501F
Cover Assembly,pcb L-G-3551JJ1020F
...
503C
Pcb Assembly,display L-G-6871JB2047B
...
503E
Cover,display L-G-MCK66873302
...
503F
Cover Assembly,display L-G-ACQ85642902
...
903D
Refrigerator Temperature Sensor Cover L-G-6500JK1003A
...
903E
Refrigerator Temperature Sensor L-G-6500JK1004A

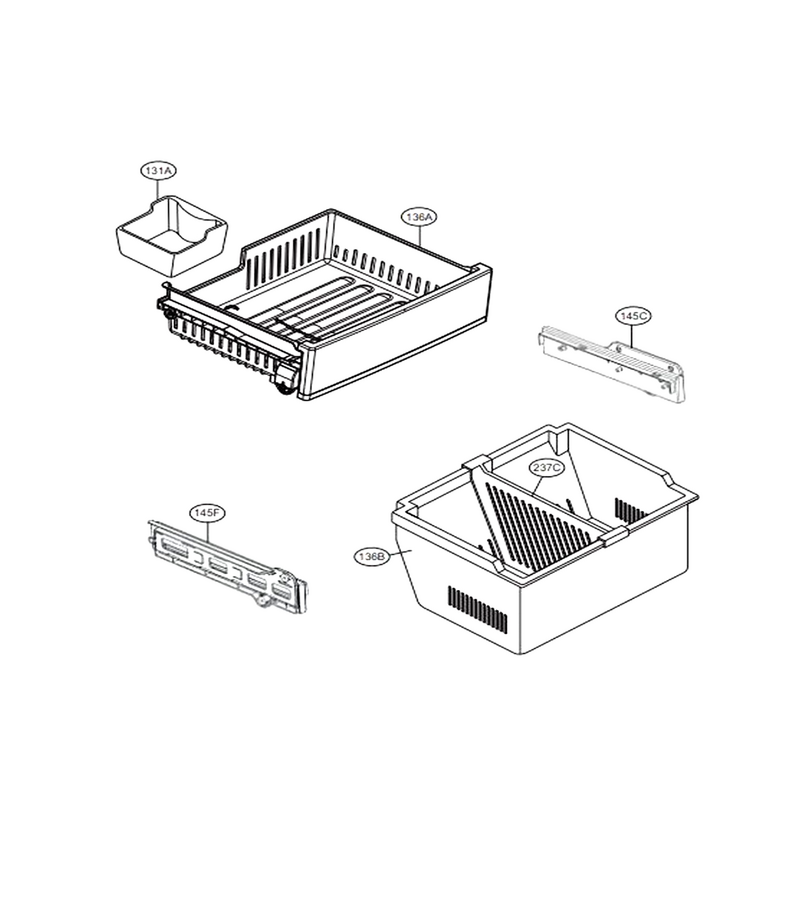

Freezer Parts

...
...
136A
Tray Assembly,drawer L-G-AJP73474801
...
136B
Tray,drawer L-G-MJS62351801
...
145C
Holder,rail L-G-MEG62798601
...
145F
Holder,rail L-G-MEG62798602
...
237C
Guide,drawer L-G-MEA62191701

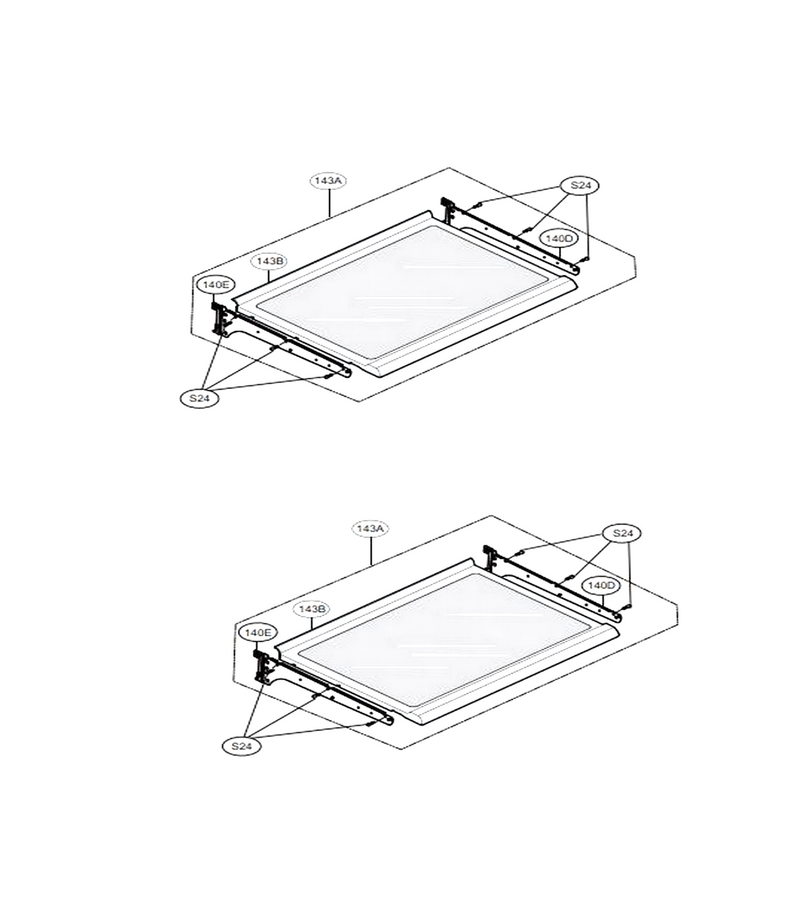

Refrigerator Parts

...
...
S24
Refrigerator Screw L-G-1SZZJA3011B
...
140D
Refrigerator Shelf Net L-G-MHL38615403
...
140E
Refrigerator Shelf Net L-G-MHL38615404
...
143A
Shelf Assembly,refrigerator L-G-5027JJ1028G
...
143B
Shelf Assembly,refrigerator L-G-5027JJ1015C

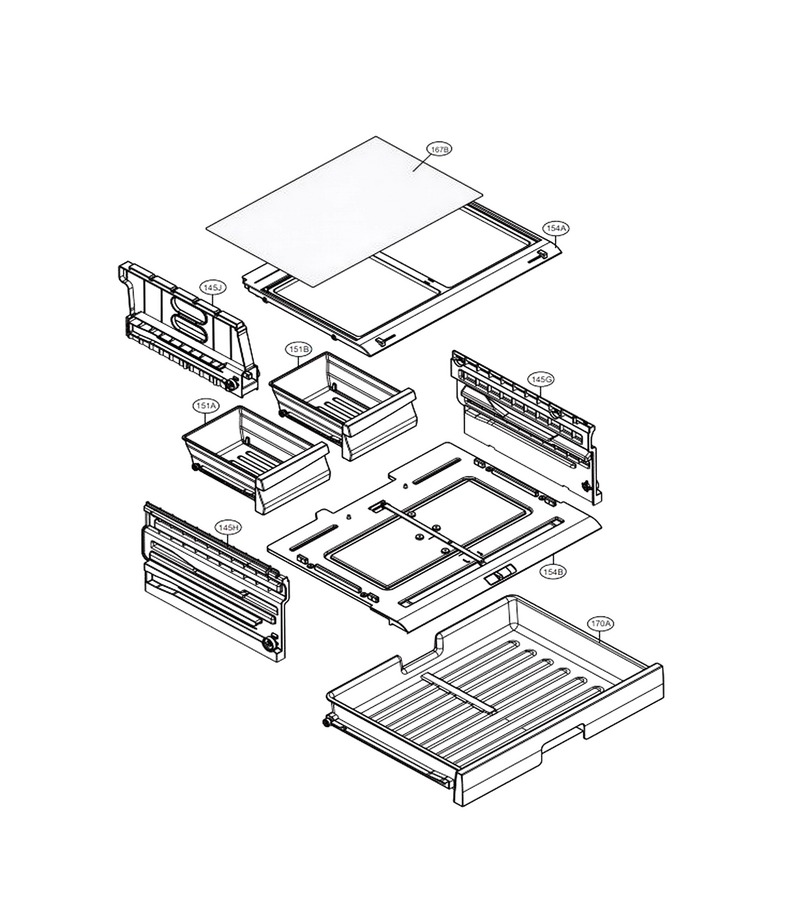

Refrigerator Parts (pantry)

...
...
145G
Guide Assembly,rail L-G-AEC72915302
...
145H
Guide Assembly,rail L-G-AEC72915301
...
145J
Guide Assembly,rail L-G-AEC72913401
...
151A
Tray Assembly,vegetable L-G-AJP72913801
...
151B
Tray Assembly,vegetable L-G-AJP72913802
...
154A
Cover Assembly,tv L-G-ACQ74914506
...
154B
Cover Assembly,tray L-G-ACQ74914606
...
167B
Shelf,glass L-G-4890JL1002P
...
170A
Tray Assembly,fresh Room L-G-AJP72914001

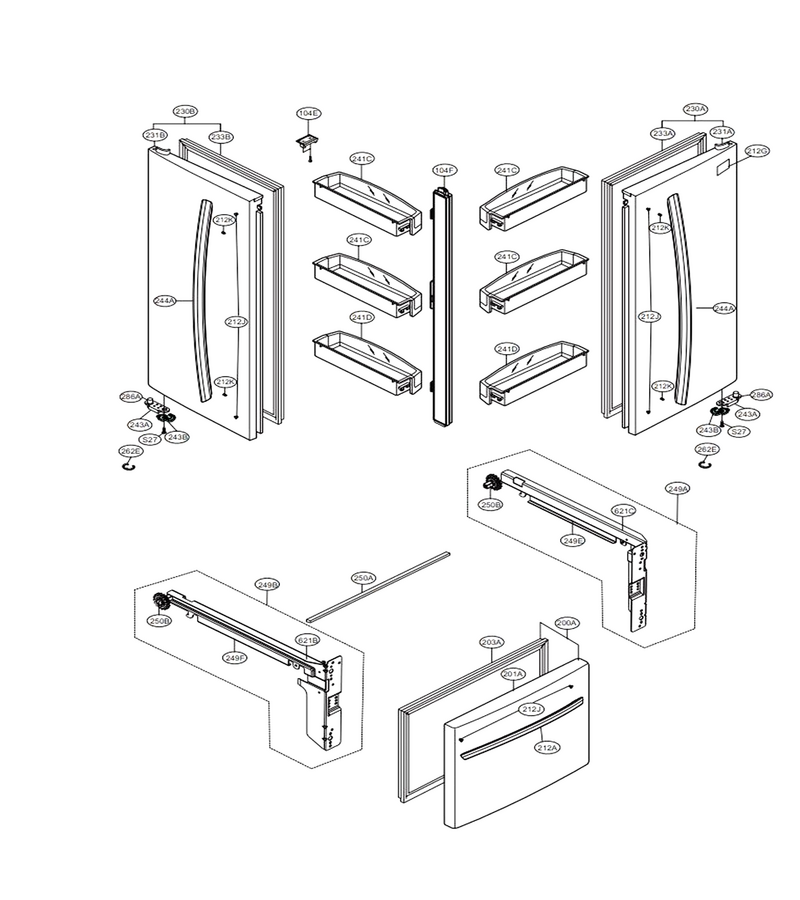

Door Parts

...
...
S27
Refrigerator Shelf Support Rail Mounting Screw L-G-4J01424D
...
104E
Holder,door L-G-MEG62780301
...
104F
Plate Assembly,front L-G-AGU73767902
...
200A
Door Assembly,freezer L-G-ADC73046221
...
201A
Door Foam Assembly,freezer L-G-ADD73535802
...
203A
Gasket Assembly,door L-G-ADX73350902
...
212A
Handle Assembly,freezer L-G-AED73393802
...
212G
Refrigerator Nameplate L-G-MFT62366501
...
212J
Refrigerator Door Handle Mounting Bolt L-G-4620JJ2010C
...
212K
Refrigerator Handle Mount Set Screw L-G-FAB30138101
...
230A
Door Assembly,refrigerator(right) L-G-ADC73027519
...
230B
Door Assembly,refrigerator(left) L-G-ADC33235212
...
231A
Door Foam Assembly,refrigerator L-G-ADD73495802
...
231B
Door Foam Assembly,refrigerator L-G-ADD73495902
...
233A
Gasket Assembly,door L-G-ADX73350605
...
233B
Gasket Assembly,door L-G-ADX73350606
...
241C
Guide,drawer L-G-MEA62191701
...
241D
Basket Assembly,door L-G-AAP73472501
...
243A
Refrigerator Door Stop L-G-4620JJ3006C
...
243B
Refrigerator Door Closure L-G-MJB63029901
...
244A
Handle Assembly,refrigerator L-G-AED73393702
...
249A
Connector Assembly L-G-5098JJ1002K
...
249B
Connector Assembly L-G-5098JJ1002J
...
249E
Connector Assembly L-G-5098JJ1002G
...
250B
Refrigerator Freezer Drawer Gear L-G-4403JJ3001A
...
262E
Refrigerator Door Hinge Snap Ring L-G-4350JA3005B
...
286A
Refrigerator Door Hinge Bushing L-G-4984JJ3003A

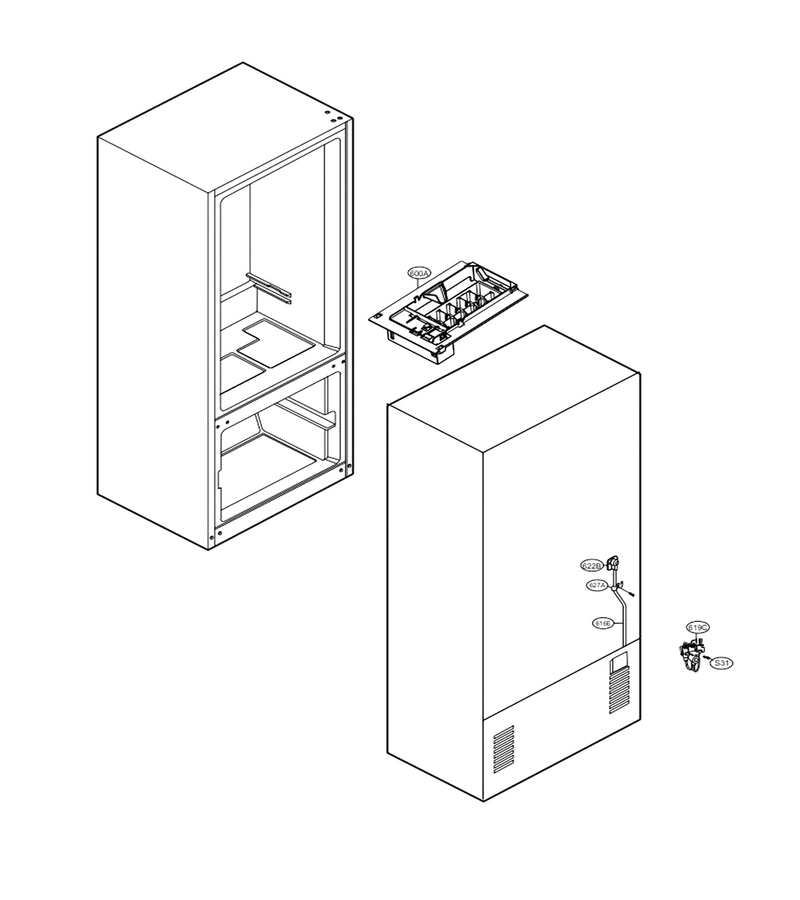

Ice Maker Parts

...
...
S31
Special Screw(earth) D4.0 L10 L-G-4000W4A003A
...
616E
Tube Assembly,inject L-G-AJR73342301
...
619C
Valve Assembly,water L-G-AJU55759303
...
622B
Refrigerator Ice Maker Water Fill Tube Grommet L-G-5006JJ2009A
...
627A
Refrigerator Clamp L-G-4930JA3054A
