product name

LG LFC20760SB.AWB6LGY

Model: LFC20760SB.AWB6LGY

Save Part Not Listed?
product name

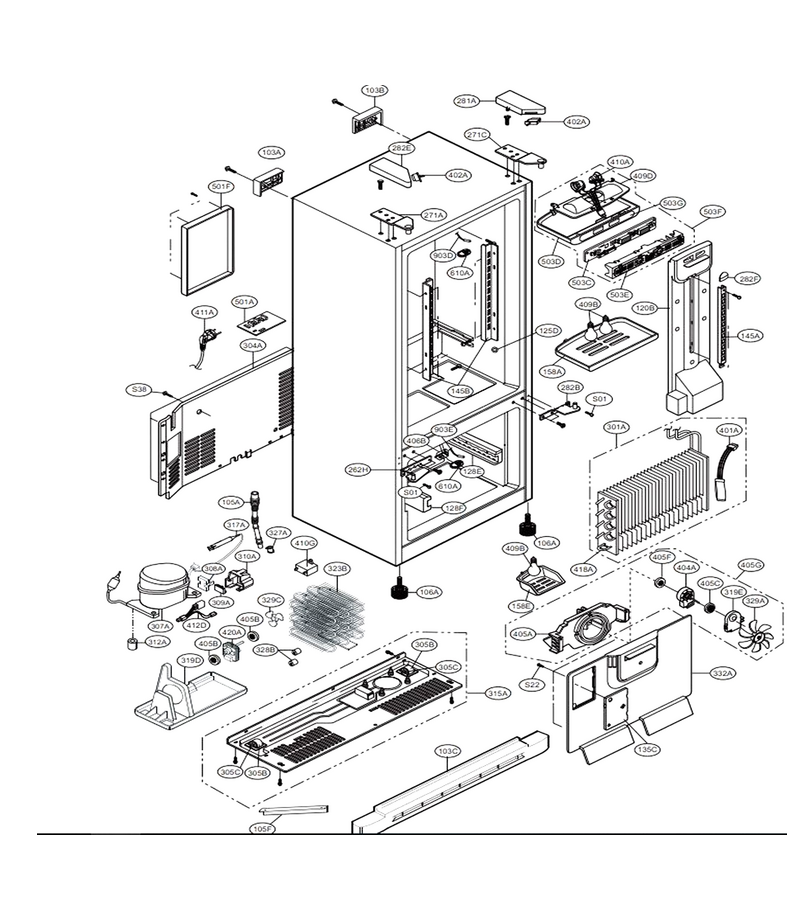

Case Parts

...
...
S01
Refrigerator Screw L-G-1SZZJJ3010A
...
S22
Refrigerator Screw L-G-J471-00001J
...
103A
Refrigerator Door Handle L-G-3650JJ2003M
...
103B
Refrigerator Handle L-G-3650JJ2003L
...
103C
Refrigerator Drain Tube L-G-5251JA3003D
...
105A
Refrigerator Drain Tube L-G-5251JA3003D
...
105F
Refrigerator Skirt L-G-5070JJ3002A
...
106A
Refrigerator Leveling Leg L-G-AFC73249601
...
120B
Refrigerator Air Duct L-G-5209JJ1002A
...
125D
Refrigerator Shelf Bracket Holder L-G-4930JJ3007A
...
128E
Holder,rail L-G-MEG54557902
...
128F
Holder,rail L-G-MEG54557901
...
135C
Cover,grille Fan L-G-3550JJ2046A
...
145A
Refrigerator Shutter Knob L-G-4930JJ2003A
...
145B
Refrigerator Shelf Holder L-G-4930JJ2004A
...
158A
Refrigerator Lamp Cover L-G-3550JJ1040A
...
158E
Cover,lamp L-G-MCK62661401
...
262H
Refrigerator Door Hinge, Center (black) L-G-4775JJ2019D
...
271A
Refrigerator Door Hinge L-G-4775JJ2018B
...
271C
Refrigerator Door Hinge L-G-4775JJ2018A
...
281A
Refrigerator Door Hinge Cover, Right L-G-3551JJ1018B
...
282B
Refrigerator Door Hinge L-G-4775JJ2019C
...
282E
Refrigerator Door Hinge Cover, Left L-G-3551JJ1018E
...
282F
Duct Decor L-G-3806JL2006F
...
301A
Refrigerator Evaporator L-G-5421JJ1001A
...
304A
Cover Assembly,machinery(rear) L-G-ACQ76219902
...
305B
Roller L-G-MHA61893201
...
305C
Refrigerator Roller Wheel Axle Pin L-G-1PZZJA3013B
...
307A
Refrigerator Compressor L-G-TCA33414101
...
308A
Refrigerator Compressor Start Relay L-G-6748C-0004D
...
309A
Refrigerator Compressor Overload Protector L-G-6750C-0005P
...
310A
Refrigerator Compressor Start Relay Cover L-G-3550JA2042C
...
312A
Refrigerator Compressor Grommet L-G-5040JA3031A
...
315A
Base Assembly,compressor L-G-3103JJ1001Y
...
317A
Refrigerator Filter Dryer L-G-5851JA2007E
...
319D
Refrigerator Fan Guide L-G-AEC72997401
...
319E
Refrigerator Evaporator Fan Motor Bracket L-G-4810JJ2005A
...
323B
Condenser Assembly,wire L-G-ACG73746701
...
327A
Refrigerator Drain Cap L-G-5006JA3049A
...
328B
Rubber, Damping L-G-4J04328A
...
329A
Refrigerator Evaporator Fan Blade L-G-5901JJ1005A
...
329C
Refrigerator Condenser Fan Blade L-G-ADP36665702
...
332A
Grille Assembly,fan L-G-3531JJ1004N
...
401A
Refrigerator Defrost Sensor Assembly L-G-6615JB2005C
...
402A
Refrigerator Light Switch L-G-6600JB3007E
...
404A
Motor,dc L-G-4681JB1027N
...
405A
Refrigerator Evaporator Fan Motor Bracket L-G-4811JJ2002A
...
405B
Refrigerator Fan Motor Grommet L-G-5040JJ2001A
...
405C
Refrigerator Motor Support Damper L-G-5040JA2009B
...
405F
Refrigerator Motor Support Damper L-G-5040JA2004B
...
405G
Bracket Assembly,motor L-G-4811JJ2002K
...
406B
Refrigerator Door Switch L-G-6600JB1010A
...
409B
Refrigerator Light Bulb L-G-6912JK2002E
...
409D
Refrigerator Light Reflector L-G-3034JJ1002B
...
410A
Socket,lamp L-G-EAG62831801
...
410G
Refrigerator Run Capacitor L-G-0CZZJB2014L
...
411A
Refrigerator Power Cord L-G-6411JK1006A
...
412D
Refrigerator Wire Harness L-G-6877JK2011A
...
418A
Refrigerator Heater L-G-5300JB1100D
...
420A
Refrigerator Condenser Fan Motor L-G-4681JB1029J
...
501A
Pcb Assembly,main L-G-EBR64110562
...
501F
Cover Assembly,pcb L-G-3551JJ1020F
...
503C
Refrigerator Display Board And Control Box Asse... L-G-6871JB2047A
...
503D
Refrigerator Dispenser Display Assembly L-G-3110JJ1005A
...
503E
Refrigerator Display Control Board Cover L-G-3550JJ2031A
...
503F
Refrigerator Display Case L-G-ABQ33905312
...
503G
Refrigerator Control Panel Overlay L-G-3806JL1049A
...
610A
Refrigerator Temperature Sensor Cover L-G-3550JJ2020A
...
903D
Refrigerator Temperature Sensor Cover L-G-6500JK1003A
...
903E
Refrigerator Temperature Sensor L-G-6500JK1004A

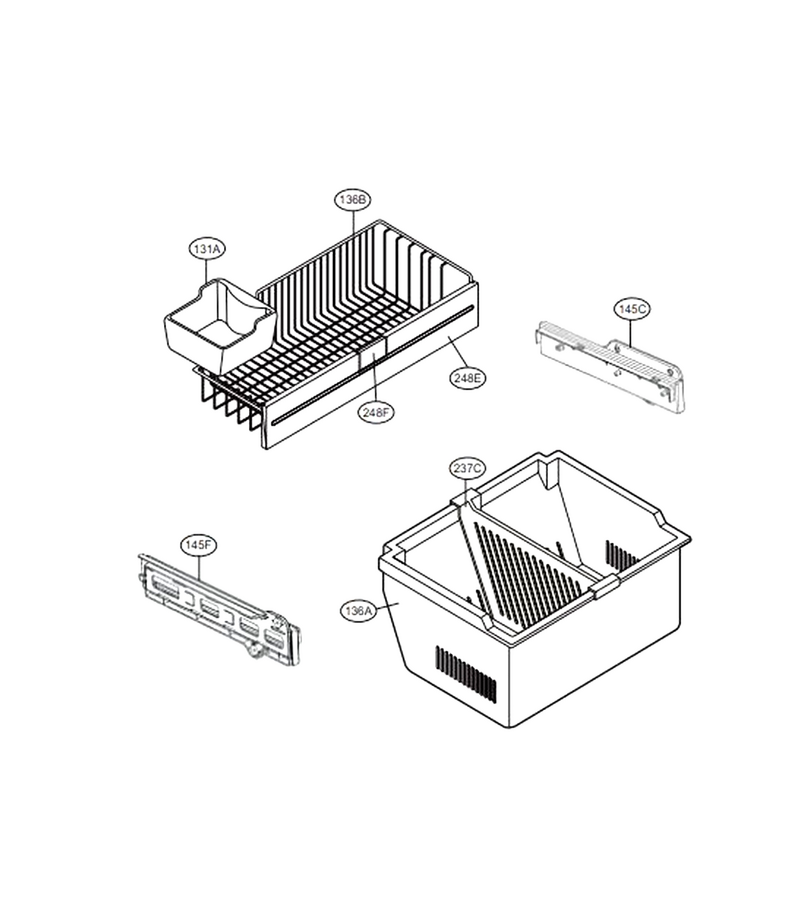

Freezer Parts

...
...
136A
Tray Assembly,drawer L-G-AJP73194901
...
136B
Tray,drawer L-G-3390JJ1095B
...
145C
Guide Assembly,rail L-G-4975JJ2028C
...
145F
Guide Assembly,rail L-G-4975JJ2028D
...
237C
Tray Assembly,drawer L-G-AJP73194901
...
248E
Decor,tray L-G-3806JJ1051A
...
248F
Decor,tray L-G-3806JL2011D

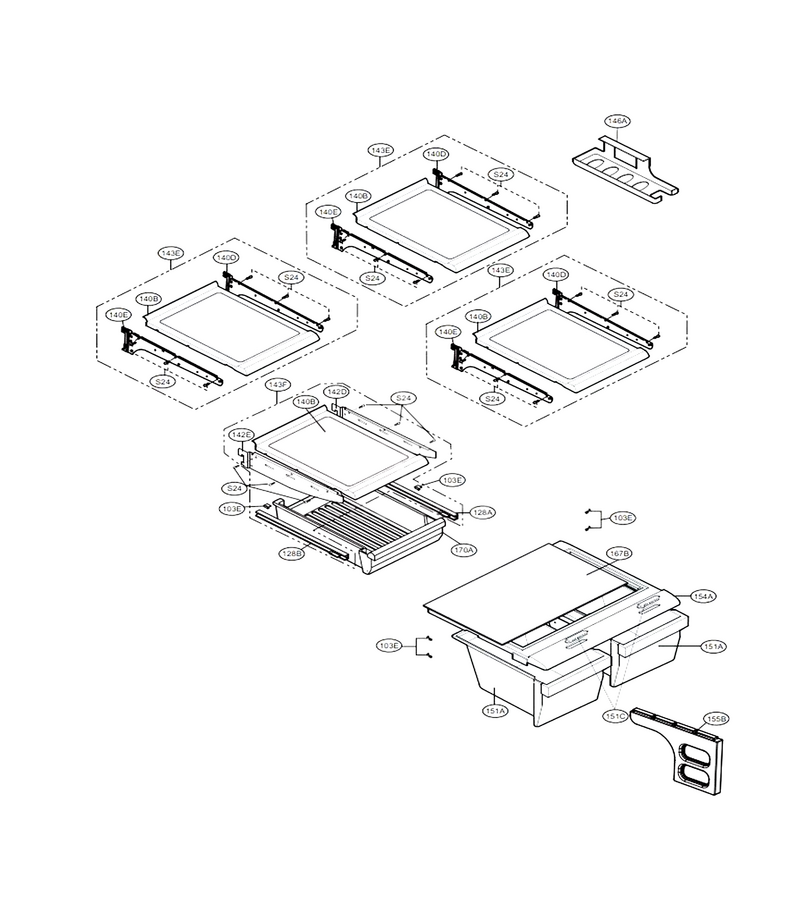

Refrigerator Parts

...
...
S24
Refrigerator Screw L-G-1SZZJA3011B
...
103E
Refrigerator Drawer Slide Rail L-G-5218JJ3001A
...
128A
Refrigerator Deli Drawer Slide Rail L-G-4975JJ2002A
...
128B
Refrigerator Drawer Slide Rail And Cover Assembly L-G-4975JJ2002B
...
140B
Shelf Assembly,refrigerator L-G-5027JJ1037G
...
140D
Refrigerator Shelf Net L-G-MHL38615403
...
140E
Refrigerator Shelf Net L-G-MHL38615404
...
142D
Refrigerator Meat Shelf Support, Right L-G-5026JJ2001L
...
142E
Refrigerator Meat Shelf Support, Left L-G-5026JJ2001M
...
143E
Shelf Assembly,refrigerator L-G-AHT72996108
...
143F
Shelf Assembly,refrigerator L-G-AHT72996105
...
146A
Refrigerator Storage L-G-5047JJ1001A
...
151A
Refrigerator Crisper Drawer L-G-3390JJ1032A
...
151C
Refrigerator Crisper Drawer Humidity Control Knob L-G-4940JJ2003C
...
154A
Refrigerator Drawer Cover L-G-3550JL2001L
...
155B
Refrigerator Crisper Drawer Cover Support L-G-4980JJ1016A
...
167B
Refrigerator Deli Drawer L-G-3391JJ2004G
...
170A
Refrigerator Deli Drawer L-G-3391JJ2004G

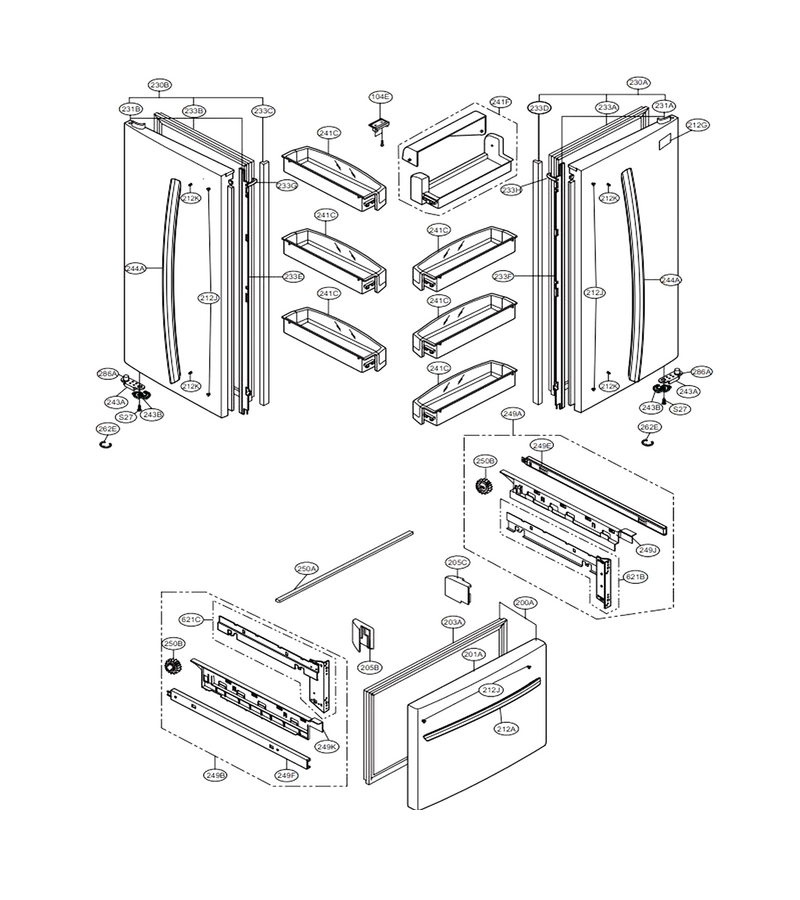

Door Parts

...
...
S27
Refrigerator Freezer Door Stop Screw L-G-4J01424C
...
104E
Refrigerator Door Gasket Retainer L-G-4931JJ3002A
...
200A
Door Assembly,freezer L-G-3581JJ8720R
...
201A
Door Foam Assembly,freezer L-G-5433JJ0059X
...
203A
Gasket Assembly,door L-G-ADX73350902
...
205B
Cap,cover L-G-5006JJ2014A
...
205C
Cap,cover L-G-5006JJ2014B
...
212A
Handle Assembly,freezer L-G-AED37133128
...
212G
Refrigerator Nameplate L-G-3846JD1007G
...
212J
Refrigerator Door Handle Mounting Bolt L-G-4620JJ2010C
...
212K
Refrigerator Handle Mount Set Screw L-G-FAB30138101
...
230A
Door Assembly,refrigerator(right) L-G-ADC73027508
...
230B
Door Assembly,refrigerator(left) L-G-ADC33235208
...
231A
Door Foam Assembly,refrigerator L-G-ADD72977908
...
231B
Door Foam Assembly,refrigerator L-G-ADD32184907
...
233A
Gasket Assembly,door L-G-4987JJ2003K
...
233B
Gasket Assembly,door L-G-4987JJ2003M
...
233C
Cover Assembly,front L-G-ACQ67902603
...
233D
Cover Assembly,front L-G-ACQ67902604
...
233E
Holder,gasket L-G-4930JJ2028F
...
233F
Holder,gasket L-G-4930JJ2028E
...
233G
Cam,shaft L-G-4430JJ2005B
...
233H
Cam,shaft L-G-4430JJ2005A
...
241C
Basket Assembly,door L-G-5005JJ2022B
...
241F
Basket Assembly,door L-G-5005JJ2021H
...
243A
Refrigerator Door Stop L-G-4620JJ3006C
...
243B
Refrigerator Door Stop L-G-4620JJ2009A
...
244A
Refrigerator Door Handle Assembly L-G-AED37082930
...
249A
Connector Assembly L-G-5098JJ1002F
...
249B
Connector Assembly L-G-5098JJ1002E
...
249J
Cover,connector L-G-3550JJ1111A
...
249K
Cover,connector L-G-3550JJ1111B
...
250A
Bar L-G-4270JJ3001F
...
250B
Refrigerator Freezer Drawer Gear L-G-4403JJ3001A
...
262E
Refrigerator Door Hinge Bushing L-G-4984JJ3003A
...
286A
Refrigerator Door Hinge Bushing L-G-4984JJ3003A
...
621B
Connector,rail L-G-MCD36888904
...
621C
Connector,rail L-G-MCD36888903

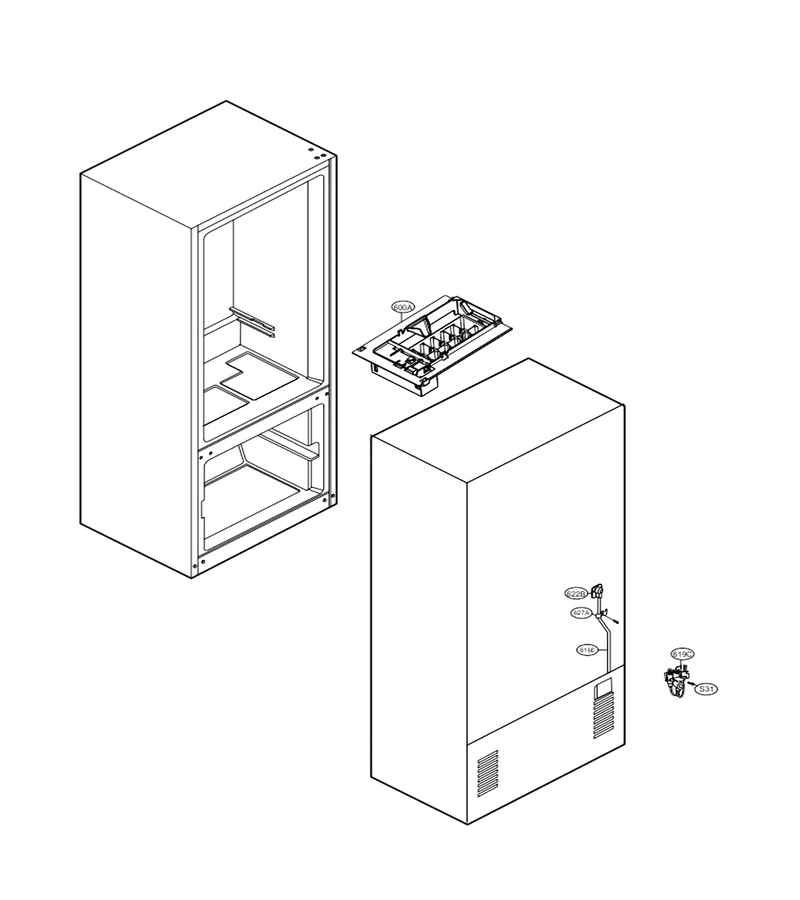

Water & Icemaker Parts

...
...
S31
Special Screw(earth) D4.0 L10 L-G-4000W4A003A
...
600A
Ice Maker Assembly,kit L-G-AEQ72909602
...
616E
Tube Assembly,inject L-G-AJR73342301
...
619C
Valve Assembly,water L-G-AJU55759303
...
622B
Refrigerator Ice Maker Water Fill Tube Grommet L-G-5006JJ2009A
...
627A
Refrigerator Clamp L-G-4930JA3054A
