LG LFC20760SB.AWB2LGY

Model: LFC20760SB.AWB2LGY

Save Part Not Listed?
product name

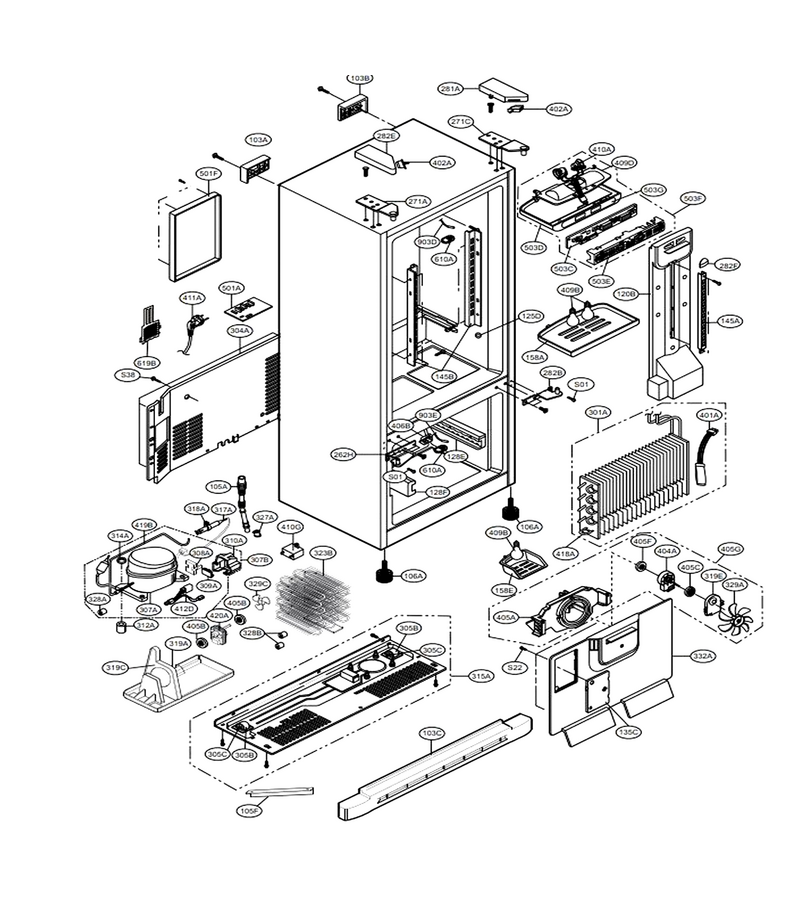

Case Parts

...
...
S01
Refrigerator Screw L-G-1SZZJJ3010A
...
S22
Refrigerator Screw L-G-J471-00001J
...
103A
Refrigerator Door Handle L-G-3650JJ2003M
...
103B
Refrigerator Handle L-G-3650JJ2003L
...
103C
Refrigerator Toe Grille L-G-3550JJ0005C
...
105A
Refrigerator Drain Tube L-G-5251JA3003B
...
105F
Refrigerator Skirt L-G-5070JJ3002A
...
106A
Refrigerator Washer L-G-4J00382C
...
120B
Refrigerator Air Duct L-G-5209JJ1002A
...
125D
Refrigerator Shelf Bracket Holder L-G-4930JJ3007A
...
128E
Holder,rail L-G-MEG54557902
...
128F
Holder,rail L-G-MEG54557901
...
135C
Refrigerator Fan Cover L-G-3550JJ2030A
...
145A
Refrigerator Shutter Knob L-G-4930JJ2003A
...
145B
Refrigerator Shelf Holder L-G-4930JJ2004A
...
158A
Refrigerator Lamp Cover L-G-3550JJ1040A
...
158E
Refrigerator Light Cover L-G-MCK30060901
...
262H
Refrigerator Door Hinge, Center (black) L-G-4775JJ2019D
...
271A
Refrigerator Door Hinge L-G-4775JJ2018B
...
271C
Refrigerator Door Hinge L-G-4775JJ2018A
...
281A
Refrigerator Door Hinge Cover, Right L-G-3551JJ1018B
...
282B
Refrigerator Door Hinge L-G-4775JJ2019C
...
282E
Refrigerator Door Hinge Cover, Left L-G-3551JJ1018E
...
301A
Refrigerator Evaporator L-G-5421JJ1001A
...
304A
Refrigerator Cover Assembly, Rear L-G-3551JJ2008A
...
305B
Refrigerator Roller L-G-4580JJ3001A
...
305C
Refrigerator Roller Wheel Pin L-G-4J04238A
...
307A
Refrigerator Compressor L-G-TCA32196201
...
307B
Refrigerator Compressor L-G-ACF67062306
...
308A
Refrigerator Condenser Wire L-G-EBG32606502
...
309A
Refrigerator Compressor Overload Protector L-G-6750C-0005P
...
310A
Refrigerator Compressor Start Relay Cover L-G-3550JA2042C
...
312A
Refrigerator Compressor Grommet L-G-5040JA3031A
...
314A
Refrigerator Stopper L-G-4620JA3009A
...
315A
Refrigerator Complete Base L-G-3103JJ1001K
...
317A
Refrigerator Filter Dryer L-G-5851JA2007E
...
318A
Refrigerator Drain Pan L-G-3390JJ0004A
...
319A
Refrigerator Drain Pan L-G-3390JJ0004A
...
319C
Refrigerator Fan Guide L-G-MEA41997401
...
319E
Refrigerator Evaporator Fan Motor Bracket L-G-4810JJ2005A
...
323B
Refrigerator Condenser Wire L-G-5403JJ1008A
...
327A
Refrigerator Drain Tube Cap L-G-5006JA3034A
...
328A
Refrigerator Condenser Fan Motor Damper L-G-4J03020A
...
328B
Rubber, Damping L-G-4J04328A
...
329A
Refrigerator Evaporator Fan Blade L-G-5901JJ1005A
...
329C
Refrigerator Condenser Fan Blade L-G-ADP36665702
...
332A
Refrigerator Fan Grille Assembly L-G-3531JJ1004B
...
401A
Refrigerator Defrost Sensor Assembly L-G-6615JB2005C
...
402A
Refrigerator Light Switch L-G-6600JB3007E
...
404A
Refrigerator Evaporator Fan Motor Bracket L-G-4811JJ2002A
...
405A
Refrigerator Evaporator Fan Motor Bracket L-G-4811JJ2002A
...
405B
Refrigerator Fan Motor Grommet L-G-5040JJ2001A
...
405C
Refrigerator Motor Support Damper L-G-5040JA2009B
...
405F
Refrigerator Motor Support Damper L-G-5040JA2004B
...
405G
Refrigerator Evaporator Fan Motor And Bracket A... L-G-4811JJ2002H
...
406B
Refrigerator Door Switch L-G-6600JB1010A
...
409B
Refrigerator Light Bulb L-G-6912JK2002E
...
409D
Refrigerator Light Socket L-G-6621JK2003B
...
410A
Refrigerator Light Socket L-G-6621JK2002D
...
410G
Refrigerator Run Capacitor L-G-0CZZJB2012J
...
411A
Refrigerator Run Capacitor L-G-0CZZJB2014L
...
412D
Refrigerator Wire Harness L-G-6877JK2011A
...
418A
Refrigerator Heater L-G-5300JB1100D
...
419B
Pipe Joint L-G-5200JJ3003E
...
420A
Refrigerator Condenser Fan Motor L-G-4681JB1029J
...
501A
Pcb Assembly,main L-G-EBR41531301
...
501F
Refrigerator Electronic Control Board Housing L-G-3551JJ1020A
...
503C
Refrigerator Display Board And Control Box Asse... L-G-6871JB2047A
...
503D
Refrigerator Dispenser Display Assembly L-G-3110JJ1005A
...
503E
Refrigerator Display Control Board Cover L-G-3550JJ2031A
...
503F
Refrigerator Display Case L-G-ABQ33905312
...
503G
Refrigerator Control Panel Overlay L-G-3806JL1049A
...
610A
Refrigerator Temperature Sensor Cover L-G-3550JJ2020A
...
619B
Refrigerator Water Inlet Valve Cover L-G-3550JJ2024A
...
903D
Refrigerator Temperature Sensor Cover L-G-6500JK1003A
...
903E
Refrigerator Temperature Sensor L-G-6500JK1004A

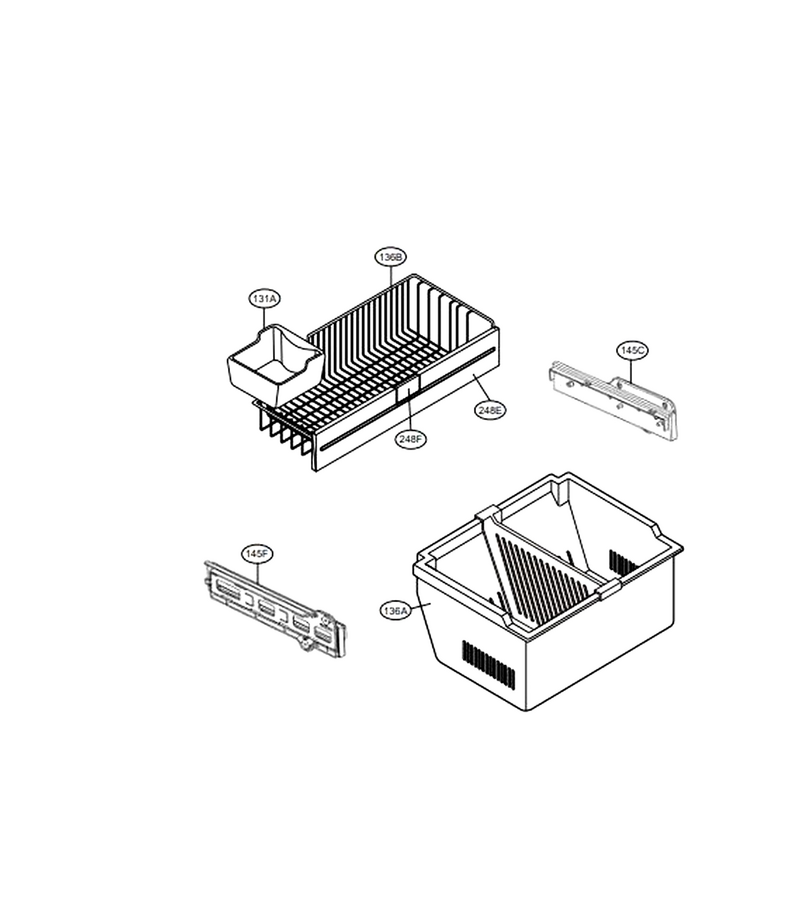

Freezer Parts

...
...
131A
Bucket,ice L-G-5074JJ1055A
...
136A
Tray,drawer L-G-3390JJ1095B
...
136B
Tray,drawer L-G-3390JJ1095A
...
145C
Guide Assembly,rail L-G-4975JJ2028C
...
145F
Guide Assembly,rail L-G-4975JJ2028D
...
248E
Decor,tray L-G-3806JJ1051A
...
248F
Decor,tray L-G-3806JL2011A

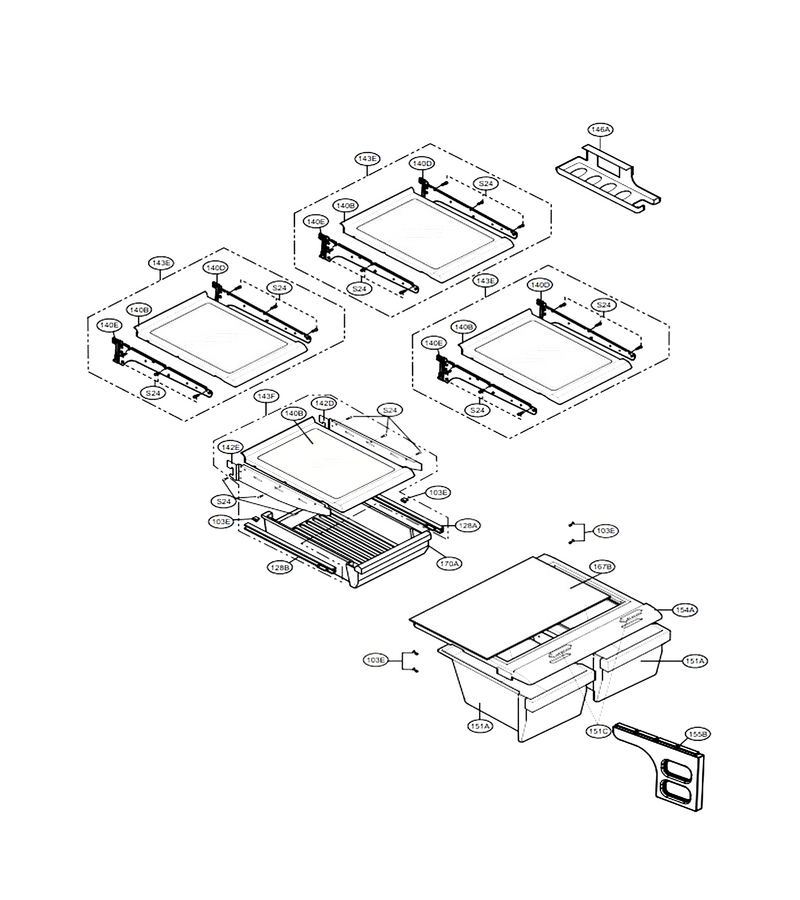

Refrigerator Parts

...
...
S24
Refrigerator Screw L-G-1SZZJA3011B
...
103E
Refrigerator Drawer Slide Rail L-G-5218JJ3001A
...
128A
Refrigerator Deli Drawer Slide Rail L-G-4975JJ2002A
...
128B
Shelf Assembly,refrigerator L-G-5027JJ1037B
...
140B
Shelf Assembly,refrigerator L-G-5027JJ1037B
...
140D
Refrigerator Shelf Net L-G-MHL38615403
...
140E
Refrigerator Shelf Net L-G-MHL38615404
...
142D
Refrigerator Meat Shelf Support, Right L-G-5026JJ2001L
...
142E
Refrigerator Meat Shelf Support, Left L-G-5026JJ2001M
...
143E
Shelf Assembly,refrigerator L-G-5027JJ1008L
...
143F
Shelf Assembly,refrigerator L-G-5027JJ1008G
...
146A
Refrigerator Storage L-G-5047JJ1001A
...
151A
Refrigerator Crisper Drawer L-G-3390JJ1032A
...
151C
Refrigerator Crisper Drawer Humidity Control Knob L-G-4940JJ2003C
...
154A
Refrigerator Drawer Cover L-G-3550JL2001L
...
155B
Supporter,cover Tv L-G-MJH62074601
...
167B
Refrigerator Glass Shelf L-G-4890JL1002M
...
170A
Refrigerator Deli Drawer L-G-3391JJ2004G

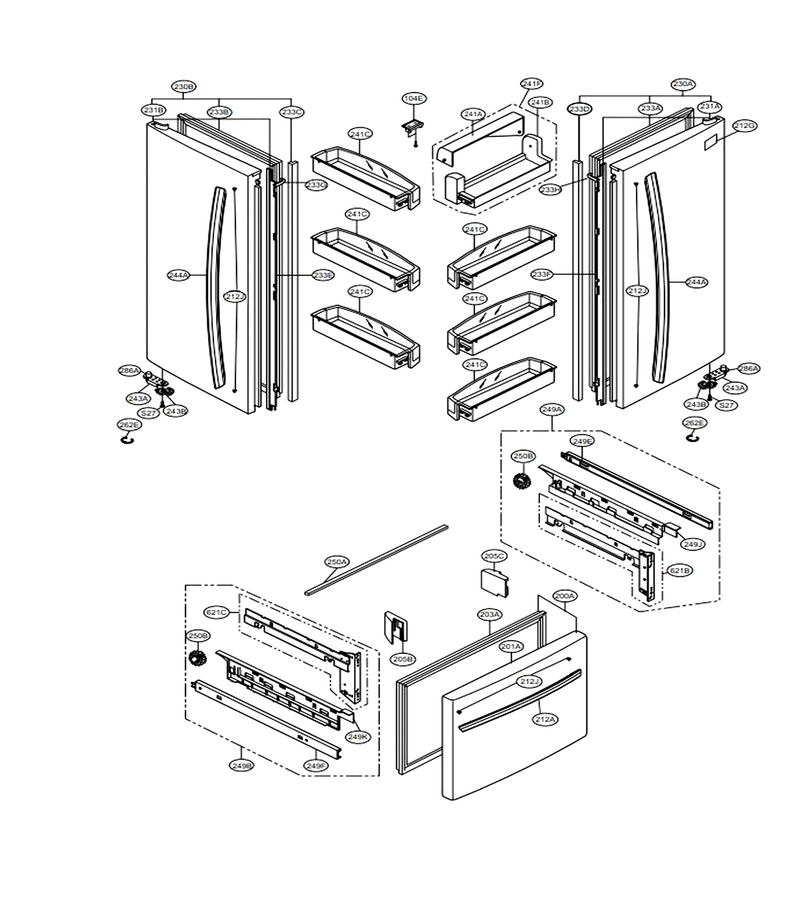

Door Parts

...
...
S27
Refrigerator Freezer Door Stop Screw L-G-4J01424C
...
104E
Refrigerator Door Gasket Retainer L-G-4931JJ3002A
...
200A
Door Assembly,freezer L-G-3581JJ8720R
...
201A
Door Foam Assembly,freezer L-G-5433JJ0059X
...
203A
Refrigerator Freezer Door Gasket L-G-ADX52752606
...
205B
Cap,cover L-G-5006JJ2014A
...
205C
Cap,cover L-G-5006JJ2014B
...
212A
Refrigerator Nameplate L-G-3846JD1007G
...
212G
Refrigerator Nameplate L-G-3846JD1007G
...
212J
Refrigerator Door Handle Mounting Bolt L-G-4620JJ2010C
...
230A
Door Assembly,refrigerator(right) L-G-ADC33235307
...
230B
Door Assembly,refrigerator(left) L-G-ADC33235208
...
231A
Door Foam Assembly,refrigerator L-G-ADD32184907
...
231B
Door Foam Assembly,refrigerator L-G-ADD32184907
...
233A
Gasket Assembly,door L-G-4987JJ2003K
...
233B
Gasket Assembly,door L-G-4987JJ2003M
...
233C
Cover Assembly,front L-G-ACQ67902603
...
233D
Cover Assembly,front L-G-ACQ67902604
...
233E
Holder,gasket L-G-4930JJ2028F
...
233F
Holder,gasket L-G-4930JJ2028E
...
233G
Cam,shaft L-G-4430JJ2005B
...
233H
Cam,shaft L-G-4430JJ2005A
...
241A
Cover,tray L-G-3550JL2006D
...
241B
Bucket,dairy L-G-MKK33992902
...
241C
Basket Assembly,door L-G-5005JJ2022B
...
241F
Basket Assembly,door L-G-5005JJ2021F
...
243A
Refrigerator Door Stop L-G-4620JJ3006C
...
243B
Refrigerator Door Stop L-G-4620JJ2009A
...
244A
Refrigerator Handle Assembly L-G-AED37082902
...
249A
Connector Assembly L-G-5098JJ1002F
...
249B
Connector Assembly L-G-5098JJ1002E
...
249E
Cover,connector L-G-3550JJ1111B
...
249J
Cover,connector L-G-3550JJ1111A
...
249K
Cover,connector L-G-3550JJ1111B
...
250A
Bar L-G-4270JJ3001F
...
250B
Refrigerator Freezer Drawer Gear L-G-4403JJ3001A
...
262E
Refrigerator Door Hinge Snap Ring L-G-4350JA3005B
...
286A
Refrigerator Door Hinge Bushing L-G-4984JJ3003A
...
621B
Connector,rail L-G-MCD36888904
...
621C
Connector,rail L-G-MCD36888903

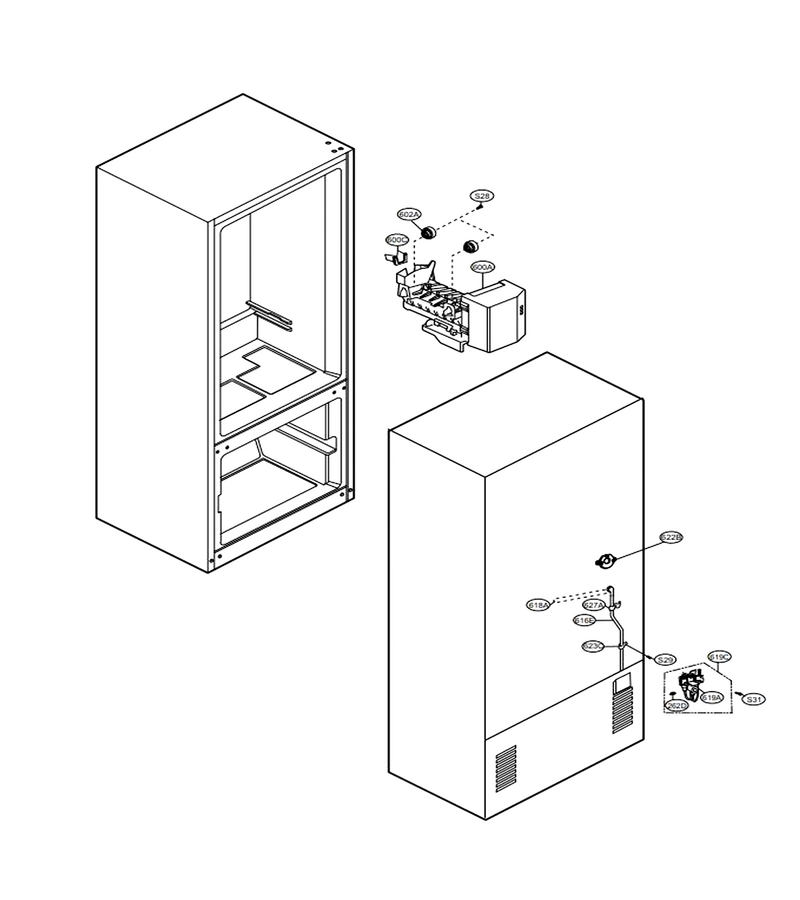

Water & Icemaker Parts

...
...
S28
Refrigerator Ice Maker Bracket Screw L-G-1SZZJJ3005E
...
S29
Refrigerator Screw L-G-4J00415D
...
S31
Special Screw(earth) D4.0 L10 L-G-4000W4A003A
...
262D
Refrigerator Water Tubing Clip L-G-4004JA3002A
...
600A
Refrigerator Ice Maker L-G-5989JA0002U
...
600C
Refrigerator Ice Maker Fill Tube L-G-MEA32865501
...
602A
Refrigerator Shelf Support L-G-4931JA3005B
...
616E
Refrigerator Injection Tube L-G-5211JA2003B
...
618A
Refrigerator Ice Maker Fill Tube L-G-5210JJ3006B
...
619A
Refrigerator Water Inlet Valve L-G-5220JA2009D
...
619C
Refrigerator Water Inlet Valve L-G-AJU55759301
...
622B
Refrigerator Water Tubing Guide L-G-MJH36429401
...
623C
Refrigerator Water Tubing Holder L-G-4770JA3001A
...
627A
Refrigerator Clamp L-G-4930JA3054A
