LG LDT5678BD.ABDESNA

Model: LDT5678BD.ABDESNA

Save Part Not Listed?

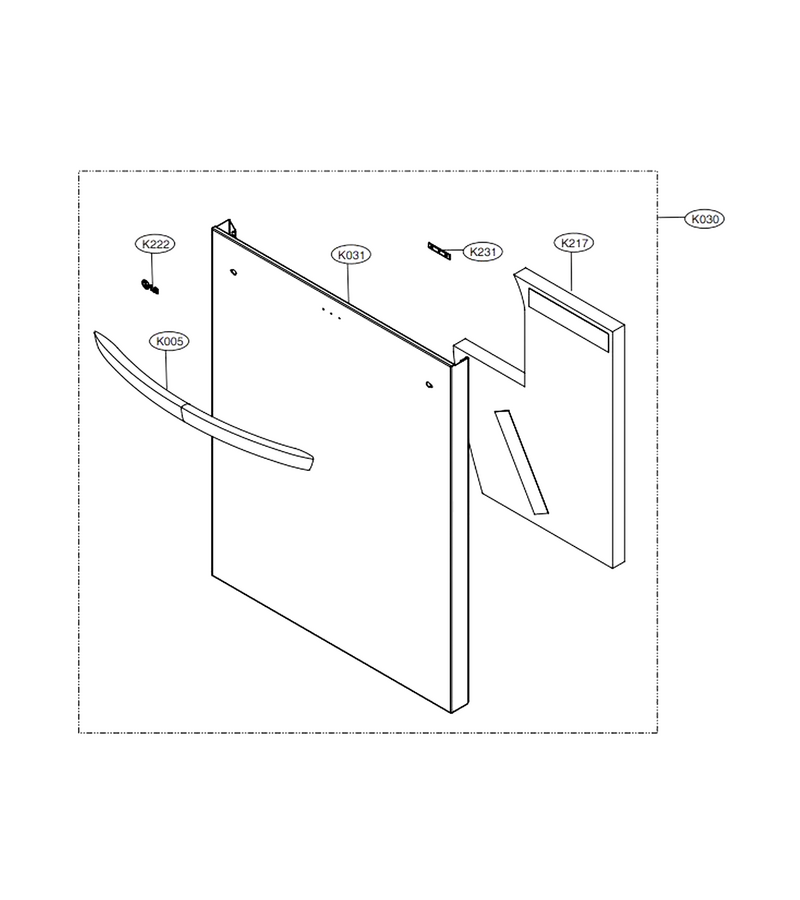

product name

Front Cover Assembly

...
...
K030
Cover Assembly,front L-G-ACQ88048202
...
K031
Parts Assembly L-G-AGM75570312
...
K217
Damper Assembly L-G-ACV74030101
...
K222
Name Plate,pet L-G-MFT62466403
...
K231
Window Assembly L-G-AJX74284901

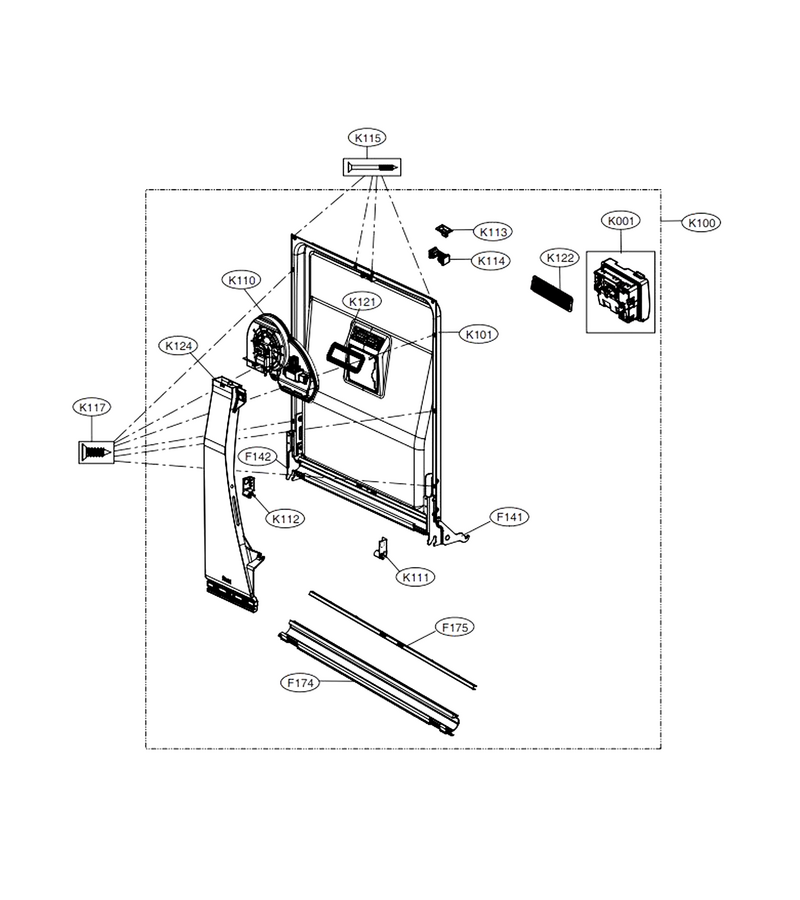

Door Liner Assembly

...
...
F141
Hinge L-G-MEF63061903
...
F142
Hinge L-G-MEF63061904
...
F174
Gasket L-G-MDS65210402
...
F175
Frame L-G-MDQ64476402
...
K001
Dishwasher Detergent Dispenser Assembly L-G-AGM75469801
...
K100
Door Liner Assembly L-G-ADE73849703
...
K101
Door Liner Assembly L-G-ADE73969703
...
K110
Vent Motor L-G-ABT73009401
...
K111
Holder L-G-MEG64439201
...
K112
Holder L-G-MEG64439202
...
K113
Locker,lock L-G-MFG63958701
...
K114
Lock Holder L-G-MEG64458801
...
K121
Gasket L-G-MDS65210501
...
K122
Dishwasher Blower Cover L-G-MCK68785601
...
K124
Duct Assembly L-G-ADJ74312101

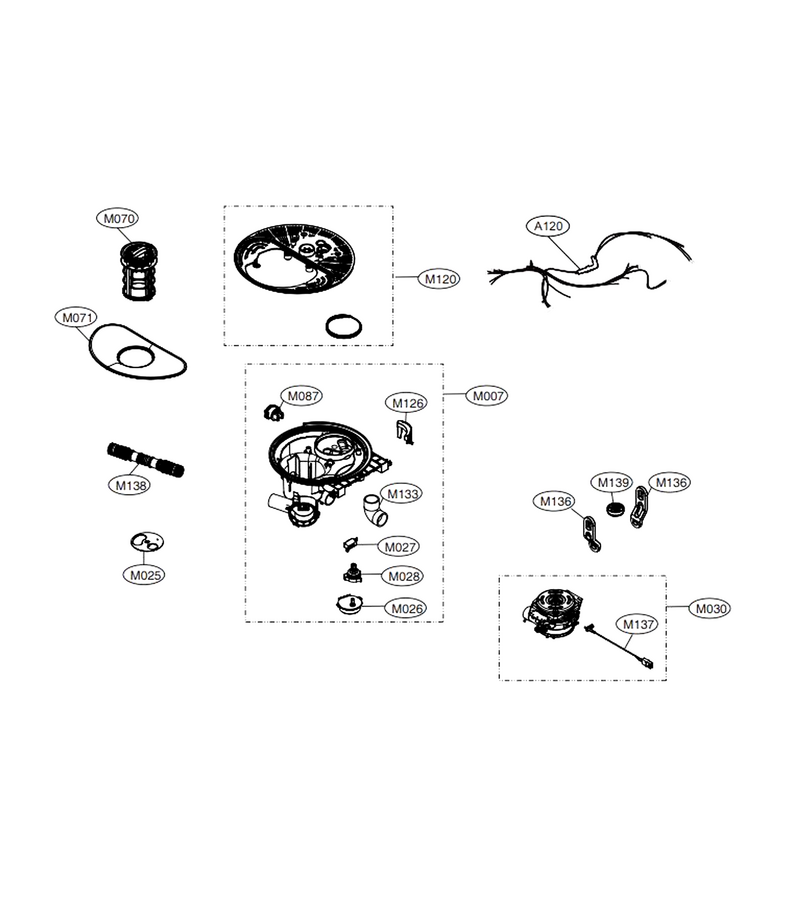

Sump Assembly

...
...
A120
Harness,multi L-G-EAD63647006
...
M007
Sump Assembly L-G-AGM75469201
...
M025
Check Valve L-G-MJX63511301
...
M026
Dishwasher Diverter Motor L-G-4681ED3001D
...
M027
Dishwasher Diverter Position Switch L-G-3W40025C
...
M028
Shaft Assembly L-G-AHR73669801
...
M030
Casing Assembly,pump L-G-ABT72989206
...
M070
Filter Assembly,mesh L-G-ADQ74693701
...
M071
Filter L-G-MDJ64544301
...
M087
Case Assembly L-G-ABQ75742401
...
M120
Cover Assembly L-G-ACQ88920601
...
M126
Water Guide L-G-MEA64230001
...
M133
Hose Connector L-G-MEJ63424701
...
M136
Holder L-G-MEG64398801
...
M137
Connector Assembly L-G-ACJ74110101
...
M138
Drain Hose Assembly L-G-AEM74512901
...
M139
Holder L-G-MEG64398901

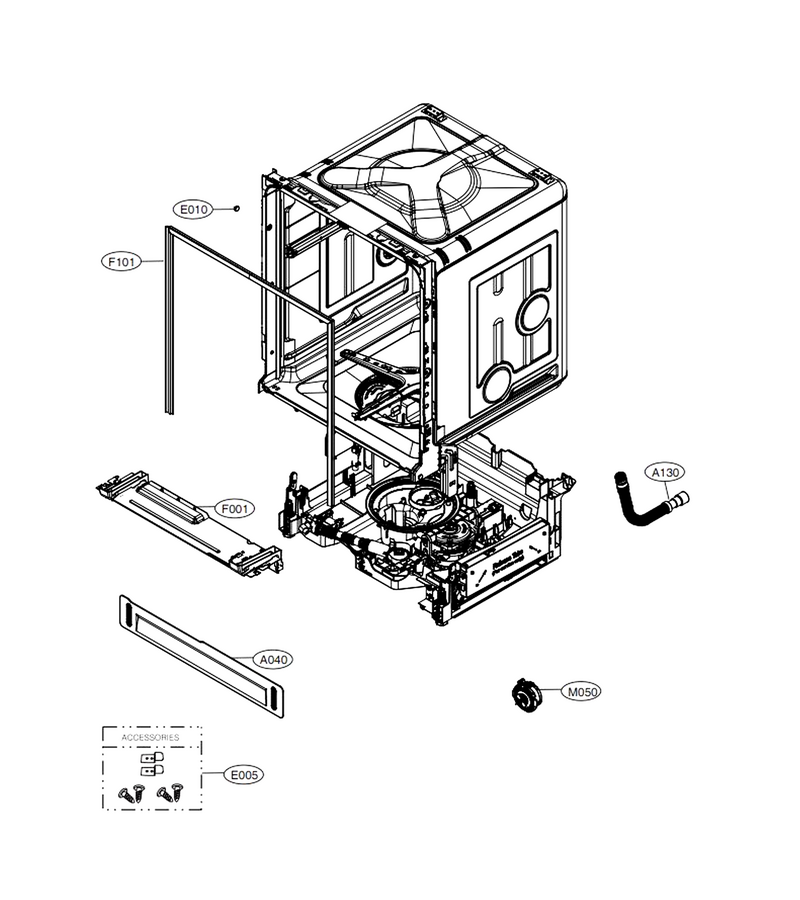

Main

...
...
A040
Cover Assembly,lower L-G-ACQ90777001
...
A130
Hose Assembly L-G-AEM74333101
...
E005
Assembly Accessory L-G-5001DD4001C
...
E010
Bush L-G-4830ED4001B
...
F001
Lower Frame L-G-MDQ64457601
...
F101
Packing L-G-3920DD3002D
...
M050
Case Assembly L-G-ABQ75742501

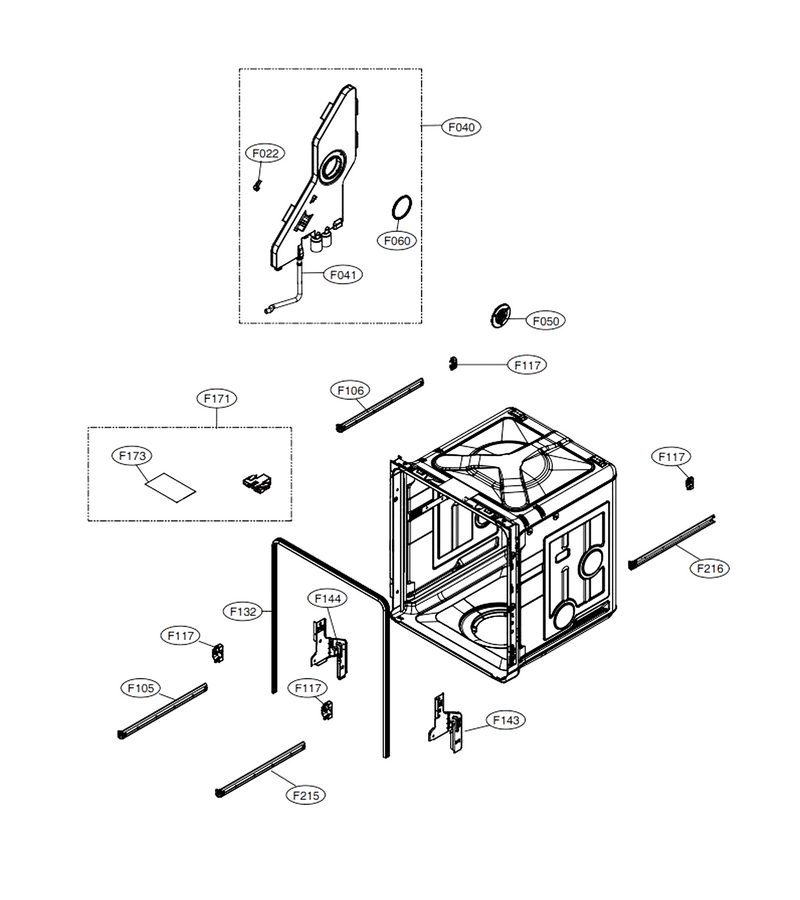

Tub Assembly

...
...
F022
Sensor Assembly L-G-EBD62065301
...
F040
Air Assembly L-G-AEC74337401
...
F041
Inlet Hose L-G-MEJ63444901
...
F050
Cap Cover L-G-MBL66496901
...
F060
Gasket L-G-MDS65210201
...
F105
Rail Assembly L-G-5219DD2002E
...
F106
Parts Assembly L-G-AGM75550001
...
F117
Stopper,roller L-G-4620ED3001C
...
F132
Tub Seal L-G-3920DD3005D
...
F143
Supporter,hinge L-G-MJH63533303
...
F144
Supporter,hinge L-G-MJH63533304
...
F171
Parts Assembly L-G-AGM76209501
...
F173
Cover,safety L-G-MCK69283003
...
F215
Rail Assembly L-G-5219DD2001E
...
F216
Parts Assembly L-G-AGM75549901

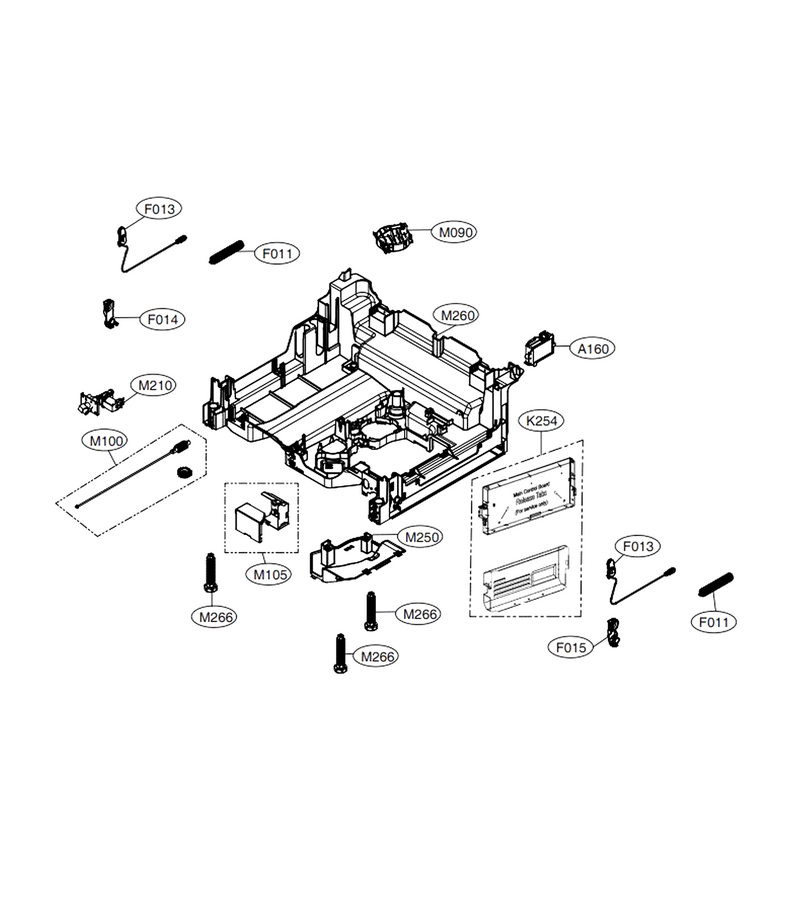

Base Assembly

...
...
A160
Filter Assembly L-G-EAM60991316
...
F011
Spring,hinge L-G-MHY63963803
...
F013
Connector Assembly L-G-ACJ73790102
...
F014
Roller L-G-MHA63252802
...
F015
Roller L-G-MHA63252801
...
K254
Parts Assembly L-G-AGM76429506
...
M090
Dishwasher Flood Switch L-G-6601ER2001A
...
M100
Parts Assembly L-G-AGM75510001
...
M105
Dishwasher Terminal Block Cover L-G-AGM72573101
...
M210
Dishwasher Water Inlet Valve L-G-5221DD1001E
...
M250
Cabinet Base L-G-MAM63444201
...
M260
Base,cabinet L-G-MAM63444102

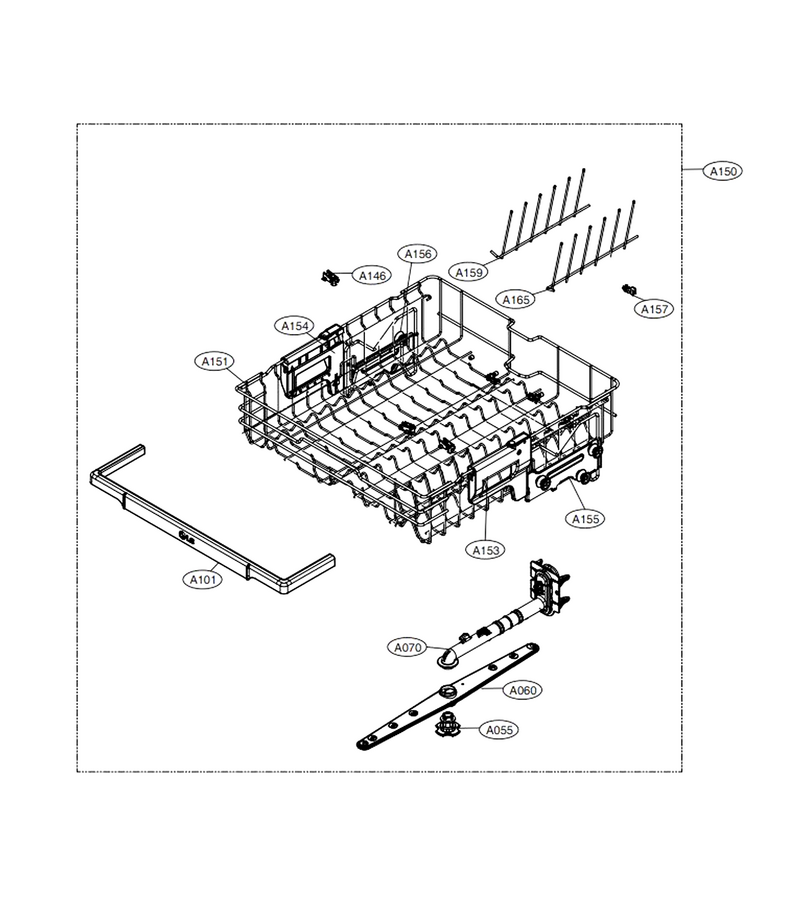

Upper Rack Assembly

...
...
A060
Nozzle Assembly L-G-5249DD1001D
...
A101
Handle L-G-MEB63694606
...
A146
Holder L-G-MEG64438801
...
A150
Rack Assembly L-G-AHB73249225
...
A151
Rack L-G-MGR62762103
...
A153
Parts Assembly L-G-AGM75509501
...
A154
Parts Assembly L-G-AGM75509601
...
A155
Roller Assembly L-G-AHJ73610001
...
A156
Roller Assembly L-G-AHJ73609901
...
A157
Holder L-G-MEG64438902
...
A159
Rack L-G-MGR62762701
...
A165
Rack L-G-MGR62762702

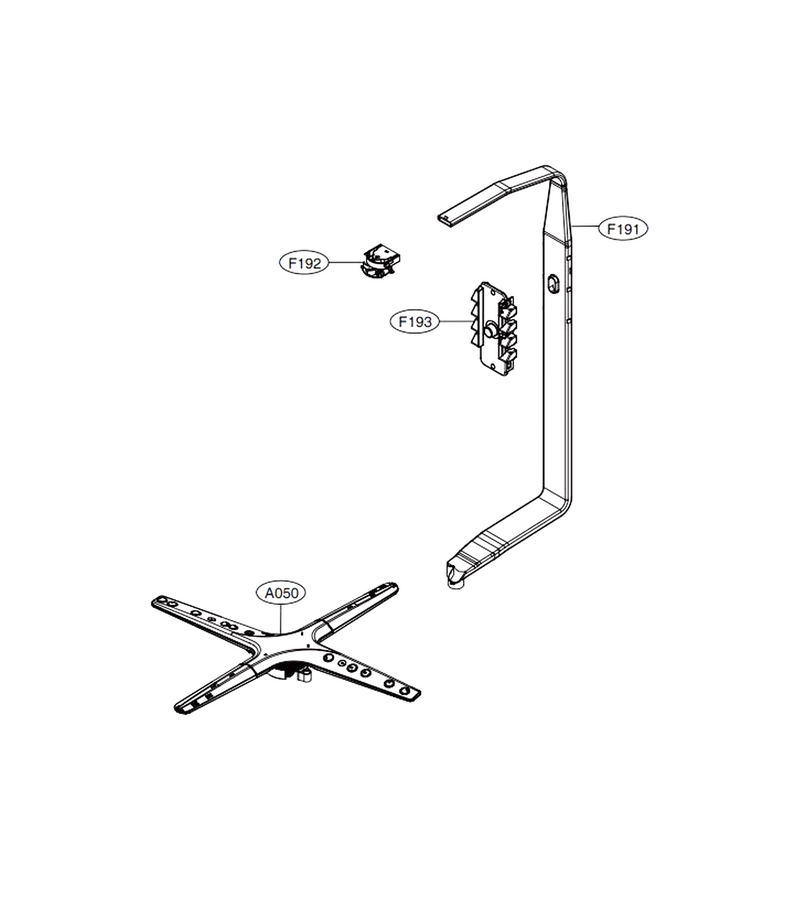

Water Guide Assembly

...
...
A050
Nozzle Assembly L-G-AGB73932401
...
F191
Water Guide L-G-MEA64210201
...
F192
Nozzle Assembly L-G-AGB73912401
...
F193
Holder L-G-MEG64418901

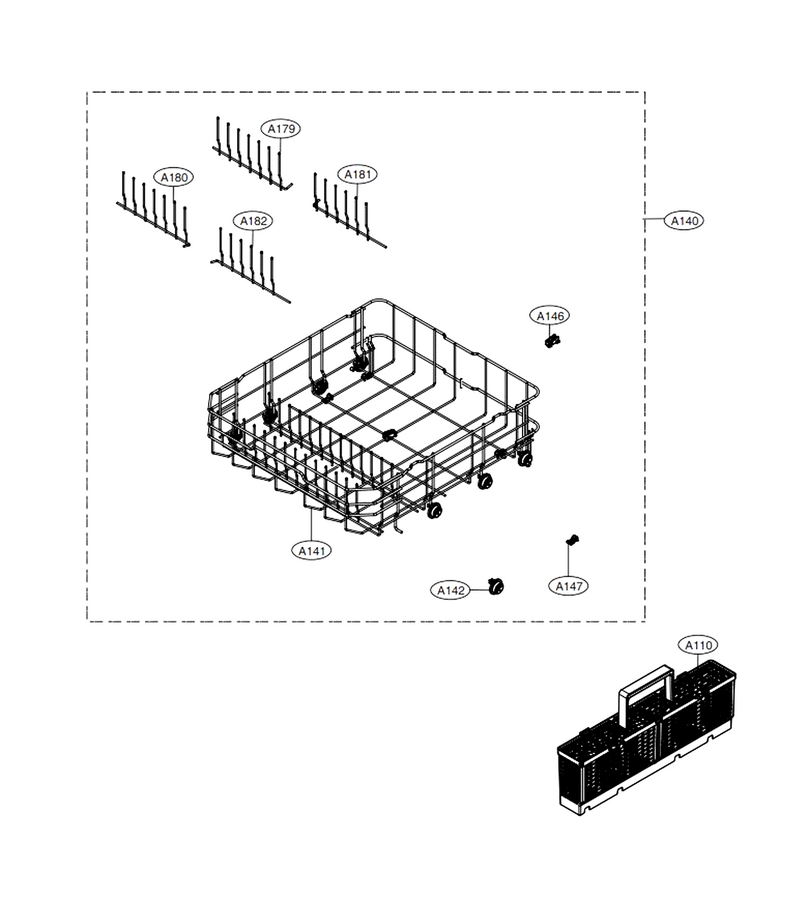

Lower Rack Assembly

...
...
A110
Basket Assembly,spoon L-G-AAP74471301
...
A141
Rack L-G-MGR62762002
...
A142
Roller Assembly L-G-4581DD3003C
...
A146
Holder L-G-MEG64438801
...
A147
Holder L-G-MEG64438901
...
A181
Rack L-G-MGR62762503
...
A182
Rack L-G-MGR62762504

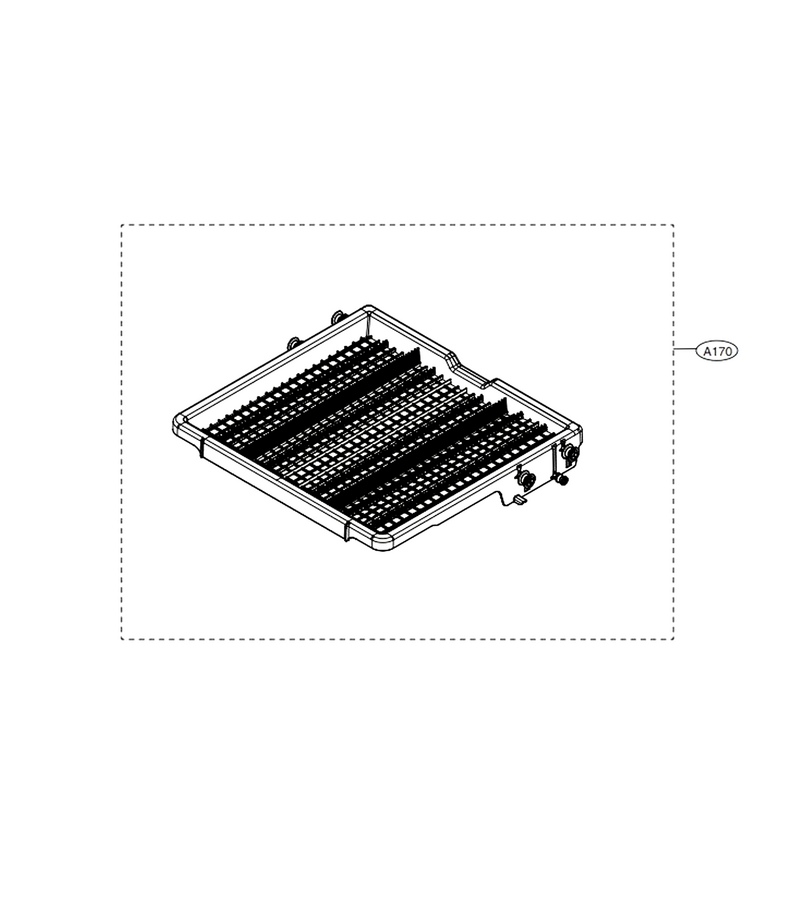

3rd Rack Assembly

...
...
A170
Rack Assembly L-G-AHB73249246

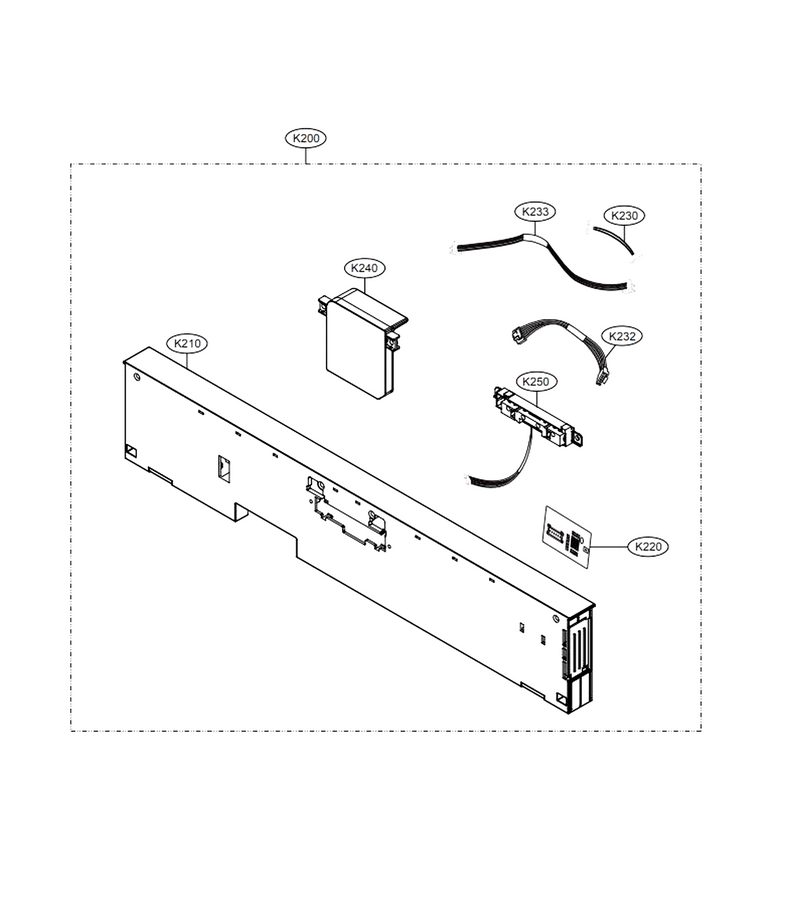

Panel Assembly

...
...
K210
Parts Assembly L-G-AGM75469902
...
K220
Pcb Assembly,module L-G-EBR82056913
...
K230
Harness,single L-G-EAD63707507
...
K232
Harness,single L-G-EAD63707508
...
K233
Harness,single L-G-EAD63707510
...
K240
Pcb Assembly,display L-G-EBR85054303
...
K250
Pcb Assembly,sub L-G-EBR33469708
