LG LDS5040WW.ABWEECI

Model: LDS5040WW.ABWEECI

Save Part Not Listed?
product name

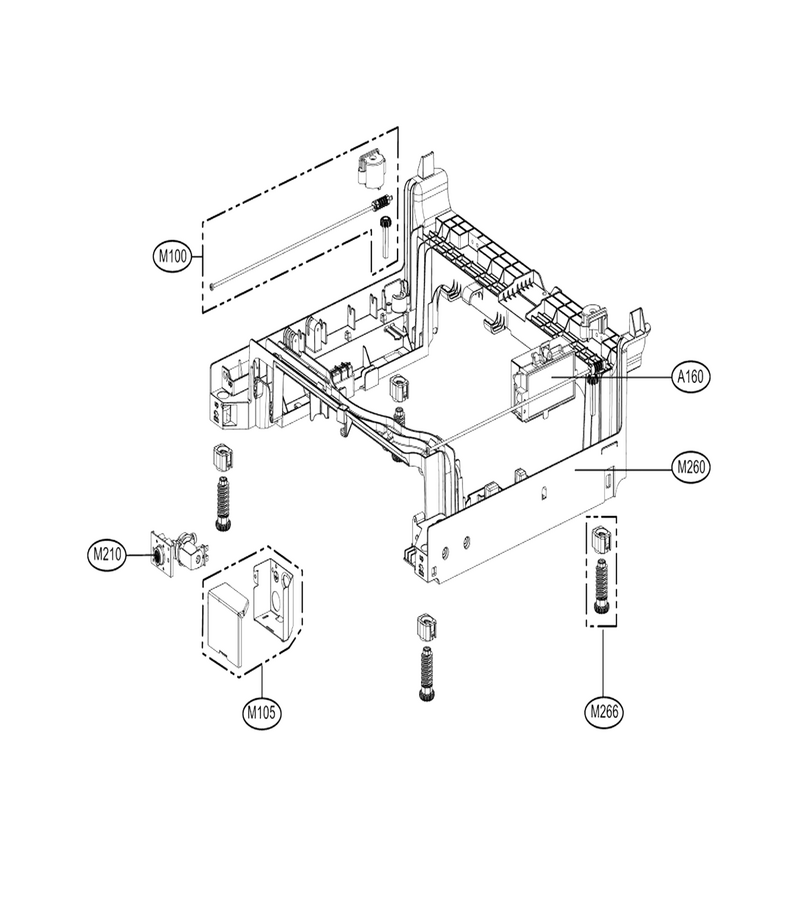

Base Assembly

...
...
A160
Dishwasher Noise Filter L-G-6201EC1006T
...
M100
Dishwasher Leveling Leg Adjuster Kit L-G-AGM72461801
...
M105
Dishwasher Terminal Block Cover L-G-AGM72573101
...
M260
Cabinet Base L-G-MAM62044802

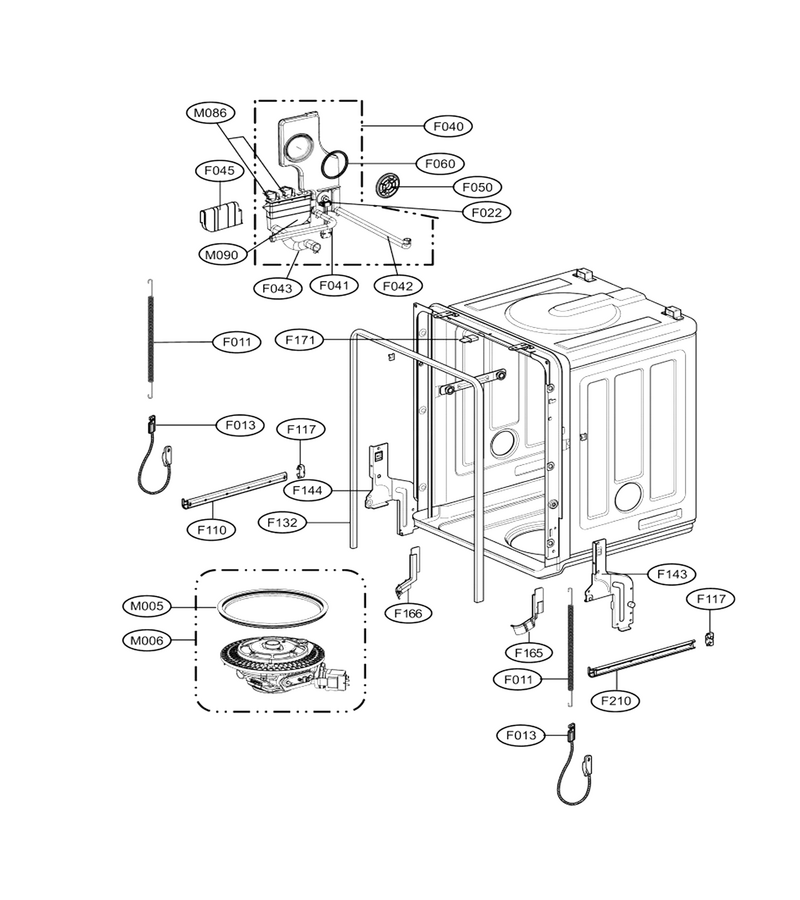

Tub Assembly

...
...
F011
Dishwasher Door Spring L-G-4970ED4004D
...
F013
Dishwasher Door Cable L-G-4933DD3001B
...
F022
Dishwasher Flow Sensor L-G-6501DD2001A
...
F040
Dishwasher Water Inlet Guide Assembly L-G-4975DD1001A
...
F041
Inlet Hose L-G-5214DD3001A
...
F042
Dishwasher Water Inlet Tubing L-G-5214DD3003A
...
F043
Dishwasher Overfill Connecting Hose L-G-5214DD3002A
...
F045
Cover L-G-3550DD2001A
...
F050
Dishwasher Water Inlet Port Nut L-G-4020FD3641C
...
F060
Dishwasher Fill Funnel Gasket L-G-4986DD3001A
...
F110
Rail Assembly L-G-5219DD2002A
...
F117
Stopper L-G-4620ED3001A
...
F132
Dishwasher Tub Gasket L-G-3920DD3005A
...
F143
Dishwasher Door Hinge, Right L-G-4775ED3004A
...
F144
Dishwasher Door Hinge Support Bracket, Left L-G-4775ED3003A
...
F165
Protect Cover L-G-3550DD3003A
...
F166
Protect Cover L-G-3550DD3004A
...
F171
Dishwasher Door Latch Lock L-G-4026DD3001A
...
F210
Rail Assembly L-G-5219DD2001A
...
M005
Dishwasher Sump Gasket L-G-MDS58387601
...
M006
Dishwasher Circulation Pump L-G-AJH31248608
...
M086
Dishwasher Micro Switch L-G-3W40025P
...
M090
Dishwasher Float Assembly L-G-4769DD2001A

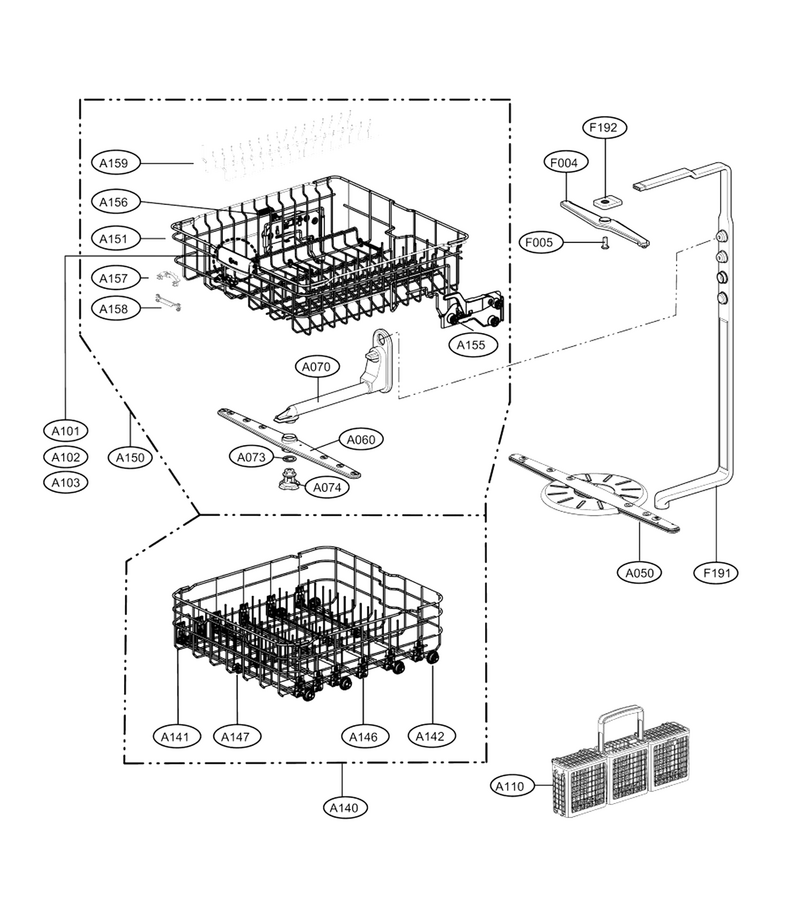

Rack Assembly

...
...
A050
Dishwasher Spray Arm Assembly, Lower L-G-AGB32598301
...
A060
Nozzle Assembly L-G-5249DD1001B
...
A070
Dishwasher Middle Spray Arm Manifold L-G-4975DD1002A
...
A073
Washer L-G-1WZZDD3001A
...
A074
Shaft L-G-4370ED3007A
...
A101
Handle L-G-MEB38945801
...
A102
Handle L-G-MEB38945901
...
A103
Handle L-G-MEB38946001
...
A110
Dishwasher Silverware Basket L-G-5005DD1001B
...
A140
Dishwasher Dishrack, Lower L-G-3751DD1001C
...
A141
Dishwasher Dishrack, Lower L-G-MGR47998602
...
A142
Dishwasher Dishrack Roller, Lower L-G-4581DD3003B
...
A146
Holder L-G-MEG62279201
...
A147
Holder L-G-MEG62279301
...
A150
Rack Assembly L-G-AHB32983762
...
A151
Rack L-G-3750ED1005E
...
A155
Dishwasher Guide Assembly L-G-4975ED2005B
...
A156
Dishwasher Guide Assembly L-G-4975ED2004B
...
A157
Holder L-G-4930DD3003A
...
A158
Dishwasher Tine Row Retainer, Upper L-G-4930DD3005A
...
A159
Dishwasher Rack L-G-3750DD2002B
...
F004
Dishwasher Water Feed Tube Spinner L-G-5249DD2001A
...
F005
Dishwasher Upper Spray Arm Pivot Shaft L-G-4370ED3006A
...
F191
Water Guide L-G-MEA36937101
...
F192
Dishwasher Guide L-G-4974DD3001A

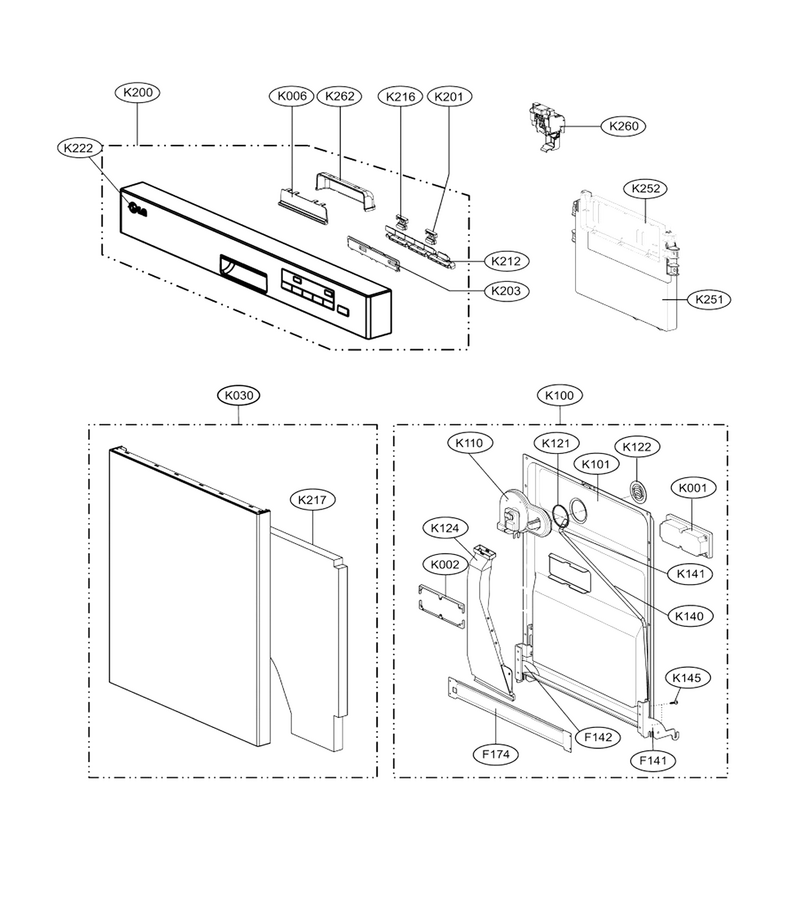

Panel Door Assembly

...
...
F141
Hinge Assembly L-G-AEH73796902
...
F142
Hinge Assembly L-G-AEH73796901
...
F174
Dishwasher Door Hinge Support Bracket L-G-4810DD1001A
...
K001
Dishwasher Dispenser Assembly L-G-MCU61861001
...
K002
Bracket Assembly L-G-ABA74108701
...
K006
Decorative Handle L-G-MCR42565801
...
K030
Cover Assembly,front L-G-ACQ36969704
...
K100
Door Liner Assembly L-G-4937DD1001N
...
K101
Parts Assembly L-G-AGM34891605
...
K110
Dishwasher Door Vent Blower Motor Assembly L-G-ABT35083801
...
K121
Dishwasher Door Vent Blower Gasket L-G-4986DD3003A
...
K122
Dishwasher Blower Cover L-G-3550ED3011B
...
K124
Dishwasher Air Vent Duct L-G-MJZ61841503
...
K140
Tube,switch L-G-5210FA3427Y
...
K141
Clamp L-G-4861FR3068M
...
K145
Screw L-G-4000FD4268A
...
K200
Panel Assembly,control L-G-AGL36868104
...
K201
Button,control L-G-MBG42564904
...
K203
Window L-G-MKC42612614
...
K212
Control Button L-G-MBG42564701
...
K216
Button,control L-G-MBG42564917
...
K217
Damper L-G-4766DD1001D
...
K222
Name Plate L-G-MFT62466402
...
K251
Pcb Assembly,main L-G-EBR73739204
...
K252
Pcb Assembly,display L-G-EBR73742804
...
K260
Dishwasher Door Lock L-G-4027ED3002J
...
K262
Handle L-G-MEB42566005

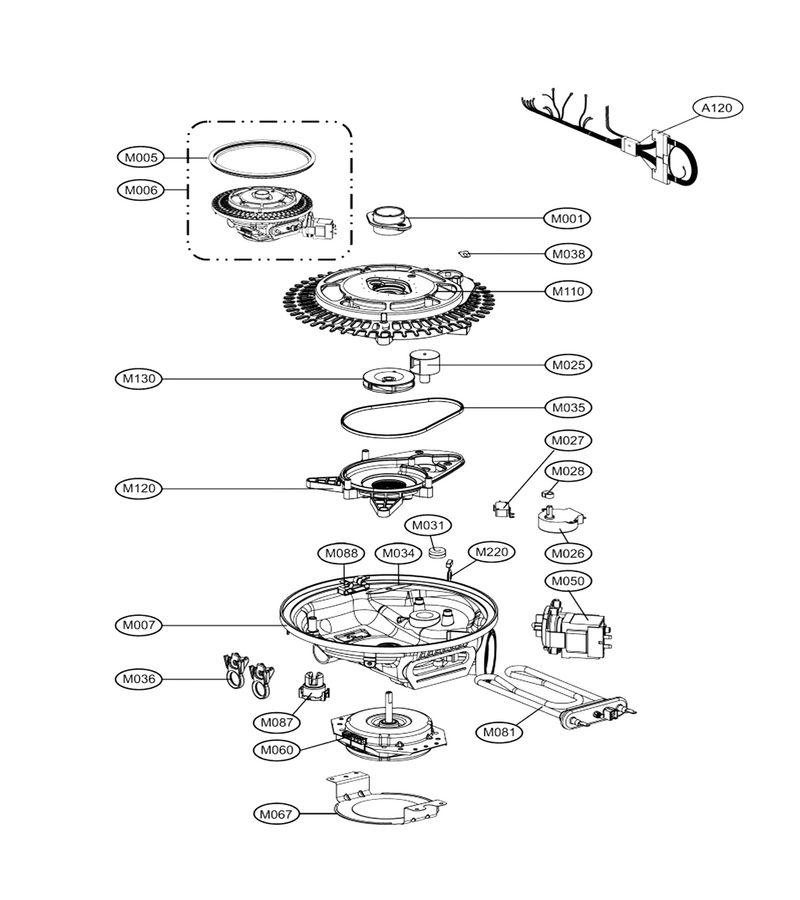

Sump Assembly

...
...
A120
Dishwasher Wire Harness L-G-EAD61906701
...
M001
Dishwasher Filter Retainer L-G-4930DD3002A
...
M007
Dishwasher Sump L-G-AJH32598001
...
M025
Dishwasher Sump Check Valve L-G-MJX32862501
...
M026
Dishwasher Diverter Motor L-G-4681ED3001D
...
M027
Dishwasher Diverter Position Switch L-G-3W40025C
...
M028
Cam Switch L-G-MBJ32856401
...
M031
Dishwasher Diverter Motor Seal L-G-3920ED4009B
...
M034
Dishwasher Chopper Blade L-G-5832DD4001B
...
M035
Dishwasher Pump Housing Seal L-G-MFZ32863101
...
M036
Dishwasher Sump Tab L-G-4930DD3008A
...
M038
Holder L-G-4930DD3012A
...
M050
Washer Wash Pump Motor L-G-4681EA2002H
...
M060
Dishwasher Pump Motor L-G-4681ED1004D
...
M067
Base Cover L-G-MCK66909101
...
M081
Dishwasher Heating Element L-G-5301DD1001G
...
M087
Sensor Assembly L-G-6501ED2002K
...
M088
Dishwasher Sump Retainer L-G-3740ED3003A
...
M120
Dishwasher Circulation Pump Housing L-G-ABQ32598101
...
M130
Dishwasher Pump Impeller L-G-5911ED3003A
...
M220
Dishwasher Check Valve L-G-5220ED4004A
