LG LDG3031ST.FS1ELGA

Model: LDG3031ST.FS1ELGA

Save Part Not Listed?
product name

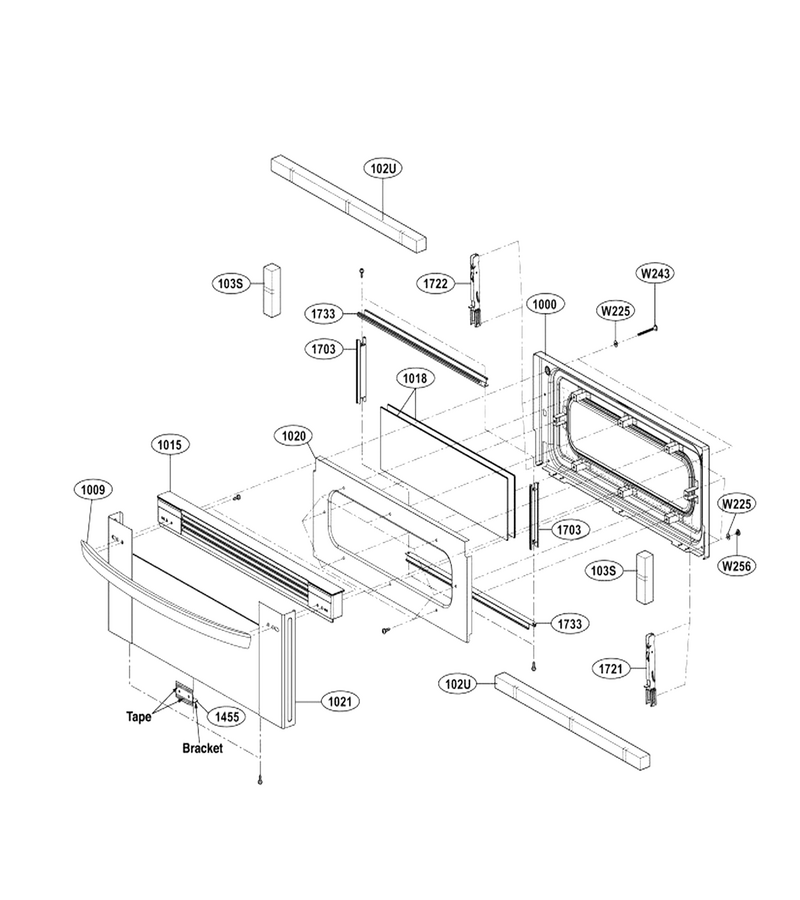

Upper Door Parts

...
...
W225
Washer L-G-1WZZW3Z003B
...
W243
Cstm Screw L-G-1SZZW5N001H
...
W256
Screw L-G-1SZZW5N001F
...
102U
Insulator L-G-MEV64230801
...
103S
Insulator L-G-MEV64231002
...
1000
Frame Assembly L-G-ADV73686104
...
1009
Range Oven Door Handle L-G-MEB62494902
...
1015
Decorative Door L-G-MCR63866201
...
1018
Range Oven Door Inner Glass L-G-4890W1N005P
...
1020
Inner Cover L-G-MCK65825001
...
1021
Range Oven Door Outer Panel, Upper L-G-ACQ83851102
...
1455
Drive Bracket Assembly L-G-AGM74152001
...
1703
Mounting Bracket L-G-MAZ62723701
...
1721
Hinge Bracket L-G-MAZ62563801
...
1722
Hinge Bracket L-G-MAZ62564001
...
1733
Mounting Bracket L-G-MAZ61672103

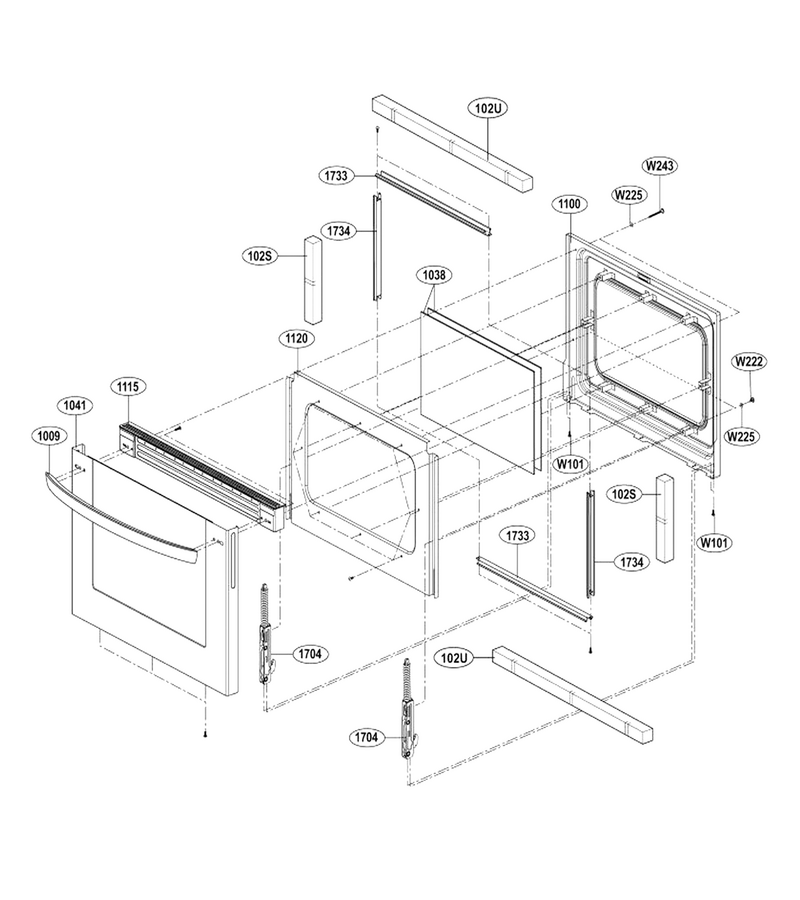

Lower Door Parts

...
...
W101
Screw,customized L-G-FAB31821701
...
W222
Drawing Screw L-G-1SZZW5N001C
...
W225
Washer L-G-1WZZW3Z003B
...
W243
Cstm Screw L-G-1SZZW5N001H
...
102S
Insulator L-G-MEV64231001
...
102U
Insulator L-G-MEV64230801
...
1009
Range Oven Door Handle L-G-MEB62494902
...
1038
Window,glass L-G-4890W1N005Q
...
1041
Range Oven Door Outer Panel L-G-ACQ83871202
...
1100
Door Frame Assembly L-G-ADV73686004
...
1115
Decorative Door L-G-MCR63866301
...
1120
Inner Cover L-G-MCK65825101
...
1704
Hinge Assembly L-G-AEH72957507
...
1733
Mounting Bracket L-G-MAZ61672103
...
1734
Mounting Bracket L-G-MAZ62724101

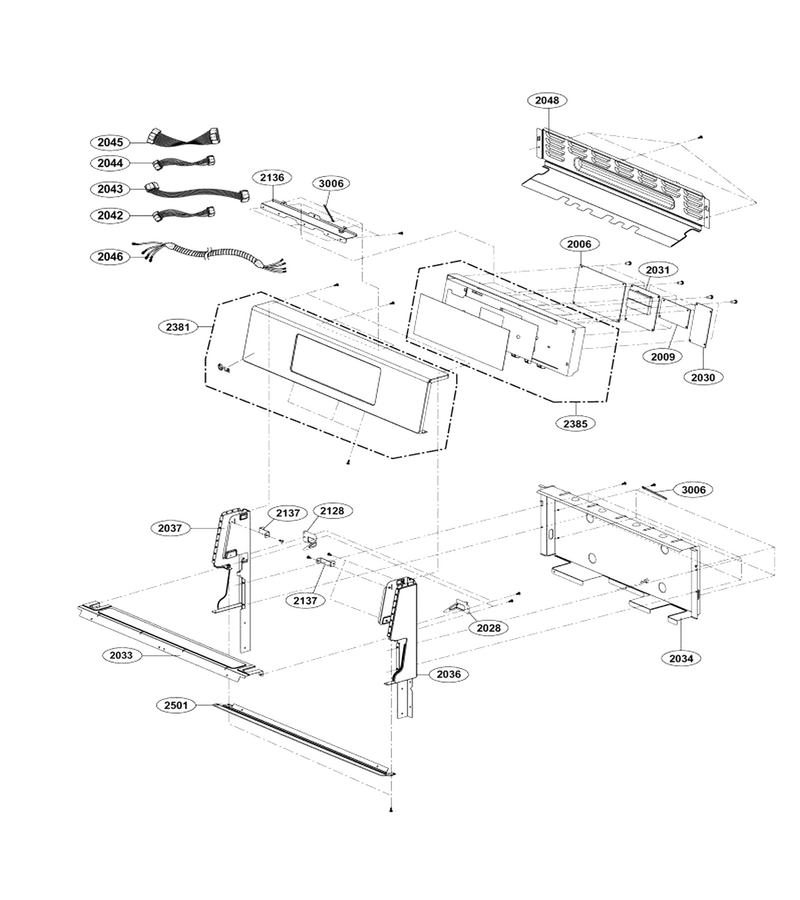

Controller Parts

...
...
2006
Pcb Assembly,main L-G-EBR76664501
...
2009
Range Power Control Board L-G-EBR64624702
...
2028
Idler Bracket L-G-MAZ61859201
...
2030
Range Power Control Board L-G-EBR71261602
...
2031
Range Display Control Board L-G-EBR72822801
...
2033
Barrier L-G-MAL61841101
...
2034
Barrier L-G-MAL62103901
...
2036
Range Control Panel Support Bracket, Right L-G-MJH62081102
...
2037
Range Control Panel Support Bracket, Left L-G-MJH62081002
...
2042
Range Wire Harness L-G-EAD34822924
...
2043
Range Wire Harness L-G-EAD34822911
...
2044
Range Wire Harness L-G-EAD34822923
...
2045
Range Wire Harness L-G-EAD34822913
...
2046
Range Wire Harness L-G-EAD60833505
...
2048
Cover Assembly, Rear L-G-ACQ85431401
...
2128
Idler Bracket L-G-MAZ61859202
...
2136
Supporter L-G-MJH62081201
...
2137
Supporter L-G-MJH62081401
...
2381
Range Control Panel L-G-AGM73590301
...
2385
Ctrl Parts A L-G-AGM73329011
...
2501
Bracket L-G-MAZ61858507
...
3006
Lug (circ) L-G-4B72510F

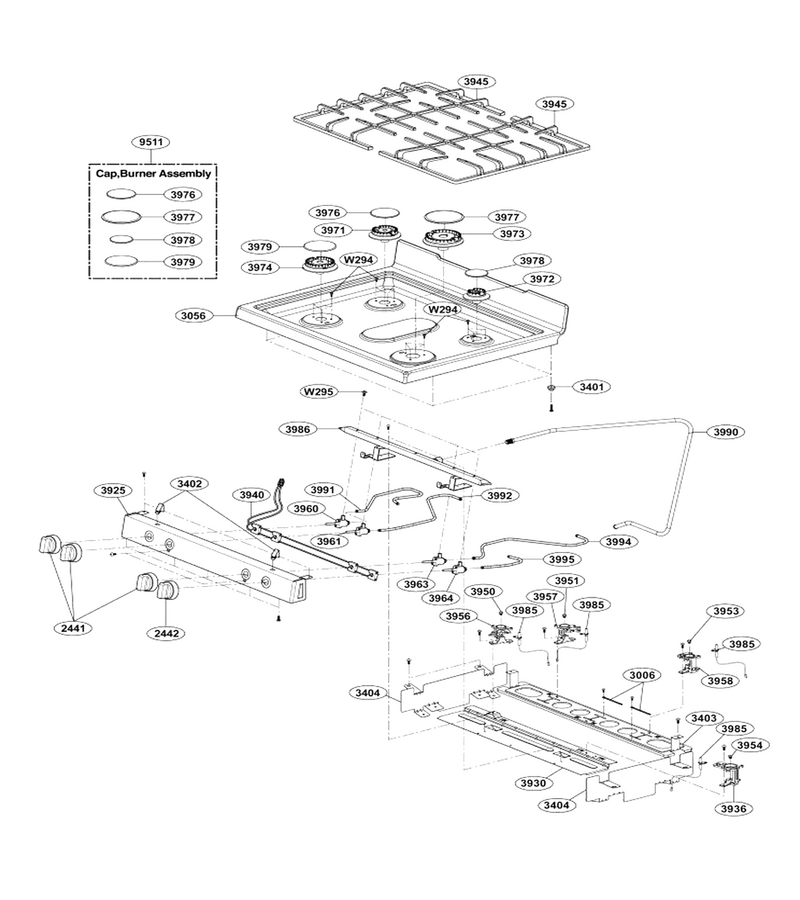

Cooktop Parts

...
...
W294
Screw L-G-1SZZW1E002E
...
W295
Range Surface Burner Control Valve Screw L-G-FAB30424501
...
2441
Knob Assembly L-G-AEZ73453509
...
2442
Knob Assembly L-G-AEZ73453508
...
3006
Lug (circ) L-G-4B72510F
...
3056
Plate,top L-G-MGJ62229830
...
3401
Supporter L-G-4980W1N014A
...
3402
Supporter L-G-MJH61847901
...
3403
Supporter L-G-MJH62758201
...
3404
Supporter L-G-MJH62837201
...
3925
Panel,front L-G-MGC61845610
...
3930
Case, Lower L-G-MBN62745301
...
3936
Tube,burner L-G-MJU61853904
...
3940

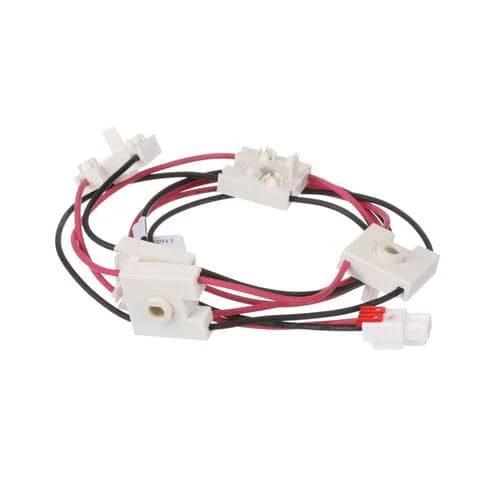

Switch Assembly L-G-EBF60662904
...
3945
Range Surface Burner Grate L-G-AEB73624502
...
3950
Nozzle L-G-MFV61841503
...
3951
Nozzle L-G-MFV61841504
...
3953
Nozzle L-G-MFV61841507
...
3954
Nozzle L-G-MFV61841508
...
3956
Cooktop Burner L-G-MBE61841501
...
3957
Cooktop Burner L-G-MBE61841301
...
3958
Range Surface Burner L-G-MBE61841401
...
3960
Range Surface Burner Valve L-G-MJX61842207
...
3961
Range Surface Burner Valve L-G-MJX61842210
...
3963
Valve L-G-MJX61842206
...
3964
Range Surface Burner Valve L-G-MJX61842209
...
3971
Range Surface Burner Base L-G-MBE61842001
...
3972
Range Surface Burner Base L-G-MBE61842501
...
3973
Range Surface Burner Base L-G-MBE61842701
...
3974
Range Surface Burner Assembly L-G-MBE61842101
...
3976
Range Surface Burner Cap L-G-MBL61908503
...
3977
Cap,burner L-G-MBL61909003
...
3978
Range Surface Burner Cap L-G-MBL61908703
...
3979
Range Surface Burner Cap L-G-MBL61908603
...
3985
Range Surface Burner Igniter L-G-EAD60700538
...
3986
Pipe Assembly L-G-AGR72909504
...
3990
Pipe L-G-MGE62131802
...
3991
Pipe L-G-MGE62690802
...
3992
Pipe L-G-MGE61842302
...
3994
Pipe L-G-MGE61842602
...
3995
Pipe L-G-MGE61842802
...
9511
Parts Assembly L-G-AGM75229101

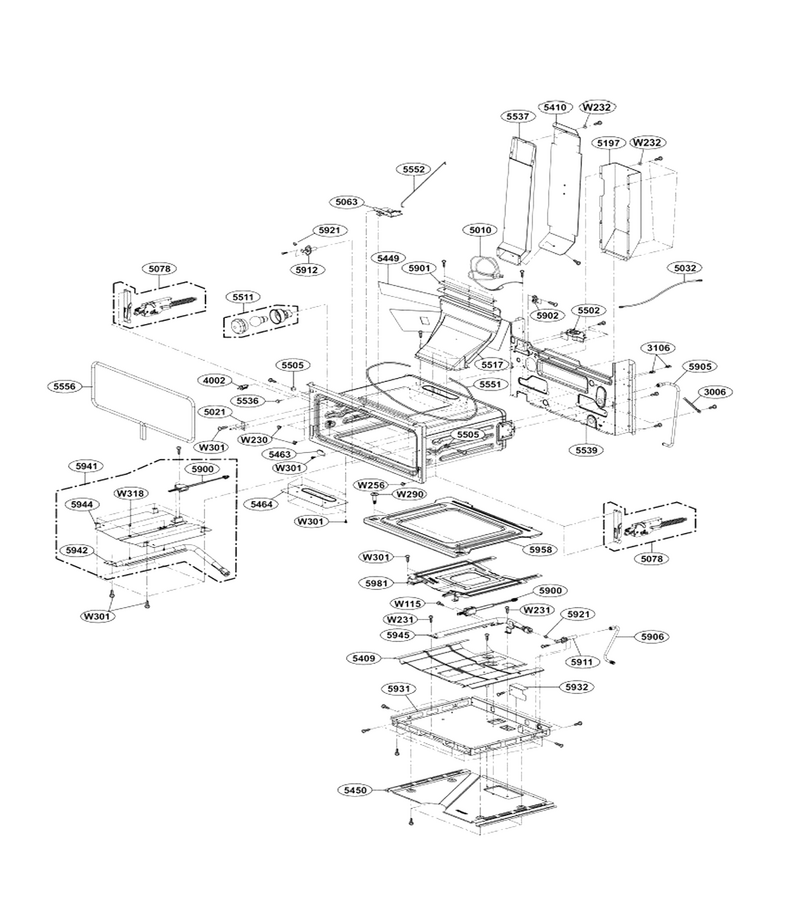

Upper Cavity Parts

...
...
W115
Screw L-G-4B73763A
...
W230
Drawing Screw L-G-1SZZW5N001A
...
W231
Drawing Screw L-G-1SZZW1N006A
...
W232
Washer L-G-1WZZ81N001A
...
W256
Screw L-G-1SZZW5N001F
...
W290
Range Oven Bottom Panel Screw L-G-FAB30264901
...
W301
Screw L-G-1SZZW1N006D
...
W318
Nut,common L-G-FAD30672201
...
3006
Lug (circ) L-G-4B72510F
...
3106
Holder L-G-4B72944B
...
4002
Switch L-G-EBF60663403
...
5010
Power Cord Assembly L-G-EAD60700408
...
5021
Range Oven Temperature Sensor L-G-EBG61305801
...
5032
Range Wire Harness L-G-6877W1N024F
...
5063
Range Oven Door Lock Assembly L-G-ABA34660001
...
5078
Hinge Assembly L-G-AEH73256201
...
5197
Vent Cover L-G-MCK65825701
...
5409
Insulator L-G-MEV63311501
...
5410
Insulator L-G-MEV63451601
...
5449
Insulator L-G-MEV63451501
...
5450
Insulator L-G-MEV63311401
...
5463
Bracket L-G-MAZ61859501
...
5464
Bracket L-G-MAZ62372401
...
5502
Motor Assembly L-G-EAU60671902
...
5505
Supporter L-G-4980W1N013A
...
5511
Lamp L-G-6913W1N002D
...
5517
Vent Assembly L-G-AJV72949501
...
5536
Packing Gasket L-G-MFZ54382601
...
5537
Vent Assembly L-G-AJV72949601
...
5539
Range Panel L-G-MGC62219002
...
5551
Bar L-G-MAK61842901
...
5552
Bar L-G-MAK62067201
...
5556
Range Oven Door Gasket L-G-MFZ62597301
...
5900
Range Oven Burner Igniter L-G-MEE61841401
...
5901
Holder,burner L-G-MEG63462401
...
5905
Pipe L-G-MGE62132302
...
5906
Pipe L-G-MGE62132102
...
5911
Nozzle Holder L-G-MEG62479803
...
5912
Nozzle Holder L-G-MEG61851202
...
5921
Nozzle L-G-MFV61841401
...
5931
Case L-G-MBN62203701
...
5941
Bracket Assembly L-G-ABF72989701
...
5942
Burner Assembly L-G-ABF72989809
...
5944
Range Broil Burner Flame Spreader L-G-ABF73009701
...
5945
Bracket Assembly L-G-ABF72989902
...
5958
Range Base L-G-MAM62948404
...
5981
Guide Assembly L-G-AEC73377501

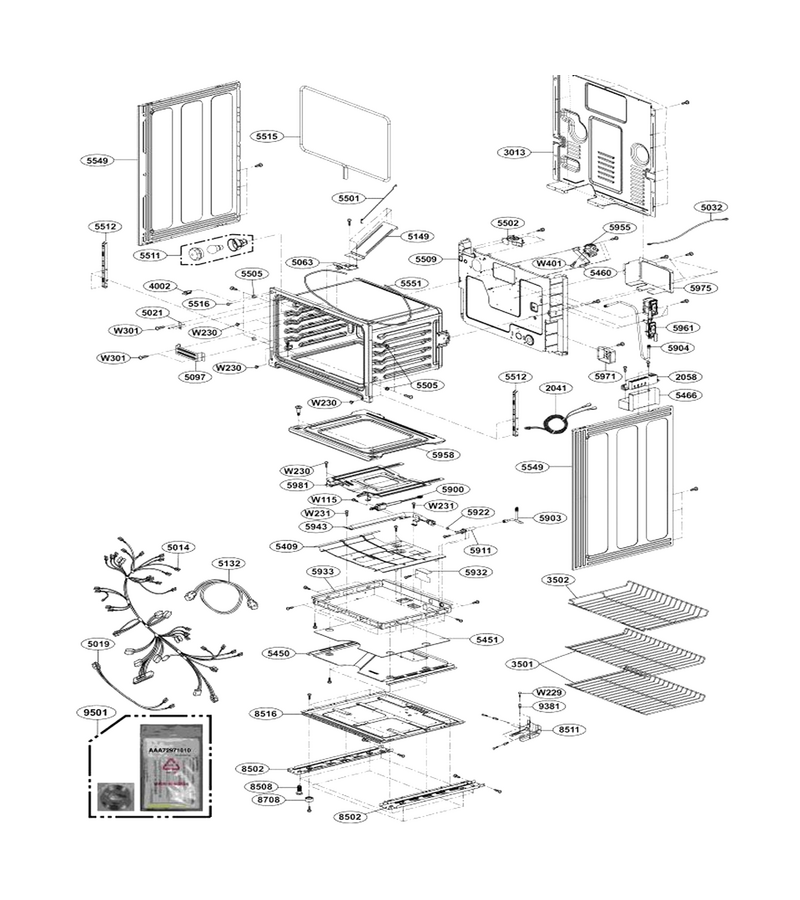

Lower Cavity Parts

...
...
W115
Screw L-G-4B73763A
...
W229
Screw L-G-1SZZW1N003A
...
W230
Drawing Screw L-G-1SZZW5N001A
...
W231
Drawing Screw L-G-1SZZW1N006A
...
W301
Drawing Screw L-G-1SZZW1N006A
...
2041
Harness L-G-EAD60700211
...
2058
Range Spark Module L-G-EBJ60659901
...
3013
Rear Cover L-G-MCK65804501
...
3501
Range Oven Rack L-G-MHL61952101
...
3502
Range Oven Rack, Upper L-G-MHL62131403
...
4002
Switch L-G-EBF60663403
...
5014
Range Wire Harness L-G-EAD61654101
...
5019
Range Wire Harness L-G-EAD61076101
...
5021
Range Oven Temperature Sensor L-G-6322B62214A
...
5032
Range Wire Harness L-G-6877W1N024F
...
5063
Range Oven Door Lock Assembly L-G-ABA34660001
...
5097
Vent Cover L-G-MCK65824402
...
5132
Power Cord L-G-EAD61508903
...
5149
Air Guide L-G-MEA62590301
...
5409
Insulator L-G-MEV63311501
...
5450
Insulator L-G-MEV63311401
...
5451
Insulator L-G-MEV63451701
...
5460
Bracket L-G-MAZ62723301
...
5466
Bracket L-G-MAZ63408301
...
5501
Bar L-G-MAK62067202
...
5502
Motor Assembly L-G-EAU60671902
...
5505
Supporter L-G-4980W1N013A
...
5509
Panel L-G-MGC62219102
...
5511
Lamp L-G-6913W1N002D
...
5512
Hinge Bracket L-G-4810W1N040B
...
5515
Gas Packing L-G-MFZ62597201
...
5516
Packing Seal L-G-3920W1N013A
...
5549
Range Side Panel L-G-MGC62644002
...
5551
Bar L-G-MAK61842901
...
5900
Range Oven Burner Igniter L-G-MEE61841401
...
5903
Pipe L-G-MGE62132002
...
5904
Pipe L-G-MGE62131902
...
5911
Nozzle Holder L-G-MEG62479801
...
5922
Nozzle L-G-MFV61841410
...
5932
Case L-G-MBN62204601
...
5933
Case L-G-MBN62203702
...
5943
Burner Assembly L-G-ABF72989901
...
5955
Bracket Assembly L-G-ABA73609202
...
5958
Base L-G-MAM62164404
...
5961
Range Oven Gas Valve L-G-MJX62111701
...
5971
Cover,connec L-G-MCK66541601
...
5975
Cover L-G-MCK65826001
...
5981
Guide Assembly L-G-AEC73377501
...
8502
Plate,base L-G-3302W1N001F
...
8508
Range Leveling Leg L-G-4778W1N001B
...
8511
Range Anti-Tip Bracket L-G-MAZ61859001
...
8516
Plate L-G-4960W0N001C
...
9381
Anchor L-G-FAK30249601
...
9501
Parts Assembly L-G-AGM73069206

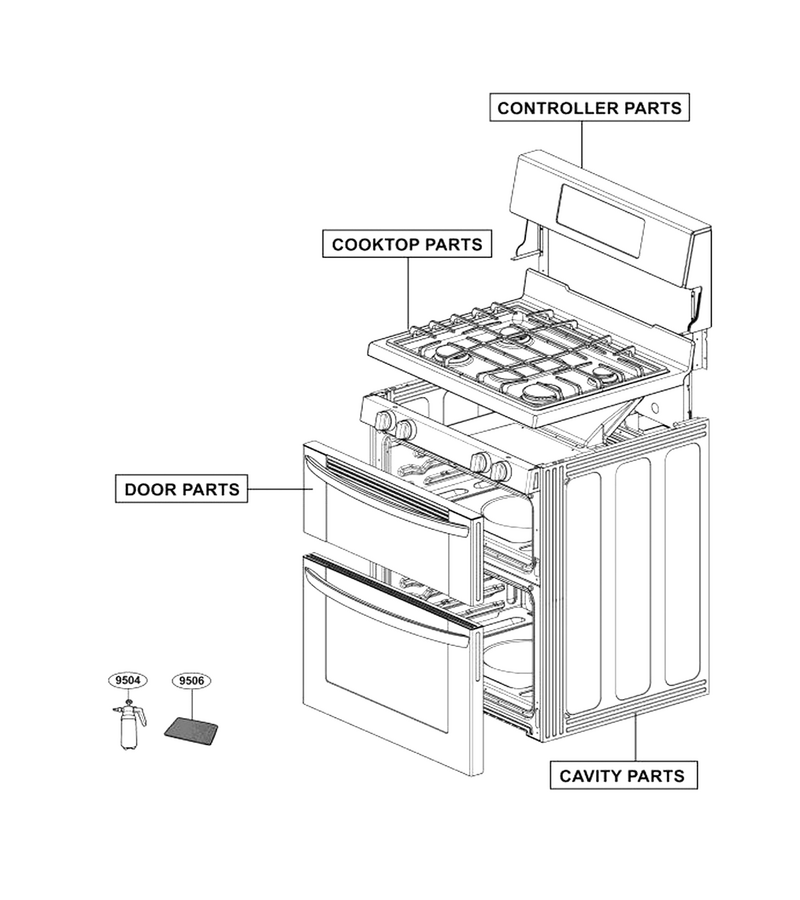

Main

...
...
9504
Assembly Accessory L-G-AAA74970401
...
9506
Assembly Accessory L-G-AAA74970601
