LG LDE3017SB.FB1LLGA

Model: LDE3017SB.FB1LLGA

Save Part Not Listed?
product name

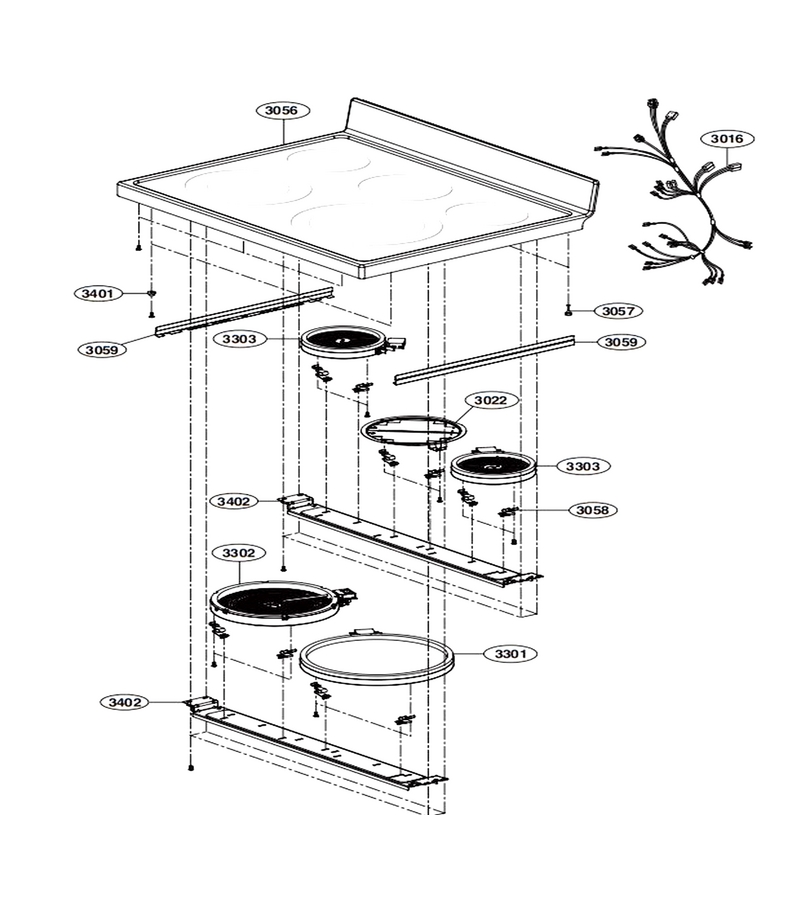

Cooktop Parts (ii)

...
...
3016
Harness,single L-G-EAD61845601
...
3022
Range Warmer Zone Surface Element L-G-AEG33897001
...
3056
Range Main Top L-G-AGU70894512
...
3057
Packing L-G-3920W1N014A
...
3058
Spring L-G-4970W1N004A
...
3059
Barrier L-G-MAL61943901
...
3301
Range Radiant Surface Element L-G-5300W1R009A
...
3302
Cooktop Radiant Element L-G-MEE50408702
...
3303
Range Radiant Surface Element L-G-5300W1R004A
...
3401
Supporter L-G-4980W1N014A
...
3402
Supporter L-G-4980W0N002D

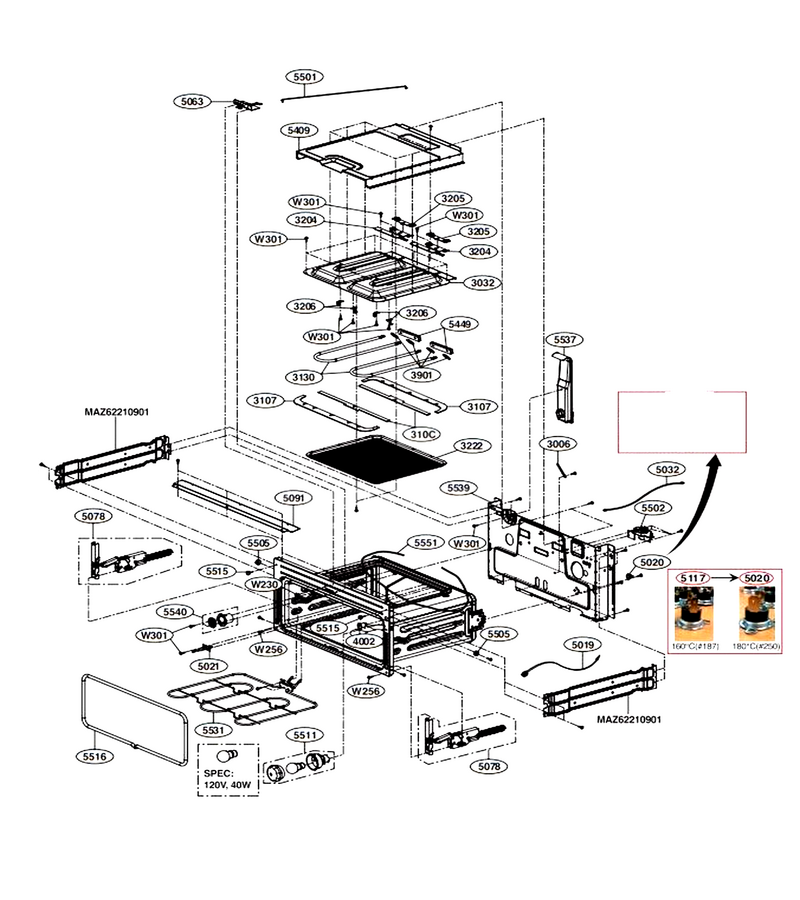

Upper Cavity Parts

...
...
W230
Drawing Screw L-G-1SZZW5N001A
...
W256
Screw L-G-1SZZW5N001F
...
W301
Screw L-G-1SZZW1N006D
...
310C
Insulator L-G-MEV62612803
...
3006
Lug (circ) L-G-4B72510F
...
3032
Reflector L-G-MGW61909901
...
3107
Insulator L-G-MEV62612802
...
3130
Range Warming Drawer Element L-G-MEE61844802
...
3204
Heat Bracket L-G-MAZ62229601
...
3205
Heat Bracket L-G-MAZ62229701
...
3206
Heat Bracket L-G-MAZ62229801
...
3222
Heater Cover L-G-MCK63314001
...
3901
Gasket L-G-4350W4A007P
...
4002
Switch L-G-EBF60663403
...
5019
Range Wire Harness L-G-EAD61076101
...
5020
Thermostat L-G-6930W1A003X
...
5021
Range Oven Temperature Sensor L-G-6322B62214A
...
5032
Range Wire Harness L-G-6877W1N024F
...
5063
Bracket Assembly L-G-ABA73249401
...
5078
Hinge Assembly L-G-AEH73256201
...
5091
Mounting Bracket L-G-MAZ62210801
...
5117
Thermostat L-G-6930W1A003X
...
5409
Insulator L-G-5012W1N016B
...
5449
Insulator L-G-MEV62612901
...
5501
Bar L-G-MAK61907201
...
5502
Range Oven Door Lock Motor L-G-EAU60671901
...
5505
Supporter L-G-4980W1N013A
...
5511
Lamp L-G-6913W1N002B
...
5515
Packing Gasket L-G-MFZ54382601
...
5516
Packing Gasket L-G-MFZ62218901
...
5531
Range Bake Element L-G-MEE61925302
...
5537
Vent Assembly L-G-AJV72909301
...
5539
Panel L-G-MGC61980901
...
5540
Duct Assembly L-G-ADJ52698704
...
5551
Bar L-G-MAK61842901

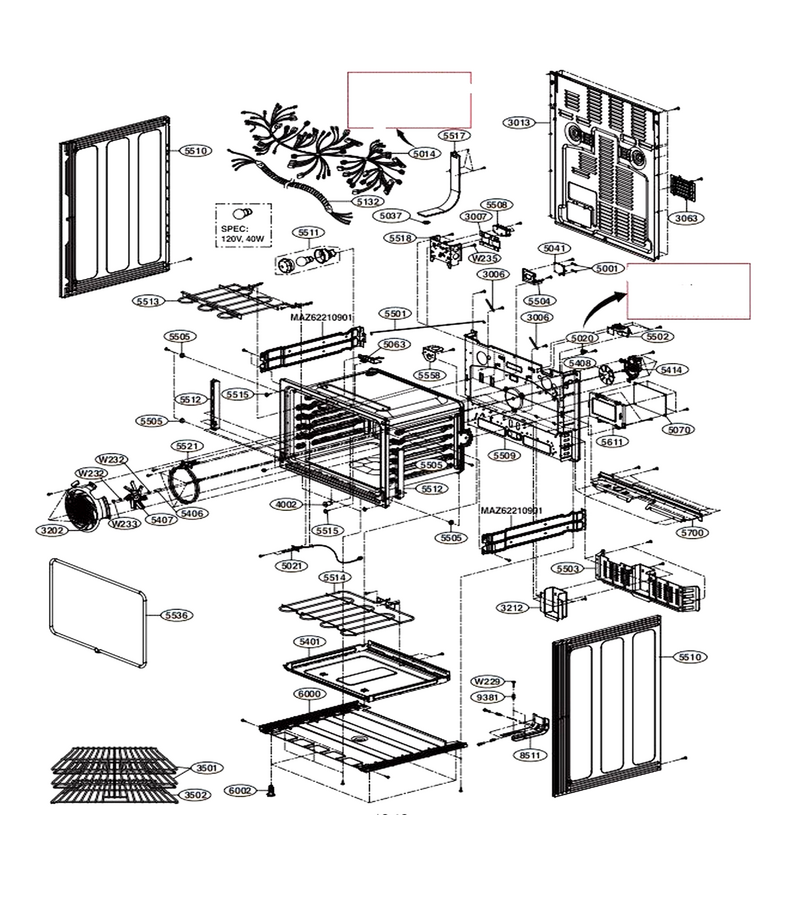

Lower Cavity Parts

...
...
W229
Screw L-G-1SZZW1N003A
...
W232
Washer L-G-1WZZ81N001A
...
W233
Hexagon Nut L-G-1NHB0500032
...
W235
Screw L-G-1ATF0502610
...
3006
Lug (circ) L-G-4B72510F
...
3007
Insulator L-G-MEV62413501
...
3013
Cover L-G-MCK36350001
...
3063
Oven Cover L-G-MCK36350002
...
3202
Heater Cover L-G-MCK63333002
...
3212
Heater Cover L-G-MCK65215101
...
3501
Range Oven Rack L-G-MHL61952101
...
3502
Range Oven Rack, Lower L-G-MHL62112101
...
4002
Switch L-G-EBF60663403
...
5001
Fuse[all] L-G-3B74133K
...
5014
Range Wire Harness L-G-EAD61075802
...
5020
Thermostat L-G-6930W1A003X
...
5021
Range Oven Temperature Sensor L-G-6322B62214A
...
5037
Charcoal Filter L-G-5230W1N001B
...
5041
Oven Filter L-G-EAM60740401
...
5063
Bracket Assembly L-G-ABA73249401
...
5070
Range Power Control Board L-G-EBR64624601
...
5132
Single Harness L-G-EAD60833504
...
5401
Chamber L-G-MBR61861501
...
5406
Ring L-G-4B73725E
...
5407
Fan,convection L-G-5900W1N004C
...
5408
Fan Blade L-G-3B72559A
...
5414
Motor Housing L-G-4681W1N002B
...
5501
Bar L-G-MAK61907201
...
5502
Range Oven Door Lock Motor L-G-EAU60671901
...
5503
Supporter L-G-MJH61997001
...
5504
Supporter L-G-4980W1A111C
...
5505
Supporter L-G-4980W1N013A
...
5508
Range Terminal Block L-G-EAG32629302
...
5509
Range Panel L-G-MGC62001801
...
5510
Range Panel L-G-MGC62644005
...
5511
Lamp L-G-6913W1N002B
...
5512
Hinge Bracket L-G-MAZ61885801
...
5513
Heater L-G-MEE61945102
...
5514
Sheath L-G-MEE61985302
...
5515
Packing Gasket L-G-MFZ54382601
...
5517
Vent Assembly L-G-AJV72909201
...
5518
Bracket L-G-4810W1N056B
...
5521
Heater,sheath L-G-MEE61925402
...
5536
Packing Gasket L-G-MFZ62218801
...
5558
Idler Bracket L-G-MAZ62231701
...
5611
Pcb Support L-G-MJH41754001
...
5700
Barrier L-G-MAL61924001
...
6000
Base Plate L-G-MGJ62228401
...
6002
Range Leveling Leg L-G-4778W1N001B
...
8511
Range Anti-Tip Bracket L-G-MAZ61859001
...
9381
Anchor L-G-FAK30249601

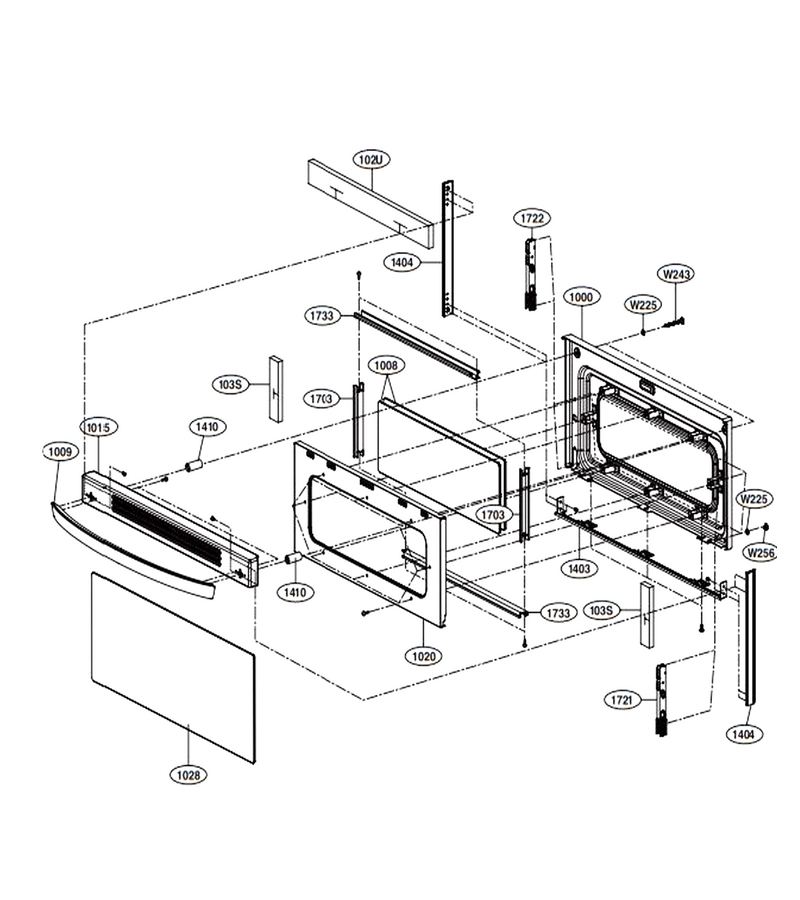

Upper Door Parts (ii)

...
...
W225
Washer L-G-1WZZW3Z003B
...
W243
Cstm Screw L-G-1SZZW5N001H
...
W256
Screw L-G-1SZZW5N001F
...
102U
Insulator L-G-MEV64166606
...
103S
Insulator L-G-MEV62614501
...
1000
Frame Assy,d L-G-ADV73207202
...
1008
Range Oven Door Inner Glass L-G-4890W1N005D
...
1009
Range Oven Door Handle L-G-MEB42058901
...
1015
Decorative Door L-G-MCR32112501
...
1020
Inner Cover L-G-MCK63313601
...
1028
Glass Window L-G-MKC62679202
...
1403
Supporter L-G-4980W1N011F
...
1404
Supporter L-G-MJH61997909
...
1410
Bushing L-G-MBF47288401
...
1703
Bracket,mount L-G-MAZ62210104
...
1721
Hinge Bracket L-G-MAZ62563801
...
1722
Hinge Bracket L-G-MAZ62564001
...
1733
Mounting Bracket L-G-MAZ61672103

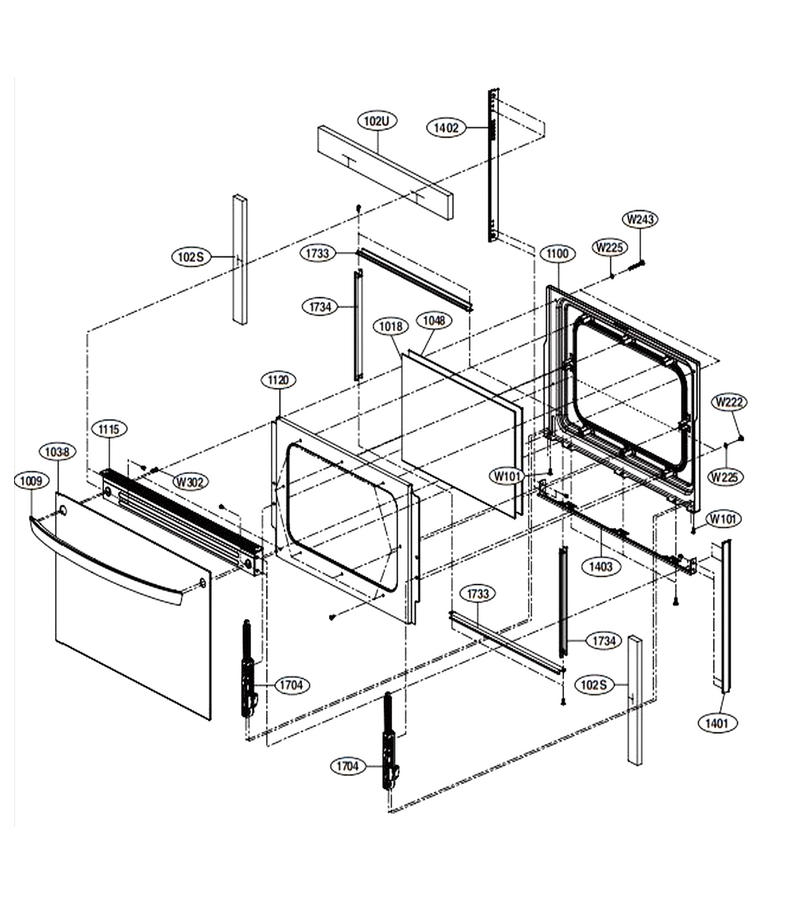

Lower Door Parts (ii)

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W222
Drawing Screw L-G-1SZZW5N001C
...
W225
Washer L-G-1WZZW3Z003B
...
W243
Cstm Screw L-G-1SZZW5N001H
...
102S
Insulator L-G-MEV64166607
...
102U
Insulator L-G-MEV64166606
...
1009
Range Oven Door Handle L-G-MEB42058901
...
1018
Range Oven Door Inner Glass L-G-4890W1N005C
...
1038
Range Oven Door Outer Panel L-G-MKC62679102
...
1048
Window,glass L-G-4890W1N005N
...
1100
Frame Assembly L-G-ADV73186702
...
1115
Decorative Door L-G-MCR62530901
...
1120
Inner Cover L-G-MCK63313501
...
1401
Supporter L-G-MJH61997903
...
1402
Supporter L-G-MJH61997906
...
1403
Supporter L-G-4980W1N011F
...
1704
Hinge Assembly L-G-AEH72957504
...
1733
Mounting Bracket L-G-MAZ61672103
...
1734
Bracket,mount L-G-MAZ62210103

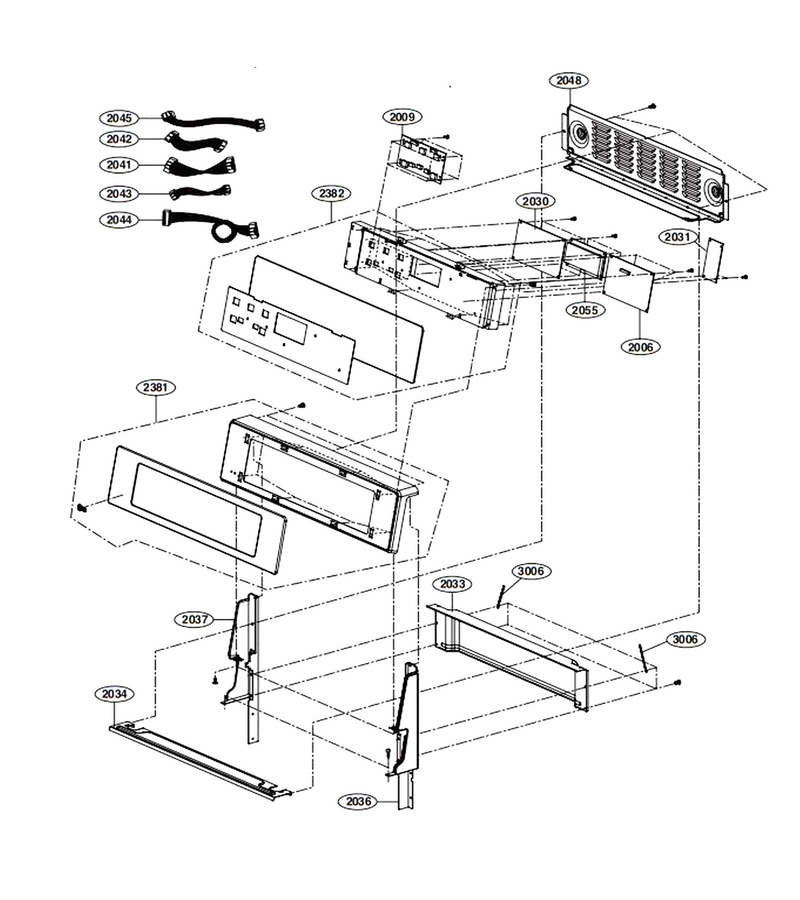

Controller Parts

...
...
2006
Pcb Assembly,main L-G-EBR73821005
...
2009
Range Display Board L-G-EBR64624901
...
2030
Range Oven Control Board L-G-EBR64624502
...
2031
Range Power Control Board L-G-EBR64624701
...
2033
Barrier L-G-4790W0N002A
...
2034
Barrier L-G-MAL32136802
...
2036
Supporter L-G-MJH32134509
...
2037
Supporter L-G-MJH32135309
...
2041
Range Wire Harness L-G-EAD34822916
...
2042
Range Wire Harness L-G-EAD34822910
...
2043
Range Wire Harness L-G-EAD34822909
...
2044
Range Wire Harness L-G-EAD34822917
...
2045
Range Wire Harness L-G-EAD34822915
...
2048
Rear Cover L-G-MCK35970303
...
2055
Range Display Board L-G-EAJ61309901
...
2381
Range Control Panel L-G-ACM70891110
...
2382
Range Touch Control Panel L-G-AGM73349001
...
3006
Lug (circ) L-G-4B72510F
