product name

LG LCS1413SB.CBKELGA

Model: LCS1413SB.CBKELGA

Save Part Not Listed?
product name

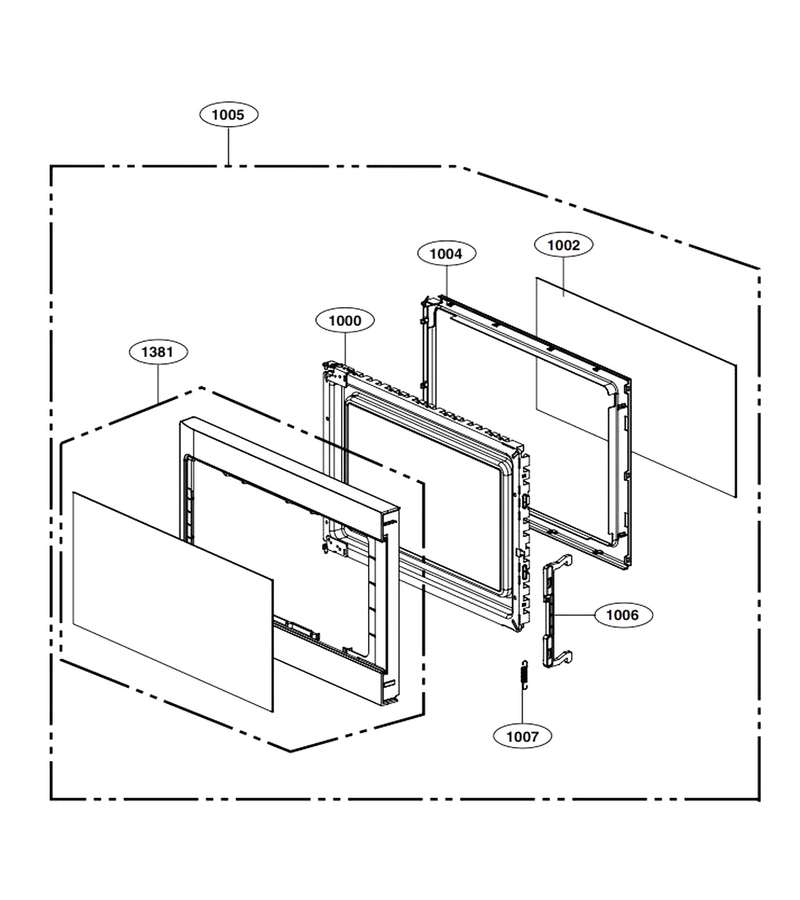

Door Parts

...
...
1000
Out Drive Frame L-G-3213W1A031P
...
1002
Seal Tape L-G-3536W1A004A
...
1004
Choke Cover L-G-3552W0A012B
...
1005
Door Assembly,full L-G-ADC73907908
...
1006
Latch L-G-4026W2A016A
...
1007
Spring L-G-4970WRA001N
...
1381
Door Assembly,sub L-G-ADC74886402

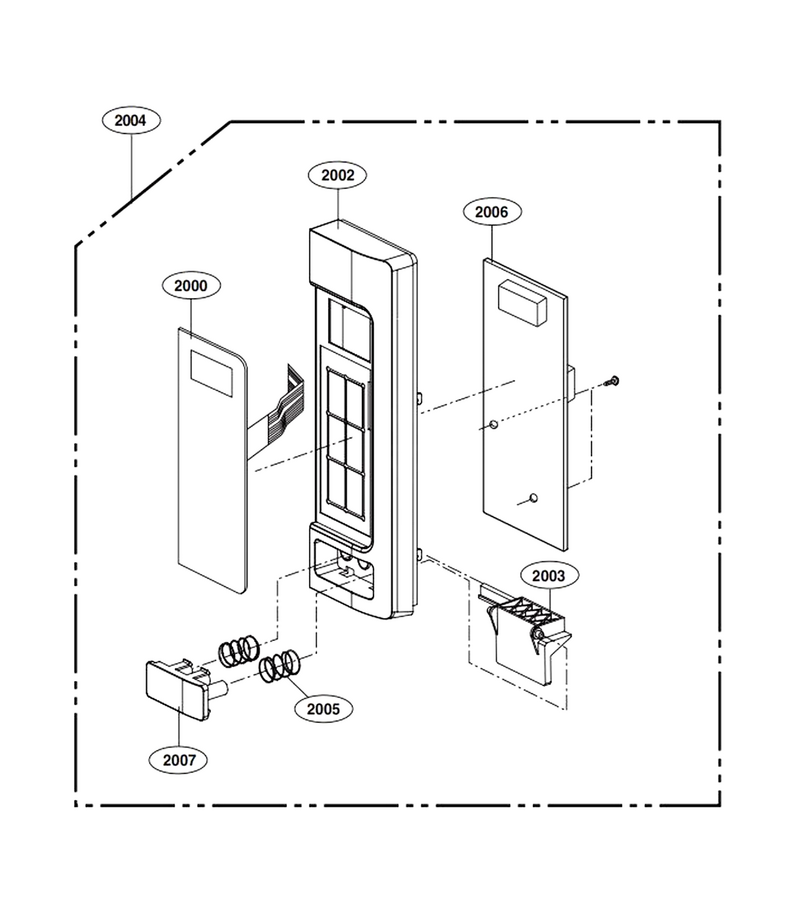

Control Panel Parts

...
...
2000
Membrane L-G-MFM62937701
...
2002
Panel,control L-G-MGC62900903
...
2003
Lever L-G-4510W3L003A
...
2004
Controller Assembly,keypad L-G-ACM73720216
...
2005
Microwave Door Release Button Spring L-G-4B72023B
...
2006
Pcb Assembly L-G-EBR77659217
...
2007
Button,release L-G-MBG64584603

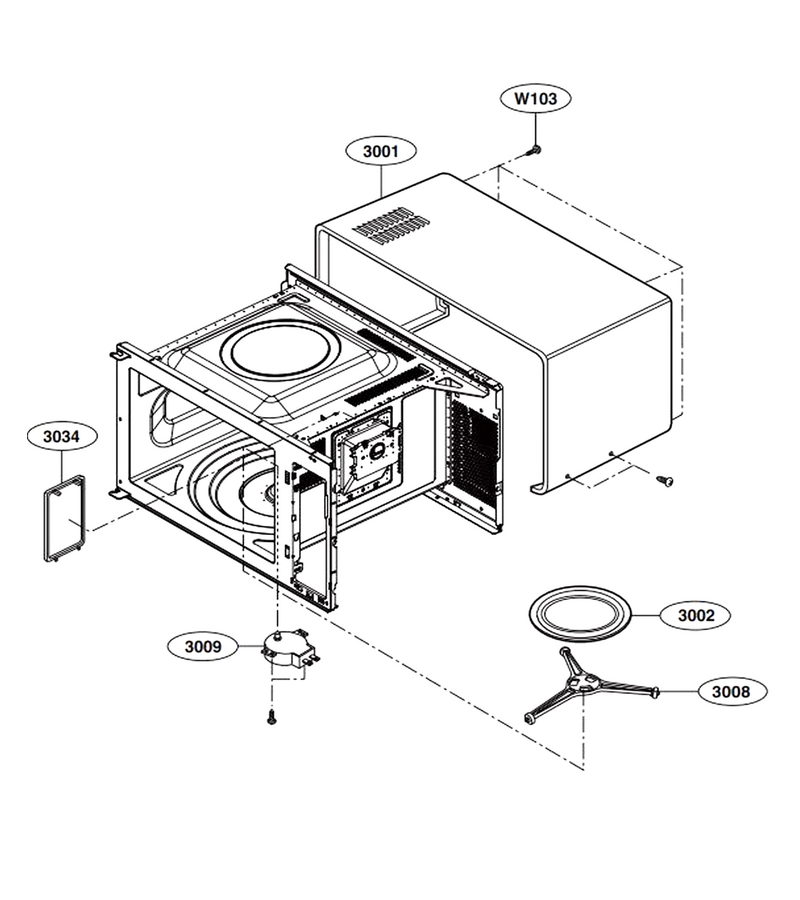

Oven Cavity Parts

...
...
W103
Screw L-G-1SZZW2A002A
...
3001
Case,u Bending L-G-MBN41648410
...
3002
Microwave Glass Turntable Tray L-G-3390W1G004E
...
3008
Microwave Turntable Tray Support L-G-5889W1A005B
...
3009
Microwave Turntable Motor L-G-6549W1S017A
...
3034
Cover,resin L-G-3052W2A021D

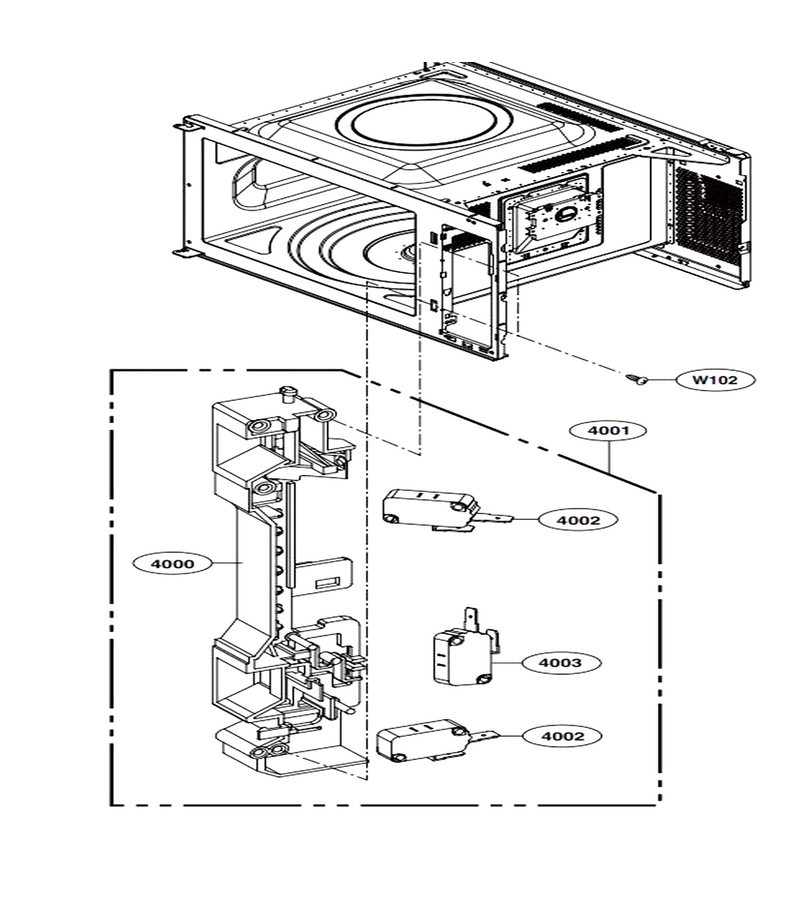

Latch Board Parts

...
...
W102
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
4000
Holder,locker L-G-3500W1A018C
...
4001
Microwave Door Latch Housing And Interlock Switch L-G-3501W1A053A
...
4002
Switch,micro L-G-6600W1K001D
...
4003
Microwave Door Interlock Switch L-G-6600W1K001C

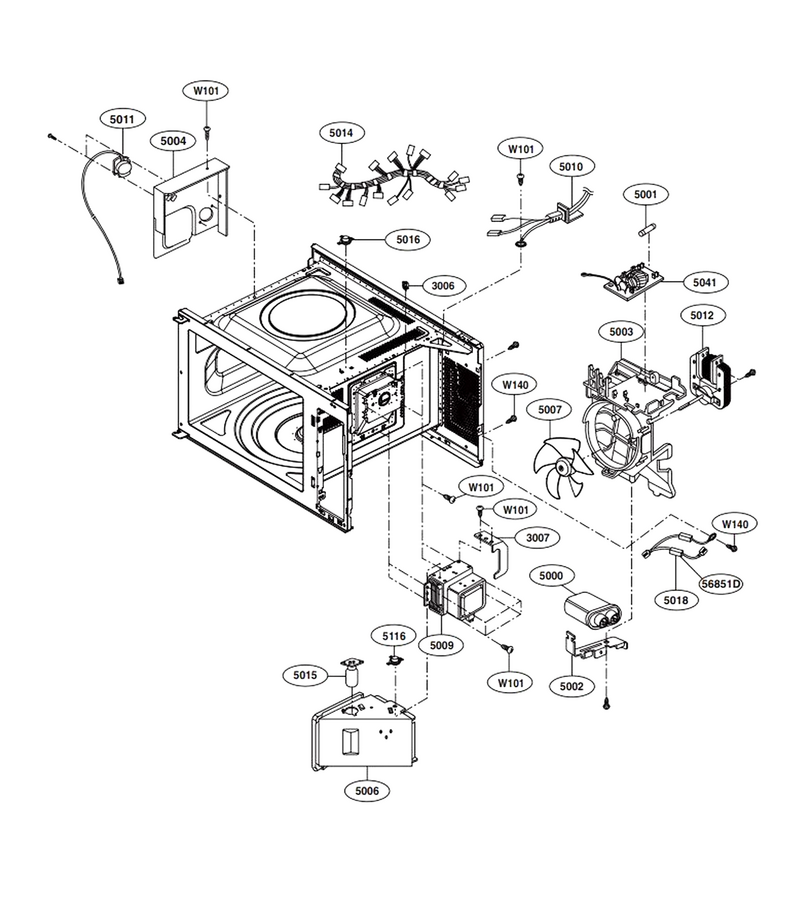

Interior Parts (i)

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
3006
Lug (circ) L-G-4B72510F
...
3007
Insulator L-G-MEV64392901
...
5000
Microwave High-Voltage Capacitor L-G-0CZZW1H005A
...
5001
Fuse,time Delay L-G-EAF42072605
...
5002
Bracket L-G-4810W4C003B
...
5003
Guide,suction L-G-4974W0A003C
...
5004
Duct L-G-5208W1A012B
...
5006
Duct L-G-5208W1A017A
...
5007
Microwave Cooling Fan Blade L-G-5900W1A007B
...
5009
Magnetron L-G-6324W1A001L
...
5010
Power Cord Assembly L-G-EAD62027809
...
5011
Microwave Humidity Sensor L-G-6501W1A006A
...
5012
Microwave Cooling Fan Motor L-G-EAU42744405
...
5014
Harness,multi L-G-EAD60842309
...
5015
Microwave Light Bulb L-G-6912W3B002L
...
5016
Thermostat L-G-6930W3A001T
...
5018
Cable,assembly L-G-6851W1A002E
...
5041
Filter,ac Line L-G-EAM35001896
...
5116
Microwave Thermostat L-G-6930W1A003D
...
56851D
Cable,assembly L-G-6851W1A001V

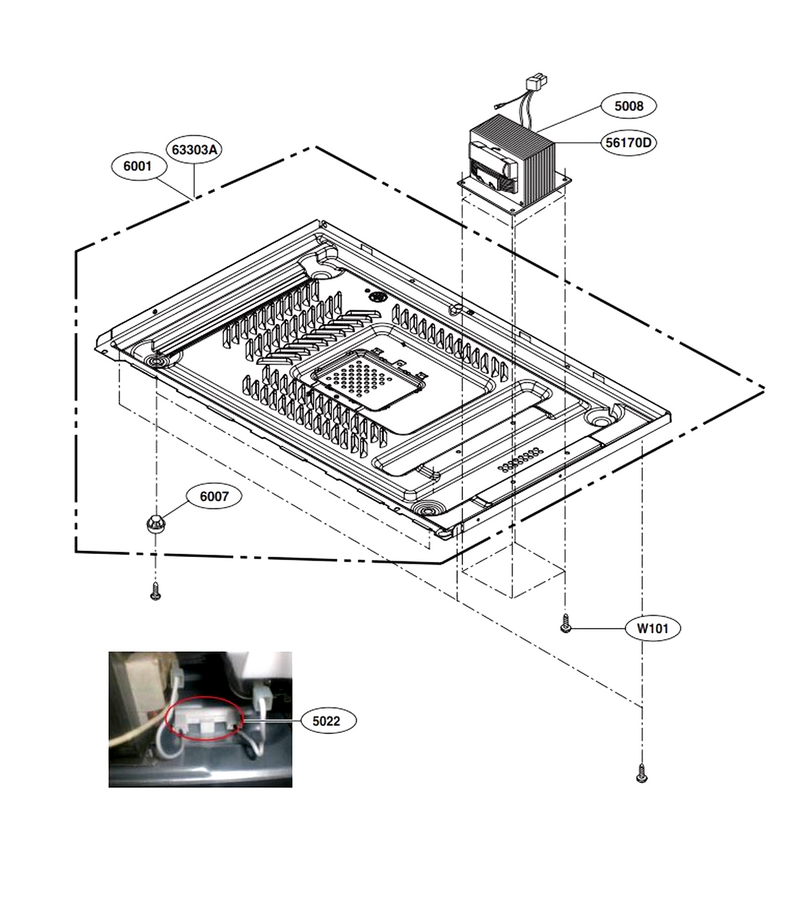

Base Plate Parts

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
5008
Transformer,high Voltage L-G-EBJ60663828
...
5022
Fuse Assembly L-G-EAF36358316
...
6001
Plate Assembly,base L-G-3303W0A019G
...
6007
Microwave Foot (white) L-G-5006W3A019A
...
56170D
Transformer,high Voltage L-G-EBJ60663828
...
63303A
Plate Assembly,base L-G-3303W0A019G
