LG LCS1114SB.CBKEBBY

Model: LCS1114SB.CBKEBBY

Save Part Not Listed?
product name

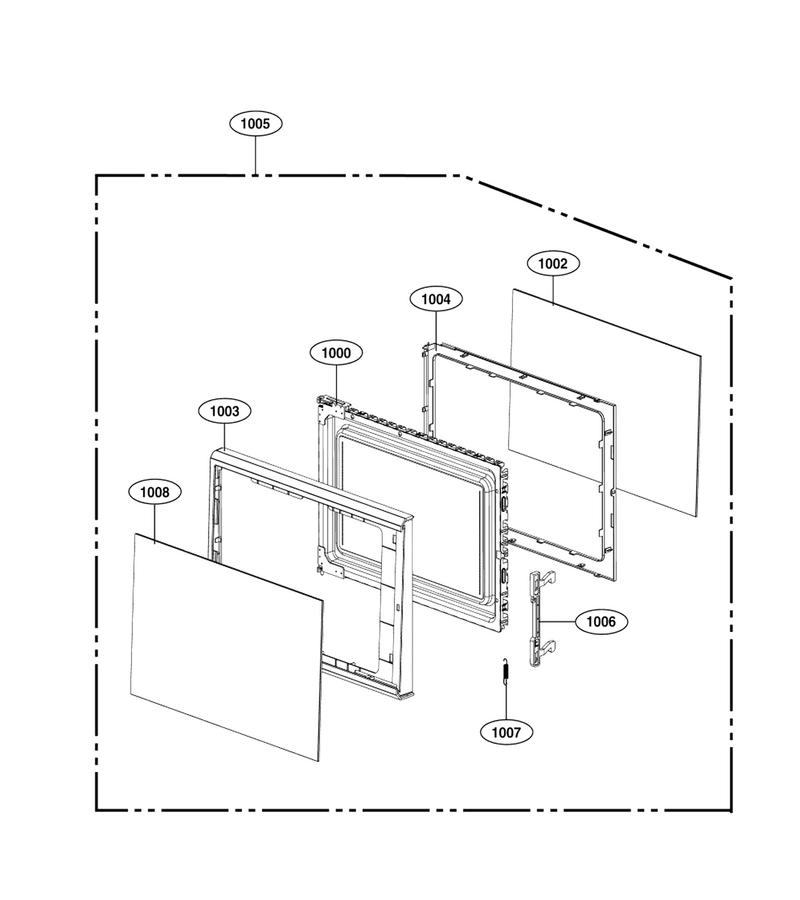

Door Parts

...
...
1000
Frame Assembly,door L-G-3213W0A012M
...
1002
Seal Tape L-G-3536W1A003E
...
1003
Panel,door L-G-MGC62019207
...
1004
Cover,choke L-G-3552W0A017A
...
1005
Door Assembly L-G-ADC73146429
...
1006
Locker L-G-4026W2A014A
...
1007
Microwave Door Latch Spring L-G-4970WRA001E
...
1008
Window,glass L-G-MKC63159806

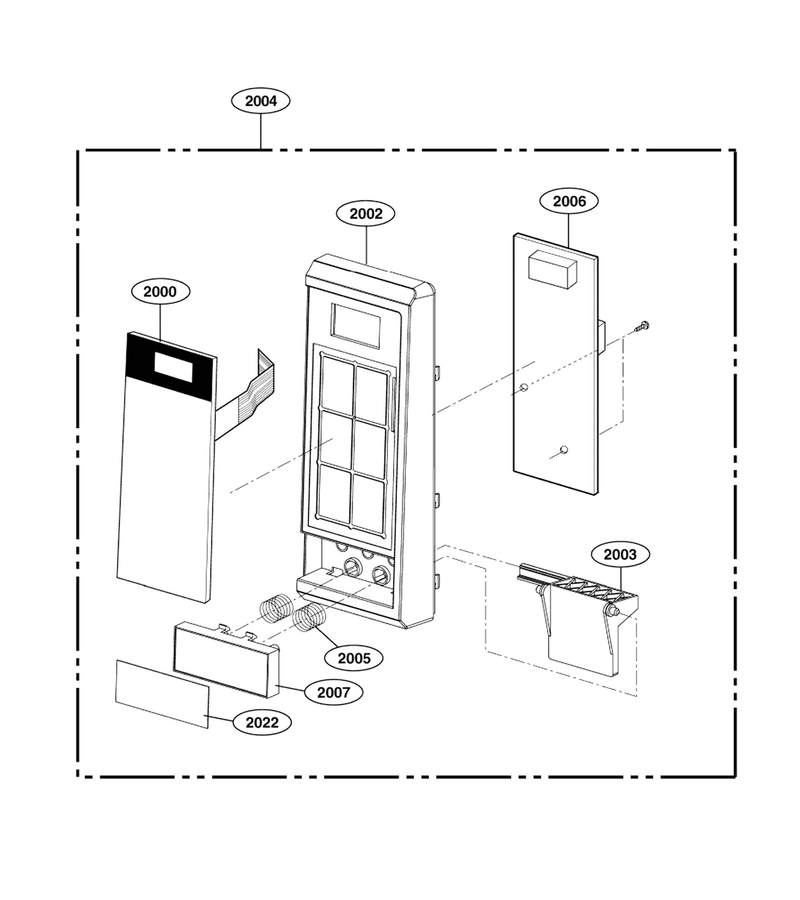

Controller Parts

...
...
2000
Membrane L-G-MFM63296801
...
2002
Panel,control L-G-MGC62019107
...
2003
Lever,release L-G-MFC34984501
...
2004
Controller Assembly,keypad L-G-ACM73138878
...
2005
Microwave Door Release Button Spring L-G-4B72023B
...
2006
Pcb Assembly L-G-EBR75234849
...
2007
Button,release L-G-MBG62662506
...
2022
Decor,button L-G-MCR63550002

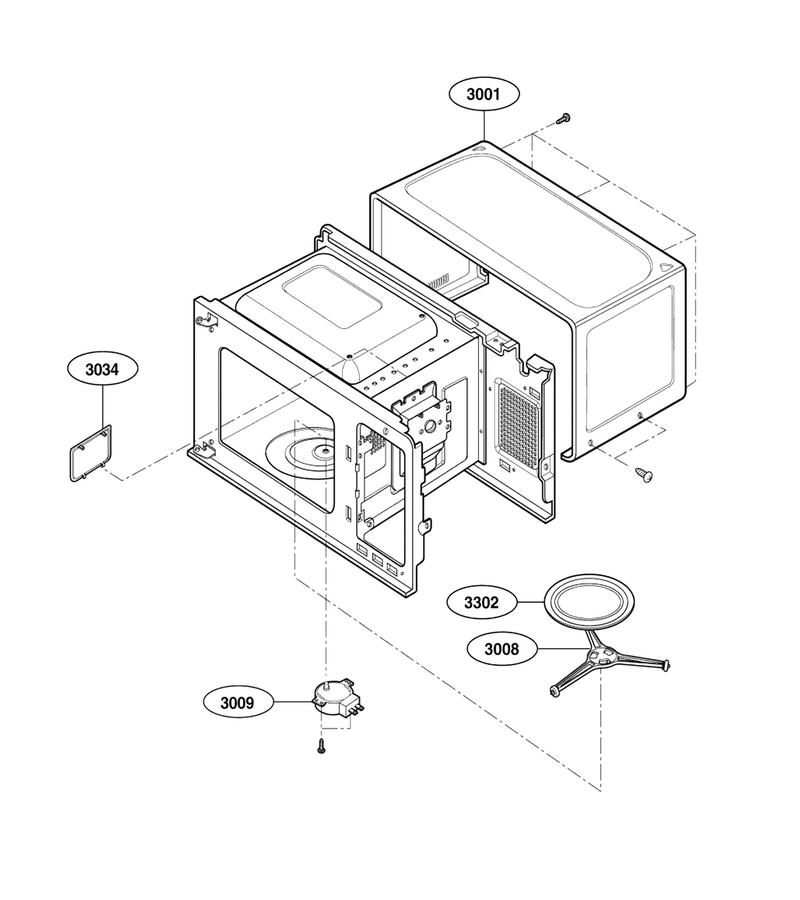

Oven Cavity Parts

...
...
3001
Case,u Bending L-G-3112W0U082E
...
3008
Microwave Turntable Support L-G-5889W0A001A
...
3009
Microwave Turntable Motor L-G-6549W1S017A
...
3034
Cover,resin L-G-3052W1A007C
...
3302
Microwave Glass Turntable Tray L-G-3390W1A044B

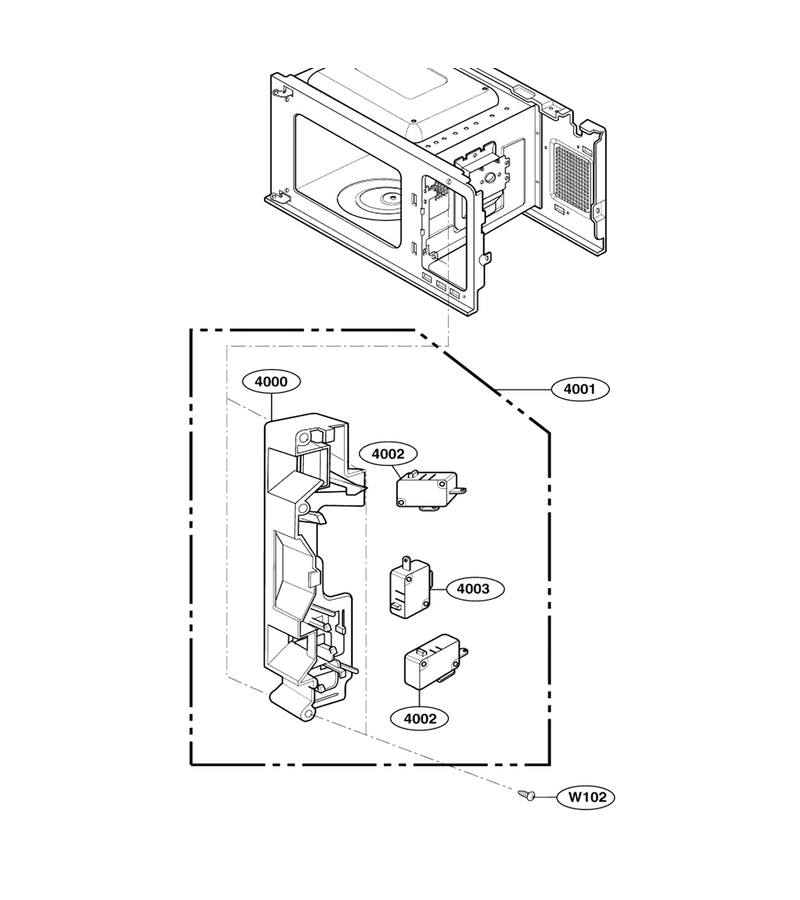

Latch Board Parts

...
...
4000
Holder,locker L-G-3500W1A036A
...
4001
Holder Assembly,locker L-G-3501W1A043A
...
4002
Switch,micro L-G-6600W1K001D
...
4003
Microwave Door Interlock Switch L-G-6600W1K001C

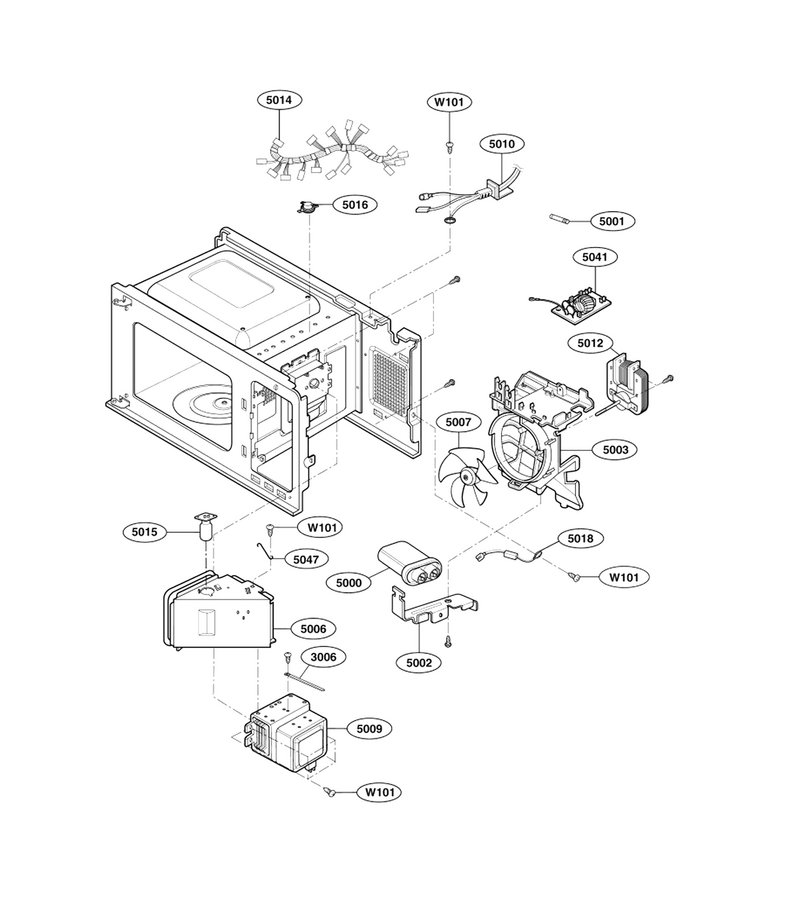

Interior Parts

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
3006
Lug (circ) L-G-4B72510F
...
5000
Capacitor,high Voltage L-G-0CZZW1H007K
...
5001
Fuse,time Delay L-G-EAF42072605
...
5002
Bracket L-G-4810W4C003B
...
5003
Guide,suction L-G-4974W1S052B
...
5006
Fan Bracket L-G-5262W2A037C
...
5007
Microwave Cooling Fan Blade L-G-5900W1A004A
...
5009
Magnetron L-G-6324W1A001L
...
5010
Power Cord Assembly L-G-EAD62027806
...
5012
Motor L-G-EAU42744404
...
5014
Harness,multi L-G-EAD60744713
...
5015
Lamp,incandescent L-G-6912W3B002K
...
5016
Microwave Thermostat L-G-6930W1A004L
...
5018
Cable,assembly L-G-6851W1A002E
...
5041
Filter,ac Line L-G-EAM35001896
...
5047
Supporter L-G-4980W3A038A

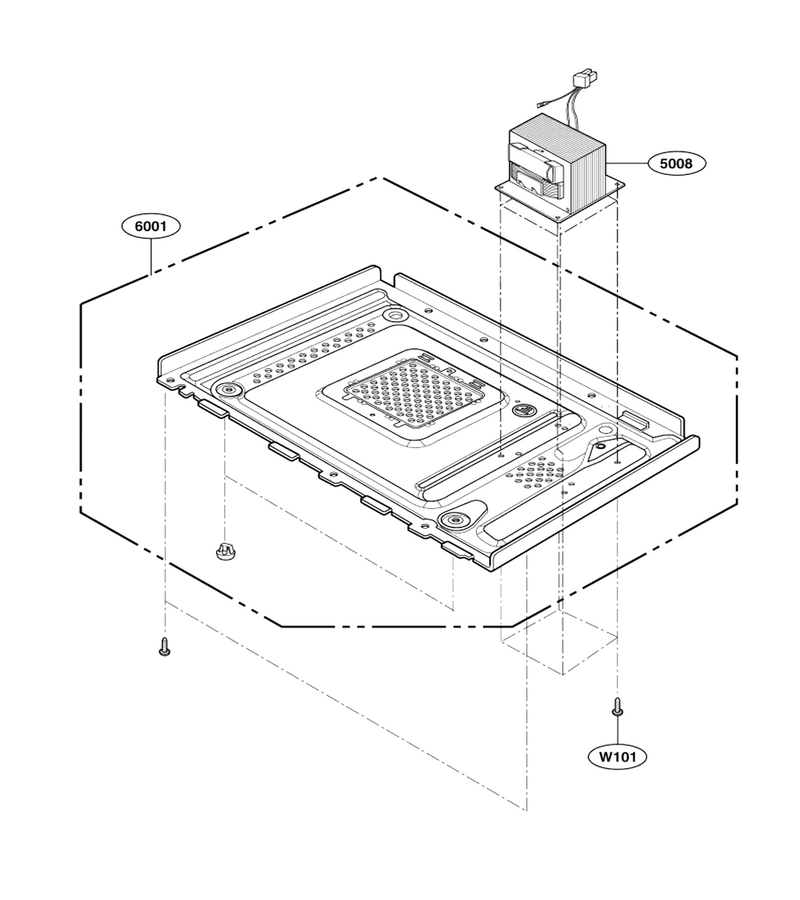

Base Plate Parts

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
5008
Transformer,high Voltage L-G-EBJ60663810
...
6001
Plate Assembly,base L-G-AGU72919402
