product name

LG LCRT2010BD.CBDEBBY

Model: LCRT2010BD.CBDEBBY

Save Part Not Listed?
product name

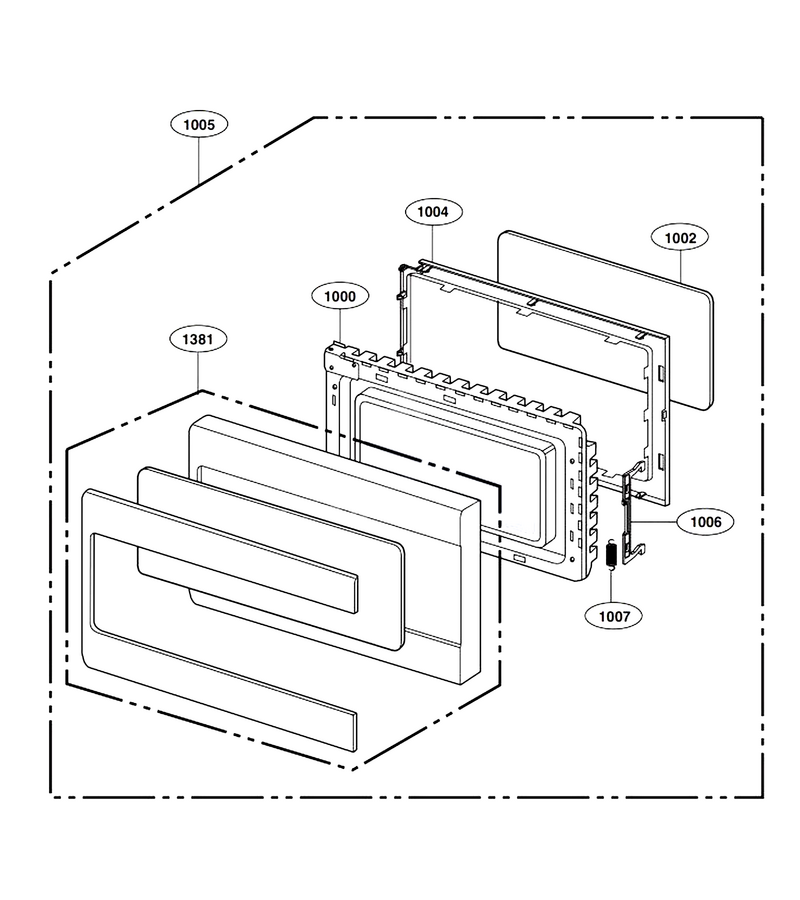

Door Parts

...
...
1000
Microwave Door Frame L-G-3213W0A001L
...
1002
Seal Tape L-G-3536W1A009A
...
1004
Microwave Choke Cover L-G-3552W1A035B
...
1005
Door Assembly,full L-G-3581W1A452X
...
1006
Latch L-G-4026W2A016A
...
1007
Microwave Door Latch Spring L-G-4970WRA001E
...
1381
Door Assembly,sub L-G-ADC74886906

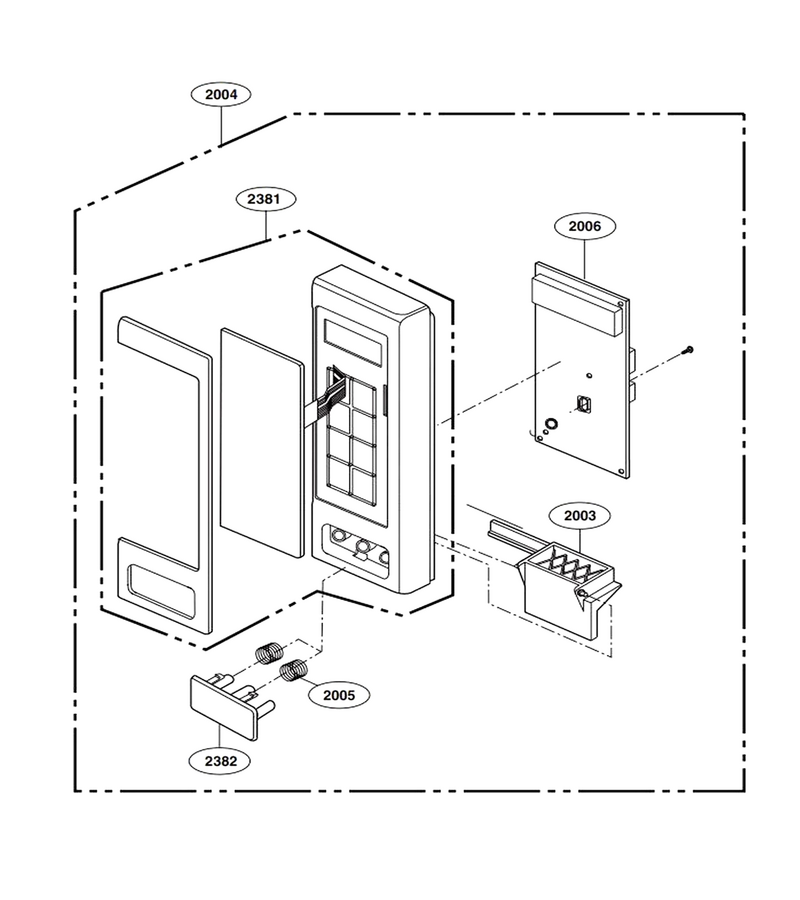

Controller Parts

...
...
2003
Lever,release L-G-MFC41909501
...
2004
Controller Assembly,keypad L-G-4781W1M372Y
...
2005
Microwave Door Release Button Spring L-G-4B72023B
...
2006
Pcb Assembly,main L-G-EBR73927306
...
2381
Controller Assembly,sub L-G-4781W1A273Z
...
2382
Parts Assembly L-G-383E81A009B

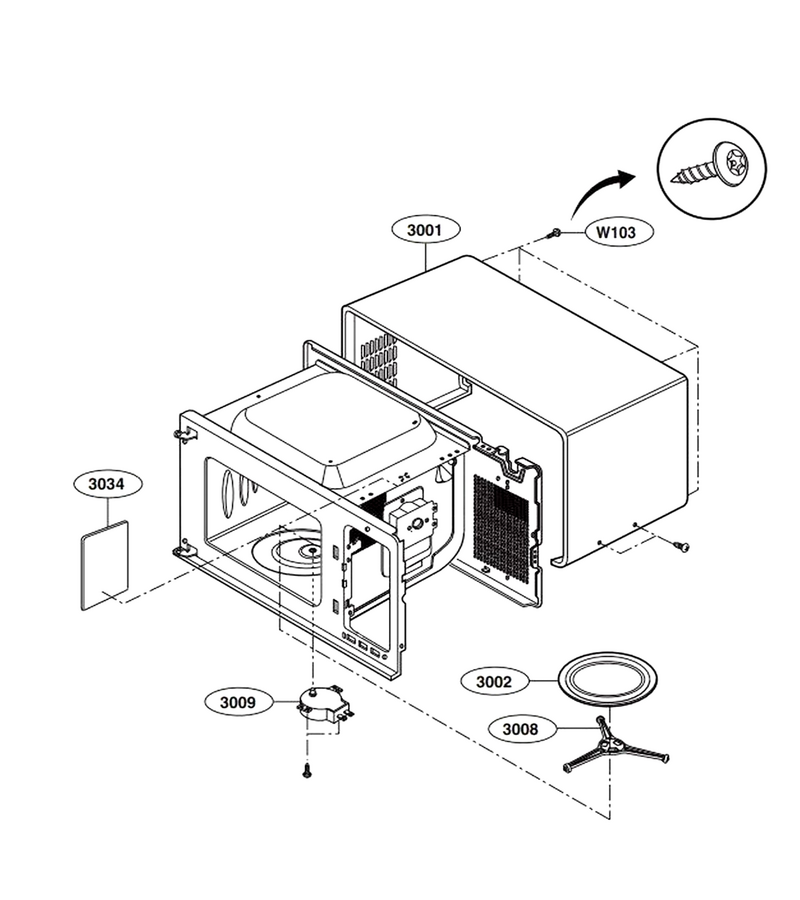

Oven Cavity Parts

...
...
W103
Screw L-G-1SZZW2A002A
...
3001
Case,u Bending L-G-3112W0U072C
...
3002
Microwave Glass Turntable Tray L-G-3390W1G006B
...
3008
Microwave Turntable Support L-G-5889W0A001A
...
3009
Microwave Turntable Motor L-G-6549W1S017A
...
3034
Cover,resin L-G-3052W2A021D

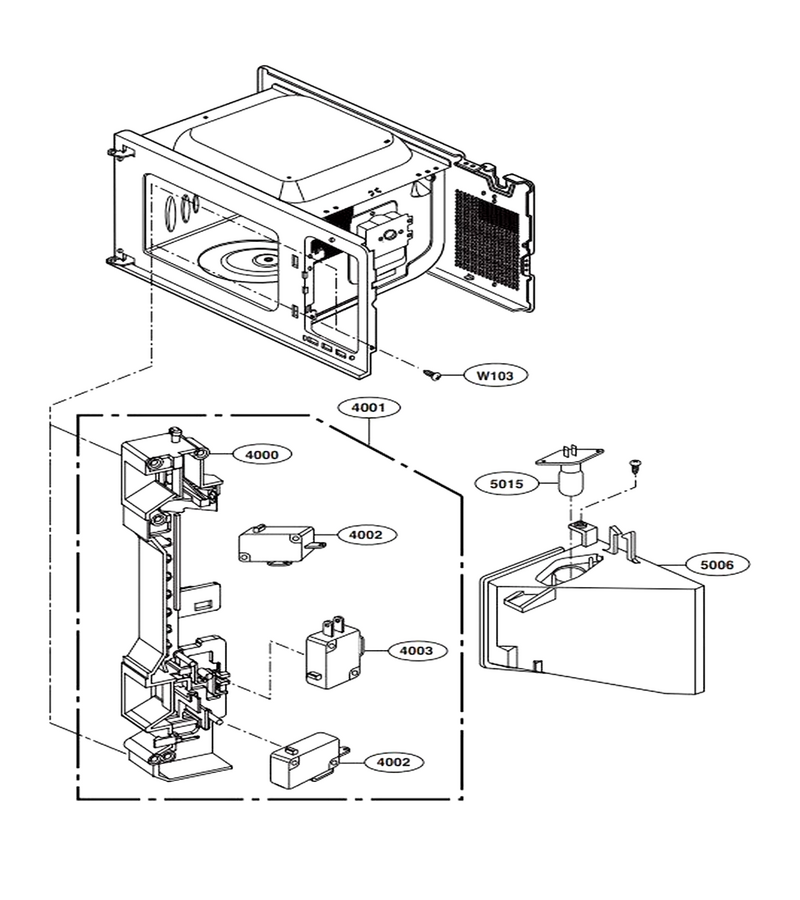

Latch Board Parts

...
...
W103
Screw L-G-1SZZW2A002A
...
4000
Holder,locker L-G-3500W1A018C
...
4001
Microwave Door Latch Housing And Interlock Switch L-G-3501W1A053A
...
4002
Switch,micro L-G-6600W1K001D
...
4003
Microwave Door Interlock Switch L-G-6600W1K001C
...
5006
Duct L-G-5208W1A034B
...
5015
Microwave Light Bulb L-G-6912W3B002L

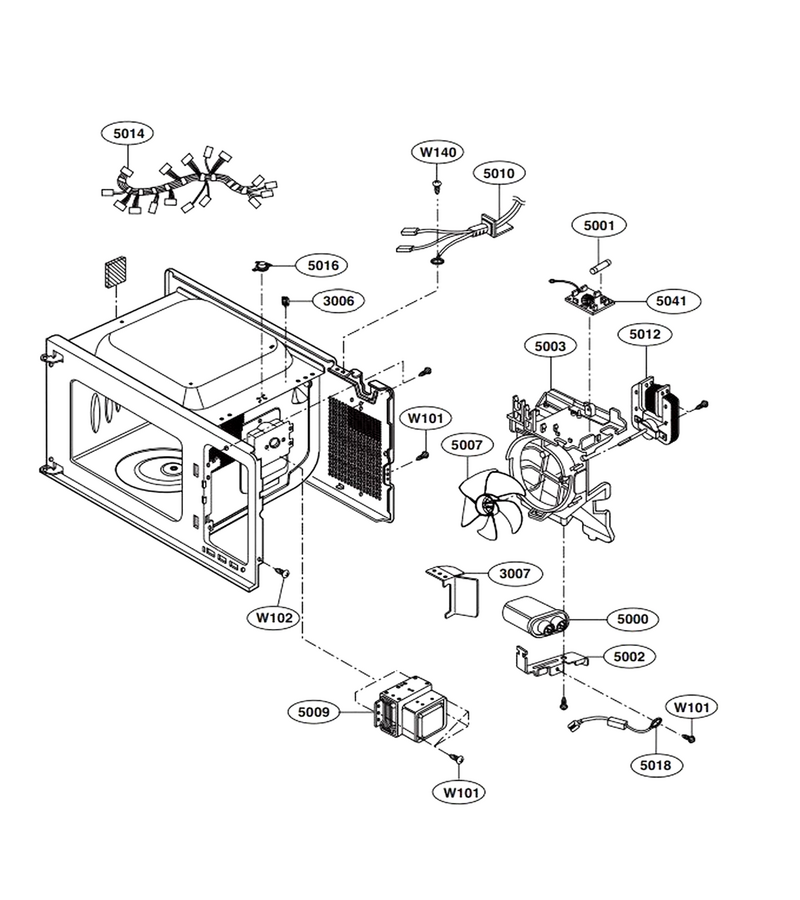

Interior Parts

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W102
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
3006
Holder L-G-4B72944B
...
3007
Insulator L-G-MEV64392901
...
5000
Capacitor,al,radial L-G-0CZZW1H004S
...
5001
Fuse,time Delay L-G-EAF42072605
...
5002
Bracket L-G-4810W4C003B
...
5003
Guide,suction L-G-4974W0A003C
...
5007
Microwave Cooling Fan Blade L-G-5900W1A007B
...
5009
Magnetron L-G-6324W1A001L
...
5010
Power Cord Assembly L-G-EAD59116212
...
5012
Microwave Cooling Fan Motor L-G-EAU42744405
...
5014
Harness,multi L-G-EAD60831201
...
5016
Thermostat L-G-6930W1A004N
...
5018
Cable,assembly L-G-6851W1A002E
...
5041
Microwave Noise Filter L-G-EAM35001864

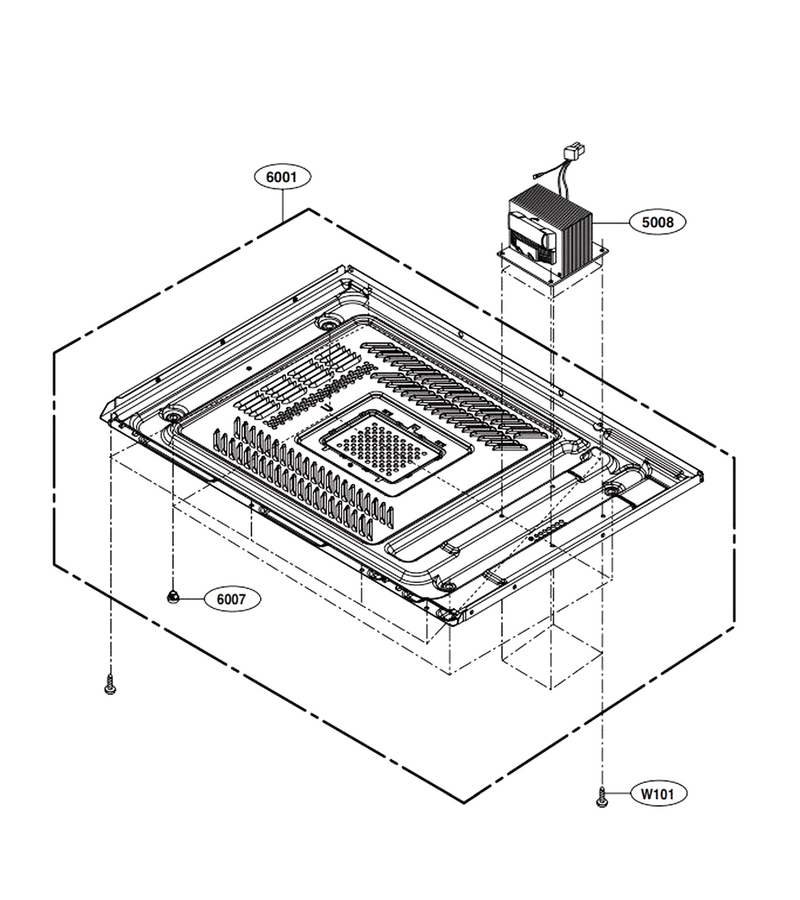

Base Plate Parts

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
5008
Transformer L-G-6170W1D091J
...
6001
Plate Assembly,base L-G-3303W1A076C
...
6007
Microwave Foot (white) L-G-5006W3A019A

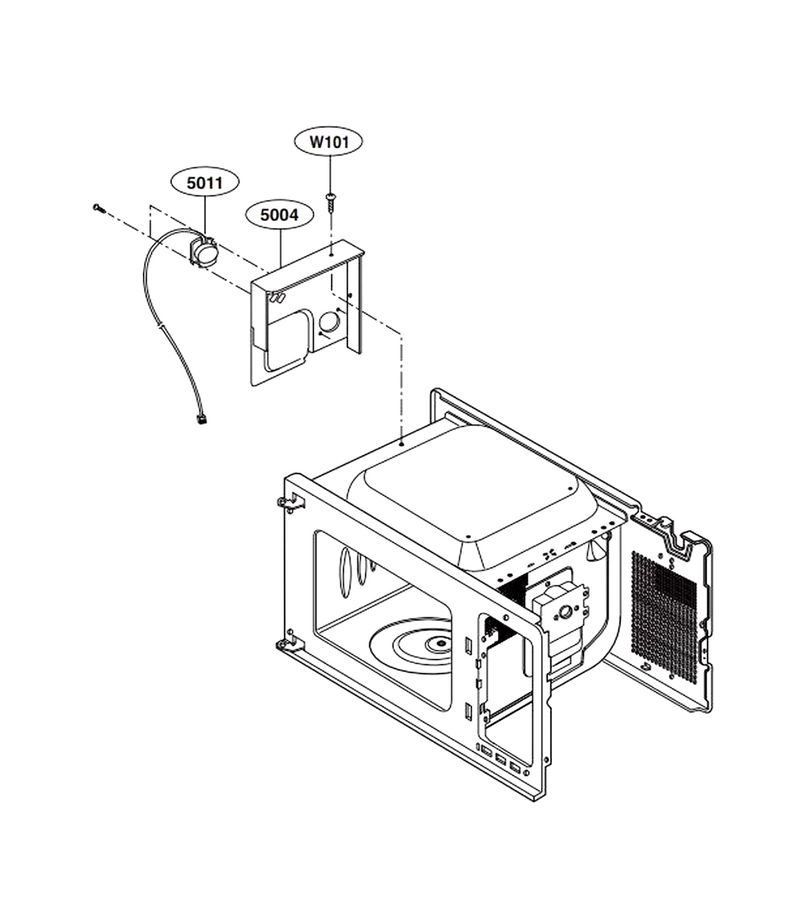

Sensor Parts

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
5004
Duct L-G-5208W1A012B
...
5011
Microwave Humidity Sensor L-G-6501W1A006A
