LG LCN489HV.ANWBEUS

Model: LCN489HV.ANWBEUS

Save Part Not Listed?
product name

Popular Parts

Popular Parts

Indoor Unit

...
...
EBG13RD
Thermistor Assembly,ntc L-G-EBG61325803
...
EBG13WH
Thermistor Assembly,ntc L-G-EBG61287707
...
EBG13YL
Thermistor Assembly,ntc L-G-EBG61106804
...
W49810A
Supporter Assembly L-G-AJJ76138303
...
W49810B
Supporter Assembly L-G-AJJ75938801
...
W50010
Accessory Assembly L-G-AAA31075428
...
W50060
Cap L-G-MBL36236701
...
W5210C
Tube,tripod L-G-MJU65506401
...
W6643A
Connector,terminal Block L-G-EAG38884441
...
W6643B
Connector,terminal Block L-G-EAG63452304
...
2687S1
Sub Pcb Assembly L-G-EBR87859748
...
2687M1
Pcb Assembly,main L-G-EBR86339606
...
55211G
Tube Assembly,expansion L-G-AJR76602302
...
130411
Base Assembly,indoor L-G-AAN31579009
...
131400A
Cabinet L-G-MBH65042403
...
131400B
Cabinet L-G-MBH65062103
...
131410
Cabinet Assembly L-G-ABJ76087401
...
135510
Cover L-G-MCK71515201
...
158591
Pump Assembly,water(dc) L-G-AHA75113309
...
165010
Sensor Assembly L-G-EBD62905701
...
249310
Holder Assembly L-G-AEJ75620001
...
249951
Control (indoor) Case Assembly L-G-ABQ76682526
...
266010
Switch Assembly L-G-6601A20013L
...
267110
Remote Controller Assembly L-G-AKB75735404
...
330871
Pan Assembly,drain L-G-AGK74230509
...
337000
Mesh,metal L-G-MFN55272305
...
346810
Motor Assembly,dc,indoor L-G-4681A20172Z
...
349480
Orifice L-G-MFX63141901
...
352118
Tube Assembly,manifold(indoor) L-G-AJR76602401
...
352150A
Drain Hose Assembly L-G-AEM32883701
...
352150B
Hose Assembly,drain L-G-5251AP2984C
...
354211
Evaporator Assembly,bending L-G-ADL76021201
...
359015
Fan Assembly,turbo L-G-ADP75273401

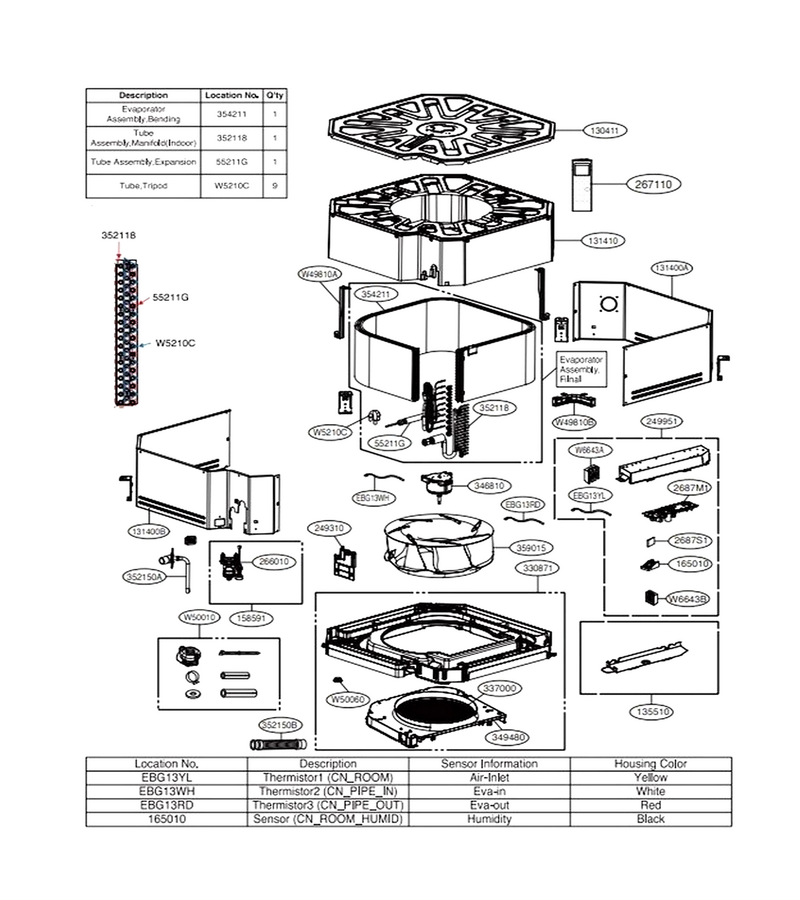

Schematic Image Zoomed
