LG LCN427HV.ANWBEUS

Model: LCN427HV.ANWBEUS

Save Part Not Listed?
product name

Indoor Unit

...
...
W52105
Tube,return Bending L-G-4H02273Q
...
W6640B
Connector,terminal Block L-G-6640000036U
...
W6640A
Connector,terminal Block L-G-6640000036T
...
W51620
Socket,flare L-G-3A00375A
...
W50060
Cap L-G-MBL36236701
...
W50010
Accessory Assembly L-G-AAA31075410
...
W49810
Supporter Assembly L-G-AJJ73239001
...
W3110
Case L-G-MBN64409001
...
W0FZZ
Fuse,time Delay L-G-EAF60673101
...
EBG13YL
Thermistor Assembly,ntc L-G-EBG61106804
...
EBG13WH
Thermistor Assembly,ntc L-G-EBG61287707
...
EBG13RD
Thermistor Assembly,ntc L-G-EBG61325803
...
130411
Base Assembly, Indoor L-G-AAN31579001
...
130911A
Cabinet Assembly,indoor L-G-ABJ31579104
...
130911C
Cabinet Assembly,indoor L-G-ABJ32882402
...
131400B
Cabinet L-G-MBH33966602
...
131400D
Cabinet L-G-MBH33966802
...
131410
Cabinet Assembly L-G-ABJ32324101
...
135500
Cover L-G-MCK36239312
...
148000
Supporter L-G-MJH62281901
...
158591
Pump Assembly,water L-G-AHA32883202
...
249310
Holder Assembly L-G-AEJ32882701
...
249951
Control (indoor) Case Assembly L-G-ABQ74181906
...
266010
Switch Assembly L-G-6601A20013L
...
267110
Remote Controller Assembly L-G-AKB73455712
...
268711B
Pcb Assembly,main L-G-EBR79629504
...
268711E
Sub Pcb Assembly L-G-EBR74398408
...
330870
Pan Assembly L-G-AGK73130507
...
330871
Drain Pan Assembly L-G-AGK32882917
...
337000
Mesh,metal L-G-MFN55272301
...
346810
Indoor Dc Motor Assembly L-G-4681A20172S
...
349480
Orifice L-G-MFX36238601
...
352115
Tube Assembly,evaporator(in) L-G-AJR32674714
...
352118
Tube Assembly,manifold(indoor) L-G-AJR32883911
...
352150A
Drain Hose Assembly L-G-AEM32883701
...
352150B
Hose Assembly,drain L-G-5251AP2984C
...
354211
Evaporator Assembly,bending L-G-ADL32881104
...
359012
Fan Assembly, Turbo L-G-ADP32236101

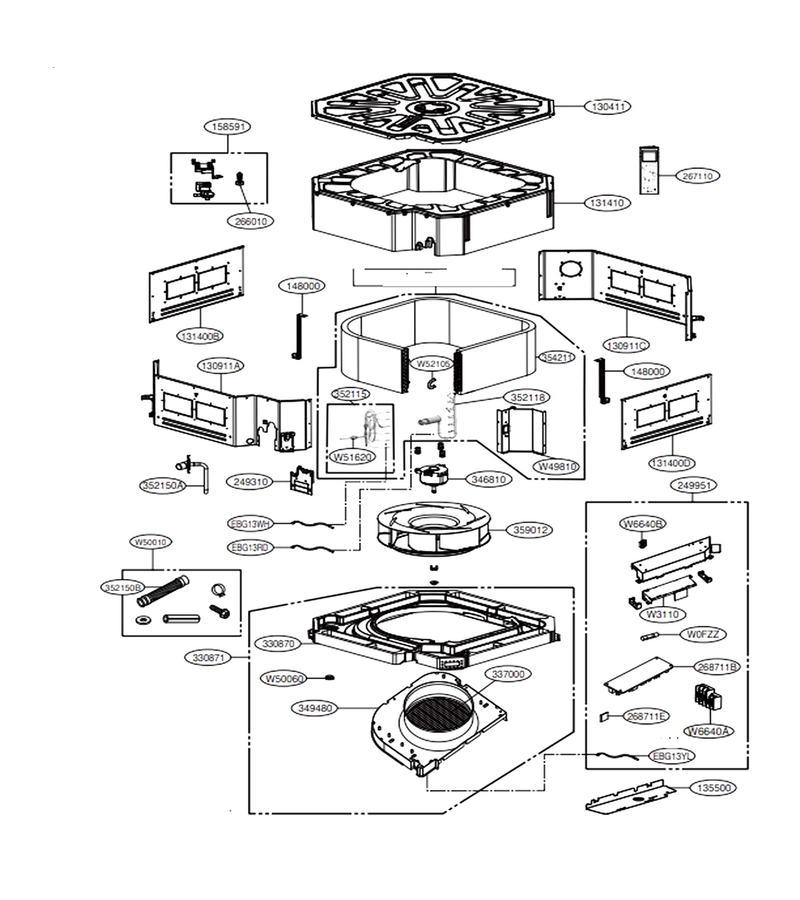

Schematic Image Zoomed
