LG LCN187HV.ANWBEUS

Model: LCN187HV.ANWBEUS

Save Part Not Listed?
product name

Indoor Unit

...
...
W52105
Tube,return Bending L-G-4H02273Q
...
W6640A
Connector,terminal Block L-G-6640000036T
...
W50060
Cap L-G-MBL36236701
...
W50010
Accessory Assembly L-G-AAA31075410
...
W49810
Supporter Assembly L-G-AJJ73239003
...
W3110
Case L-G-MBN64409001
...
W0FZZ
Fuse,time Delay L-G-EAF60673101
...
EBG13YL
Thermistor Assembly,ntc L-G-EBG61106804
...
EBG13WH
Thermistor Assembly,ntc L-G-EBG61287707
...
EBG13RD
Thermistor Assembly,ntc L-G-EBG61325803
...
130411
Base Assembly,indoor L-G-AAN31579002
...
130911A
Cabinet Assembly,indoor L-G-ABJ32881604
...
130911C
Cabinet Assembly,indoor L-G-ABJ32881904
...
131400B
Cabinet L-G-MBH36818602
...
131400D
Cabinet L-G-MBH36819002
...
131410
Cabinet Assembly L-G-ABJ32581801
...
135500
Cover L-G-MCK36239312
...
148000
Supporter L-G-MJH62282301
...
158591
Pump Assembly,water L-G-AHA32883202
...
249310
Holder Assembly L-G-AEJ32882701
...
249951
Case Assembly,control(indoor) L-G-ABQ74181905
...
266010
Switch Assembly L-G-6601A20013L
...
267110
Remote Controller Assembly L-G-AKB73455712
...
268711B
Pcb Assembly,main L-G-EBR79629504
...
268711C
Pcb Assembly,sub L-G-EBR74398405
...
330870
Pan Assembly L-G-AGK73130507
...
330871
Pan Assembly,drain L-G-AGK32882916
...
337000
Mesh,metal L-G-MFN55272302
...
346810
Motor,dc L-G-EAU32165801
...
349480
Orifice L-G-MFX37499001
...
352118
Tube Assembly,manifold(indoor) L-G-AJR32883902
...
352150A
Hose Assembly,drain L-G-AEM32883702
...
352150B
Hose Assembly,drain L-G-5251AP2984C
...
354211
Evaporator Assembly,bending L-G-ADL32881103
...
359012
Fan Assembly,turbo L-G-ADP32882601
...
552111
Tube Assembly,capillary L-G-AJR33796503

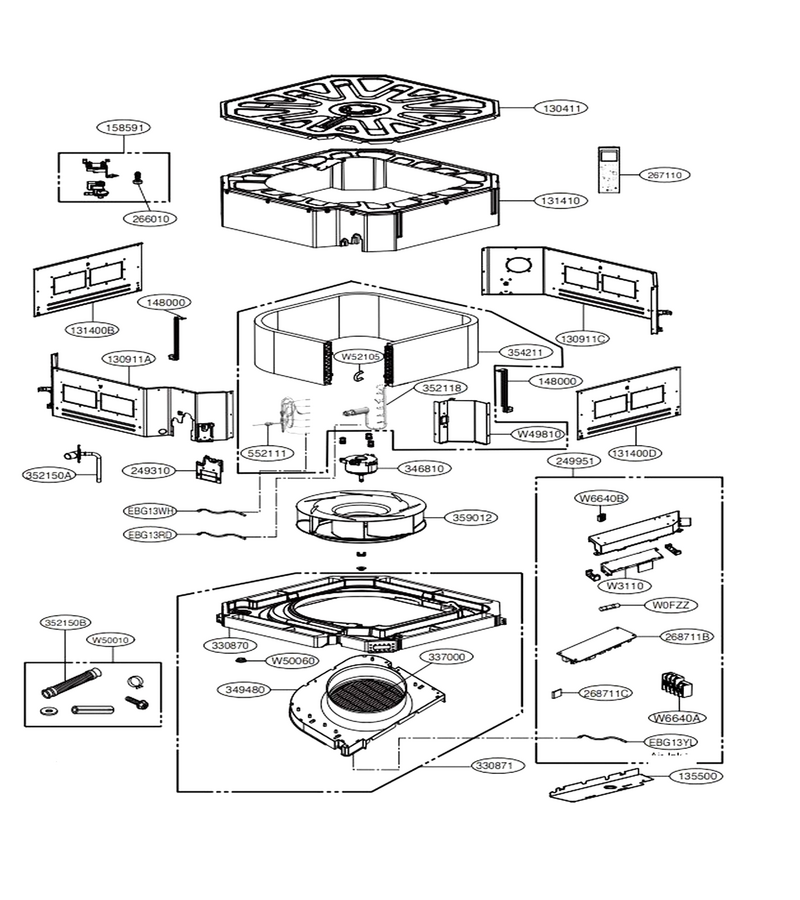

Schematic Image Zoomed
