product name

LG LCN128HV4.BWHBEUS

Model: LCN128HV4.BWHBEUS

Save Part Not Listed?
product name

Tr Chassis

...
...
W52105
Tube,return Bending L-G-4H02273Q
...
W6640A
Connector,terminal Block L-G-EAG38884443
...
W50060
Cap L-G-MBL36236701
...
W50011
Accessory Assembly,final(indoor) L-G-AAA56892903
...
W49810
Supporter Assembly L-G-AJJ36865004
...
W3110
Case L-G-MBN42288301
...
W0FZZ
Fuse,time Delay L-G-EAF60673101
...
EBG13YL
Thermistor Assembly,ntc L-G-EBG61106804
...
EBG13WH
Thermistor Assembly,ntc L-G-EBG61287708
...
EBG13RD
Thermistor Assembly,ntc L-G-EBG61325804
...
130411
Base Assembly,indoor L-G-AAN36760002
...
130911A
Cabinet Assembly,indoor L-G-ABJ36864804
...
130911B
Cabinet Assembly,indoor L-G-ABJ36864904
...
131410
Cabinet Assembly L-G-ABJ52692103
...
135511
Cover Assembly,control(indoor) L-G-ACQ59999201
...
140570
Locker Assembly L-G-4A01405C
...
148000
Supporter L-G-MJH62282301
...
158591
Pump Assembly,water(dc) L-G-AHA75113305
...
249310
Holder Assembly L-G-AEJ36877601
...
249951
Case Assembly,control(indoor) L-G-ABQ72925126
...
266010
Switch Assembly L-G-6601A20013T
...
267110
Remote Controller Assembly L-G-AKB73757604
...
268711B
Pcb Assembly,main L-G-EBR81767907
...
268711C
Pcb Assembly,sub L-G-EBR44202623
...
330871B
Pan Assembly,drain L-G-AGK73110501
...
330871A
Pan Assembly,drain L-G-AGK36759812
...
346810
Motor,dc L-G-EAU32165801
...
349480
Orifice L-G-MFX42382101
...
352115
Tube Assembly,evaporator(in) L-G-AJR56006701
...
352116
Tube Assembly,evaporator(out) L-G-AJR53980903
...
352150A
Hose Assembly,drain L-G-AEM36871901
...
352150B
Hose Assembly,drain L-G-5251AP2984C
...
354211
Evaporator Assembly,bending L-G-ADL55996002
...
359012
Fan,turbo L-G-MDG42451401

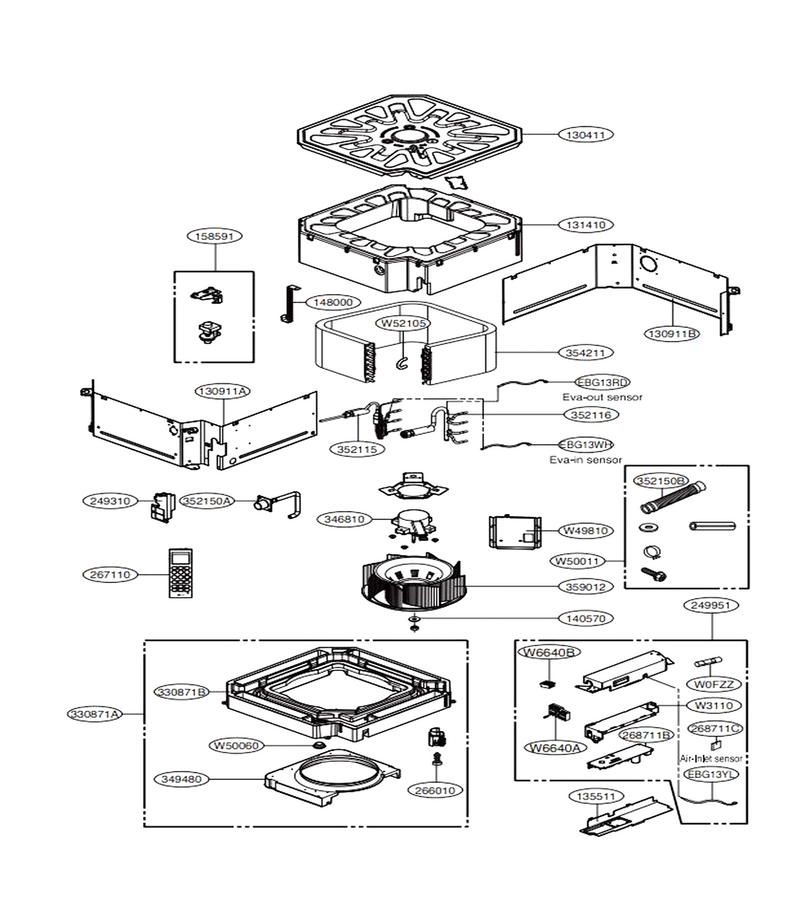

Schematic Image Zoomed
