LG LCE30845.ASTLLGA

Model: LCE30845.ASTLLGA

Save Part Not Listed?
product name

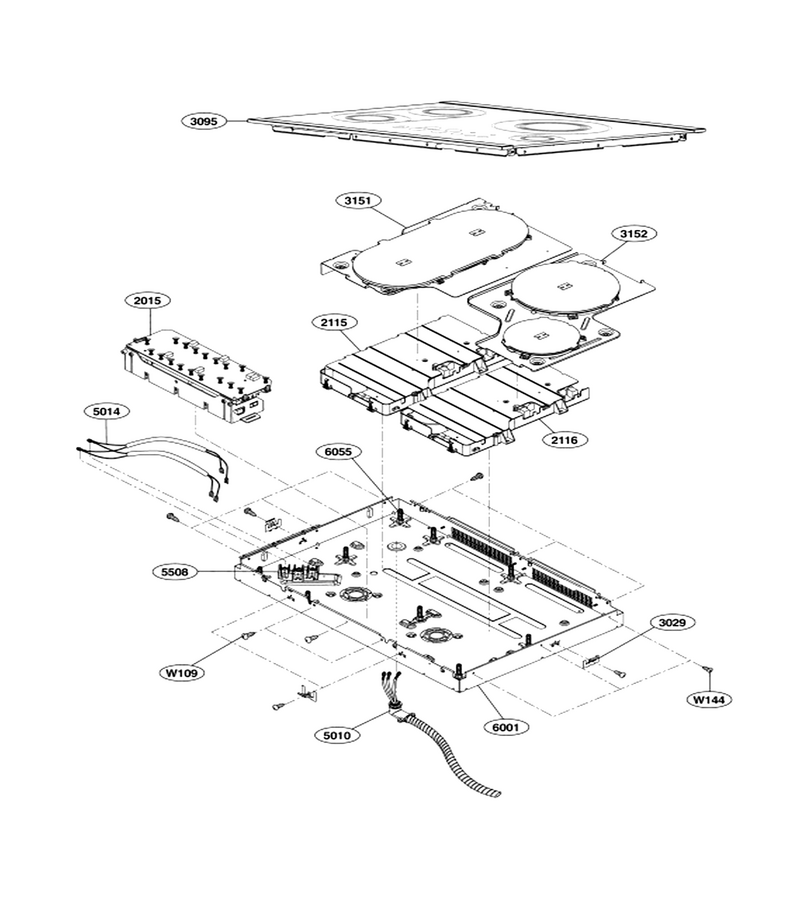

Main (1)

...
...
W109
Microwave Screw L-G-1TTL0402818
...
W144
Microwave Screw L-G-1TTL0402618
...
2015
Control Assembly L-G-ACM34466901
...
2115
Cooktop Electronic Control Board L-G-ACM34467002
...
2116
Cooktop Induction Module L-G-ACM34467001
...
3029
Bracket L-G-MAZ39601701
...
3095
Range Main Top L-G-AGU34462501
...
3151
Burner Assembly L-G-ABF34513801
...
3152
Burner Assembly L-G-ABF34513601
...
5010
Power Cord Assembly L-G-EAD39575701
...
5014
Single Harness L-G-EAD39990101
...
5508
Connector L-G-EAG32629301
...
6001
Base Assembly L-G-AAN34466701
...
6055
Spring L-G-4970W1N003A

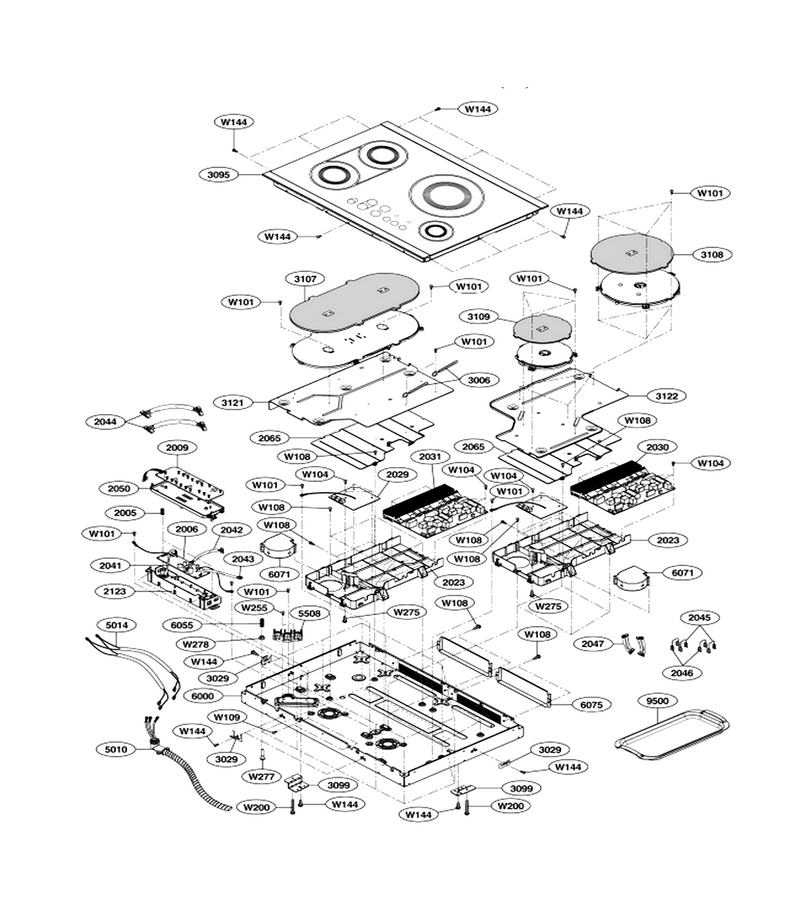

Main (2)

...
...
W277
Screw,customized L-G-1SZZW1N001A
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W275
Screw L-G-1TTL0502618
...
W255
Screw,tapping L-G-1TPL0403118
...
W200
Screw,machine L-G-1MPC0504916
...
W144
Microwave Screw L-G-1TTL0402618
...
W109
Microwave Screw L-G-1TTL0402818
...
W108
Microwave Screw L-G-1TTL0402418
...
W104
Screw L-G-1TPL0302018
...
2005
Spring L-G-4970W1N006A
...
2006
Pcb Assembly,main L-G-EBR37028201
...
2009
Pcb Assembly,keypad L-G-EBR37027501
...
2023
Base,pcb L-G-MAM37884301
...
2029
Pcb Assembly,power L-G-EBR37186501
...
2030
Pcb Assembly,inverter L-G-EBR37154901
...
2031
Pcb Assembly,inverter L-G-EBR37154902
...
2041
Harness,single L-G-EAD39990303
...
2042
Harness,single L-G-EAD39990304
...
2043
Harness,single L-G-EAD39990301
...
2044
Harness,single L-G-EAD39990302
...
2045
Harness,single L-G-6877W1N009G
...
2046
Harness,single L-G-6877W1N009C
...
2047
Harness,single L-G-EAD39990306
...
2050
Supporter,pcb L-G-MJH38349301
...
2065
Cover,base L-G-MCK39513901
...
2123
Base,pcb L-G-MAM37991401
...
3006
Lug (circ) L-G-4B72510F
...
3029
Bracket L-G-MAZ39601701
...
3095
Range Main Top L-G-AGU34462501
...
3099
Idler Bracket L-G-MAZ39918701
...
3107
Insulator L-G-MEV39947601
...
3108
Insulator L-G-MEV39947701
...
3109
Insulator L-G-MEV39947702
...
3121
Base,work Coil L-G-MAM37882401
...
3122
Base,work Coil L-G-MAM37882301
...
5010
Power Cord Assembly L-G-EAD39575701
...
5014
Single Harness L-G-EAD39990101
...
5508
Connector L-G-EAG32629301
...
6000
Base L-G-MAM37918601
...
6055
Spring L-G-4970W1N003A
...
6071
Fan Module L-G-EAL39335501
...
6075
Guide,air L-G-MEA37844301
...
9500
Oven L-G-MFY39912001
