LG LBNC15231V.APZCNA0

Model: LBNC15231V.APZCNA0

Save Part Not Listed?
product name

Popular Parts

Popular Parts

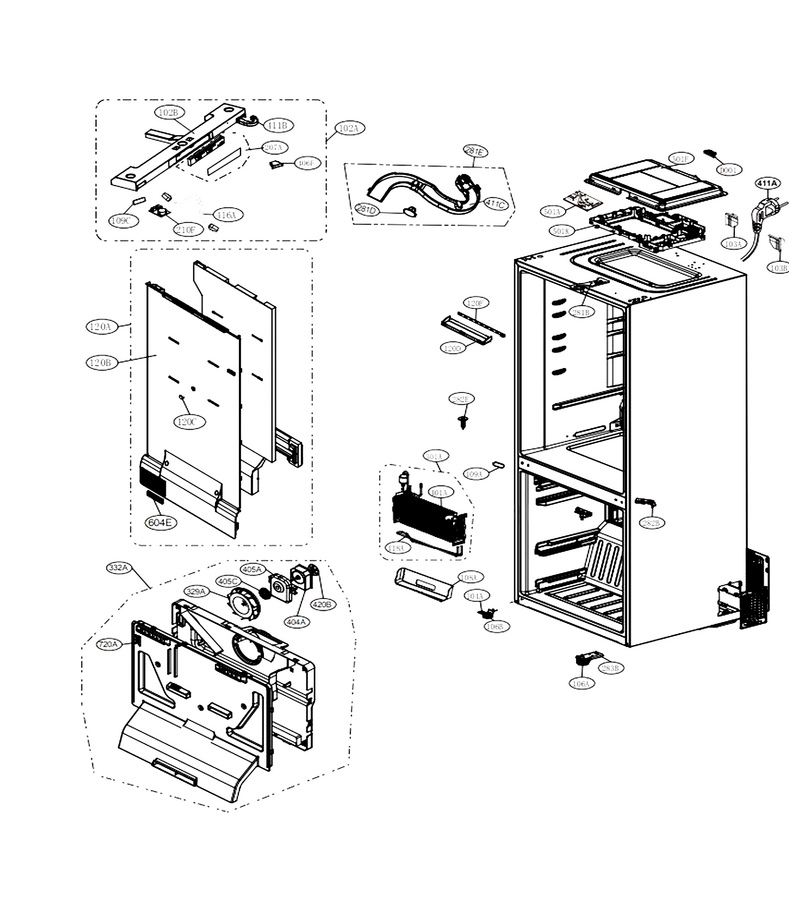

Main Parts I

...
...
102A
Cover Assembly,top L-G-ACQ90493401
...
102B
Cover,top L-G-MCK70291402
...
103A
Handle,rear L-G-MEB61847007
...
103B
Handle,rear L-G-MEB61847008
...
104A
Supporter,leg L-G-4980JQ3033B
...
106A
Tube Assembly,drain L-G-5251JA3001G
...
106B
Leg,adjust L-G-MFA62162901
...
108A
Tray,drain L-G-MJS62954001
...
109A
Refrigerator Cap Cover L-G-5006JQ3032A
...
109C
Cover,front L-G-MCK70605702
...
120D
Case,lamp L-G-MCK70185901
...
120F
Led Assembly L-G-EAV64052306
...
120C
Cap,duct L-G-MBL34319901
...
120B
Case,control Refrigerator L-G-MBN64804503
...
120A
Case Assembly,control Refrigerator L-G-ABQ76880302
...
207A
Cover Assembly,display L-G-ACQ90733207
...
210F
Pcb Assembly,sub L-G-EBR64730412
...
281B
Hinge Assembly,upper L-G-AEH74156801
...
281D
Cap,hinge L-G-5006JQ3012C
...
281E
Cap Assembly L-G-ABN74578217
...
282B
Hinge Assembly,center L-G-AEH74156901
...
282E
Screw,customized L-G-FAB30206404
...
283B
Hinge,lower L-G-MEF62742602
...
301A
Evaporator Assembly L-G-ADL74121211
...
329A
Fan Assembly L-G-ADP73673901
...
332A
Grille Assembly,fan L-G-AEB75804601
...
401A
Pipe Assembly,evaporator L-G-AGR74155101
...
404A
Motor,dc L-G-EAU63103001
...
405A
Refrigerator Evaporator Fan Motor Bracket L-G-4810JA2129B
...
405C
Refrigerator Motor Support Damper L-G-5040JA2009B
...
411A
Power Cord Assembly L-G-EAD62108344
...
411B
Holder,cord L-G-MEG63462707
...
411C
Holder,cord L-G-MEG63462708
...
416A
Harness Assembly L-G-EAD63168808
...
418A
Heater,sheath L-G-MEE63064905
...
420B
Refrigerator Motor Support Damper L-G-5040JA2004B
...
501K
Case,pcb L-G-MBN61863901
...
501F
Cover,pcb L-G-3550JQ1133M
...
501A
Pcb Assembly,main L-G-EBR86063017
...
604E
Deodorizer L-G-MCS62101810
...
720A
Harness Assembly L-G-EAD60721411

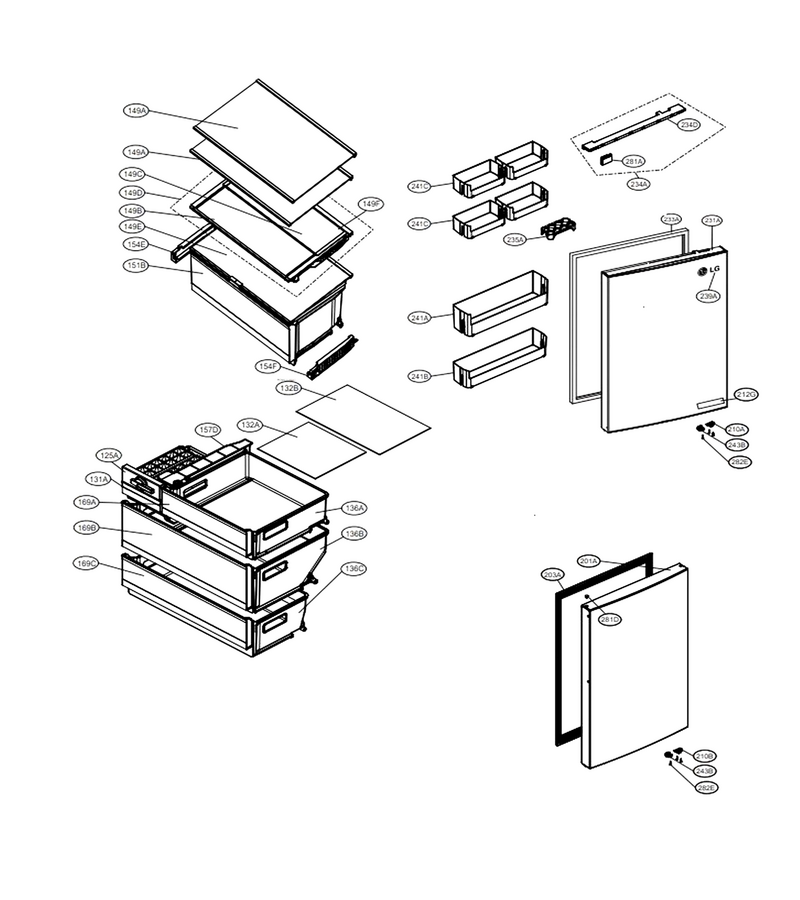

Main Parts Ii

...
...
125A
Tray Assembly,ice L-G-AJP32924910
...
131A
Bucket,ice L-G-MKK63022402
...
132A
Shelf,glass L-G-MHL64011703
...
136A
Tray Assembly,drawer L-G-AJP75794401
...
136B
Tray Assembly,drawer L-G-AJP75794503
...
136C
Tray Assembly,drawer L-G-AJP75794601
...
149A
Shelf Assembly,refrigerator L-G-AHT74554004
...
149F
Shelf Assembly,refrigerator L-G-AHT75053901
...
149E
Cover Assembly,tv L-G-ACQ90733103
...
149C
Shelf,refrigerator L-G-MHL64451601
...
149D
Shelf Assembly,refrigerator L-G-AHT75053801
...
149B
Shelf Assembly,refrigerator L-G-AHT75054001
...
151B
Tray,vegetable L-G-MJS64751807
...
154E
Guide,rail L-G-MEA65430701
...
157D
Guide,rail L-G-MEA65510701
...
169A
Cover,drawer L-G-MCK68045503
...
169B
Cover,drawer L-G-MCK68045506
...
169C
Cover,drawer L-G-MCK68045510
...
201A
Door Foam Assembly,freezer L-G-ADD74056931
...
203A
Gasket Assembly,door L-G-ADX73591405
...
210A
Cover Assembly,display L-G-ACQ90733207
...
210B
Bracket,door L-G-MAZ63465501
...
212G
Bracket,door L-G-MAZ63465502
...
231A
Pcb Assembly,sub L-G-EBR64730412
...
234A
Decor Assembly,door L-G-ADD74056316
...
234D
Gasket Assembly,door L-G-ADX73591404
...
235A
Tray,egg L-G-ACW74057504
...
239A
Name Plate L-G-MCR65093204
...
241A
Tray,egg L-G-MJS62773801
...
241B
Refrigerator Nameplate L-G-MFT62346511
...
241C
Basket,door L-G-MAN64468401
...
243B
Basket,door L-G-MAN64468601
...
281A
Cover,hinge L-G-MCK67705804
...
281D
Cap,hinge L-G-5006JQ3012C
...
282E
Screw,customized L-G-FAB30206404

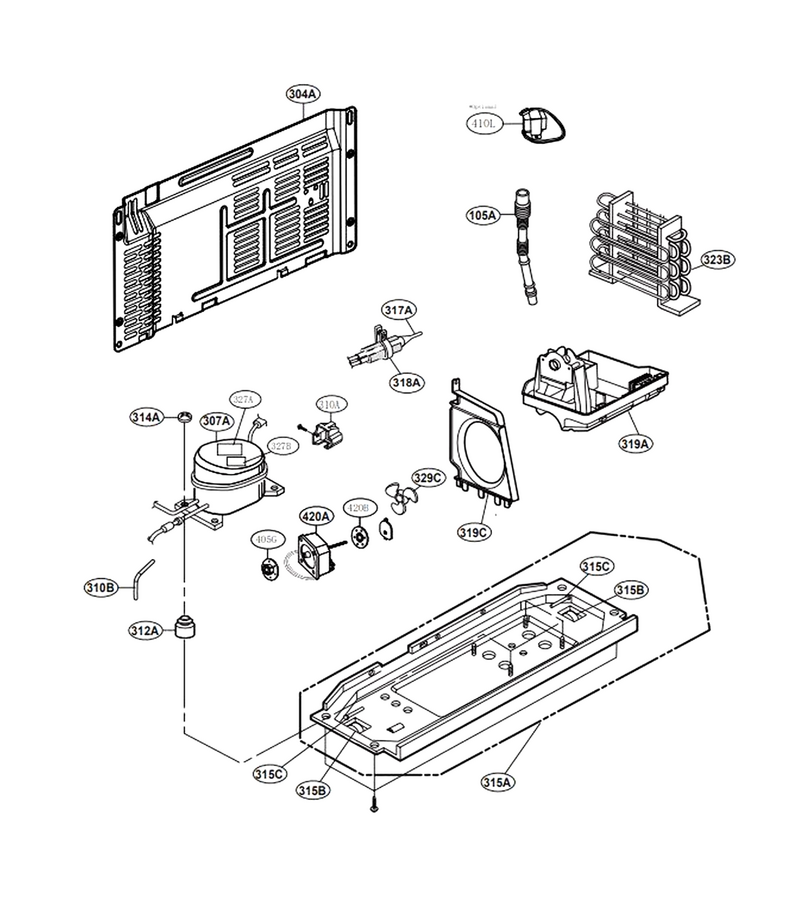

Main Parts Iii

...
...
105A
Tube Assembly,drain L-G-5251JA3001G
...
304A
Cover Assembly,machinery(rear) L-G-ACQ85441701
...
307A
Compressor,set Assembly L-G-TCA37032002
...
310B
Pipe Joint L-G-5200JQ3002E
...
312A
Damper,compressor L-G-MCQ67247501
...
314A
Refrigerator Compressor Mount Retainer Clip L-G-4620JA3015A
...
315B
Roller L-G-MHA61933401
...
315C
Refrigerator Pin L-G-1PZZJA3010A
...
317A
Drier Assembly L-G-ADH73590301
...
318A
Drier Holder L-G-4930JA3034C
...
319A
Tray,drip L-G-MJS63992801
...
319C
Guide,fan L-G-MEA64652301
...
323B
Condenser Assembly,wire L-G-ACG73426008
...
327A
Damper,noise L-G-5072JQ3002F
...
327B
Restrainer L-G-5072JQ3002B
...
329C
Fan Assembly L-G-ADP36665705
...
405G
Damper,motor Support L-G-MCQ65884302
...
420A
Motor,dc L-G-EAU63103013
...
420B
Refrigerator Motor Support Damper L-G-5040JA2004B
