LG LBNC15221V.APZCNA0

Model: LBNC15221V.APZCNA0

Save Part Not Listed?
product name

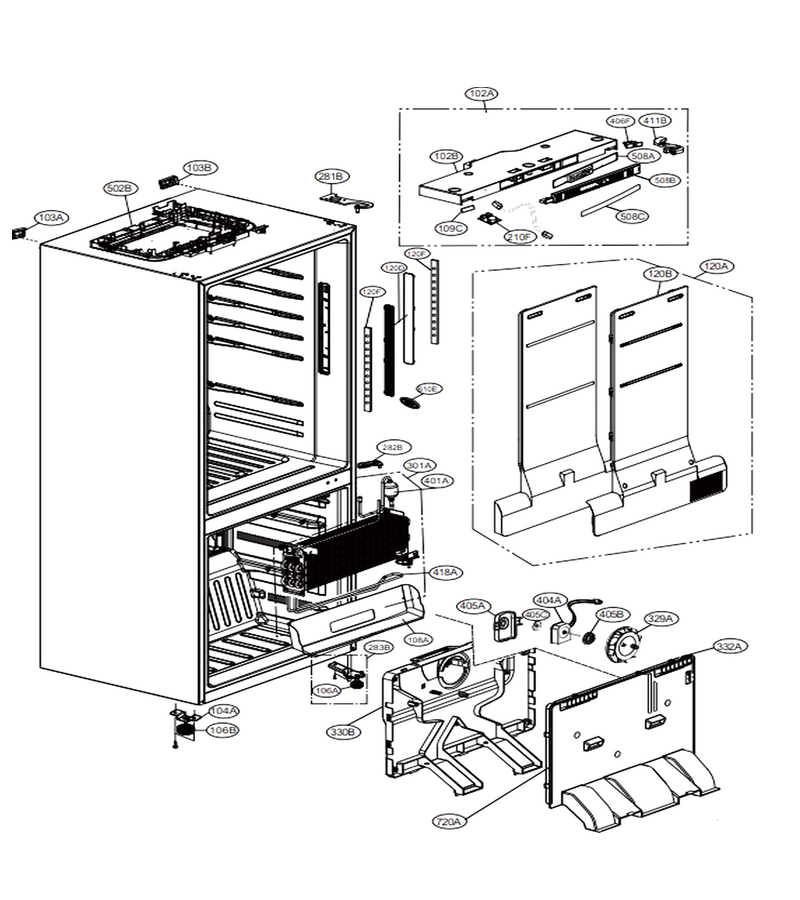

Main 1

...
...
102A
Cover Assembly,top L-G-ACQ86864239
...
102B
Cover,top L-G-MCK67971204
...
103A
Handle,rear L-G-MEB61847007
...
103B
Handle,rear L-G-MEB61847008
...
104A
Supporter,leg L-G-4980JQ3033B
...
106A
Leg Assembly,adjust L-G-AFC73089601
...
106B
Leg,adjust L-G-MFA62162901
...
108A
Tray,drain L-G-MJS62954001
...
109C
Cover,front L-G-MCK67681804
...
120A
Case Assembly,control Refrigerator L-G-ABQ74386301
...
120B
Case,control Refrigerator L-G-MBN63344601
...
120D
Refrigerator Lamp Cover L-G-MCK67195001
...
120F
Led Assembly L-G-EAV61916711
...
210F
Pcb Assembly,sub L-G-EBR64730412
...
281B
Hinge Assembly,upper L-G-AEH74156801
...
282B
Hinge Assembly,center L-G-AEH74156901
...
283B
Hinge,lower L-G-MEF62742602
...
301A
Evaporator Assembly L-G-ADL74121207
...
329A
Fan Assembly L-G-ADP73673901
...
330B
Shroud,freezer L-G-MHN62662101
...
332A
Grille Assembly,fan L-G-AEB74085602
...
401A
Pipe Assembly,evaporator L-G-AGR74155101
...
404A
Motor,dc L-G-EAU61644107
...
405A
Refrigerator Evaporator Fan Motor Bracket L-G-4810JA2129B
...
405B
Refrigerator Motor Support Damper L-G-5040JA2009B
...
405C
Refrigerator Motor Support Damper L-G-5040JA2004B
...
406F
Switch,magnet L-G-EBF62234501
...
411B
Holder,cord L-G-MEG63462707
...
418A
Heater,sheath L-G-MEE63064901
...
502B
Case,pcb L-G-MBN61863901
...
508A
Pcb Assembly,display L-G-EBR80398301
...
508B
Case,display L-G-MBN63127803
...
508C
Decor,control L-G-MCR65267402
...
610E
Cover,sensor L-G-3550JQ2073E

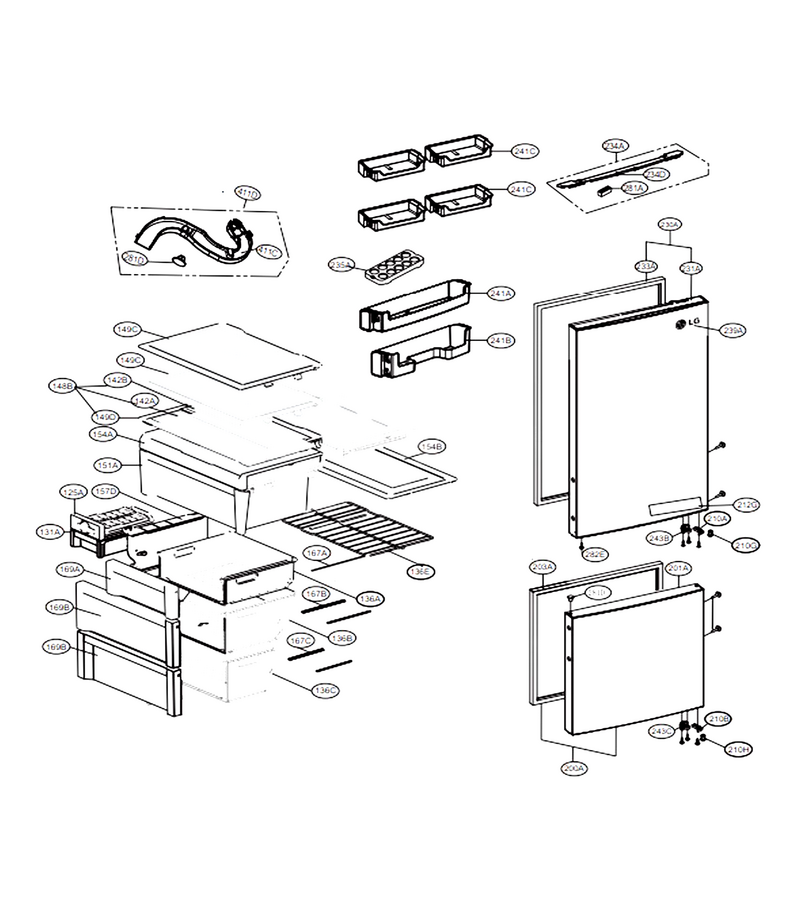

Main 2

...
...
125A
Tray Assembly,ice L-G-AJP32924910
...
131A
Bucket,ice L-G-MKK63022401
...
136B
Tray Assembly,drawer L-G-AJP73954501
...
136C
Tray Assembly,drawer L-G-AJP73954601
...
136E
Shelf,net L-G-MHL62932201
...
142A
Shelf Assembly,refrigerator L-G-AHT73913802
...
142B
Shelf Assembly,refrigerator L-G-AHT73913901
...
149C
Shelf Assembly,refrigerator L-G-AHT73853803
...
149D
Shelf Assembly,refrigerator L-G-AHT73933802
...
151A
Tray,vegetable L-G-MJS63071801
...
154B
Shelf,glass L-G-MHL62294411
...
157D
Guide,rail L-G-MEA63272501
...
167A
Rail,slide L-G-MGT40967708
...
167B
Rail,slide L-G-MGT40967707
...
167C
Rail,slide L-G-MGT40967711
...
169A
Cover,drawer L-G-MCK67701401
...
169B
Cover,drawer L-G-MCK68045501
...
200A
Door Assembly,freezer L-G-ADC74965829
...
201A
Door Foam Assembly,freezer L-G-ADD74056931
...
203A
Gasket Assembly,door L-G-ADX73591405
...
210A
Bracket,door L-G-MAZ63465501
...
210B
Bracket,door L-G-MAZ63465502
...
210G
Bush L-G-4984JQ3001A
...
210H
Refrigerator Hinge Bushing L-G-J326-00012A
...
231A
Decor Assembly,door L-G-ADD74056316
...
233A
Gasket Assembly,door L-G-ADX73591404
...
234A
Tray,egg L-G-ACW74057504
...
234D
Name Plate L-G-MCR65093204
...
235A
Tray,egg L-G-MJS62773801
...
239A
Refrigerator Nameplate L-G-MFT62346511
...
241A
Basket,door L-G-MAN62288601
...
241B
Basket,door L-G-MAN62288702
...
241C
Basket,door L-G-MAN62288503
...
243B
Stopper,door L-G-MJB63129901
...
281A
Cover,hinge L-G-MCK67705804
...
281D
Cap,hinge L-G-5006JQ3012C
...
282E
Screw,customized L-G-FAB30206404
...
411C
Holder,cord L-G-MEG63462708
...
411D
Cap Assembly L-G-ABN74578217

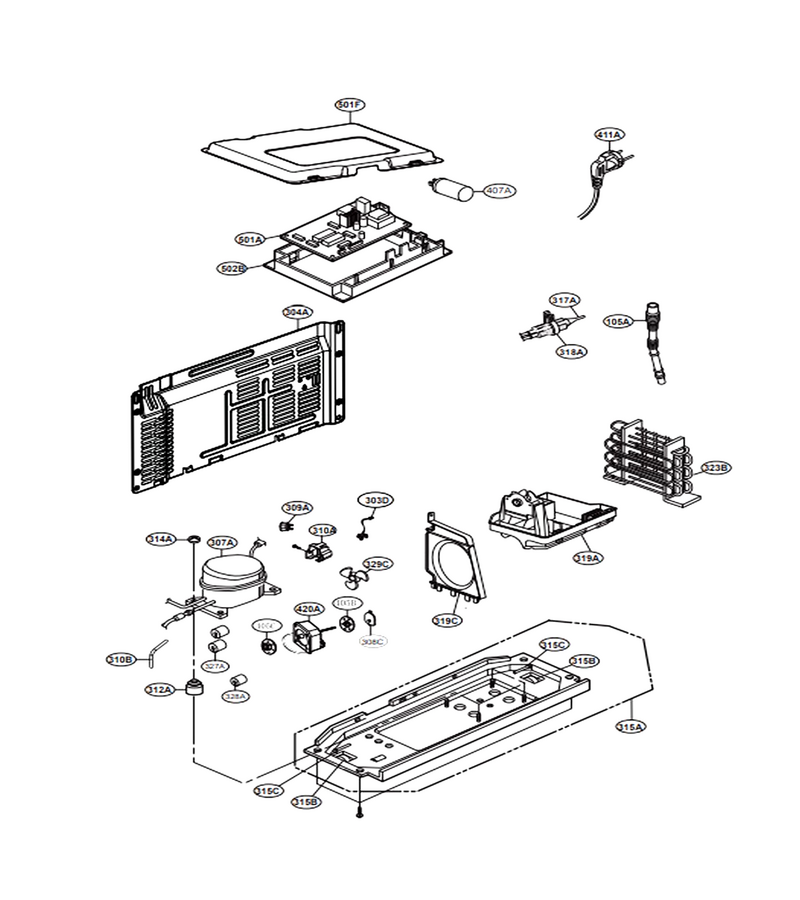

Main 3

...
...
105A
Tube Assembly,drain L-G-5251JA3001G
...
303D
Harness Assembly L-G-6877JR3007E
...
304A
Cover Assembly,machinery(rear) L-G-ACQ85441701
...
307A
Compressor,set Assembly L-G-TCA35893202
...
308C
Cover,motor L-G-MCK66678401
...
309A
Refrigerator Overload Protector L-G-6750CL0001C
...
310A
Cover,ptc L-G-3550JA2110D
...
310B
Pipe Joint L-G-5200JQ3002E
...
312A
Damper,compressor L-G-MCQ67247501
...
314A
Refrigerator Compressor Mount Retainer Clip L-G-4620JA3015A
...
315A
Base Assembly,compressor L-G-AAN73750705
...
315B
Roller L-G-MHA61933401
...
315C
Refrigerator Pin L-G-1PZZJA3010A
...
317A
Refrigerator Filter Dryer L-G-ADH69749103
...
318A
Holder,drier L-G-4930JQ3020D
...
319A
Tray,drip L-G-MJS62313601
...
319C
Guide,fan L-G-MEA62651601
...
323B
Condenser Assembly,wire L-G-ACG74084802
...
327A
Restrainer L-G-5072JQ3002B
...
328A
Damper,noise L-G-5072JQ3002F
...
329C
Fan Assembly L-G-ADP36665705
...
407A
Refrigerator Capacitor L-G-EAE32501010
...
411A
Power Cord Assembly L-G-EAD62026056
...
420A
Motor,dc L-G-EAU60694520
...
501A
Pcb Assembly,main L-G-EBR79956004
...
501F
Cover,pcb L-G-3550JQ1133M
...
502B
Case,pcb L-G-MBN61863901
