LG LBNC12231V.APZCNA0

Model: LBNC12231V.APZCNA0

Save Part Not Listed?
product name

Popular Parts

Popular Parts

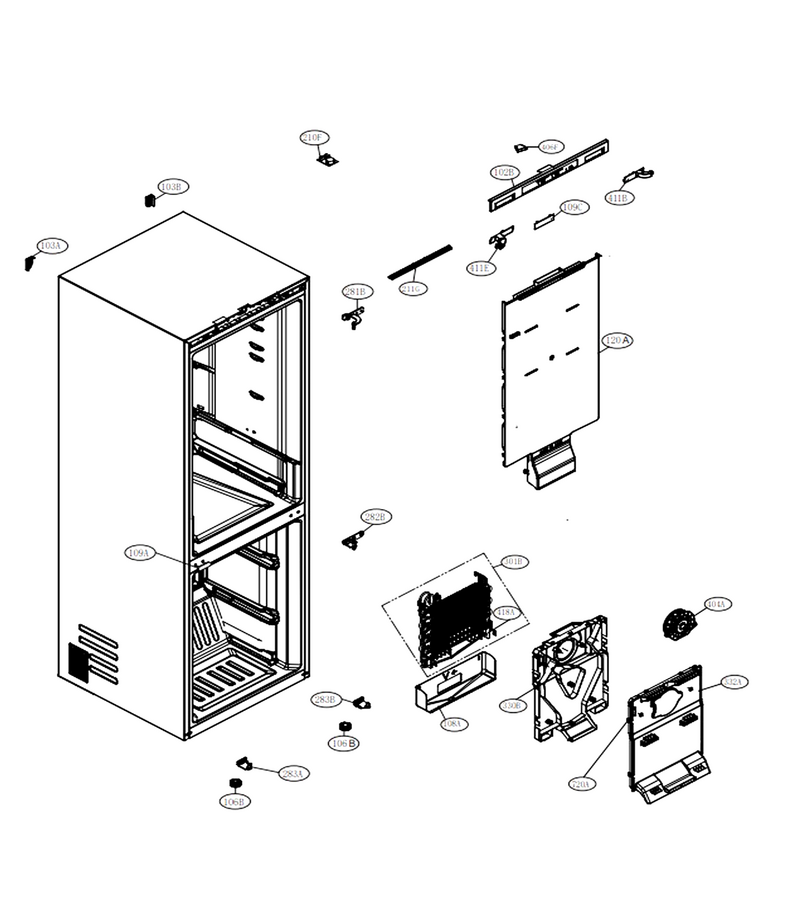

Main 1

...
...
102B
Cover Assembly,top L-G-ACQ90401830
...
103B
Handle,rear L-G-MEB61847007
...
103A
Handle,rear L-G-MEB61847008
...
106B
Leg,adjust L-G-MFA62162901
...
108A
Tray,drain L-G-MJS64612901
...
109A
Refrigerator Cap Cover L-G-5006JQ3032A
...
109C
Cover,front L-G-MCK70288402
...
120A
Case Assembly,control Refrigerator L-G-ABQ76701106
...
210F
Pcb Assembly,sub L-G-EBR64730412
...
211G
Decor,duct L-G-MCR67447203
...
281B
Hinge Assembly,upper L-G-AEH75596301
...
282B
Hinge Assembly,center L-G-AEH75596802
...
283A
Hinge Assembly,lower L-G-AEH75596702
...
283B
Hinge Assembly,lower L-G-AEH75596701
...
301B
Evaporator Assembly L-G-ADL76001107
...
330B
Shroud,freezer L-G-MHN63362101
...
332A
Grille Assembly,fan L-G-AEB75684701
...
404A
Motor Assembly,dc L-G-EAU63503706
...
411B
Holder,cord L-G-MEG65719403
...
411E
Holder,cord L-G-MEG65719404
...
418A
Heater,sheath L-G-MEE62606007

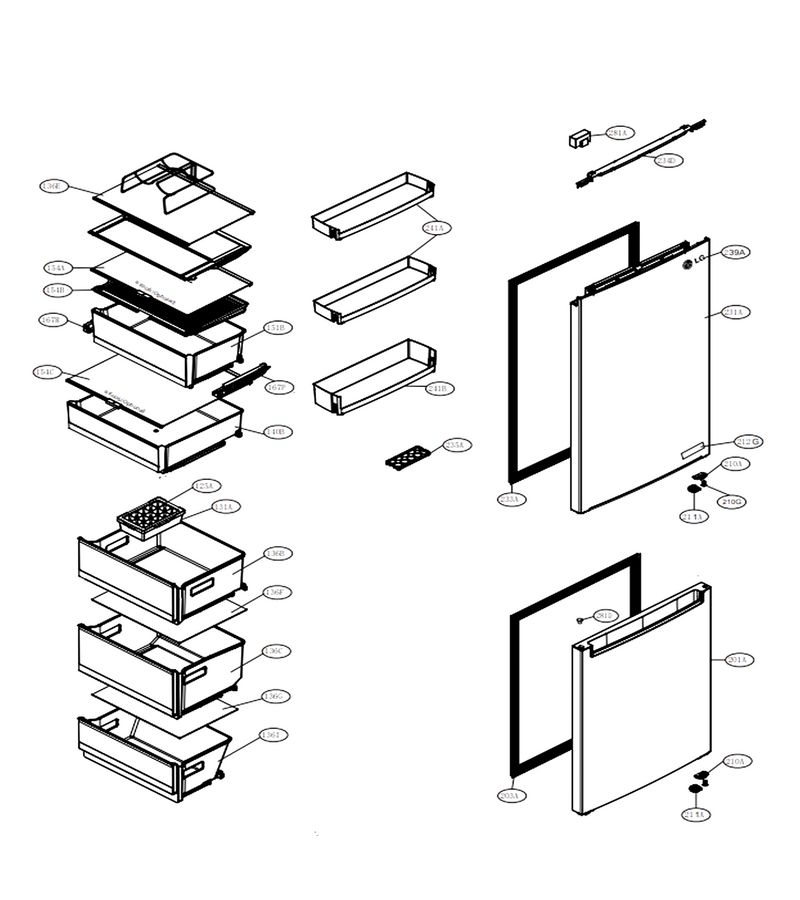

Main 2

...
...
125A
Refrigerator Ice Tray L-G-3390JQ2001A
...
131A
Bucket,ice L-G-MKK62383101
...
136F
Shelf,glass L-G-MHL64471705
...
136I
Tray Assembly,drawer L-G-AJP75654406
...
136G
Shelf,glass L-G-MHL64471706
...
136E
Shelf Assembly,refrigerator L-G-AHT74973913
...
136C
Tray Assembly,drawer L-G-AJP75615006
...
136B
Tray Assembly,drawer L-G-AJP75654506
...
140B
Tray Assembly,vegetable L-G-AJP76134802
...
151B
Tray Assembly,vegetable L-G-AJP76134702
...
154A
Shelf Assembly,refrigerator L-G-AHT74973815
...
154B
Cover,tray L-G-MCK70267902
...
154C
Shelf Assembly,refrigerator L-G-AHT74894118
...
167P
Guide,rail L-G-MEA65430702
...
167R
Guide,rail L-G-MEA65430701
...
201A
Door Foam Assembly,freezer L-G-ADD76195901
...
203A
Gasket Assembly,door L-G-ADX73591430
...
210A
Bracket,door L-G-MAZ63465501
...
210G
Bush L-G-4984JQ3001A
...
211A
Stopper,door L-G-MJB64649801
...
231A
Door Foam Assembly,refrigerator L-G-ADD76195811
...
233A
Gasket Assembly,door L-G-ADX73591429
...
234D
Decor,cover L-G-MCR67407201
...
235A
Tray,egg L-G-MJS62773801
...
239A
Refrigerator Nameplate L-G-MFT62346511
...
241A
Basket,door L-G-MAN64368401
...
241B
Basket,door L-G-MAN64368301
...
281A
Cover,hinge L-G-MCK70227901
...
281D
Cap,hinge L-G-5006JQ3012C

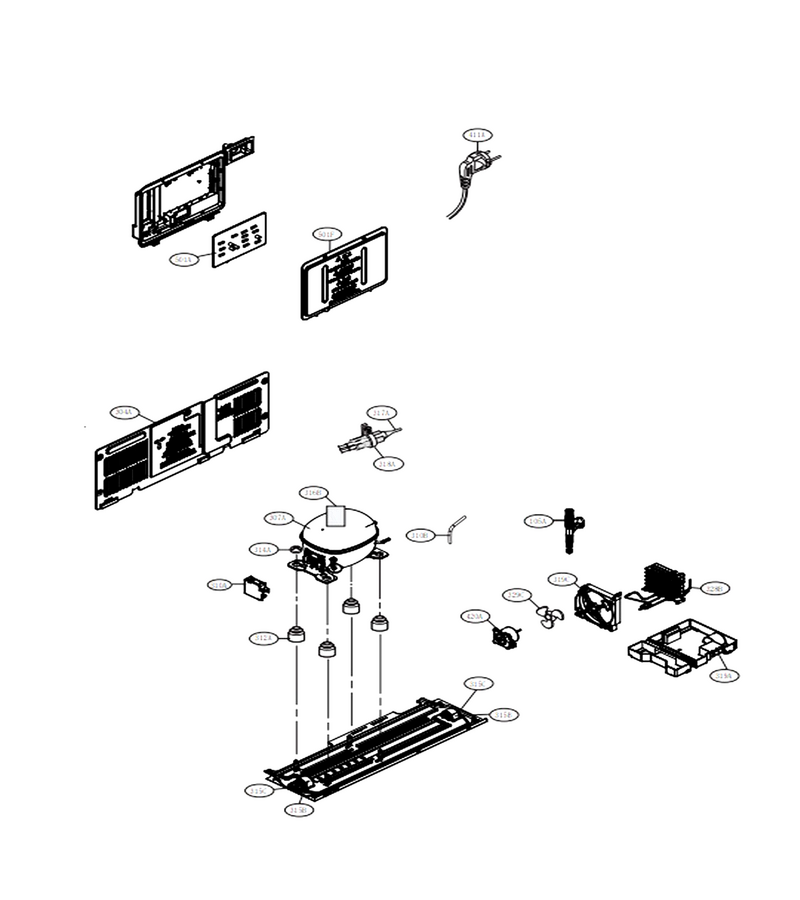

Main 3

...
...
105A
Tube Assembly,drain L-G-5251JA3003K
...
304A
Cover Assembly,machinery(rear) L-G-ACQ90351404
...
307A
Compressor,set Assembly L-G-TCA37032102
...
310B
Pipe Joint L-G-5200JQ3002E
...
312A
Damper,compressor L-G-MCQ67247501
...
314A
Refrigerator Compressor Mount Retainer Clip L-G-4620JA3015A
...
315B
Roller L-G-MHA61933401
...
315C
Refrigerator Pin L-G-1PZZJA3010A
...
316B
Damper,noise L-G-5072JQ3002F
...
317A
Drier Assembly L-G-ADH73590301
...
318A
Holder,drier L-G-MEG61863805
...
319A
Tray,drip L-G-MJS64612401
...
319C
Guide,fan L-G-MEA65410101
...
328B
Condenser Assembly,wire L-G-ACG76144501
...
329C
Fan Assembly L-G-ADP73273401
...
411A
Power Cord Assembly L-G-EAD62108344
...
420A
Motor,dc L-G-EAU63103302
...
501A
Pcb Assembly,main L-G-EBR87093422
...
501F
Cover Assembly,pcb L-G-ACQ90557701
