LG LBNC10551V.APZCNA0

Model: LBNC10551V.APZCNA0

Save Part Not Listed?
product name

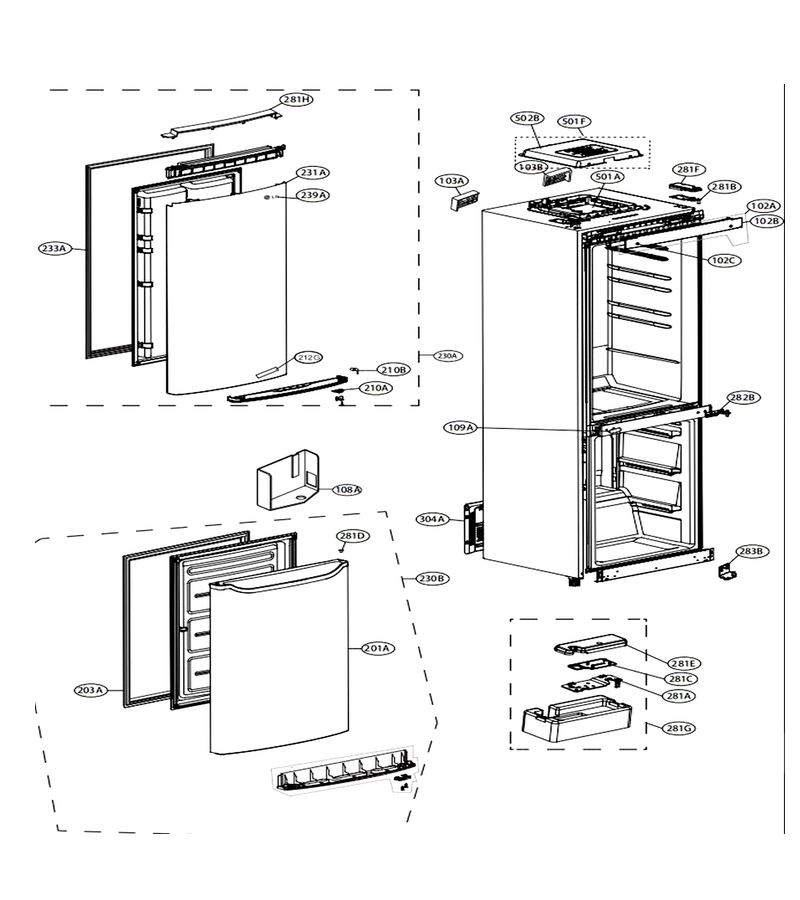

Main 1

...
...
102A
Cover Assembly,front L-G-ACQ86325551
...
102C
Cap,cover L-G-MBL65998201
...
102B
Cover,front L-G-MCK68751010
...
103A
Handle,rear L-G-MEB61847007
...
103B
Handle,rear L-G-MEB61847008
...
108A
Drain Tray Assembly L-G-3391JQ2010A
...
109A
Refrigerator Cap Cover L-G-5006JQ3032A
...
201A
Door Foam Assembly,freezer L-G-ADD73518419
...
203A
Gasket Assembly,door L-G-ADX73591402
...
210A
Stopper,door L-G-MJB63150601
...
210B
Stopper,door L-G-MJB63170801
...
212G
Name Plate,pet L-G-MFT63266201
...
230A
Door Assembly,refrigerator L-G-ADC32822174
...
230B
Door Assembly,freezer L-G-ADC74186318
...
231A
Door Foam Assembly,refrigerator L-G-ADD73498846
...
233A
Gasket Assembly,door L-G-ADX73591403
...
239A
Refrigerator Nameplate L-G-MFT62346511
...
281H
Cap Assembly,decor Refrigerator L-G-ABN73880325
...
281G
Parts Assembly,refrigerator L-G-AGM73110138
...
281F
Cover,hinge L-G-MCK67506809
...
281E
Cover,hinge L-G-MCK67506810
...
281C
Cap,hinge L-G-MBL68659102
...
281B
Hinge Assembly,upper L-G-AEH74276201
...
281A
Hinge Assembly,upper L-G-AEH74276202
...
281D
Cap,hinge L-G-5006JQ3012U
...
282B
Hinge Assembly,center L-G-AEH74158001
...
283B
Hinge Assembly,lower L-G-AEH74137802
...
304A
Cover Assembly,machinery(rear) L-G-ACQ76009101
...
501A
Pcb Assembly,main L-G-EBR80525457
...
501F
Cover Assembly,pcb L-G-ACQ76174701
...
502B
Cover,pcb L-G-MCK63208716

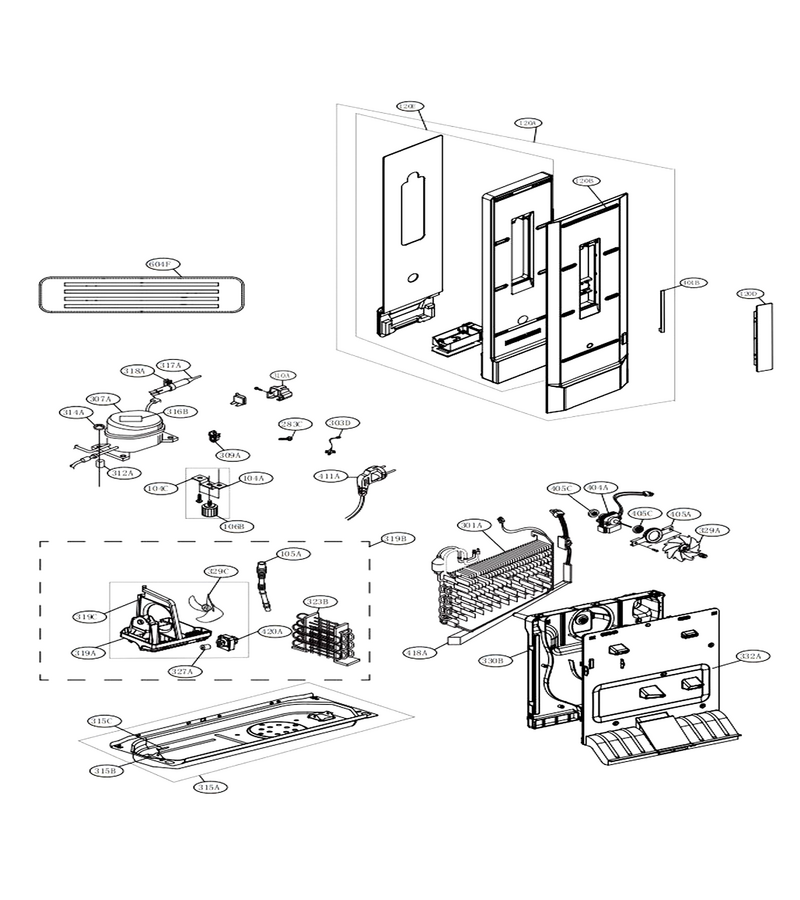

Main 2

...
...
104A
Supporter Assembly L-G-4981JQ3001A
...
104C
Supporter L-G-4980JQ3033A
...
105A
Refrigerator Drain Tube Assembly L-G-5251JQ3002A
...
106B
Leg Assembly L-G-4779JQ3002A
...
120A
Case Assembly,control Refrigerator L-G-ABQ75982502
...
120B
Case,control Refrigerator L-G-MBN64864401
...
120D
Cover,lamp L-G-MCK67400601
...
120E
Duct,insulation L-G-MCZ64412301
...
283C
Refrigerator Screw L-G-1SZZJQ2015B
...
301A
Evaporator Assembly L-G-5421JQ0023A
...
303D
Harness Assembly L-G-6877JR3007E
...
307A
Compressor,set Assembly L-G-TCA35776411
...
309A
Overload Protect L-G-EAF61170610
...
310A
Cover,ptc L-G-MCK66611203
...
312A
Damper,compressor L-G-5040JA3071B
...
314A
Refrigerator Compressor Mount Retainer Clip L-G-4620JA3015A
...
315A
Base Assembly,compressor L-G-AAN73069311
...
315B
Roller L-G-4580JQ3004B
...
315C
Common Pin L-G-1PZZJQ3017A
...
316B
Damper,noise L-G-5072JQ3002F
...
317A
Drier Assembly L-G-ADH73590301
...
318A
Drier Holder L-G-4930JA3034C
...
319A
Tray,drip L-G-MJS61912301
...
319C
Guide,fan L-G-MEA62071201
...
319B
Tray Assembly,drip L-G-AJP73015508
...
323B
Condenser Assembly,wire L-G-ACG56006609
...
327A
Restrainer L-G-5072JQ3002B
...
329A
Fan Assembly L-G-ADP73673901
...
329C
Fan Assembly L-G-ADP36665705
...
330B
Shroud Assembly,freezer L-G-AHV72970203
...
332A
Grille Assembly,fan L-G-3531JQ2001B
...
401B
Led Assembly L-G-EAV61573117
...
404A
Motor,dc L-G-EAU63103012
...
405A
Bracket,motor L-G-MAZ62231901
...
405C
Refrigerator Evaporator Fan Motor Grommet L-G-5040JQ2002B
...
411A
Power Cord Assembly L-G-EAD62026056
...
418A
Heater,sheath L-G-5300JR1009X
...
420A
Motor,dc L-G-EAU63103013

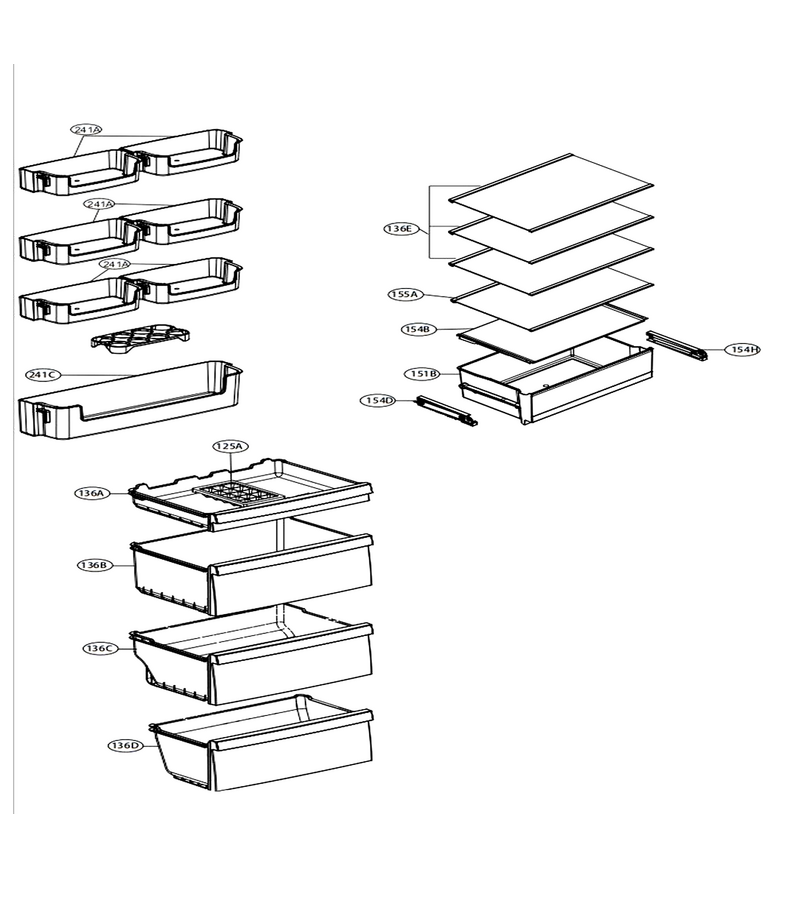

Main 3

...
...
125A
Refrigerator Ice Tray L-G-3390JQ2001A
...
136C
Tray Assembly,drawer L-G-AJP72975208
...
136E
Shelf Assembly,refrigerator L-G-AHT73754305
...
136D
Tray Assembly,drawer L-G-AJP72975308
...
136B
Tray Assembly,drawer L-G-AJP72975108
...
136A
Tray Assembly,drawer L-G-AJP34979907
...
151B
Tray Assembly,vegetable L-G-AJP75234601
...
154B
Cover,tray L-G-MCK69400301
...
154D
Guide,rail L-G-MEA64731201
...
154H
Guide,rail L-G-MEA64731202
...
155A
Shelf Assembly,refrigerator L-G-AHT73754307
...
241A
Basket,door L-G-MAN62769103
...
241C
Basket,door L-G-MAN62769003
