LG LBC24360ST.ASTCNA1

Model: LBC24360ST.ASTCNA1

Save Part Not Listed?
product name

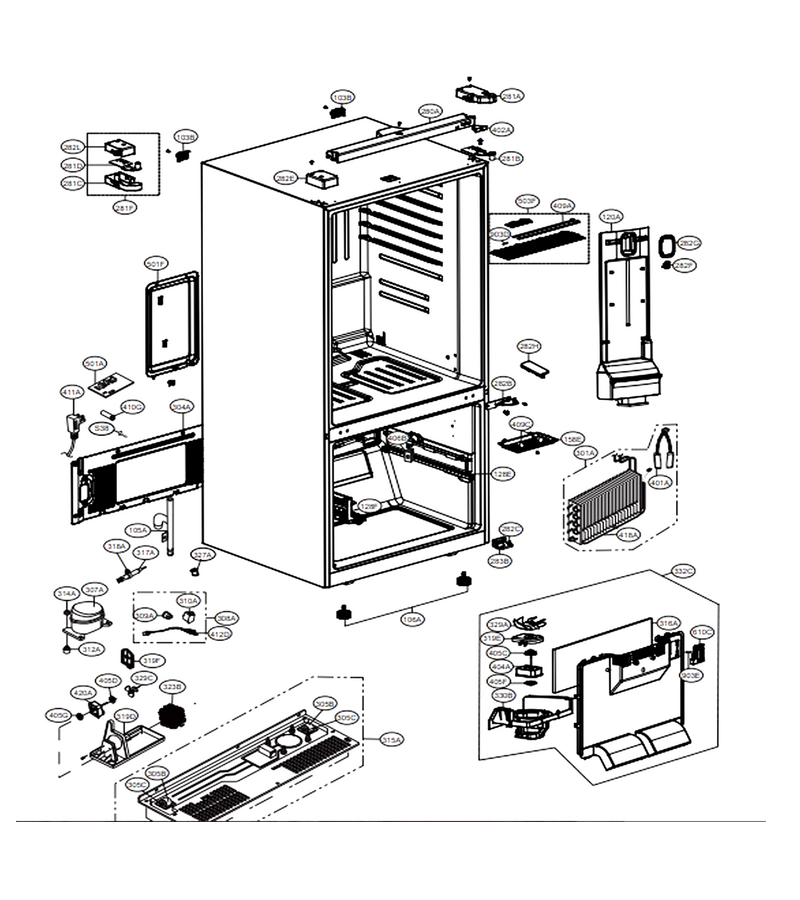

Case Parts

...
...
S38
Refrigerator Screw L-G-4J00415D
...
105A
Refrigerator Drain Tube L-G-5251JA3003D
...
106A
Leg Assembly,adjust L-G-4779JQ3003J
...
128E
Holder,rail L-G-MEG63343201
...
128F
Holder,rail L-G-MEG63343202
...
280A
Display Case Assembly L-G-ABQ74110405
...
282B
Hinge Assembly,center L-G-AEH74157401
...
282C
Pin,common L-G-1PZZJJ3002G
...
282F
Pin,common L-G-1PZZJJ3002B
...
282G
Decor,cover L-G-MCR65017201
...
282H
Refrigerator Door Hinge Cover L-G-5006JJ3004F
...
283B
Hinge Assembly,lower L-G-AEH74177602
...
305B
Roller L-G-4580JJ3001G
...
305C
Refrigerator Roller Wheel Axle Pin L-G-1PZZJA3013B
...
307A
Refrigerator Compressor L-G-TCA35271201
...
309A
Refrigerator Compressor Overload Protector L-G-6750CL0001D
...
310A
Refrigerator Compressor Start Relay Cover L-G-3550JA2110B
...
314A
Refrigerator Compressor Mount Retainer Clip L-G-4620JA3015A
...
316A
Gasket,foam L-G-MDS65810801
...
317A
Drier Assembly L-G-ADH73590310
...
318A
Drier Holder L-G-MEG64900401
...
319E
Refrigerator Evaporator Fan Motor Bracket L-G-4810JJ2005A
...
327A
Refrigerator Drain Cap L-G-5006JA3049A
...
329A
Refrigerator Evaporator Fan Blade L-G-5901JJ1005A
...
329C
Refrigerator Condenser Fan Blade L-G-ADP36665702
...
330B
Shroud,freezer L-G-MHN62322002
...
401A
Refrigerator Defrost Sensor Assembly L-G-6615JB2005N
...
402A
Refrigerator Door Switch (gray) L-G-6600JB3007K
...
404A
Refrigerator Evaporator Fan Motor L-G-4681JB1027C
...
405G
Refrigerator Motor L-G-5040JA2009A
...
405D
Refrigerator Condenser Fan Motor Damper L-G-5040JA2004A
...
405C
Refrigerator Motor Support Damper L-G-5040JA2009B
...
405F
Refrigerator Motor Support Damper L-G-5040JA2004B
...
406B
Refrigerator Door Switch L-G-6600JB1010K
...
410G
Refrigerator Run Capacitor L-G-EAE58905704
...
411A
Refrigerator Power Cord L-G-EAD61445206
...
420A
Refrigerator Evaporator Fan Motor L-G-4681JB1029S
...
501A
Pcb Assembly,main L-G-EBR77042506
...
610C
Cover,sensor L-G-MCK66690301
...
903D
Refrigerator Temperature Sensor L-G-EBD60925804
...
903E
Refrigerator Temperature Sensor L-G-6500JB2002X

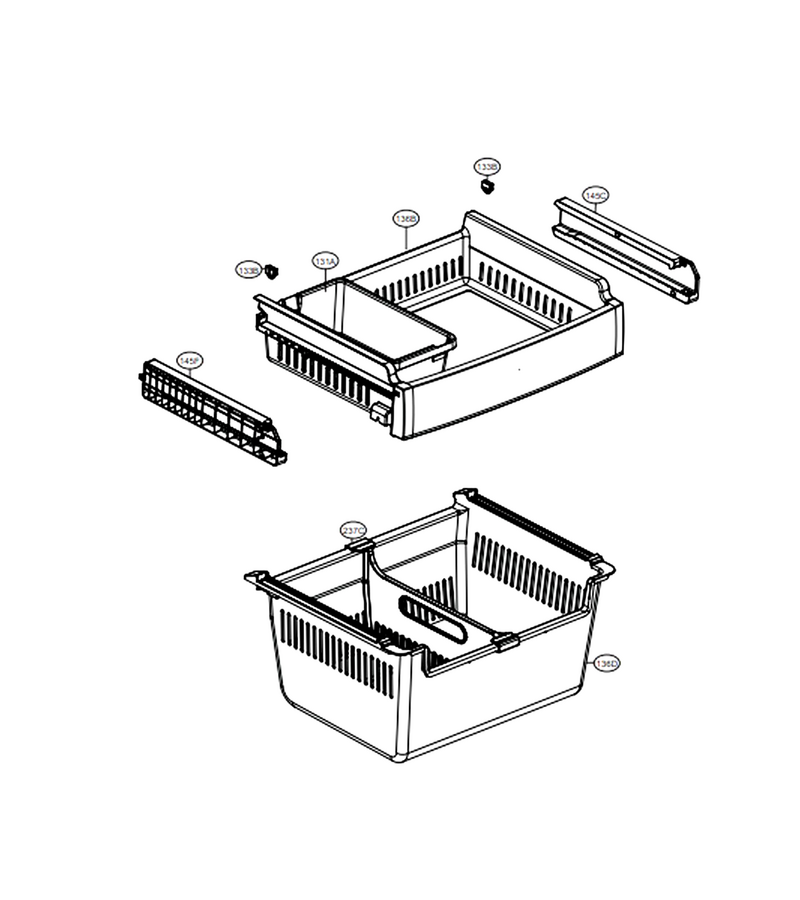

Freezer Parts

...
...
136D
Tray Assembly,drawer L-G-AJP73895503
...
145C
Guide Assembly,rail L-G-AEC73437604
...
145F
Guide Assembly,rail L-G-AEC73437603
...
237C
Guide,drawer L-G-MEA63172401

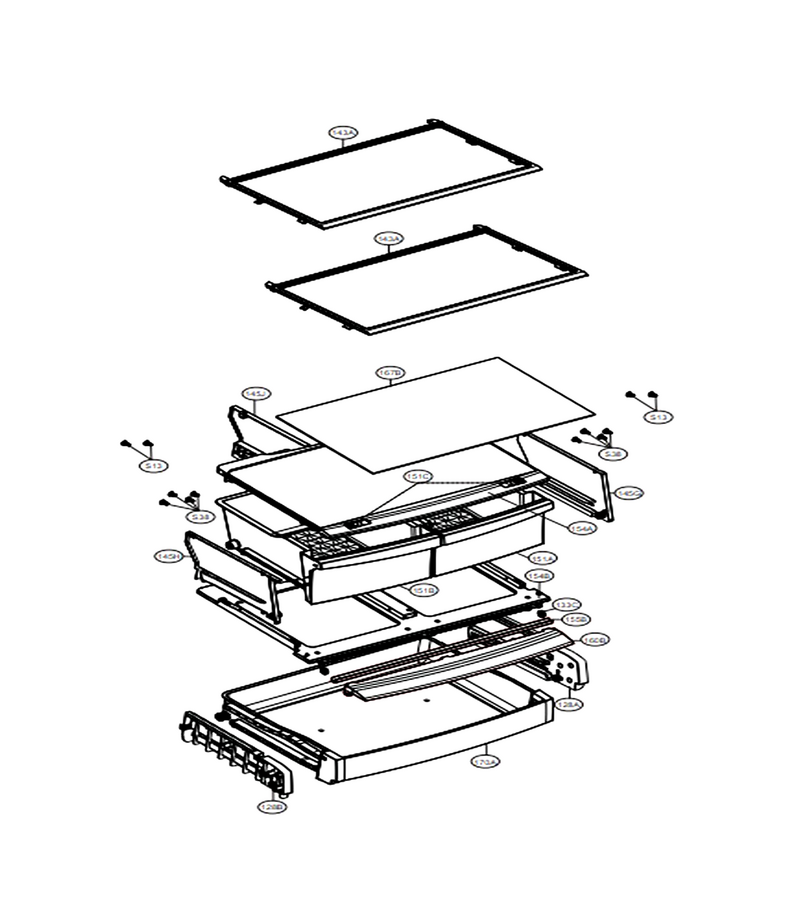

Refrigerator Parts

...
...
S38
Refrigerator Screw L-G-4J00415D
...
S13
Refrigerator Screw L-G-1SBZJA3004L
...
160B
Decor,cover L-G-MCR64973001

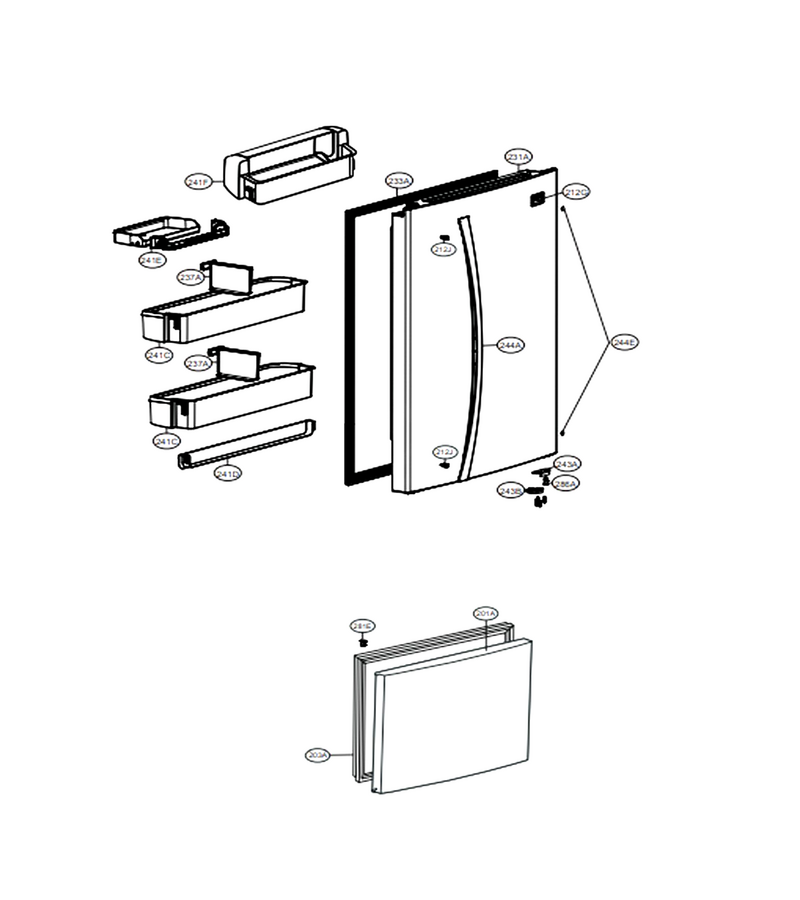

Door Parts

...
...
201A
Door Foam Assembly,freezer L-G-ADD73956011
...
203A
Gasket Assembly,door L-G-ADX73350963
...
212G
Refrigerator Nameplate L-G-MFT62346511
...
233A
Gasket Assembly,door L-G-ADX73350967
...
244A
Handle Assembly,refrigerator L-G-AED37082943
...
244E
Refrigerator Parts Door Hole Plug L-G-5006JJ3016D
...
281E
Cap,hinge L-G-MBL65484103
...
286A
Refrigerator Door Hinge Bushing L-G-4984JJ3003A

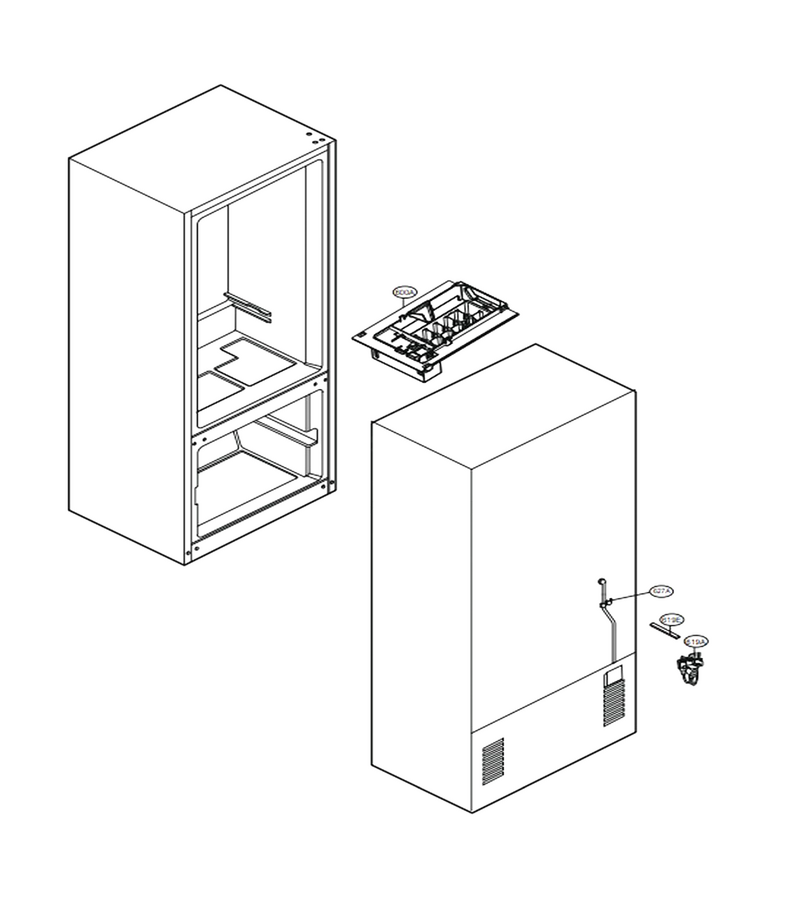

Icemaker Parts

...
...
619E
Gasket,foam L-G-5400JJ2042S
...
627A
Refrigerator Water Tubing Holder L-G-4770JA3001E
