product name

LG LBC22520TT.ATICLGG

Model: LBC22520TT.ATICLGG

Save Part Not Listed?
product name

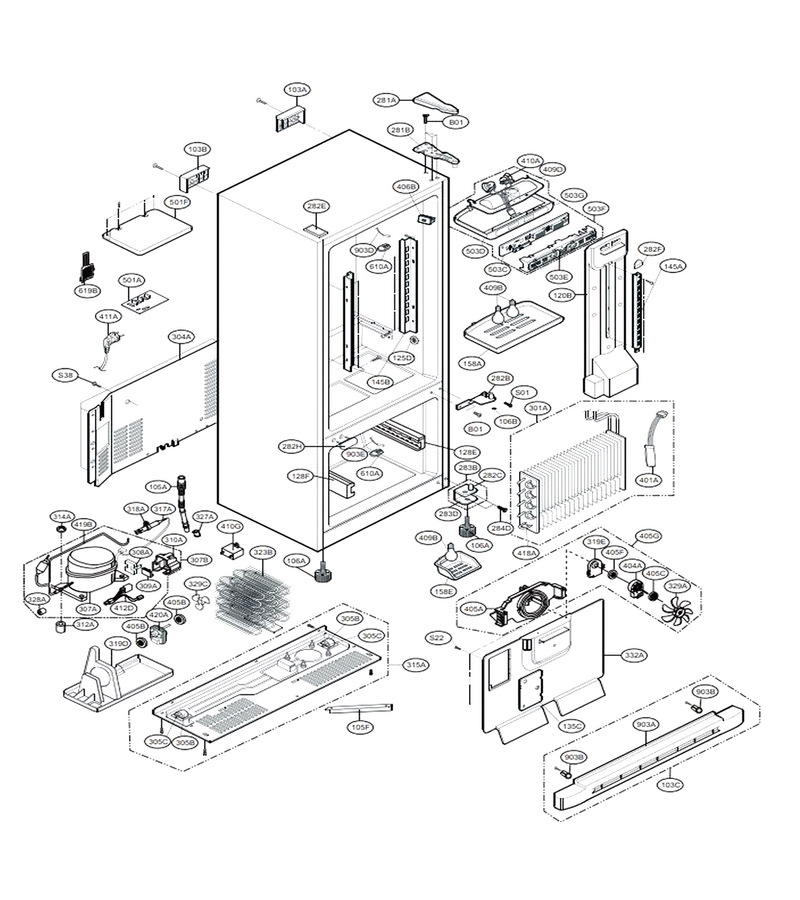

Case Parts

...
...
B01
Refrigerator Door Hinge Screw L-G-1STZJA3004F
...
S01
Refrigerator Screw L-G-1SZZJJ3010A
...
S22
Refrigerator Screw L-G-J471-00001J
...
103A
Refrigerator Handle L-G-3650JJ2003H
...
103B
Refrigerator Handle L-G-3650JJ2003D
...
103C
Refrigerator Toe Grille L-G-3551JJ1015H
...
105A
Refrigerator Drain Tube L-G-5251JA3003B
...
105F
Refrigerator Skirt L-G-5070JJ3002A
...
106A
Refrigerator Leveling Leg L-G-4779JA2003A
...
106B
Refrigerator Washer L-G-4J00382C
...
120B
Refrigerator Air Duct L-G-5209JJ1002A
...
125D
Refrigerator Shelf Bracket Holder L-G-4930JJ3007A
...
128E
Refrigerator Freezer Door Slide Rail, Inner L-G-4975JJ2009A
...
128F
Refrigerator Freezer Door Slide Rail, Outer L-G-4975JJ2009B
...
135C
Refrigerator Fan Cover L-G-3550JJ2030A
...
145A
Refrigerator Shutter Knob L-G-4930JJ2003A
...
145B
Refrigerator Shelf Holder L-G-4930JJ2004A
...
158A
Refrigerator Lamp Cover L-G-3550JJ1040A
...
158E
Refrigerator Light Cover L-G-MCK30060901
...
281A
Refrigerator Hinge Cover L-G-3550JJ2013D
...
281B
Refrigerator Door Hinge L-G-4775JJ2003B
...
282B
Hinge,c L-G-4775JJ8002H
...
282C
Refrigerator Door Hinge Pin L-G-1PZZJJ3002F
...
282E
Refrigerator Hinge Cap L-G-5006JJ2001G
...
282F
Duct Decor L-G-3806JL2006F
...
282H
Refrigerator Door Hinge Cover L-G-5006JJ3004F
...
283B
Refrigerator Door Hinge, Lower L-G-4775JJ2007B
...
283D
Hinge Left L-G-4774JJ2002A
...
284D
Refrigerator Door Hinge Screw L-G-1STZJA3004K
...
301A
Refrigerator Evaporator L-G-5421JJ1001B
...
304A
Refrigerator Compressor Access Cover L-G-3551JJ2008B
...
305B
Refrigerator Roller L-G-4580JJ3001A
...
305C
Refrigerator Roller Wheel Pin L-G-4J04238A
...
307A
Refrigerator Compressor L-G-TCA32196201
...
307B
Refrigerator Compressor L-G-TCA33414101
...
308A
Refrigerator Compressor L-G-ACF67062306
...
309A
Refrigerator Compressor Overload Protector L-G-6750CR0004S
...
310A
Refrigerator Compressor Start Relay Cover L-G-3550JA2042C
...
312A
Refrigerator Compressor Grommet L-G-5040JA3031A
...
314A
Refrigerator Compressor Mount Retainer Clip L-G-MJB61877901
...
315A
Compressor Base Assembly L-G-3103JJ1001Z
...
317A
Refrigerator Filter Dryer L-G-5851JA2007E
...
318A
Refrigerator Holder L-G-4930JA3034A
...
319D
Refrigerator Fan Guide L-G-AEC72997401
...
319E
Refrigerator Evaporator Fan Motor Bracket L-G-4810JJ2005A
...
323B
Refrigerator Condenser Coil L-G-5403JJ1007A
...
327A
Refrigerator Drain Tube Cap L-G-5006JA3034A
...
328A
Refrigerator Condenser Fan Motor Damper L-G-4J03020A
...
329A
Refrigerator Evaporator Fan Blade L-G-5901JJ1005A
...
329C
Refrigerator Condenser Fan Blade L-G-ADP36665702
...
332A
Refrigerator Evaporator Cover L-G-3531JJ1004A
...
401A
Refrigerator Defrost Sensor Assembly L-G-6615JB2005C
...
404A
Refrigerator Air Damper Motor L-G-4681JK1004A
...
405A
Refrigerator Evaporator Fan Motor Bracket L-G-4811JJ2002A
...
405B
Refrigerator Fan Motor Grommet L-G-5040JJ2001A
...
405C
Refrigerator Motor Support Damper L-G-5040JA2009B
...
405F
Refrigerator Motor Support Damper L-G-5040JA2004B
...
405G
Refrigerator Evaporator Fan Motor And Bracket A... L-G-4811JJ2002H
...
406B
Refrigerator Door Switch L-G-6600JB1010A
...
409B
Refrigerator Light Bulb L-G-6912JK2002E
...
409D
Refrigerator Light Reflector L-G-3034JJ1002B
...
410A
Refrigerator Run Capacitor L-G-0CZZJB2012J
...
410G
Refrigerator Run Capacitor L-G-0CZZJB2014L
...
411A
Refrigerator Power Cord L-G-6411JK1006A
...
412D
Refrigerator Wire Harness L-G-6877JK2011D
...
418A
Refrigerator Defrost Heater L-G-5300JB1100J
...
419B
Pipe Joint L-G-5200JJ3003E
...
420A
Refrigerator Condenser Fan Motor L-G-4681JB1029J
...
501A
Pcb Assembly,main L-G-EBR41531303
...
501F
Cover Assembly,pcb L-G-3551JJ1020D
...
503C
Refrigerator Display Board And Control Box Asse... L-G-6871JB2047A
...
503D
Refrigerator Dispenser Display Assembly L-G-3110JJ1005A
...
503E
Refrigerator Display Control Board Cover L-G-3550JJ2031A
...
503F
Refrigerator Display Case L-G-ABQ33905312
...
503G
Refrigerator Control Panel Overlay L-G-3806JL1049A
...
610A
Refrigerator Temperature Sensor Cover L-G-3550JJ2020A
...
619B
Refrigerator Water Inlet Valve Cover L-G-3550JJ2024A
...
903A
Refrigerator Toe Grille L-G-3550JJ0006D
...
903B
Refrigerator Toe Grille Clip L-G-4930JJ2021A
...
903D
Refrigerator Temperature Sensor Cover L-G-6500JK1003A
...
903E
Refrigerator Temperature Sensor L-G-6500JK1004A

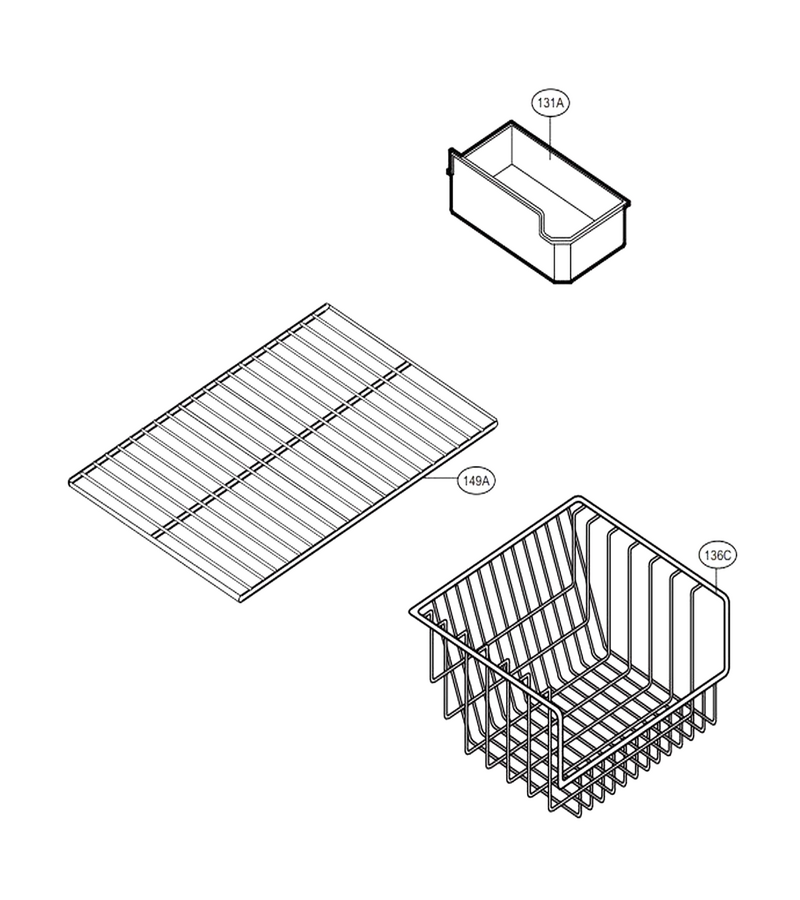

Freezer Parts

...
...
131A
Refrigerator Ice Bin L-G-5074JJ1017A
...
136C
Tray,drawer L-G-3390JJ1057A
...
149A
Shelf,freezer L-G-5026JJ1026A

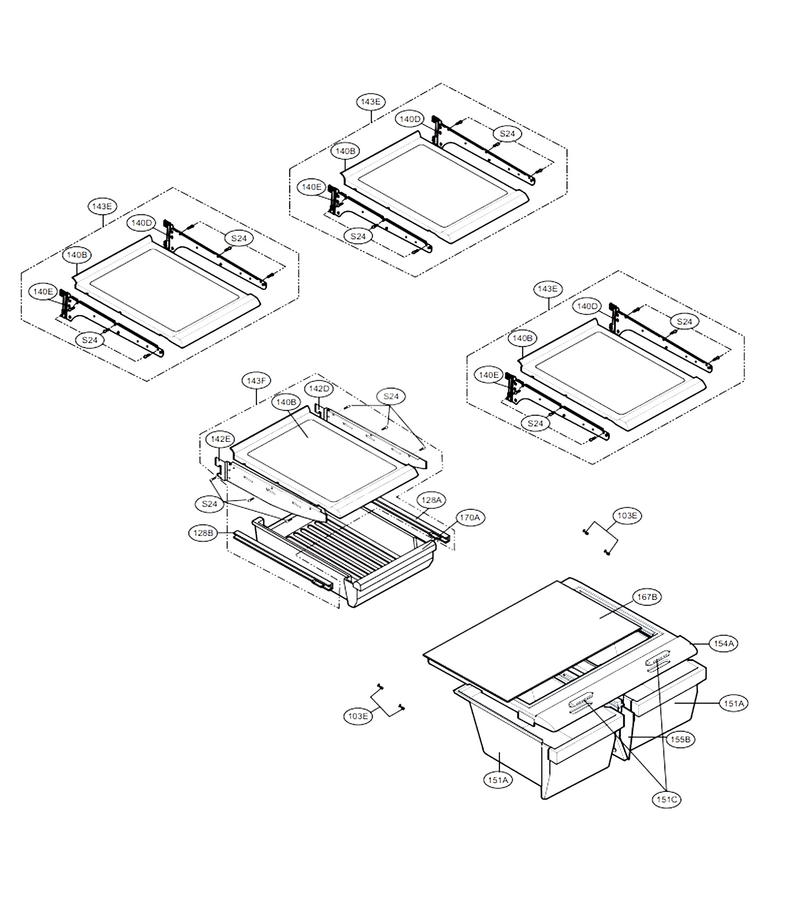

Refrigerator Parts

...
...
S24
Refrigerator Screw L-G-1SZZJA3011B
...
103E
Refrigerator Drawer Slide Rail L-G-5218JJ3001A
...
128A
Refrigerator Deli Drawer Slide Rail L-G-4975JJ2002A
...
128B
Refrigerator Drawer Slide Rail And Cover Assembly L-G-4975JJ2002B
...
140B
Shelf Assembly,refrigerator L-G-5027JJ1039B
...
140D
Refrigerator Shelf Net L-G-MHL38615403
...
140E
Refrigerator Shelf Net L-G-MHL38615404
...
142D
Refrigerator Meat Shelf Support, Right L-G-5026JJ2001L
...
142E
Refrigerator Meat Shelf Support, Left L-G-5026JJ2001M
...
143E
Shelf Assembly,refrigerator L-G-5027JJ1008K
...
143F
Shelf Assembly,refrigerator L-G-5027JJ1008H
...
151A
Refrigerator Crisper Drawer L-G-3391JJ1020C
...
151C
Refrigerator Crisper Drawer Humidity Control Knob L-G-4940JJ2003C
...
154A
Refrigerator Drawer Cover L-G-3550JL1006C
...
155B
Refrigerator Crisper Drawer Cover Support L-G-4981JJ2001B
...
167B
Shelf,glass L-G-MHL61952303
...
170A
Refrigerator Deli Drawer L-G-3391JJ2004H

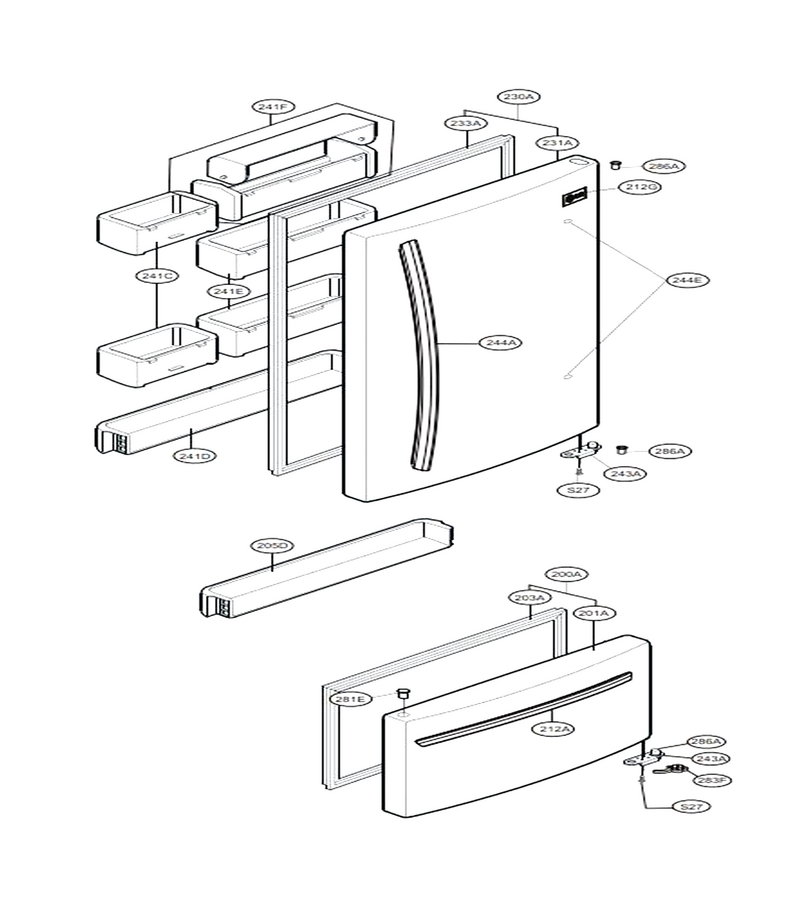

Door Parts

...
...
S27
Refrigerator Freezer Door Stop Screw L-G-4J01424C
...
200A
Door Assembly,freezer L-G-3581JJ8020X
...
201A
Door Foam Assembly,freezer L-G-ADD55827503
...
203A
Gasket Assembly,door L-G-4987JJ1004Z
...
205D
Refrigerator Freezer Door Shelf L-G-5004JJ1040A
...
212A
Handle Assembly,freezer L-G-AED37133127
...
212G
Refrigerator Nameplate L-G-3846JD1007H
...
230A
Door Assembly,refrigerator L-G-3581JJ8716K
...
231A
Door Foam Assembly,refrigerator L-G-ADD30931304
...
233A
Gasket Assembly,door L-G-ADX52752603
...
241C
Refrigerator Door Bin L-G-5005JJ2017A
...
241D
Refrigerator Door Bin, Lower L-G-5005JJ2020A
...
241E
Refrigerator Door Bin L-G-5005JJ2018A
...
241F
Basket Assembly,door L-G-5005JJ2010F
...
243A
Refrigerator Door Stop L-G-4620JJ3006D
...
244A
Handle Assembly,refrigerator L-G-AED37082943
...
244E
Handle Assembly,refrigerator L-G-AED37082929
...
281E
Refrigerator Parts Door Hole Plug L-G-5006JJ3016D
...
283F
Refrigerator Door Stop L-G-4620JJ2007A
...
286A
Refrigerator Door Hinge Bushing L-G-4984JJ3003A

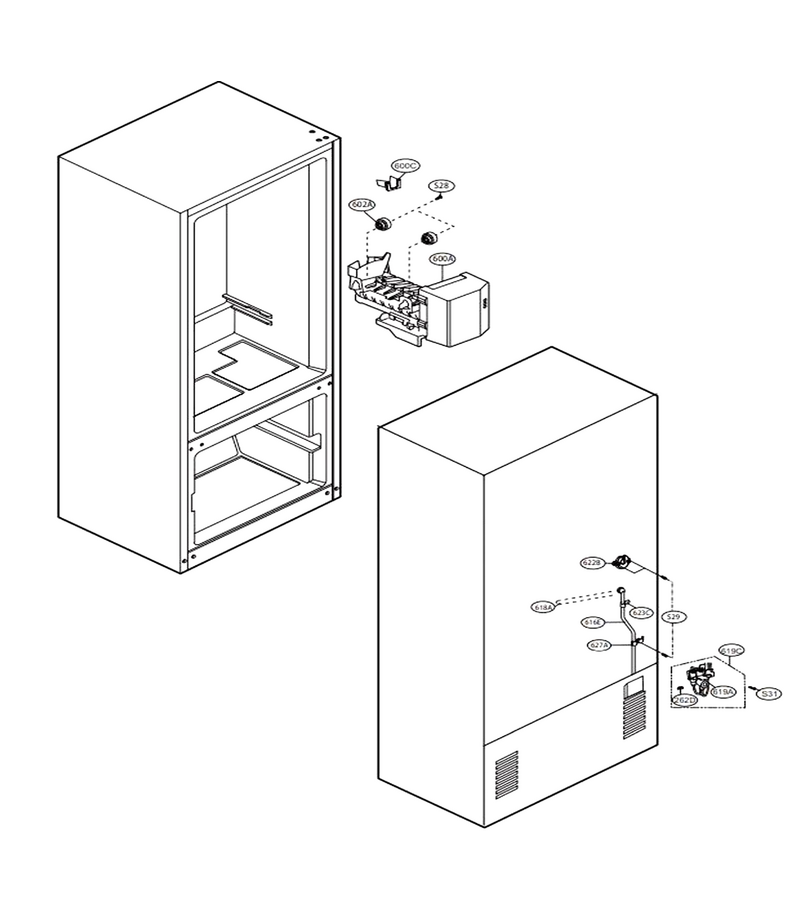

Water And Ice Maker Parts

...
...
S28
Refrigerator Ice Maker Bracket Screw L-G-1SZZJJ3005E
...
S29
Refrigerator Screw L-G-4J00415D
...
S31
Special Screw(earth) D4.0 L10 L-G-4000W4A003A
...
262D
Refrigerator Water Tubing Clip L-G-4004JA3002A
...
600A
Refrigerator Ice Maker L-G-5989JA0002U
...
600C
Refrigerator Ice Maker Fill Tube L-G-MEA32865501
...
602A
Refrigerator Shelf Support L-G-4931JA3005B
...
616E
Refrigerator Injection Tube L-G-5211JA2003B
...
618A
Refrigerator Ice Maker Fill Tube L-G-5210JJ3006B
...
619A
Refrigerator Water Inlet Valve L-G-5220JA2009D
...
619C
Refrigerator Water Inlet Valve L-G-AJU55759301
...
622B
Refrigerator Water Tubing Guide L-G-MJH36429401
...
623C
Refrigerator Water Tubing Holder L-G-4770JA3001A
...
627A
Refrigerator Clamp L-G-4930JA3054A
