LG LAUK2430HL.AMB6EUS

Model: LAUK2430HL.AMB6EUS

Save Part Not Listed?
product name

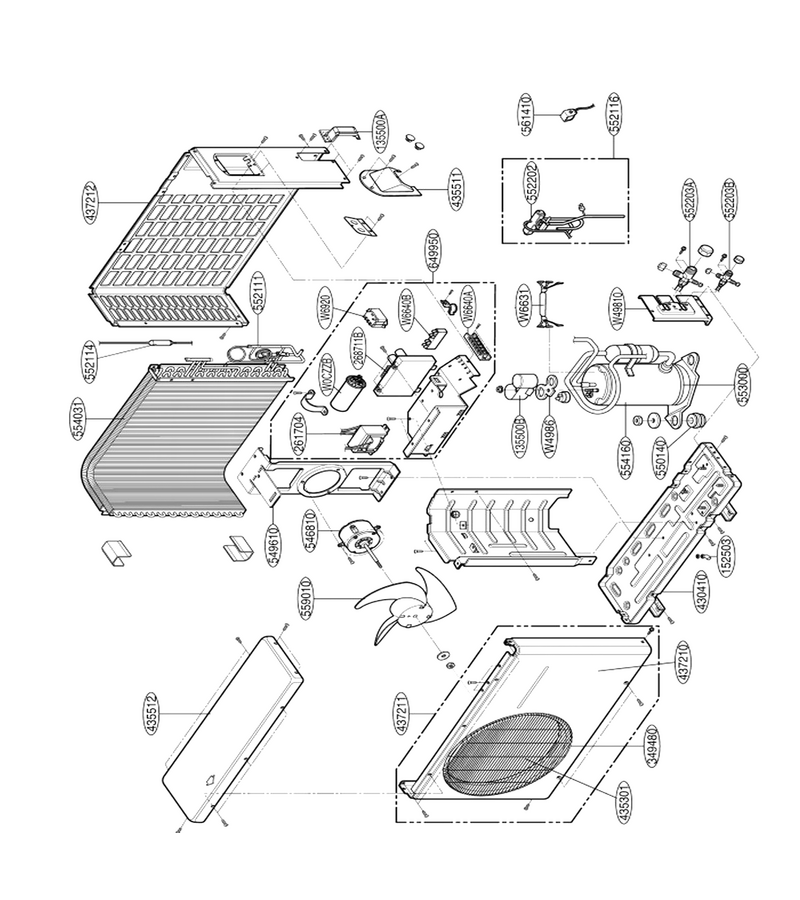

Outdoor Unit

...
...
W0CZZB
Capacitor L-G-6120AR2359U
...
W6640B
Terminal Block L-G-3H00390B
...
W6640A
Terminal Block 6p Fc L-G-4G00103A
...
W6631
Harness L-G-4933AR3501D
...
W4986
Gasket L-G-4986A30001A
...
W49810
Supporter, Valve L-G-4980A20001B
...
135500A
Cover L-G-MCK47976001
...
135500B
Cover L-G-3550A30048C
...
152503
Nipple,drain L-G-4H01010A
...
261704
Transformer L-G-6171AQ3198A
...
268711B
Room Air Conditioner Electronic Control Board L-G-6871A10036A
...
349480
Orifice L-G-4948AP2527A
...
430410
Base Assembly,outdoor L-G-AAN73130004
...
435301
Grille,dis L-G-3530A20007B
...
435511
Cover Assembly L-G-3550AR2886C
...
435512
Cover Assembly, Top(outdo L-G-3H03266K
...
437210
Panel Assembly,front(sub) L-G-3721A20004G
...
437211
Panel Assembly L-G-3721A20005H
...
437212
Panel Assembly, Rear (outdoor) L-G-AGL36636804
...
546810
Room Air Conditioner Outdoor Fan Motor L-G-4681A20013N
...
549610
Bracket Assembly,motor(outdoor) L-G-ABA73010801
...
550140
Isolator L-G-4H00637A
...
552111
Tube Assembly L-G-5211A10039J
...
552114
Tube Assembly, Discharge (outdoor) L-G-5211A20030C
...
552116
Tube Assembly L-G-5221AR2938Y
...
552202
Reversing Valve L-G-3A02027D
...
552203A
Service Valve L-G-2A00392Y
...
552203B
Valve Service P9.52 L-G-2A00393C
...
553000
Heater L-G-5300AR2915A
...
554031
Condenser L-G-5403A20051B
...
554160
Room Air Conditioner Compressor L-G-5417A20012N
...
559010
Fan Assembly, Propeller L-G-1A00195F
...
561410
Coil Assembly, Reversing Valve L-G-3A02028H
...
649950
Control Board L-G-4781AR1528T
