LG LAU246HV.ANCBEUS

Model: LAU246HV.ANCBEUS

Save Part Not Listed?
product name

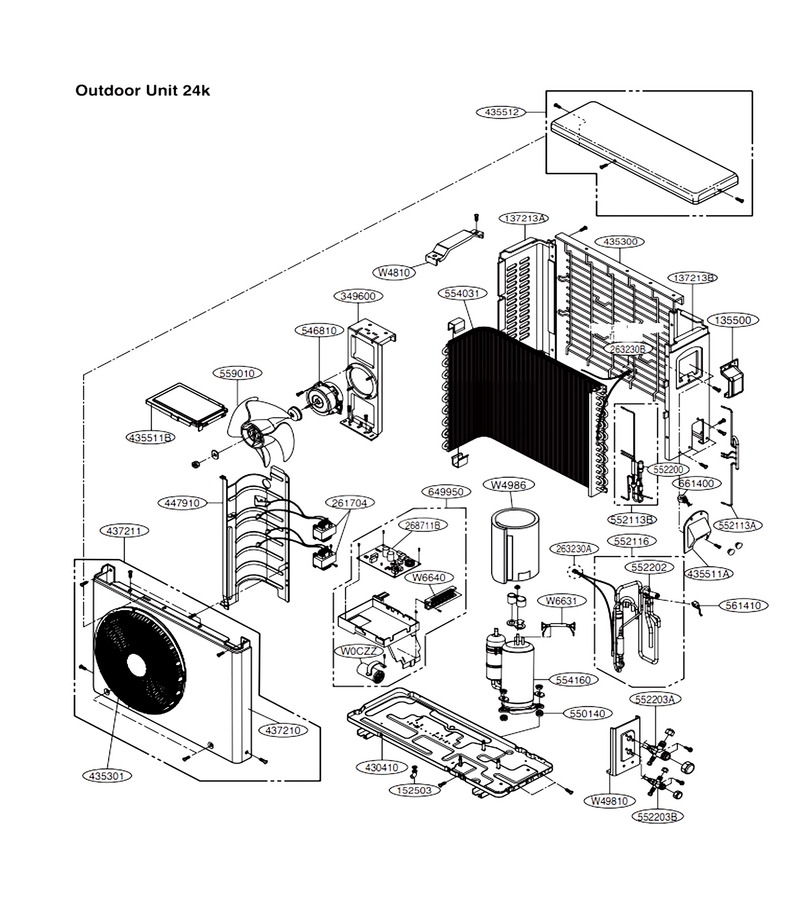

Outdoor Unit

...
...
W0CZZ
Sh Capacitor L-G-2A00986D
...
W6631
Single Harness L-G-6631A30099D
...
W4986
Gasket L-G-3096A20018A
...
W49810
Supporter Assembly L-G-4980A20001D
...
W4810
Bracket L-G-3A01934B
...
135500
Cover L-G-MCK47976001
...
137213A
Panel Assembly,side L-G-AGL70858107
...
137213B
Panel Assembly,side L-G-3721A10150E
...
152503
Nipple,drain L-G-4H01010A
...
261704
Transformer, Reactor L-G-5874A90003L
...
263230A
Thermistor Assembly,ntc L-G-EBG61107109
...
263230B
Thermistor Assembly,ntc L-G-EBG61108907
...
268711B
Main Pcb Assembly L-G-6871A20679Y
...
349600
Motor Mount L-G-1A00206B
...
430410
Base Assembly,outdoor L-G-AAN73130006
...
435300
Grill, Rear L-G-MDX59045502
...
435301
Grille,discharge L-G-MDX63212101
...
435511B
Cover Assembly, Control (outdoor) L-G-3551A30162B
...
435511A
Cover Assembly, Control (outdoor) L-G-ACQ36712501
...
435512
Cover Assembly,top(outdoor) L-G-ACQ73019508
...
437210
Panel Assembly,front(sub) L-G-1A00197F
...
437211
Panel Assembly,front(outdoor) L-G-AGL32105637
...
447910
Barrier Assembly,outdoor L-G-4791A30004R
...
546810
Motor Assembly, Ac, Outdoo L-G-EAU43132901
...
550140
Isolator L-G-5014A20003A
...
552113A
Tube Assembly, Condenser (out) L-G-5211A13303C
...
552113B
Tube Assembly, Condenser (out) L-G-AJR30578502
...
552116
Tube Assembly, Reverse L-G-AJR36366801
...
552200
Valve,expansion Body L-G-5220A90003C
...
552202
Valve,reverse L-G-5220AR3228Y
...
552203A
Service Valve L-G-5220A20013D
...
552203B
Service Valve L-G-5220A20001X
...
554031
Condenser Assembly, Bending L-G-5403A20066P
...
554160
Compressor L-G-5416A90055A
...
559010
Fan Assembly, Propeller L-G-5901A10032A
...
561410
Solenoid L-G-6141A20010H
...
649950
Case Assembly, Control (outdoor) L-G-ABQ34346502
...
661400
Coil Assembly, Expansion L-G-6141A20032A
