product name

LG LAU181CNW.ANCAEUS

Model: LAU181CNW.ANCAEUS

Save Part Not Listed?
product name

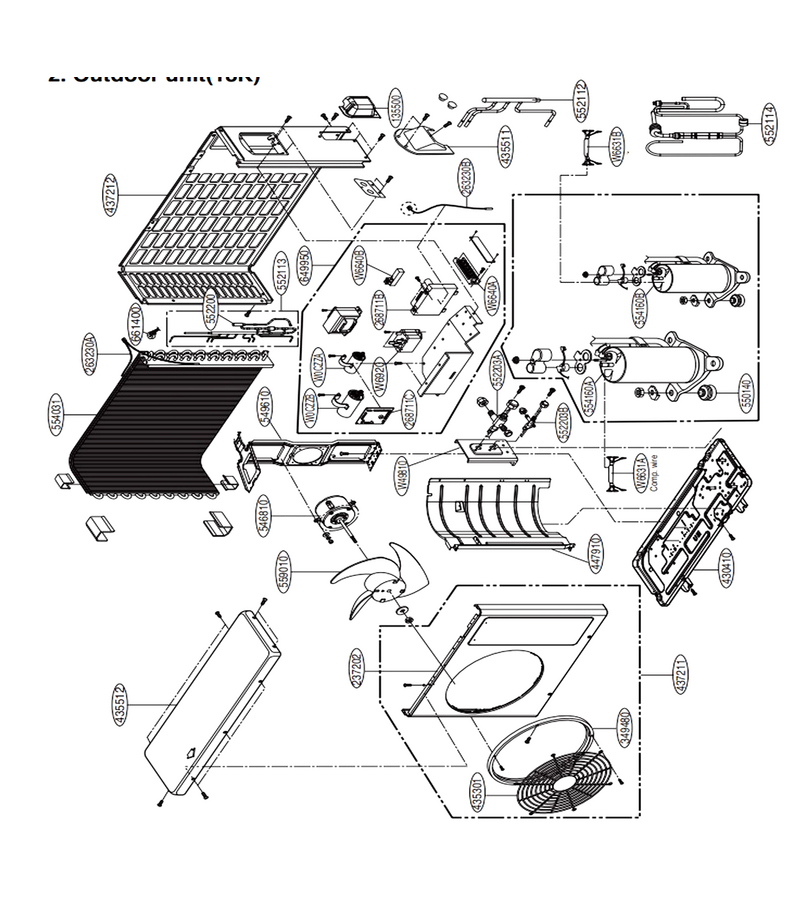

Outdoor Unit

...
...
W0CZZA
Room Air Conditioner Fan Motor Capacitor L-G-3A00988B
...
W6640B
Terminal Block L-G-3H00390A
...
W6640A
Terminal Block 6p Fc L-G-4G00103A
...
W6631B
Multi Harness L-G-6863AP3980S
...
W6631A
Multi Harness L-G-6863AP3980U
...
W49810
Supporter, Valve L-G-4980A20001B
...
W0CZZB
Room Air Conditioner Dual-Motor Run Capacitor L-G-6120AR2194D
...
135500
Cover L-G-MCK47976001
...
237202
Front Panel L-G-1A00196M
...
263230A
Thermistor Assembly,ntc L-G-EBG61107009
...
263230B
Thermistor Assembly,ntc L-G-EBG61106528
...
268711B
Main Pcb Assembly L-G-6871A10184E
...
268711C
Main Pcb Assembly L-G-6871A20522B
...
349480
Orifice L-G-4948A20005A
...
430410
Base Assembly, Outdoor L-G-AAN73130003
...
435301
Grille,discharge L-G-MDX61844501
...
435511
Cover Assembly, Control (outdoor) L-G-3551A10005G
...
435512
Cover Assembly,top(outdoor) L-G-ACQ73019503
...
437211
Panel Assembly,front(outdoor) L-G-AGL36687016
...
437212
Panel Assembly,rear(outdoor) L-G-AGL36636835
...
447910
Barrier Assembly,outdoor L-G-4791A30004V
...
546810
Room Air Conditioner Outdoor Fan Motor L-G-4681A20013N
...
549610
Bracket Assembly,motor(outdoor) L-G-ABA73010801
...
550140
Room Air Conditioner Compressor Grommet L-G-4H00982E
...
552112
Tube Assembly, Condenser (in) L-G-5211A25033A
...
552113
Tube Assembly, Condenser(out) L-G-5211A25034C
...
552114
Tube Assembly,discharge(outdoor) L-G-5211A25045B
...
552200
Valve,expansion Body L-G-5220A90003C
...
552203A
Service Valve L-G-5220A20006J
...
552203B
Service Valve L-G-2H02479F
...
554031
Condenser Assembly, Bent L-G-5403A20058B
...
554160A
Compressor Set, Korea L-G-2520UGAK2AA
...
554160B
Compressor Set, Korea L-G-2520UGJK2AA
...
559010
Fan Assembly L-G-1A00195B
...
649950
Case Assembly, Control(outdoor) L-G-4995A20383W
...
661400
Coil Assembly, Expansion L-G-6141A20032A
