LG LAU180HYV2.AWHBEUS

Model: LAU180HYV2.AWHBEUS

Save Part Not Listed?
product name

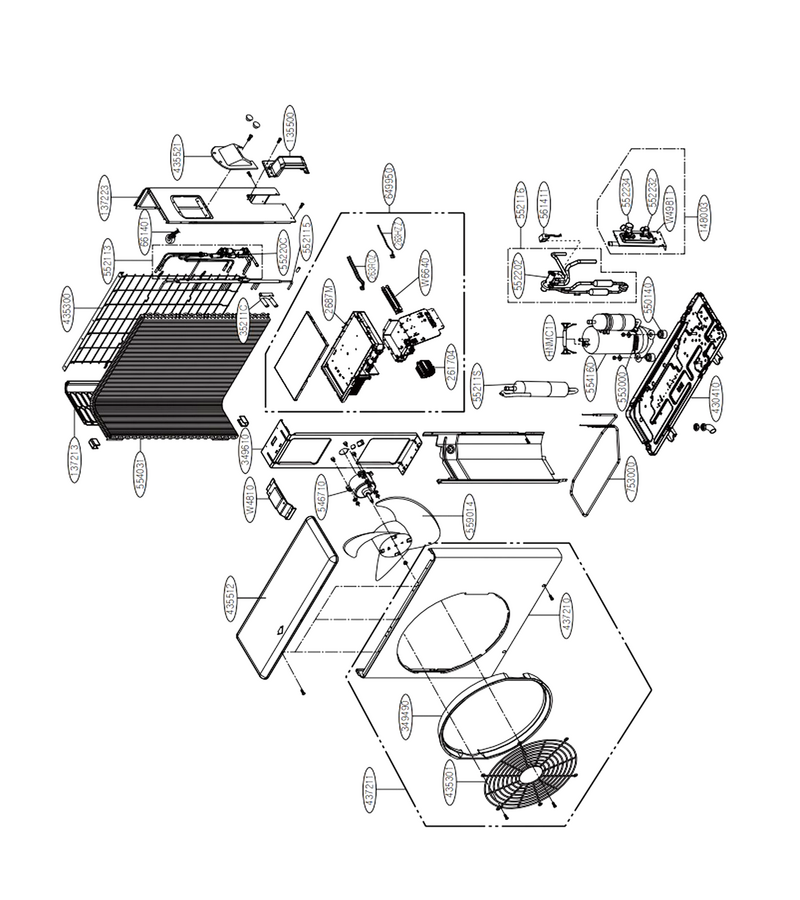

Outdoor Unit

...
...
W4810D
Bracket L-G-3A01934B
...
W6631
Harness,single L-G-6877A20060H
...
W49810
Supporter Assembly L-G-AJJ74199001
...
W6200
Transformer,reactor L-G-EBJ61970004
...
135500
Cover L-G-MCK47976001
...
137213A
Panel Assembly,side L-G-AGL70858107
...
137213B
Panel Assembly,side L-G-AGL70857204
...
263230A
Thermistor Assembly,ntc L-G-EBG61107024
...
263230B
Thermistor Assembly,ntc L-G-EBG61109832
...
268711
Pcb Assembly,main L-G-EBR81466602
...
349480
Orifice L-G-4948A20011G
...
352111
Tube Assembly,connector L-G-AJR72914511
...
430410
Base Assembly,outdoor L-G-AAN74033306
...
435300
Grille,rear L-G-MDX59045504
...
435301
Grille,discharge L-G-MDX61846201
...
435511B
Cover Assembly,control(outdoor) L-G-ACQ36712504
...
435512
Cover Assembly,top(outdoor) L-G-ACQ73019508
...
437210
Panel Assembly,front(sub) L-G-1A00197D
...
437211
Panel Assembly,front(outdoor) L-G-AGL32105657
...
447910
Barrier Assembly,outdoor L-G-AAM34710912
...
546810
Motor Assembly,dc,outdoor L-G-EAU62903301
...
549610
Bracket Assembly,motor L-G-ABA32344701
...
550140
Isolator L-G-5014A20003A
...
552113
Tube Assembly,condenser(out) L-G-AJR34565820
...
552115
Tube Assembly,manifold(outdoor) L-G-AJR34739811
...
552116
Tube Assembly,reverse L-G-AJR71429439
...
552117
Tube Assembly,suction(outdoor) L-G-AJR71429318
...
552200
Valve,expansion Body L-G-MJX62751401
...
552202
Valve,reverse L-G-5220AR3228W
...
552203A
Service Valve L-G-5220A20013C
...
552203B
Service Valve L-G-5220A20001X
...
553000
Heater,sump L-G-MEE62466503
...
554031
Condenser Assembly,bending L-G-ACG73425113
...
554160
Compressor Set,korea L-G-TBZ35798401
...
559010
Fan,propeller L-G-MDG37708601
...
561410
Drawing,assembly L-G-EAD62115302
...
649950
Case Assembly,control(outdoor) L-G-ABQ75584001
...
661400
Coil,expansion L-G-EAP62228701
...
753000
Heater,electric L-G-MEE63124902
