product name

LG LAU090HYV3.AK3GEUS

Model: LAU090HYV3.AK3GEUS

Save Part Not Listed?

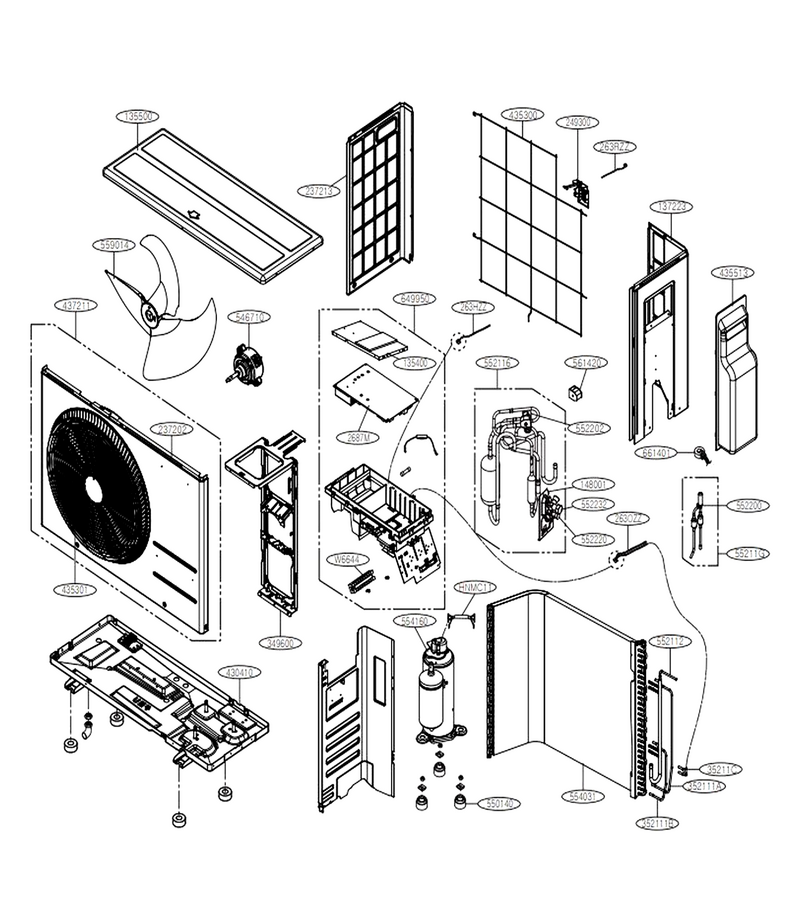

product name

Outdoor Unit

...
...
HNMC11
Harness,multi L-G-EAD57999873
...
263HZZ
Thermistor Assembly,ntc L-G-EBG61285807
...
263OZZ
Thermistor Assembly,ntc L-G-EBG62805802
...
263RZZ
Thermistor Assembly,ntc L-G-EBG61106852
...
2687M
Pcb Assembly,main L-G-EBR85104040
...
35211C
Tube Assembly,connector L-G-AJR72914511
...
55211G
Tube Assembly,expansion L-G-AJR75104020
...
135400
Cover L-G-MCK69188101
...
135500
Cover L-G-MCK69072101
...
137223
Panel Assembly,side L-G-AGL75674123
...
148001
Supporter L-G-MJH64434001
...
237202
Panel,front L-G-MGC64419409
...
237213
Panel,side L-G-MGC65919401
...
249300
Holder,sensor L-G-MEG63259001
...
349600
Bracket,motor L-G-MAZ65186206
...
352111A
Tube Assembly,connector L-G-AJR74862909
...
352111B
Tube Assembly,connector L-G-AJR74862910
...
430410
Base Assembly,outdoor L-G-AAN75630615
...
435300
Grille,rear L-G-MDX61893210
...
435301
Grille,discharge L-G-MDX63971901
...
435513
Cover Assembly,tubing L-G-ACQ88651601
...
437211
Panel Assembly,front(outdoor) L-G-AGL75493001
...
546710
Motor Assembly,dc,outdoor L-G-EAU60905411
...
550140
Isolator L-G-5014A20003A
...
550150
Isolator L-G-4H00637A
...
552112
Tube Assembly,condenser(in) L-G-AJR75743209
...
552116
Tube Assembly,reverse L-G-AJR75744535
...
552200
Valve,expansion Body L-G-MJX63991801
...
552202
Valve,reverse L-G-MJX62732501
...
552220
Valve,service L-G-MJX62451505
...
552232
Valve,service L-G-5220A20001S
...
554031
Condenser Assembly,bending L-G-ACG75244611
...
554160
Compressor Set,china L-G-TBZ37534501
...
559014
Fan,propeller L-G-MDG63102801
...
561420
Solenoid L-G-EBE61242402
...
649950
Case Assembly,control(outdoor) L-G-ABQ75940224
...
661401
Coil,expansion L-G-EAP63107118
