LG LAU090HYV.AWHBEUS

Model: LAU090HYV.AWHBEUS

Save Part Not Listed?
product name

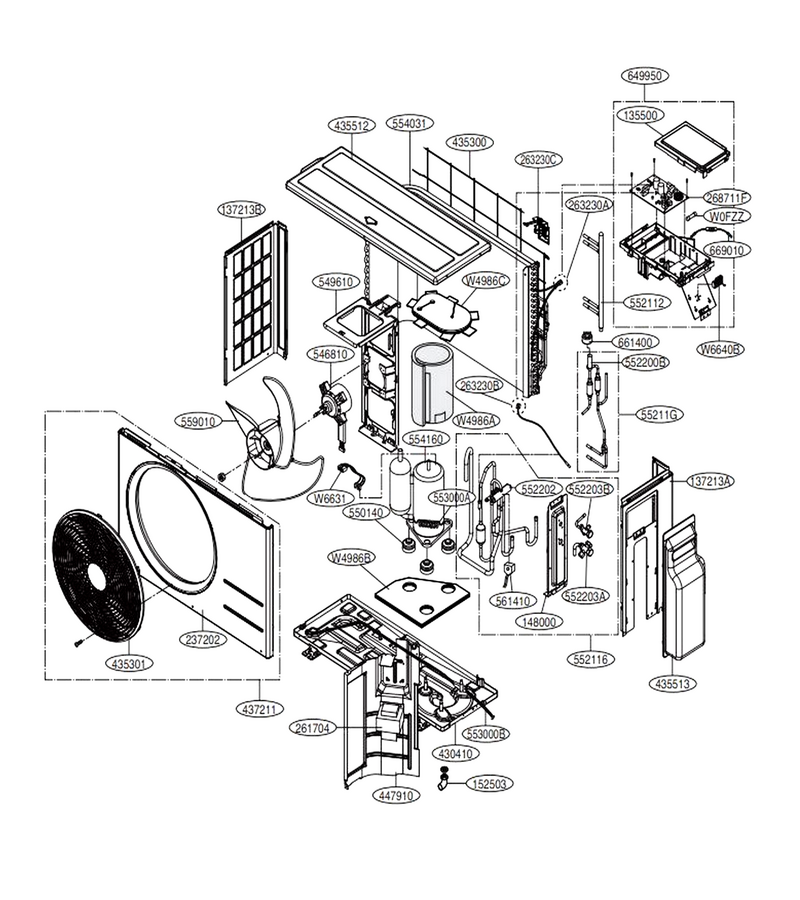

Outdoor Unit

...
...
W0FZZ
Fuse Assembly L-G-EAF58158301
...
W4986A
Fuse,time Delay L-G-6900AQ9028D
...
W4986B
Sound Proof L-G-MDS63972502
...
W4986C
Sound Proof L-G-MDS62061804
...
W6631
Harness,multi L-G-EAD62145801
...
263RZZ
Thermistor Assembly,ntc L-G-EBG61285804
...
55211G
Tube Assembly,reverse L-G-AJR73942707
...
137213B
Panel Assembly,side L-G-AGL71499505
...
137213A
Cover L-G-MCK62818001
...
148001
Panel Assembly,side L-G-AGL68979405
...
237202
Supporter L-G-MJH56985703
...
261704
Panel,front L-G-MGC56983325
...
263230A
Transformer,reactor L-G-EBJ61450101
...
263230B
Thermistor Assembly,ntc L-G-EBG61325812
...
268711F
Thermistor Assembly,ntc L-G-EBG61106852
...
430410
Pcb Assembly,main L-G-EBR74631907
...
435300
Base Assembly,outdoor L-G-AAN68977820
...
435301
Grille,rear L-G-MDX61893203
...
435512
Grille,discharge L-G-MDX63452301
...
435513
Cover Assembly,top(outdoor) L-G-ACQ68979308
...
437211
Cover Assembly,tubing L-G-ACQ68981119
...
447910
Panel Assembly,front(outdoor) L-G-AGL74875105
...
546810
Motor Assembly,dc,outdoor L-G-EAU57945701
...
549610
Motor Assembly,dc,outdoor L-G-EAU57945702
...
550140
Bracket Assembly,motor(outdoor) L-G-ABA71499601
...
552112
Damper,compressor L-G-MCQ62508902
...
552116
Tube Assembly,condenser(in) L-G-AJR69388501
...
552200
Tube Assembly,expansion L-G-AJR69405502
...
552202
Valve, Expansion Body L-G-5220A90001R
...
552220
Valve,reverse L-G-5220AR3228Y
...
552232
308 Valve L-G-2H02479N
...
553000A
Valve,service L-G-MJX42581405
...
554031
Heater,sump L-G-MEE62466501
...
554160
Condenser Assembly,bending L-G-ACG69396013
...
559010
Compressor L-G-5416A90029K
...
561420
Fan Assembly,propeller L-G-ADP67804501
...
649950
Solenoid L-G-6141A20017E
...
661400
Case Assembly,control(outdoor) L-G-ABQ74308304
...
669010
Coil,expansion L-G-EAP61086224
