LG LAN180HYV1.AWHBEUS

Model: LAN180HYV1.AWHBEUS

Save Part Not Listed?
product name

Main

...
...
W50400
Damper L-G-MCQ67209301
...
W5210B
Tube,connector L-G-5210A20851K
...
W54100A
Insulator L-G-MEV64692902
...
W54100B
Insulator L-G-MEV64692904
...
W54100C
Insulator L-G-MEV64692901
...
35211B
Tube Assembly,tubing L-G-AJR74484204
...
131410
Chassis Assembly L-G-ABW73812503
...
135090
Decor Assembly L-G-ACW74137709
...
135311
Grille Assembly,discharge(indoor) L-G-AEB74006207
...
135313
Grille Assembly,inlet L-G-AEB74006401
...
135316
Grille Assembly,front(indoor) L-G-AEB74006306
...
135500A
Cover L-G-MCK67887101
...
135500B
Cover L-G-MCK67926301
...
135500C
Cover L-G-MCK67935101
...
135501
Cover,bearing L-G-MCK67886601
...
145200
Link L-G-MFF62583201
...
147581
Louver,horizontal L-G-MFH62663701
...
149303
Holder,tubing L-G-MEG56994601
...
149304
Holder,evaporator L-G-MEG63444701
...
152302B
Filter,air L-G-MDJ61144721
...
249951
Case Assembly,control(indoor) L-G-ABQ74311623
...
267110
Remote Controller Assembly L-G-AKB74955602
...
342800
Bearing L-G-4280A20004M
...
346810
Motor Assembly,dc,indoor L-G-EAU62543502
...
352119A
Tube Assembly,return Bending L-G-AJR73909805
...
352119B
Tube Assembly,return Bending L-G-AJR67811004
...
352150
Hose Assembly,drain L-G-AEM73493403
...
354210
Evaporator Assembly,first L-G-ADL72918709
...
359011
Fan Assembly,cross Flow L-G-ADP73673403
...
733010
Plate Assembly,installation L-G-AGU75168201

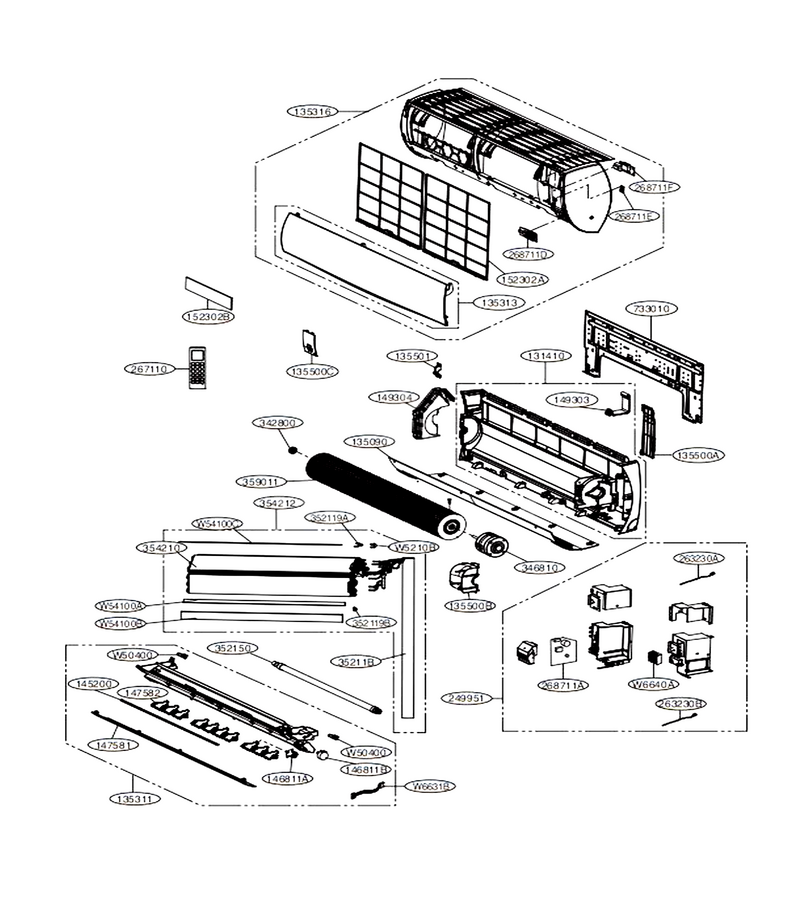

Schematic Image Zoomed
