LG LAN121HNM.ANCAEUS

Model: LAN121HNM.ANCAEUS

Save Part Not Listed?
product name

Indoor Unit

...
...
W50400
Damper L-G-5040A30027A
...
W52105A
Tube,return Bending L-G-3H02787B
...
W52105B
Tube,return Bending L-G-4H02832B
...
W54100A
Insulator L-G-5410A20793Q
...
W54100B
Insulator L-G-5410A28490Q
...
35211B
Tube Assembly L-G-5211A29044B
...
131410
Chassis Assembly L-G-3141A20034C
...
135080
Decor L-G-3508A20087F
...
135311
Grille Assembly, Discharge (indoor) L-G-3531A10373B
...
135316
Grille Assembly, Front (indoor) L-G-3531A10374H
...
135500
Cover L-G-3550A30315C
...
135511
Cover Assembly, Control (indoor) L-G-3551A20226H
...
135516
Cover Assembly L-G-3551A20156B
...
135800
Door/this Is Strip At Btm With Artcool Logo L-G-3580A20088G
...
137211
Front Panel Assembly L-G-3721A20326A
...
145200A
Link L-G-4520A30090A
...
145200B
Link L-G-4520A30091A
...
146811A
Dc Motor Asm L-G-4681A20042E
...
146811B
Motor Assembly, Dc, Stepping L-G-4681A20055D
...
147581
Horizontal Louver L-G-5990A20072A
...
147582
Louver,verti L-G-4758A30057A
...
149303
Holder, Tubing L-G-4930A20022A
...
149304
Holder, Evaporator L-G-4930A30070A
...
152302
Filter,air L-G-5230A20064L
...
159830
Filter Assembly, Air Cleaner L-G-5983A20018G
...
249951
Case Assembly, Control (indoor) L-G-4995A10205K
...
263040
Lcd, Module-Tn L-G-6306A90009A
...
263230
Room Air Conditioner Thermistor L-G-6323A30002F
...
266090
Hv Assy L-G-6609A10003Z
...
267110
Remote Controller Assembly L-G-AKB74375404
...
268711H
Sub Pcb Assembly L-G-6871A20259D
...
268711G
Sub Pcb Assembly L-G-6871A00088A
...
268711E
Sub Pcb Assembly L-G-6871A00087B
...
268711B
Main Pcb Assembly L-G-6871A20781E
...
342800
Room Air Conditioner Blower Wheel Bearing L-G-4280A20004A
...
346810
Room Air Conditioner Indoor Fan Motor L-G-4681AR2295L
...
352111
Tube Assembly,connector L-G-5211A21904L
...
352119
Tube Assembly,return Bending L-G-3H02787W
...
352150
Drain Hose L-G-5251A20011G
...
354210
Evaporator L-G-5421A20258B
...
359011
Room Air Conditioner Blower Wheel L-G-5901A20017H
...
733010
Plate Assembly L-G-3301A20020A

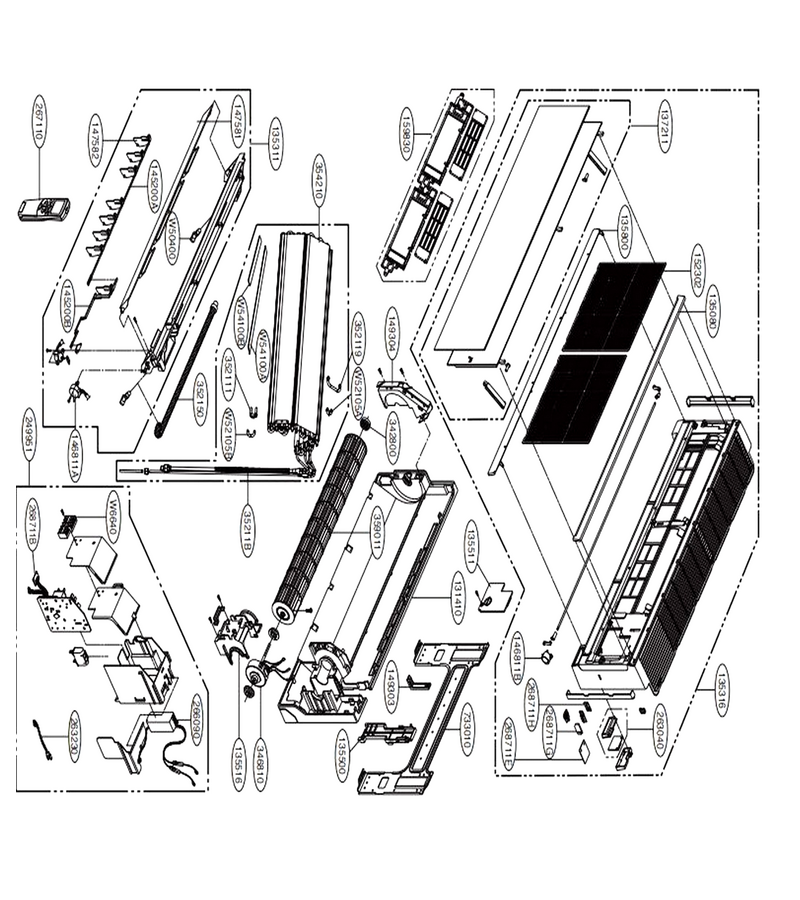

Schematic Image Zoomed
