LG LAN096HNP.ANCAEUS

Model: LAN096HNP.ANCAEUS

Save Part Not Listed?
product name

Indoor Unit

...
...
35211B
Tube Assembly, Tubing L-G-5211A21789C
...
131410
Chassis Assembly L-G-3141A20037K
...
135080
Decor L-G-3508A20092F
...
135316
Air Conditioner Grille Front L-G-3531A20319F
...
135500A
Cover L-G-3550A20511A
...
135500B
Cover L-G-3550A20510A
...
135515
Cover Assembly, Top (indoor) L-G-3551A20225C
...
145200A
Link L-G-4520A30097A
...
145200B
Link L-G-4520A20049A
...
145200C
Link L-G-4520A20050A
...
145200D
Link L-G-4520A30098A
...
146811A
Motor Assembly L-G-4681A20055A
...
146811B
Motor Assembly, Dc, Stepping L-G-4681AP2968N
...
147581
Horizontal Louver L-G-4758A20098A
...
148000
Supporter L-G-4980A30129A
...
152302
Air Filter L-G-5230A20069B
...
159830
Filter Assembly,air Cleaner L-G-5983A25015N
...
249951
Case Assembly, Control(indoor) L-G-4995A20653J
...
263230C
Thermistor Assembly,ntc L-G-EBG61107002
...
267110
Remote Controller Assembly L-G-6711A20128F
...
268711A
Wire Harness L-G-6871A20921A
...
268711B
Sub Pcb Assembly L-G-6871A20363G
...
268711C
Main Pcb Assembly L-G-6871A20999A
...
330871
Drain Pan Assembly L-G-3087A30009B
...
346810
Indoor Motor L-G-4681A20047E
...
349600
Motor Mount L-G-4960A20016A
...
352150
Hose Assembly,drain L-G-AEM73493401
...
352380
Air Guide L-G-5238A20046A
...
354210
Evaporator Assembly, First L-G-5421A20265A
...
359012
Turbo Fan L-G-5900A20063A

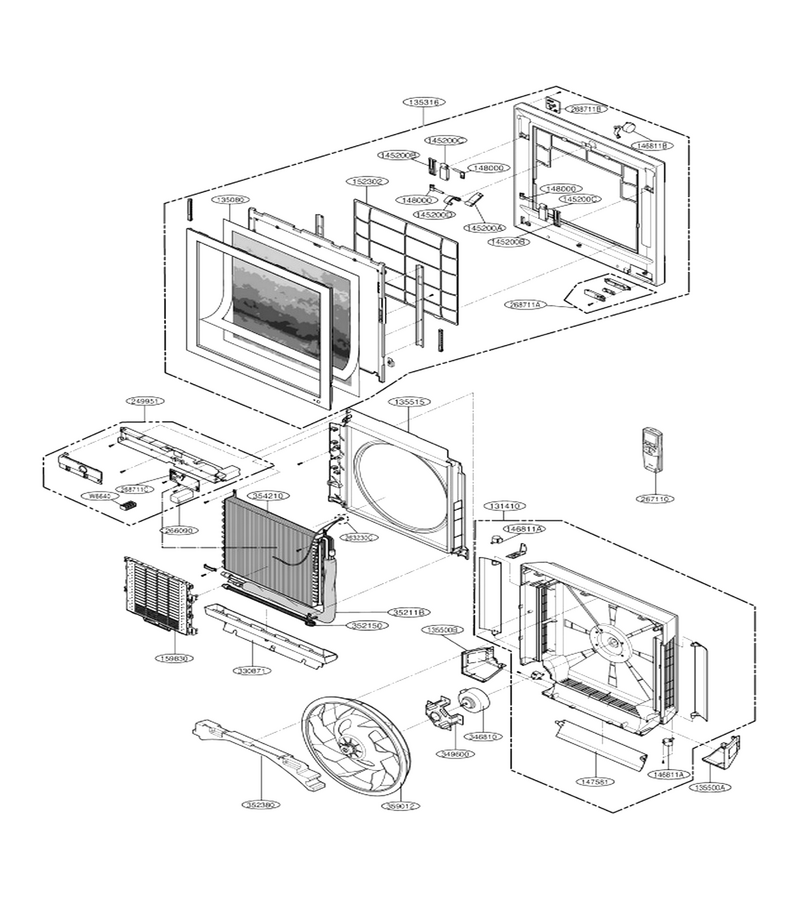

Schematic Image Zoomed
