LG LAN095HV.ANCBEUS

Model: LAN095HV.ANCBEUS

Save Part Not Listed?
product name

Indoor Unit

...
...
W52105A
Tube,return Bending L-G-3H02787B
...
W52105B
Tube,return Bending L-G-4H02832B
...
W54100A
Insulator L-G-5410A20793Q
...
W54100B
Insulator L-G-5410A28490Q
...
35211B
Tube Assembly, Tubing L-G-5211A29044A
...
131410
Chassis Assembly L-G-3141A20034W
...
135080
Decor L-G-3508A20087F
...
135311
Grille Assembly, Discharge(indoor) L-G-3531A10373L
...
135316
Grille Assembly, Front(indoor) L-G-AEB37046201
...
135500
Cover L-G-3550A30315C
...
135511
Cover Assembly,control(indoor) L-G-ACQ86313301
...
135516
Motor Cover Assembly L-G-3551A20156E
...
135800
Door L-G-3580A20088D
...
137211
Panel Assembly, Front(indoor) L-G-3721A20326W
...
145200B
Link L-G-4520A30090A
...
145200A
Link L-G-4520A30101A
...
146811A
Motor Assembly, Dc, Stepping L-G-4681A20055D
...
146811B
Motor Assembly L-G-4681A20055A
...
147581
Horizontal Louver L-G-5990A20072A
...
147582
Louver,verti L-G-4758A30057A
...
149303
Holder, Tubing L-G-4930A20022A
...
149304
Holder, Evaporator L-G-4930A30070A
...
152302
Filter,air L-G-5230A20064L
...
152313
Filter Assembly, Deodorizer L-G-5231A20040W
...
159830
Filter Assembly, Air Cleaner L-G-5983A20018G
...
249951
Case Assembly,control(indoor) L-G-ABQ74145902
...
263040
Lcd, Module-Tn L-G-6306A90009A
...
263230A
Thermistor Assembly,ntc L-G-EBG61106827
...
263230B
Thermistor Assembly,ntc L-G-EBG61106524
...
266090
Hv Assy L-G-6609A10003Z
...
267110
Remote Controller Assembly L-G-AKB74375404
...
268711H
Sub Pcb Assembly L-G-6871A20259D
...
268711G
Sub Pcb Assembly L-G-6871A00088A
...
268711D
Sub Pcb Assembly L-G-6871A00087B
...
268711B
Main Pcb Assembly L-G-6871A20914P
...
342800
Room Air Conditioner Blower Wheel Bearing L-G-4280A20004A
...
346810
Motor, Dc Indoor L-G-EAU37844701
...
352111
Tube Assembly,connector L-G-5211A21904A
...
352119
Tube Assembly,return Bending L-G-3H02787W
...
352150
Drain Hose L-G-5251A20011G
...
354210
Evaporator L-G-5421A20258B
...
354212
Evaporator Assembly,final L-G-5421A20260B
...
359011
Room Air Conditioner Blower Wheel L-G-5901A20017H
...
733010
Plate Assembly,installation L-G-3301A20020G

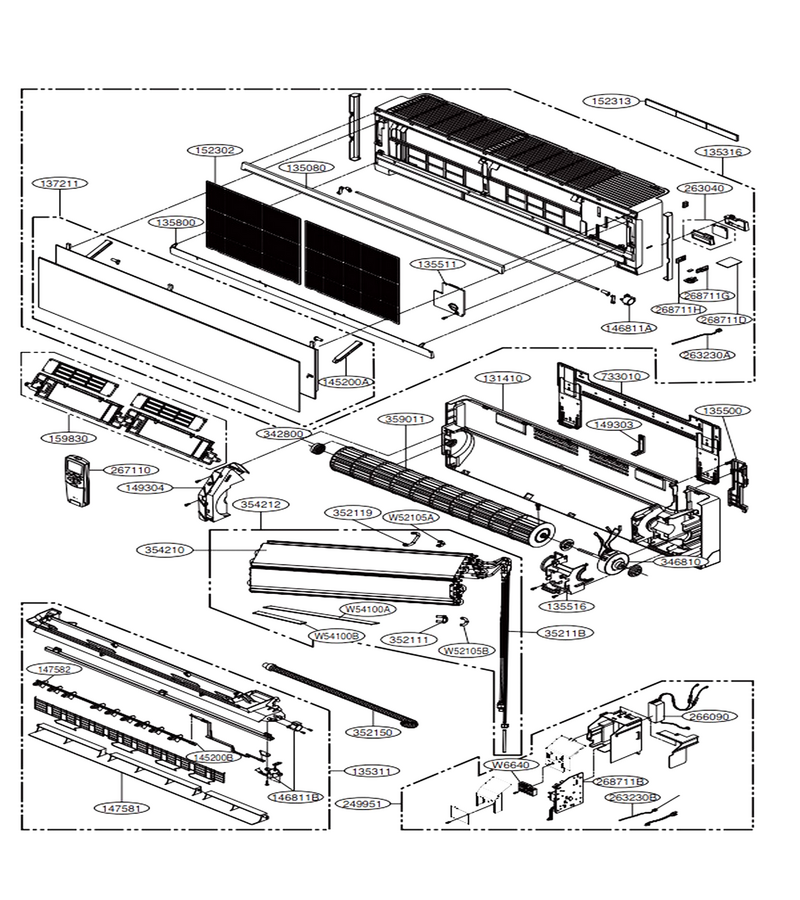

Schematic Image Zoomed
