LG LAN090HVP.ANCAEUS

Model: LAN090HVP.ANCAEUS

Save Part Not Listed?
product name

Indoor Unit

...
...
W3300
Plate L-G-3300A20104G
...
35211B
Tube Assembly,tubing L-G-5211A21789A
...
131410
Chassis Assembly L-G-3141A20037K
...
135080
Decor L-G-3508A20092C
...
135316
Grille Assembly,front(indoor) L-G-AEB73886101
...
135500A
Cover L-G-3550A20511A
...
135500B
Cover L-G-3550A20510A
...
135515
Cover Assembly,top(indoor) L-G-3551A20225D
...
145200A
Link L-G-4520A30097A
...
145200B
Link L-G-4520A30098A
...
145200C
Link L-G-4520A20049A
...
145200D
Link L-G-4520A20050A
...
145200E
Link L-G-4520A30099A
...
146811B
Motor Assembly, Dc, Stepping L-G-4681AP2968N
...
147581
Horizontal Louver L-G-4758A20098A
...
152302
Air Filter L-G-5230A20069B
...
249951
Case Assembly,control(indoor) L-G-ABQ74183106
...
263230B
Thermistor Assembly,ntc L-G-EBG61106514
...
263230A
Thermistor Assembly,ntc L-G-EBG61106836
...
267110
Remote Controller Assembly L-G-AKB74375403
...
268711A
Wire Harness L-G-6871A20921A
...
268711B
Pcb Assembly,main L-G-EBR39024502
...
268711C
Pcb Assembly,main L-G-EBR59449909
...
268711D
Sub Pcb Assembly L-G-6871A20363G
...
330871
Drain Pan Assembly L-G-3087A30009B
...
346810
Motor Assembly,dc,indoor L-G-EAU62843006
...
349600
Motor Mount L-G-4960A20016A
...
352150
Hose Assembly,drain L-G-AEM73493401
...
352380
Air Guide L-G-5238A20046A
...
354210
Evaporator Assembly, First L-G-5421A20265A
...
359012
Turbo Fan L-G-5900A20063A

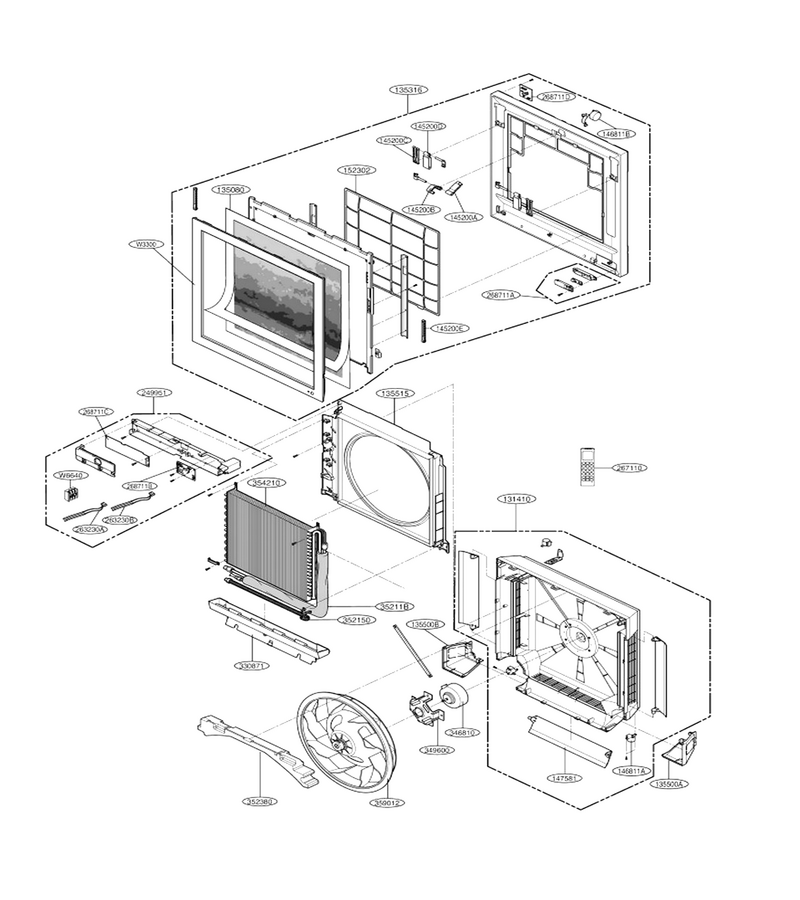

Schematic Image Zoomed
