LG LAN090HSV5.AK6GEUS

Model: LAN090HSV5.AK6GEUS

Save Part Not Listed?
product name

Popular Parts

Popular Parts

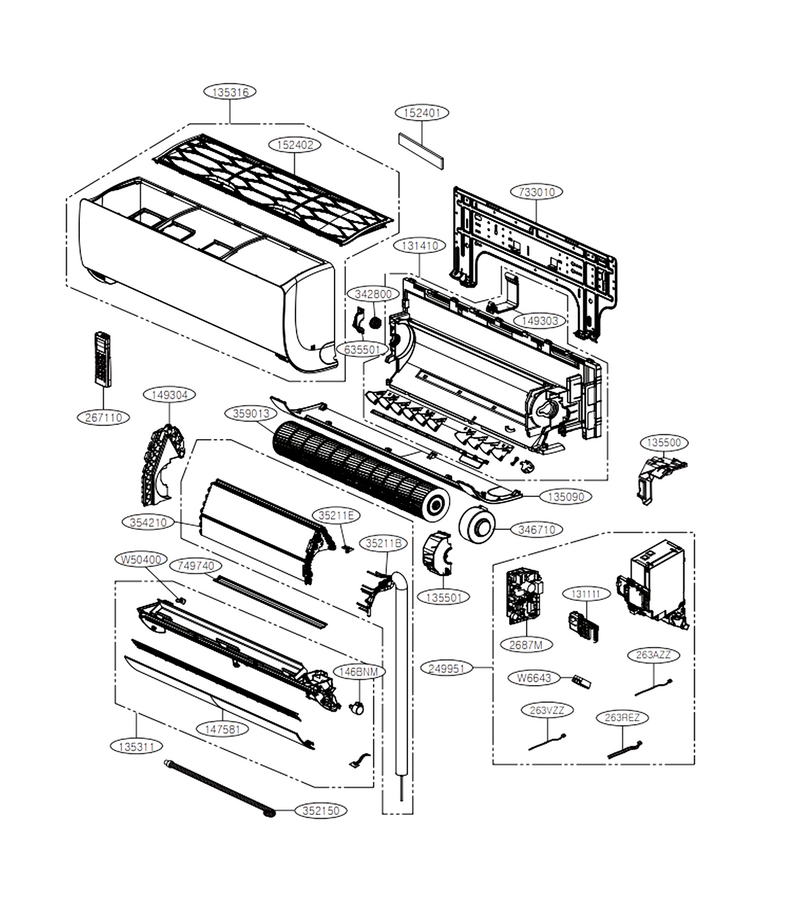

Indoor Unit

...
...
W50400
Damper L-G-5040A30027A
...
146BNM
Dc Motor Asm L-G-4681A20042E
...
263AZZ
Thermistor Assembly,ntc L-G-EBG61325801
...
263REZ
Thermistor Assembly,ntc L-G-EBG61108915
...
263VZZ
Thermistor Assembly L-G-EBG60787304
...
2687M
Pcb Assembly,main L-G-EBR83651317
...
35211E
Tube Assembly,connector L-G-AJR75023301
...
35211B
Tube Assembly,tubing L-G-AJR75043504
...
131111
Case Assembly,indoor L-G-ABQ75140131
...
131410
Chassis Assembly L-G-ABW74052418
...
135090
Decor Assembly L-G-ACW74737235
...
135311
Grille Assembly,discharge(indoor) L-G-AEB74424751
...
135316
Grille Assembly,front(indoor) L-G-AEB75244501
...
135500
Cover L-G-MCK69584901
...
135501
Cover L-G-MCK68472701
...
147581
Louver,horizontal L-G-MFH63023606
...
149303
Holder,tubing L-G-MEG56994601
...
149304
Holder,evaporator L-G-MEG64039001
...
152401
Filter,air L-G-MDJ61144725
...
152402
Filter,air L-G-MDJ64984704
...
249951
Case Assembly,control(indoor) L-G-ABQ75748435
...
267110
Remote Controller Assembly L-G-AKB74955602
...
342800
Bearing L-G-4280A20004M
...
346710
Motor Assembly,dc,indoor L-G-EAU62004010
...
352150
Hose Assembly,drain L-G-AEM73493417
...
354210
Evaporator Assembly,first L-G-ADL74582501
...
359013
Fan Assembly,cross Flow L-G-ADP74133401
...
635501
Cover,bearing L-G-MCK67886601
...
733010
Plate Assembly,installation L-G-AGU67813404
...
749740
Guide L-G-MEA64890102

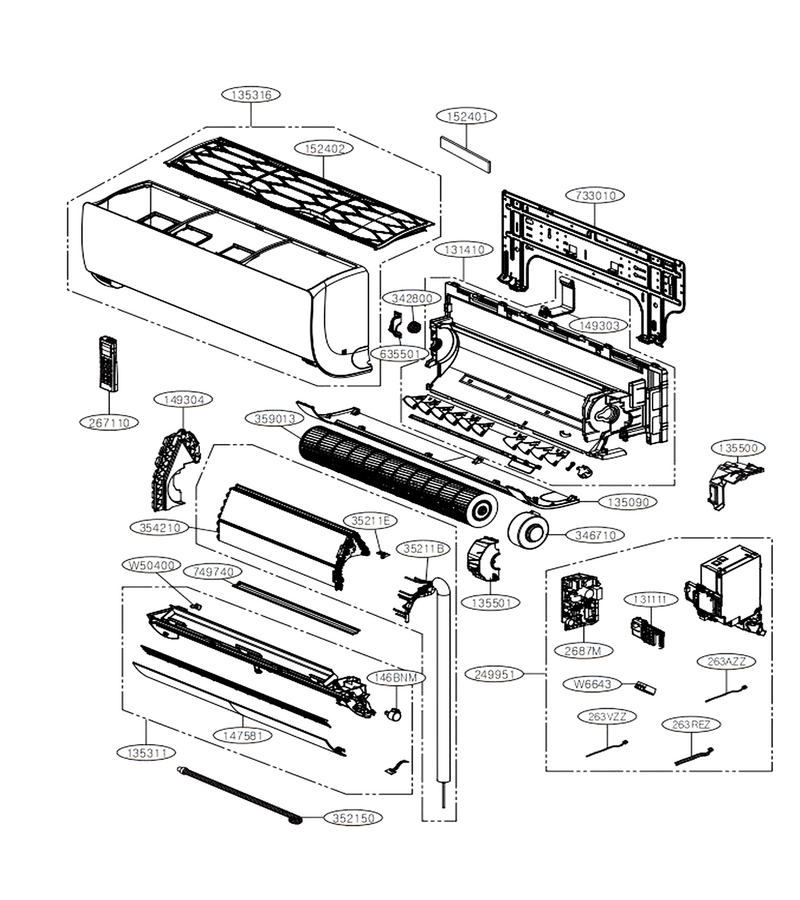

Main

...
...
W50400
Damper L-G-5040A30027A
...
146BNM
Dc Motor Asm L-G-4681A20042E
...
263AZZ
Thermistor Assembly,ntc L-G-EBG61325801
...
263REZ
Thermistor Assembly,ntc L-G-EBG61108915
...
263VZZ
Thermistor Assembly L-G-EBG60787304
...
2687M
Pcb Assembly,main L-G-EBR83651317
...
35211E
Tube Assembly,connector L-G-AJR75023301
...
35211B
Tube Assembly,tubing L-G-AJR75043504
...
131111
Case Assembly,indoor L-G-ABQ75140131
...
131410
Chassis Assembly L-G-ABW74052418
...
135090
Decor Assembly L-G-ACW74737235
...
135311
Grille Assembly,discharge(indoor) L-G-AEB74424751
...
135316
Grille Assembly,front(indoor) L-G-AEB75244501
...
135500
Cover L-G-MCK69584901
...
135501
Cover L-G-MCK68472701
...
147581
Louver,horizontal L-G-MFH63023606
...
149303
Holder,tubing L-G-MEG56994601
...
149304
Holder,evaporator L-G-MEG64039001
...
152401
Filter,air L-G-MDJ61144725
...
152402
Filter,air L-G-MDJ64984704
...
249951
Case Assembly,control(indoor) L-G-ABQ75748435
...
267110
Remote Controller Assembly L-G-AKB74955602
...
342800
Bearing L-G-4280A20004M
...
346710
Motor Assembly,dc,indoor L-G-EAU62004010
...
352150
Hose Assembly,drain L-G-AEM73493417
...
354210
Evaporator Assembly,first L-G-ADL74582501
...
359013
Fan Assembly,cross Flow L-G-ADP74133401
...
635501
Cover,bearing L-G-MCK67886601
...
733010
Plate Assembly,installation L-G-AGU67813404
...
749740
Guide L-G-MEA64890102
