LG LAN090HSV2.AMRBEUS

Model: LAN090HSV2.AMRBEUS

Save Part Not Listed?
product name

Main

...
...
W50400
Damper L-G-5040A30027A
...
W5210B
Tube,connector L-G-5210A20851K
...
W52115H
Tube,return Bending L-G-MJU57909702
...
W54100
Insulator L-G-MEV59660002
...
W6631C
Harness,single L-G-6631A30005S
...
35211B
Tube Assembly,tubing L-G-AJR69528001
...
131410
Chassis Assembly L-G-ABW68676010
...
135080
Decor L-G-MCR60969405
...
135311
Grille Assembly,discharge(indoor) L-G-AEB72004117
...
135313
Grille Assembly,inlet L-G-AEB73245301
...
135316
Grille Assembly,front(indoor) L-G-AEB73245208
...
135500A
Cover L-G-MCK56993601
...
135500B
Cover L-G-MCK59941202
...
145200A
Link L-G-MFF56981901
...
145200B
Link L-G-MFF56982501
...
146811A
Dc Motor Asm L-G-4681A20042E
...
146811B
Motor Assembly,dc,stepping L-G-EAU57945603
...
147581
Louver,horizontal L-G-MFH62043601
...
147582
Louver,vertical L-G-MFH56981201
...
149303
Holder,tubing L-G-MEG56994601
...
149304
Holder,evaporator L-G-MEG56983001
...
152302
Filter,air L-G-MDJ56986401
...
159830A
Filter Assembly,air Cleaner L-G-ADQ68719501
...
249951
Case Assembly,control(indoor) L-G-ABQ74002401
...
263230A
Thermistor Assembly,ntc L-G-EBG61108905
...
263230B
Thermistor Assembly L-G-EBG60787304
...
266090
Hv Assy L-G-6609A10003Z
...
267110
Remote Controller Assembly L-G-AKB74375403
...
268711D
Pcb Assembly,sub L-G-EBR74242813
...
268711J
Pcb Assembly,sub L-G-EBR70519901
...
268711H
Sub Pcb Assembly L-G-6871A20259D
...
268711B
Pcb Assembly,main L-G-EBR35936513
...
342800
Room Air Conditioner Blower Wheel Bearing L-G-4280A20004A
...
352150
Hose Assembly,drain L-G-AEM73493402
...
354210
Evaporator Assembly,first L-G-ADL68714801
...
733010
Plate Assembly,installation L-G-AGU67813404
...
749740
Guide L-G-MEA56993101

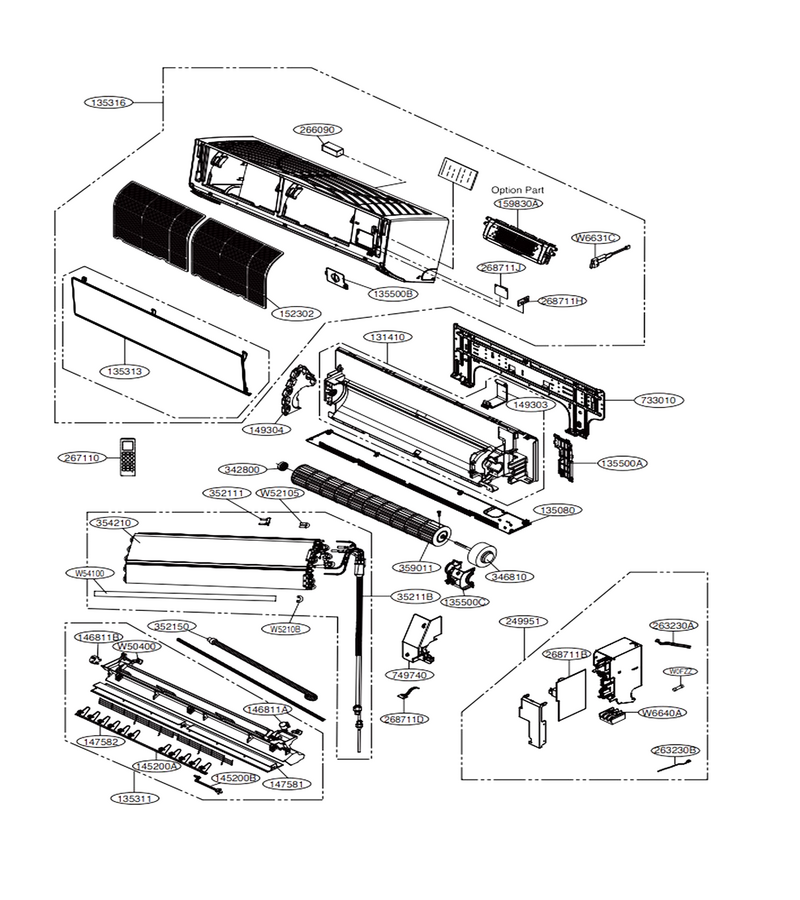

Schematic Image Zoomed
