LG LA181CNW.ANCAEUS

Model: LA181CNW.ANCAEUS

Save Part Not Listed?
product name

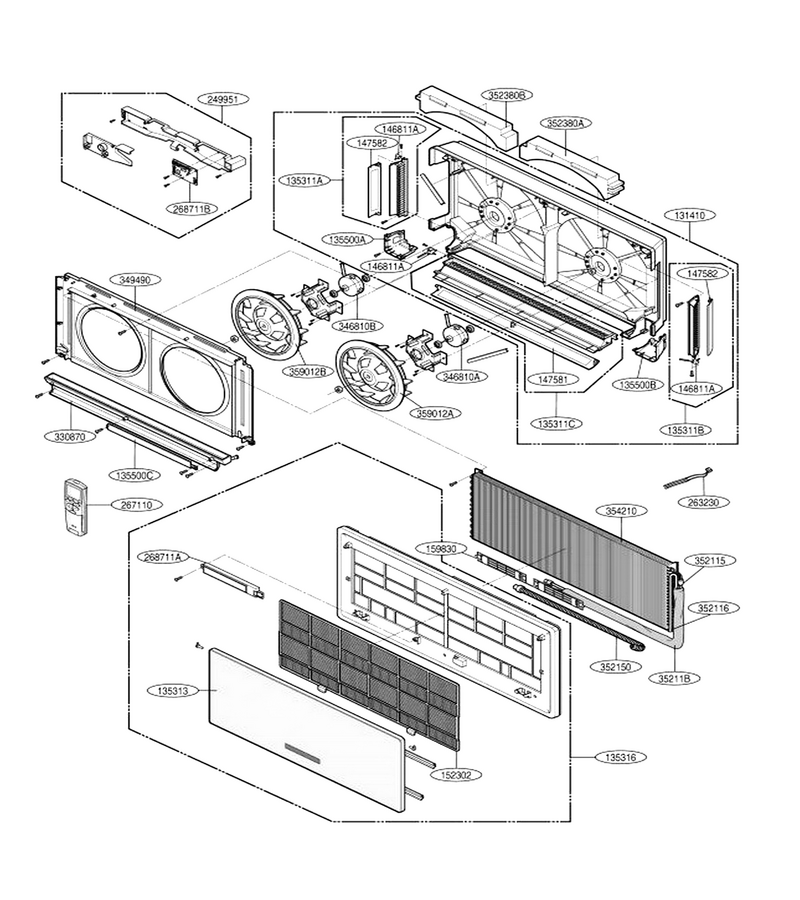

Indoor Unit

...
...
35211B
Tube Assembly,tubing L-G-5211A30038X
...
131410
Chassis Assembly L-G-3141A20008J
...
135311C
Grille Assembly, Discharge (indoor) L-G-3531A20125G
...
135311B
Grille Assembly, Discharge (indoor) L-G-3531A20124J
...
135311A
Grille Assembly, Discharge (indoor) L-G-3531A20124K
...
135313
Grille Assembly, Inlet L-G-3531A10270T
...
135316
Grille Assembly, Front (indoor) L-G-3531A10334J
...
135500A
Cover L-G-3550A20120B
...
135500B
Cover L-G-3550A20121B
...
135500C
Cover L-G-3550A20512B
...
146811A
Motor Assembly L-G-4681A20055A
...
147581
Horizontal Louver L-G-4758A20033A
...
147582
Vertical Louver L-G-4758A20034A
...
152302
Filter (mech), A/c L-G-5230A10011A
...
159830
Air Conditioner Air Cleaner Assembly L-G-5983A20006P
...
249951
Case Assembly,control(indoor) L-G-4995A20825A
...
263230
Thermistor A L-G-6323A20004N
...
267110
Remote Controller Assembly L-G-6711A20083R
...
268711A
Pwb (pcb) Assembly, Display L-G-6871A20462D
...
268711B
Pcb Assembly,main L-G-6871A20387J
...
330870
Drain Pan Assembly L-G-3087A20013B
...
346810A
Indoor Motor L-G-4681A20047C
...
346810B
Fan Motor L-G-4681A20047D
...
349490
Orifice Assembly L-G-4949A20002C
...
352115
Tube Assembly,evaporator(in) L-G-5211A20302C
...
352116
Tube Assembly, Evaporator Out L-G-5211A20301F
...
352150
Drain Hose Assembly L-G-5251A20011A
...
352380B
Evaporator Assembly, First L-G-5238A10010A
...
352380A
Air Guide L-G-5238A10009A
...
354210
Evaporator Assembly, First L-G-5421A20104C
...
359012A
Turbo Fan L-G-5900A00004A
...
359012B
Turbo Fan L-G-5900A00005A

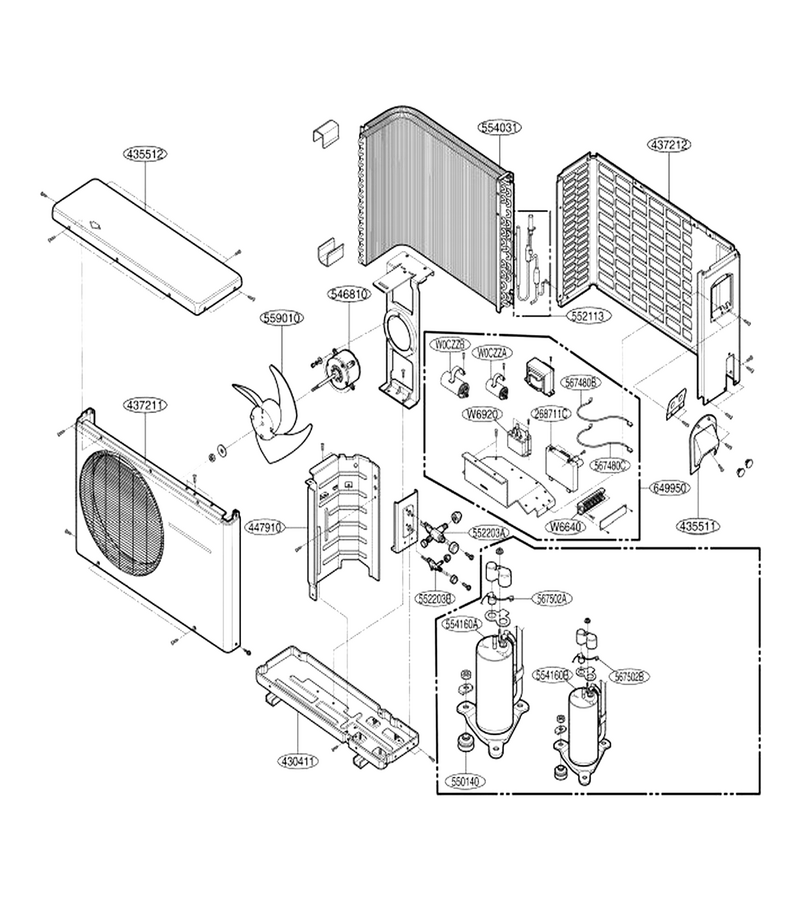

Outdoor Unit

...
...
W0CZZA
Room Air Conditioner Fan Motor Capacitor L-G-3A00988B
...
W0CZZB
Room Air Conditioner Dual-Motor Run Capacitor L-G-6120AR2194D
...
W6640
Terminal Block 6p Fc L-G-4G00103A
...
268711C
Main Pcb Assembly L-G-6871A10184E
...
430411
Base Assembly L-G-3041AP2741G
...
435511
Cover Assembly L-G-3551AR7184T
...
435512
Cover Assembly, Top (outdoor) L-G-3H03266P
...
437211
Panel Assembly, Front (outdoor) L-G-AGL36687001
...
437212
Panel Assembly, Rear (outdoor) L-G-AGL36636802
...
447910
Barrier Assembly, Outdoor L-G-4791A30004K
...
546810
Room Air Conditioner Outdoor Fan Motor L-G-4681A20013N
...
550140
Room Air Conditioner Compressor Grommet L-G-4H00982E
...
552113
Tube Assembly, Condenser(out) L-G-5211A25034C
...
552203A
Service Valve L-G-5220A20006J
...
552203B
Service Valve L-G-5220A20005C
...
554031
Condenser Assembly, Bent L-G-5403A20058B
...
554160A
Compressor Set, Korea L-G-2520UGJK2AA
...
554160B
Compressor Set, Korea L-G-2520UGAK2AA
...
559010
Fan Assembly L-G-1A00195B
...
567480B
Thermistor L-G-6323A20002L
...
567480C
Thermistor Assembly L-G-6323A20016A
...
567502A
Room Air Conditioner Compressor Overload Protector L-G-6750U-L058A
...
567502B
O.l.p L-G-6750U-L039A
...
649950
Case Assembly, Control(outdoor) L-G-4995A20383W
