product name

LG L3-C363NA0.ASIAICT

Model: L3-C363NA0.ASIAICT

Save Part Not Listed?
product name

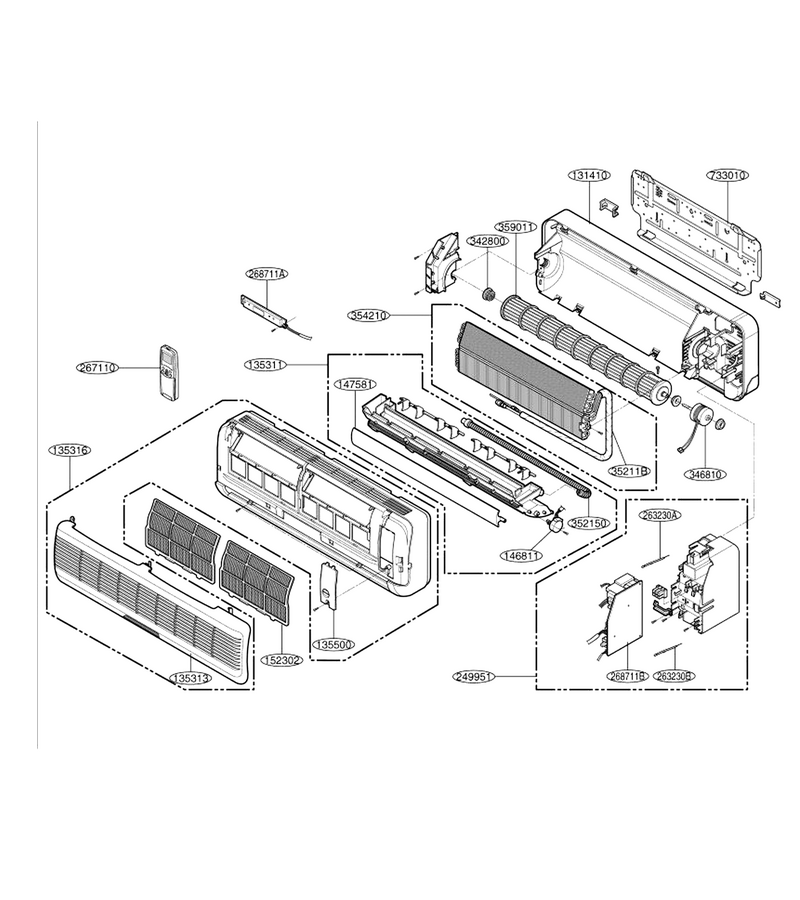

Indoor Unit I

...
...
131410
Cabinet Assembly L-G-3141A20003D
...
135311
Grille Assembly,discharge(indoor) L-G-3531A10023X
...
135313
Grille Assembly,inlet L-G-3531A10032W
...
135316
Grille Assembly,front(indoor) L-G-3531A10099J
...
135500
Cover L-G-3550A10107A
...
146811
Motor Assembly L-G-4681AR2727H
...
147581
Louver,horizontal L-G-5990A30006A
...
152302
Filter,air L-G-5230A20004E
...
249951
Case Assembly,control(indoor) L-G-4995A00003B
...
263230B
Thermistor,ntc L-G-6323A20024A
...
263230A
Thermistor L-G-6323A20003A
...
267110
Remote Controller Assembly L-G-6711A20025M
...
268711A
Pcb Assembly,main L-G-6871A30009Q
...
268711B
Pcb Assembly,main L-G-6871A20502B

Indoor Unit Ii

...
...
W0CZZB
Capacitor,film,box L-G-0CZZA20007Q
...
268711D
Pcb Assembly,main L-G-6871A20479B
...
349480
Orifice L-G-4948A20001A
...
430411
Base Assembly,weld(outdoor) L-G-3041AP7177D
...
435301
Discharge Grille L-G-3530A20006G
...
435511
Cover Assembly,control(outdoor) L-G-3551A10044B
...
435512
Cover Assembly L-G-3H03266H
...
447910
Barrier Assembly,outdoor L-G-4791A10019B
...
546810
Motor Assembly,ac,outdoor L-G-4681AR1392X
...
548490
Accumulator Assembly L-G-5211A21233B
...
552112
Tube Assembly,condenser(in) L-G-5211A11010C
...
552113
Tube Assembly,condenser(out) L-G-5211A12001C
...
552117
Tube Assembly,suction(outdoor) L-G-5211A10446C
...
552203A
Valve,service L-G-2H01890U
...
552203B
Valve,service L-G-2H02479R
...
554031
Condenser Assembly,bending L-G-5403A20168C
...
554160A
Compressor Set,korea L-G-2520UHGK2EA
...
554160B
Compressor Set,korea L-G-2520UMMK2BA
...
559010
Fan Propeller L-G-5901A10033A
...
561411A
Coil,expansion L-G-6141A20018D
...
561411B
Coil,expansion L-G-6141A20018E
...
561411C
Coil L-G-6141A20018F
