product name

LG KHMC107EWH.MWEKAD

Model: KHMC107EWH.MWEKAD

Save Part Not Listed?
product name

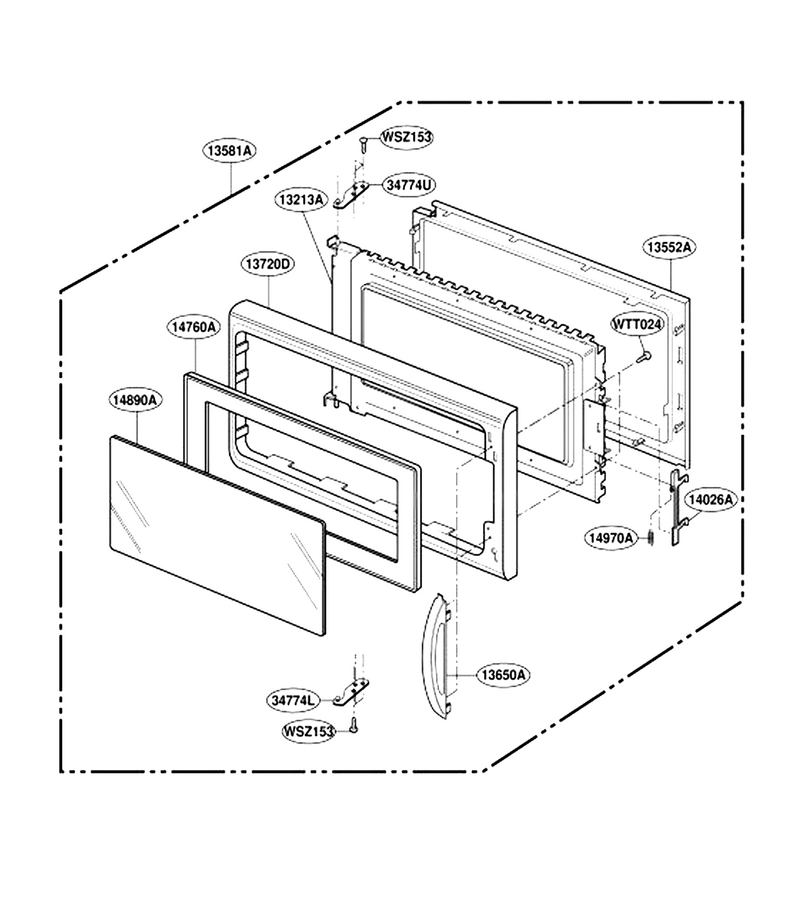

Door Parts

...
...
WSZ153
Screw,customized L-G-4B75265A
...
WTT024
Microwave Screw L-G-1TTL0402618
...
13213A
Frame Assembly,door L-G-3213W1A006A
...
13552A
Cover,choke L-G-3552W1A004D
...
13581A
Door Assembly L-G-3581W1A033F
...
13720D
Panel,door L-G-3720W0D014D
...
14026A
Latch All L-G-4026W3A003B
...
14760A
Baffle L-G-4760W1A005A
...
14890A
Window,glass L-G-4890W4A001A
...
14970A
Microwave Door Latch Spring L-G-4970WRA001E
...
34774U
Bracket,hinge L-G-4774W4P003A

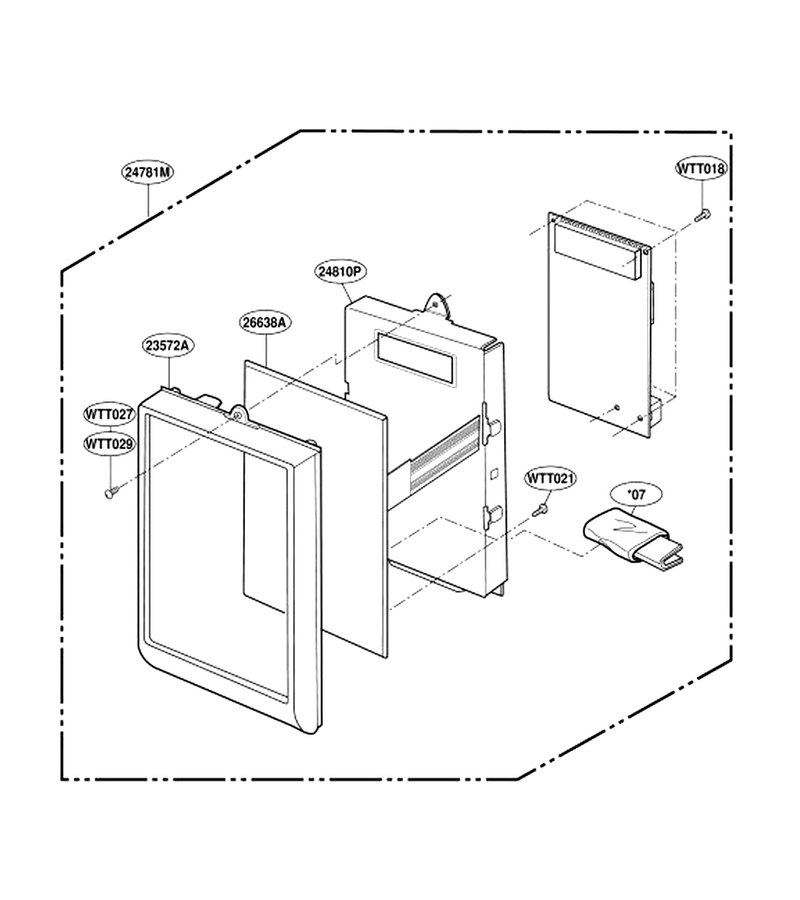

Controller Parts

...
...
*07
Card,[technical] L-G-3858W3T002D
...
WTT018
Microwave Screw L-G-1TTL0402818
...
WTT021
Microwave Screw L-G-1TTL0402418
...
WTT029
Screw L-G-1TTL0402822
...
23572A
Panel,control L-G-3572W1A023A
...
24781M
Controller Assy,[micom] L-G-4781W1M074A
...
26638A
Membrane L-G-6638W1YB10A

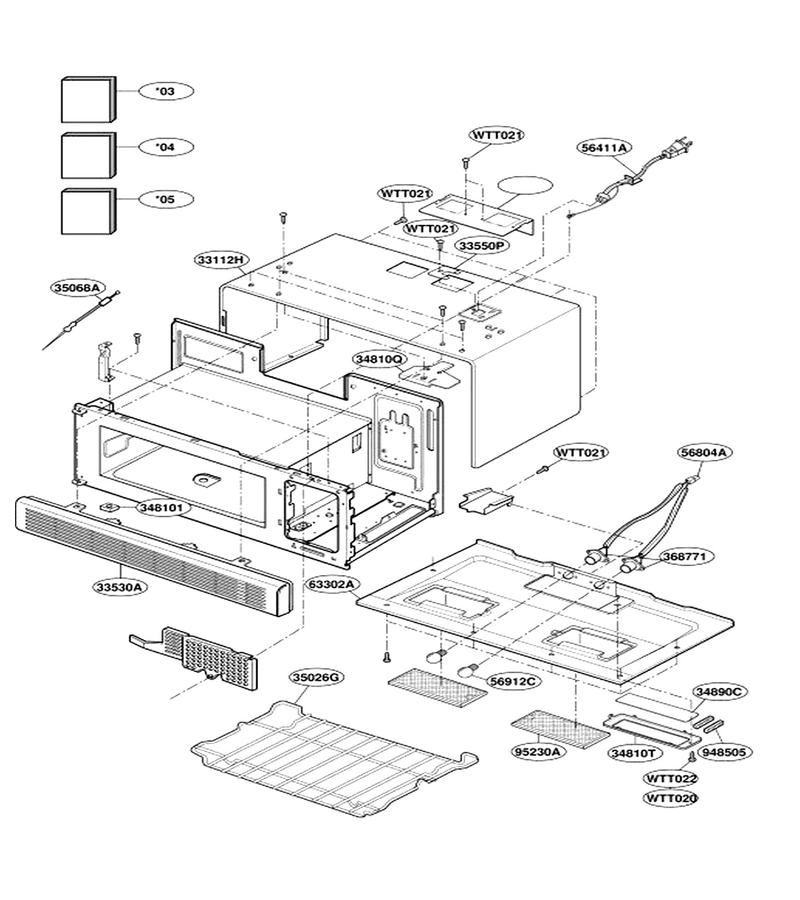

Oven Cavity Parts

...
...
*03
Book,cook L-G-3878W500086
...
*04
Manual,installation L-G-3828W5U0002
...
WTT021
Microwave Screw L-G-1TTL0402418
...
WTT022
Microwave Screw L-G-1TTL0402422
...
33530A
Grille,vent L-G-3530W1A004A
...
34810Q
Microwave Wall Mounting Plate L-G-4810W3G062A
...
34890C
Window,glass L-G-4890W1D032F
...
35026G
Shelf L-G-5026W1A006C
...
35068A
Sensor L-G-3B73075C
...
56411A
Power Cord Assembly L-G-6411W2A001B
...
56804A
Socket,lamp L-G-3B71048D
...
63302A
Plate,base L-G-3302W0A005D
...
95230A
Microwave Grease Filter L-G-2B72705B
...
348101
Bracket L-G-4810W4G044A
...
368771
Harness,single L-G-6877W2S004A
...
948505
Insulator L-G-4B73230A

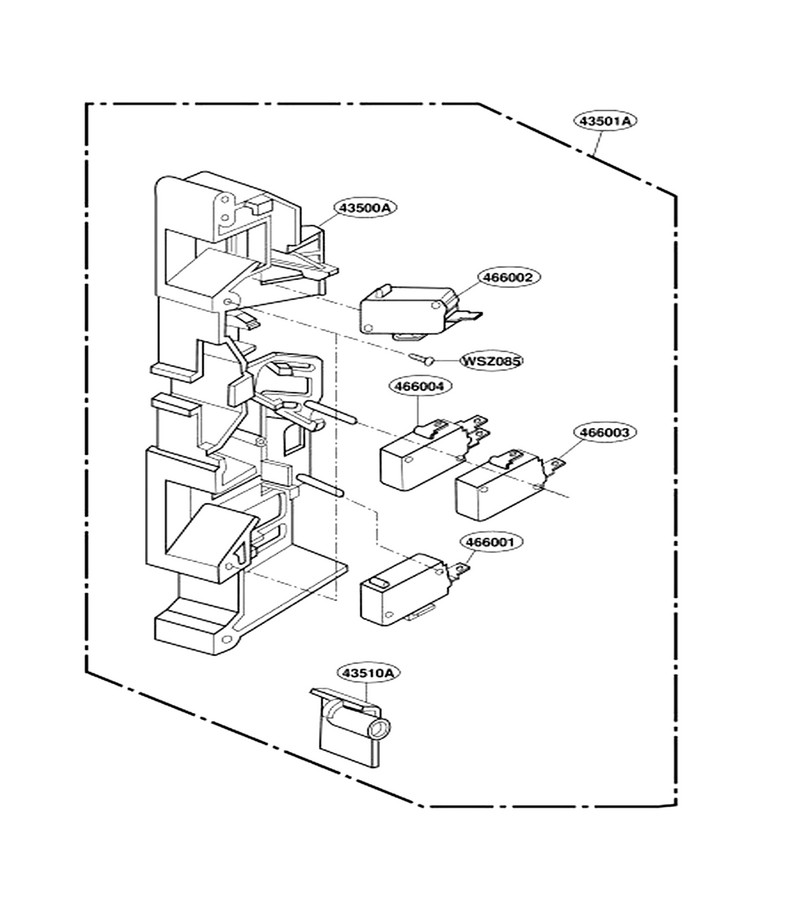

Latch Board Parts

...
...
WSZ085
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
43500A
Board L-G-3500W1A002A
...
43501A
Holder Assembly,locker L-G-3501W2A002A
...
466001
Microwave Micro Switch L-G-3B73362F
...
466002
Switch,micro L-G-3B73362A
...
466003
Switch Micro L-G-3B73361E
...
466004
Switch,micro L-G-3B73360C

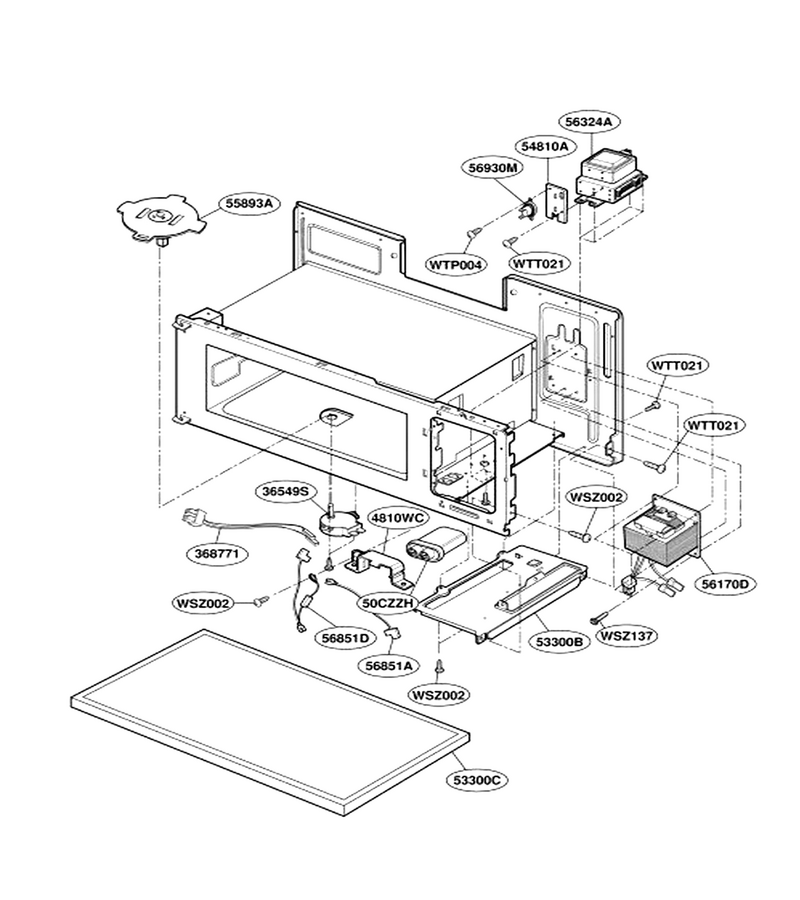

Interior Parts (1)

...
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
WSZ137
Screw L-G-4B73763A
...
WTP004
Screw L-G-1TPL0302418
...
WTT021
Microwave Screw L-G-1TTL0402418
...
50CZZH
Capacitor L-G-0CZZW1H002F
...
36549S
Motor, Ac Synchronous L-G-6549WRS001F
...
53300B
Plate,bottom L-G-3300W1G018A
...
53300C
Tray Assembly L-G-2B71919A
...
54810A
Bracket,sensor L-G-4810W4G053A
...
55893A
Fan Assembly L-G-5893W3A001B
...
56170D
Transformer,high Voltage L-G-6010W2H030A
...
56324A
Magnetron L-G-2B71165E
...
56851D
Cable,assembly L-G-3B73348S
...
56930M
Microwave Thermal Cut-Off L-G-6930W1A002C
...
368771
Harness,single L-G-6877W2S004A

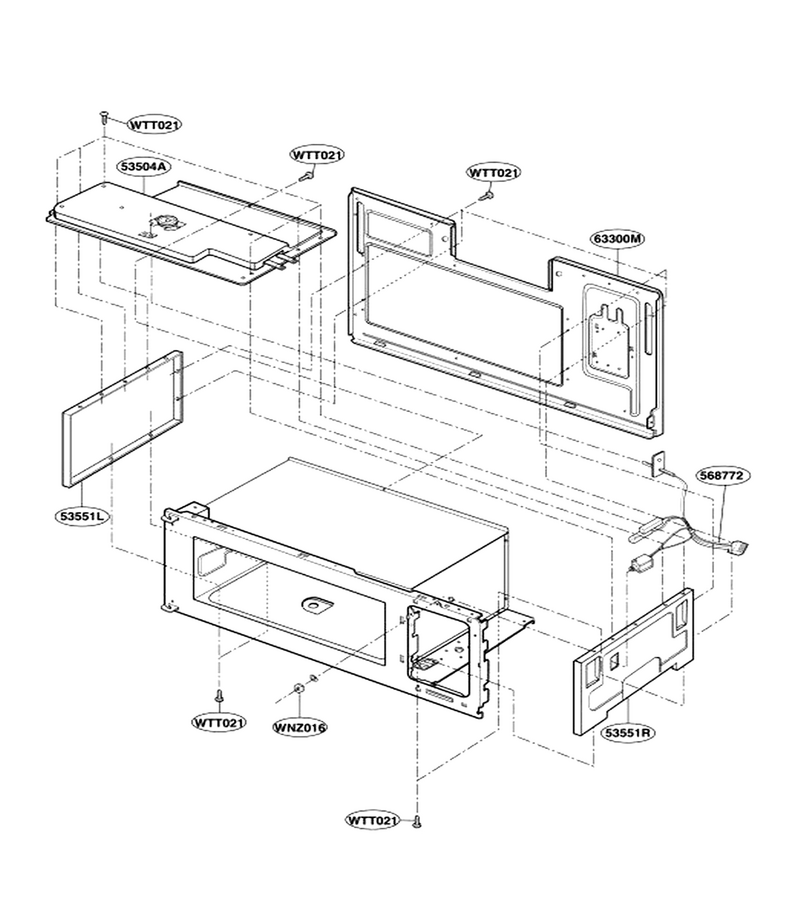

Interior Parts (2)

...
...
WNZ016
Electronic Part,unclassified L-G-4B70181A
...
WTT021
Microwave Screw L-G-1TTL0402418
...
53551L
Cover Assembly,heater L-G-3551W0A008A
...
53551R
Cover,rear L-G-3550W2A038A
...
63300M
Plate,mount L-G-3300W0G039D
...
568772
Harness,single L-G-6877W1A001A

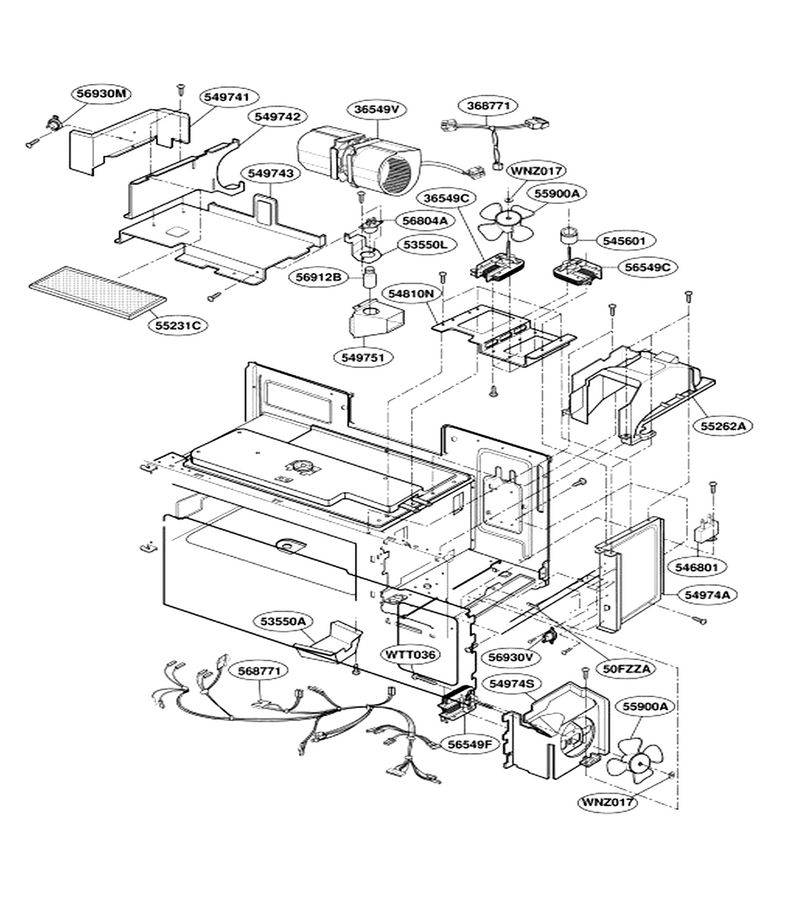

Interior Parts (3)

...
...
WNZ017
Nut,common L-G-4B74694B
...
WTT036
Screw,tapping L-G-1TTL0403518
...
50FZZA
Fuse, 15a L-G-3B70856G
...
36549C
Motor, Ac Circulation L-G-6549W2C001A
...
36549V
Motor, Ac Ventilation L-G-6549W1V002A
...
53550A
Guide,air L-G-3550W3A019A
...
53550L
Cover,lamp L-G-3550W3A040A
...
54810N
Bracket,motor L-G-4810W2N013A
...
54974A
Guide,air L-G-4974W2G011A
...
54974S
Guide,suction L-G-4974W0S008A
...
55231C
Microwave/hood Charcoal Filter Assembly L-G-2B72706C
...
55262A
Duct L-G-5262W1A015A
...
56549C
Motor,ac Fan L-G-6549W2A002A
...
56549F
Motor,ac Fan L-G-6549W2F005A
...
56804A
Socket,lamp L-G-3B71048D
...
56930M
Microwave Thermal Cut-Off L-G-6930W1A002C
...
56930V
Dishwasher Thermostat L-G-3B70068V
...
545601
Pulley L-G-4560W3A002A
...
546801
Capacitor,film,box L-G-3B72440A
...
549741
Guide Assembly,chamber L-G-4974W2G028B
...
549742
Guide,air L-G-4974W1G025A
...
549743
Guide,air L-G-4974W1G026A
...
549751
Guide Assembly,chamber L-G-4975W2G008A
...
568771
Harness,single L-G-6877W3A004A

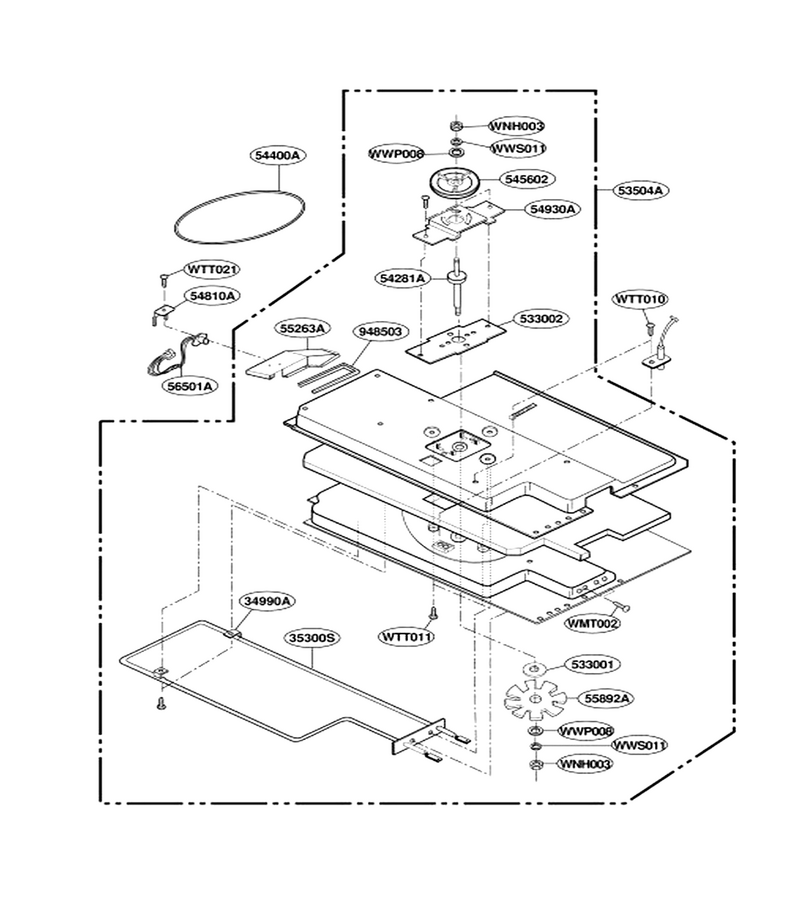

Plate Chamber Assy Parts

...
...
WMT002
Screw L-G-1MTC0402432
...
WTT010
Microwave Screw L-G-1TTG0402422
...
WTT011
Microwave Tapping Screw L-G-1TTG0402632
...
WTT021
Microwave Screw L-G-1TTL0402418
...
WWP008
Washer L-G-1WPL0500032
...
34990A
Supporter L-G-4990W4A004A
...
35300S
Heater,sheath L-G-5300W1S001A
...
54281A
Bearing L-G-4281W3A003A
...
54400A
Belt L-G-4400W3A001A
...
54810A
Bracket,sensor L-G-4810W4G053A
...
54930A
Holder,bearing L-G-4281W4A001A
...
55263A
Duct Assembly L-G-5263W2A012A
...
55892A
Fan L-G-5900W3A004A
...
56501A
Sensor Assembly L-G-6501W3A004F
...
533001
Chamber L-G-3300W4G038A
...
533002
Bracket,idle L-G-4281W4A002A
...
545602
Pulley L-G-4560W3A001A
...
948503
Damper L-G-3B72244M

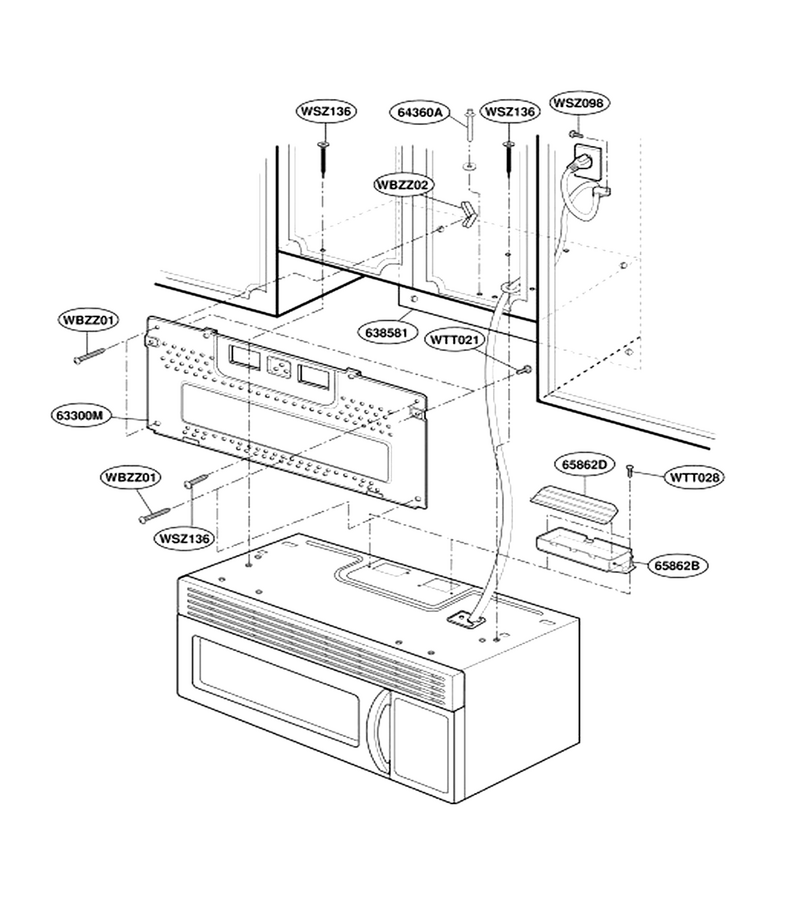

Installation Parts

...
...
WBZZ01
Bolt L-G-4B72059B
...
WBZZ02
Microwave Mounting Bolt L-G-4B72059C
...
WSZ098
Thread-Forming Screw, 8-Pack L-G-4B70637B
...
WSZ136
Screw L-G-4B73243A
...
WTT021
Microwave Screw L-G-1TTL0402418
...
WTT028
Microwave Screw L-G-1TTL0402818
...
63300M
Plate,mount L-G-3300W0G039D
...
65862B
Microwave Exhaust Damper Bracket L-G-3B72144A
...
65862D
Microwave Vent Damper Door L-G-3B71432A
