product name

LG KHMC107EBT.AB7EKAD

Model: KHMC107EBT.AB7EKAD

Save Part Not Listed?
product name

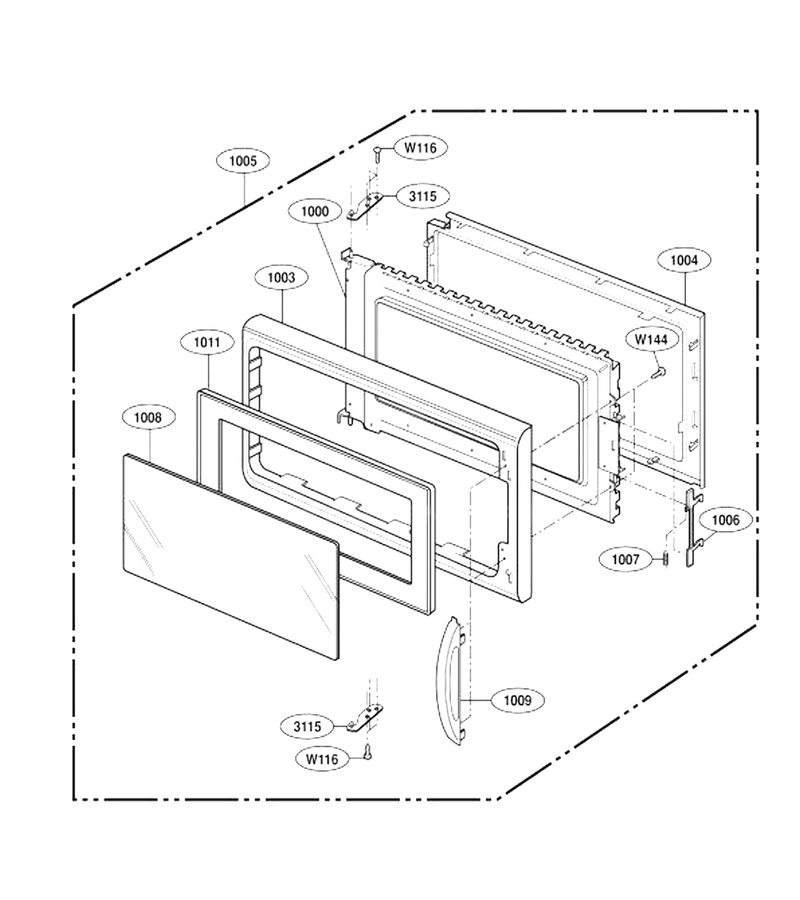

Door Parts

...
...
W116
Screw,customized L-G-4B75265A
...
W144
Microwave Screw L-G-1TTL0402618
...
1000
Frame Assembly,door L-G-3213W1A006A
...
1003
Panel,door L-G-3720W0D014H
...
1004
Cover,choke L-G-3552W1A004D
...
1005
Door Assembly L-G-3581W1A033J
...
1006
Latch All L-G-4026W3A003B
...
1007
Microwave Door Latch Spring L-G-4970WRA001E
...
1008
Window,glass L-G-4890W1D041L
...
1009
Handle,door L-G-3650W2A017E
...
1011
Baffle L-G-4760W1A005A
...
3115
Bracket,hinge L-G-4774W4P003A

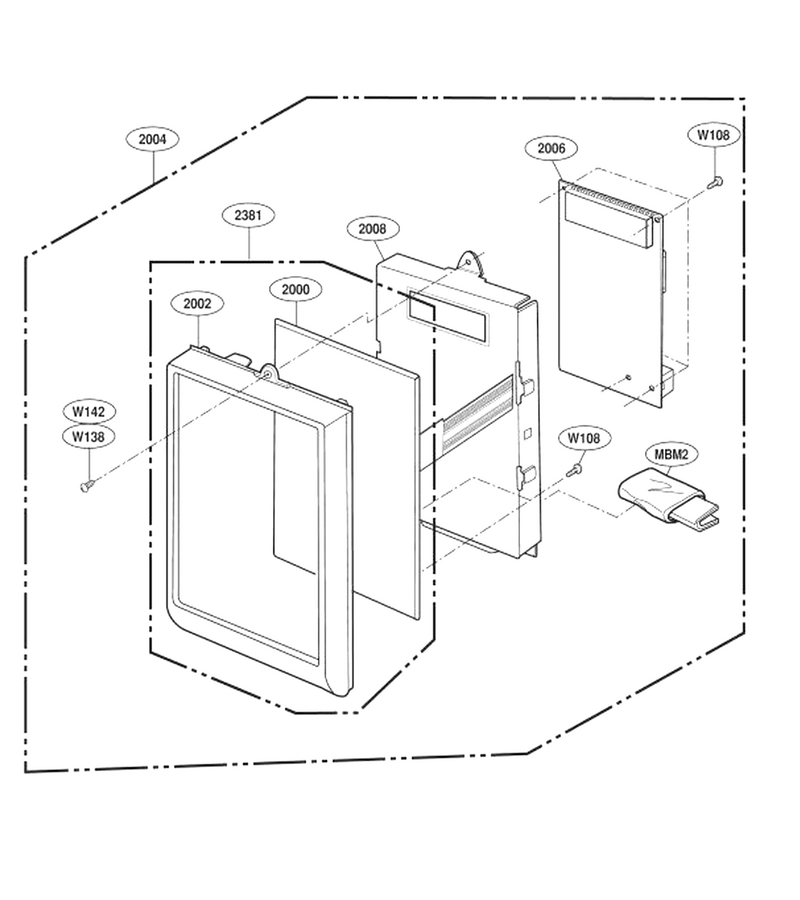

Controller Parts

...
...
MBM2
Card,technical L-G-3858W3T006C
...
W108
Microwave Screw L-G-1TTL0402418
...
W138
Screw L-G-1TTL0402822
...
2000
Membrane L-G-6638W1YB10D
...
2002
Panel,control L-G-3572W1A023E
...
2004
Controller Assembly,keypad L-G-4781W1M074W
...
2006
Pcb Assembly,sub L-G-6871W1S003D
...
2008
Bracket Assembly L-G-4811W2A010A

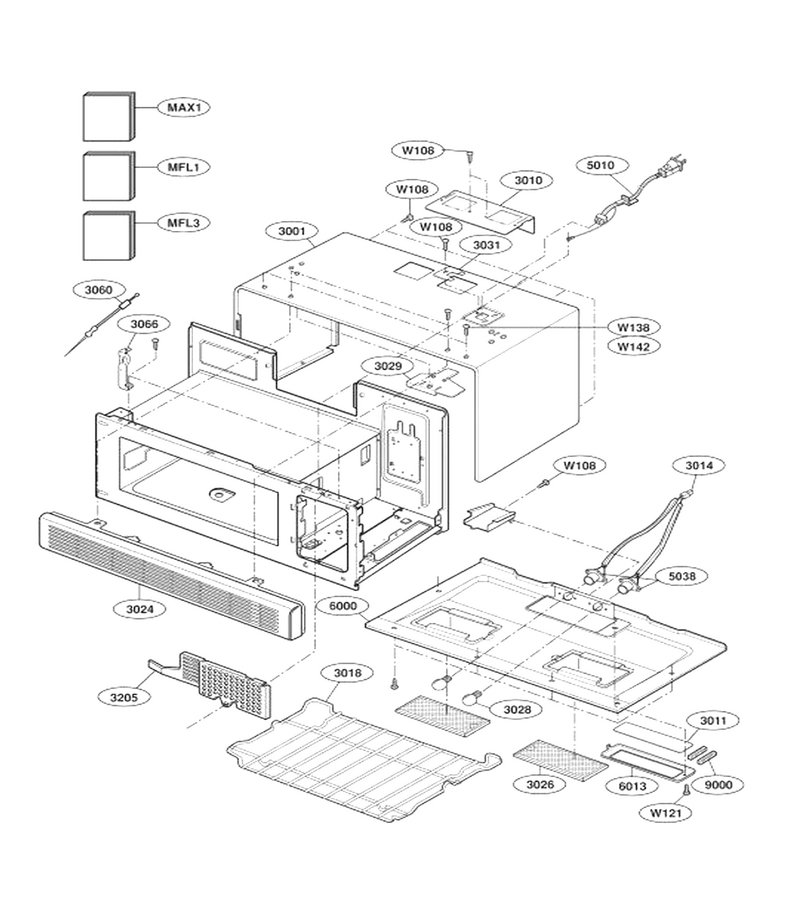

Oven Cavity Parts

...
...
MAX1
Book,cook L-G-3878W500086
...
MFL1
Manual,owners L-G-3828W5A0166
...
MFL3
Manual,installation L-G-3828W5U0002
...
W108
Microwave Screw L-G-1TTL0402418
...
W121
Microwave Screw L-G-1TTL0402422
...
W138
Screw L-G-1TTL0402822
...
3001
Case,flat L-G-3112W1F003V
...
3010
Plate L-G-4960W2G023A
...
3011
Window,glass L-G-4890W4A001A
...
3014
Harness,single L-G-6877W2S003A
...
3018
Shelf L-G-5026W1A006C
...
3024
Grille,vent L-G-3530W1A006R
...
3026
Microwave Grease Filter L-G-2B72705B
...
3028
Microwave Light Bulb L-G-3B70067A
...
3029
Microwave Wall Mounting Plate L-G-4810W3G062A
...
3031
Cover,power Cord L-G-3550W4A025A
...
3060
Sensor L-G-3B73075C
...
3066
Bracket,idle L-G-4810W4G036A
...
3205
Bracket,idle L-G-4810W3G047A
...
5010
Power Cord Assembly L-G-6411W2A001B
...
5038
Socket,lamp L-G-3B71048D
...
6000
Plate,base L-G-3302W0A005D
...
6013
Cover,base L-G-3550W3A014A
...
9000
Insulator L-G-4B73230A

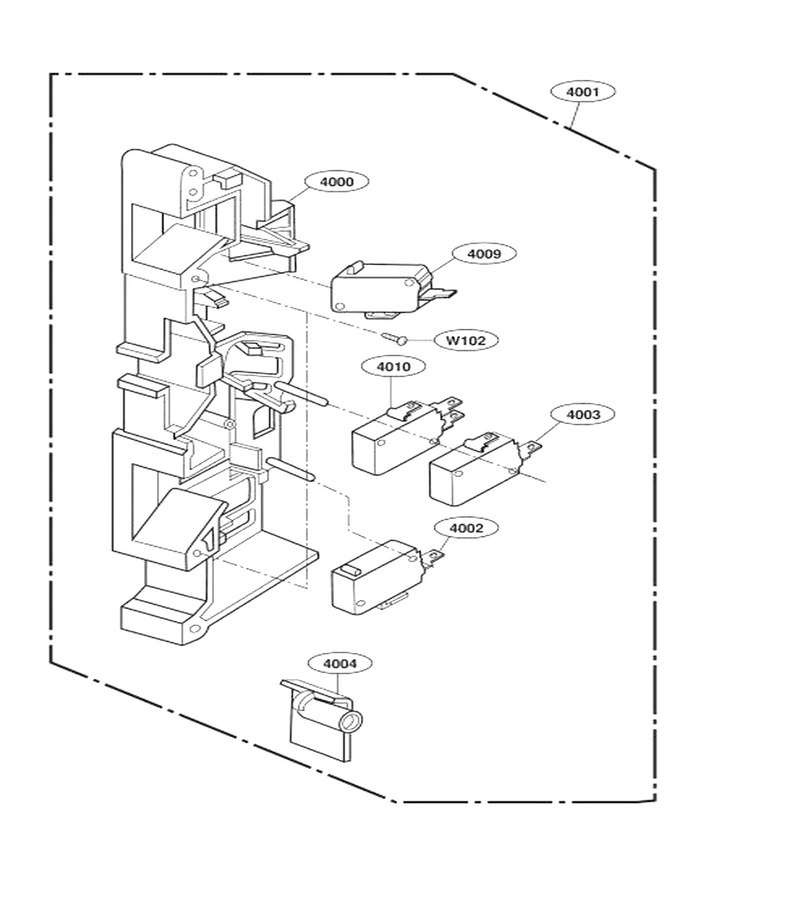

Latch Board Parts

...
...
W102
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
4000
Holder,locker L-G-3500W1A030A
...
4001
Holder Assembly,locker L-G-3501W2A002R
...
4002
Microwave Micro Switch L-G-3B73362F
...
4003
Switch Micro L-G-3B73361E
...
4004
Lever L-G-4510W4A005A
...
4009
Switch,micro L-G-3B73362H
...
4010
Switch,micro L-G-3B73360D

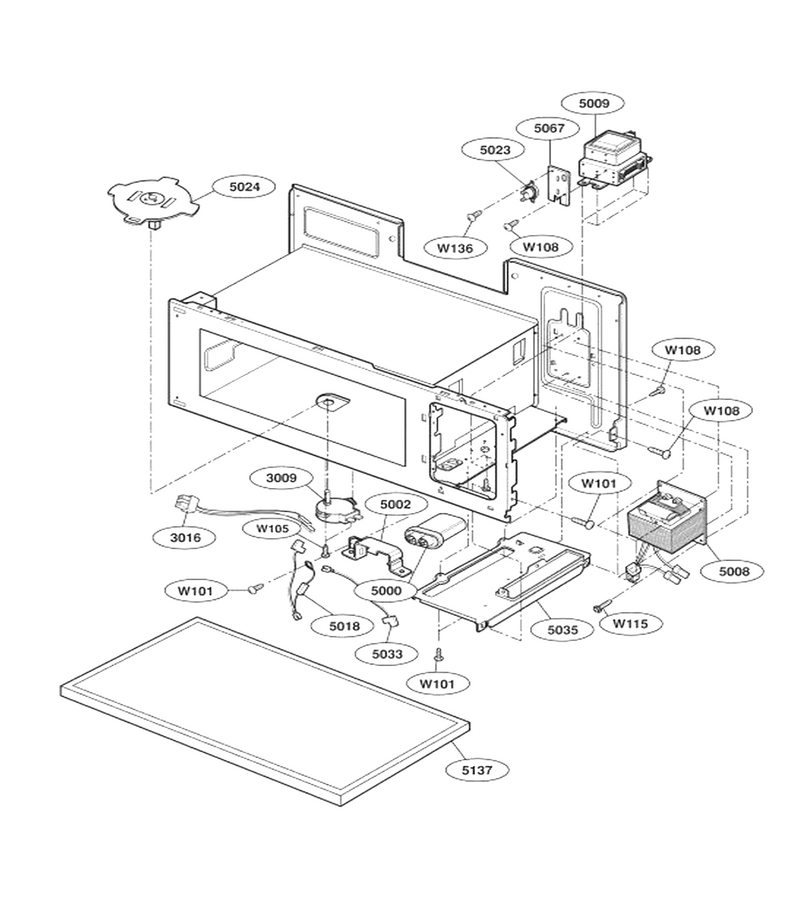

Interior Parts (1)

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W105
Microwave Screw L-G-1TPL0402418
...
W108
Microwave Screw L-G-1TTL0402418
...
W115
Screw L-G-4B73763A
...
W136
Screw L-G-1TPL0302418
...
3009
Motor, Ac Synchronous L-G-6549WRS001F
...
3016
Harness,single L-G-6877W2S004A
...
5000
Drawing Capacitor L-G-6120WRH001E
...
5002
Bracket L-G-4810WRC002A
...
5008
Transformer,high Voltage L-G-6010W2H030A
...
5009
Magnetron L-G-2B71165E
...
5018
Cable,assembly L-G-3B73348S
...
5023
Thermostat L-G-6930W1A003G
...
5024
Fan Assembly L-G-5893W3A001B
...
5033
Cable,assembly L-G-3B73347J
...
5035
Plate,bottom L-G-3300W1G018A
...
5067
Bracket,thermostat L-G-4B74584A
...
5137
Tray,ceramic L-G-3B72315A

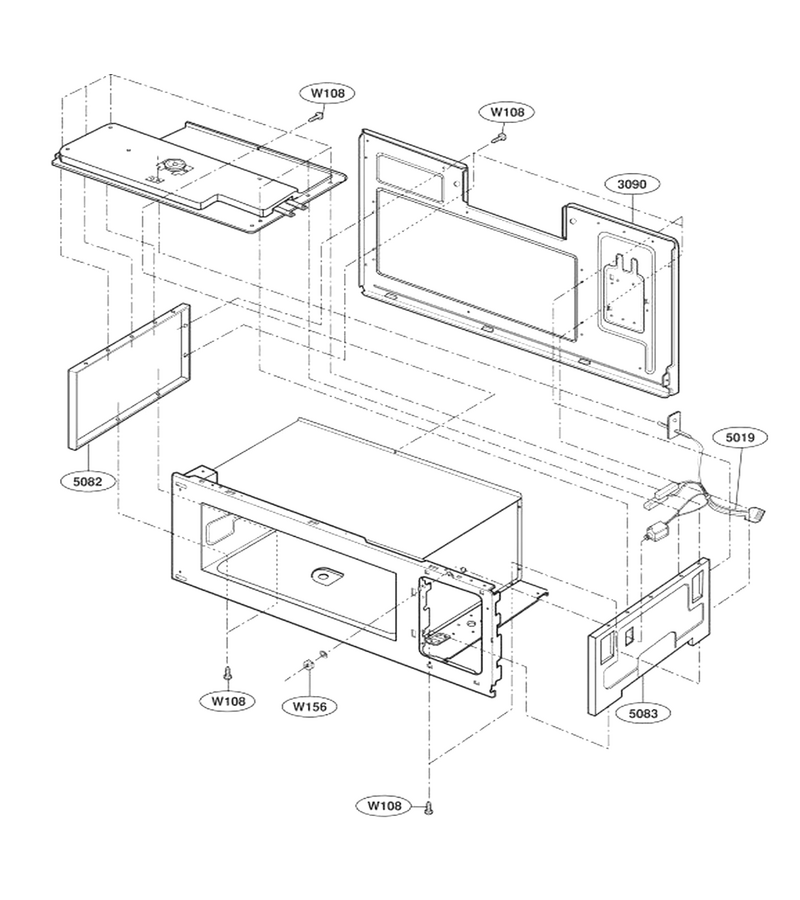

Interior Parts (2)

...
...
W108
Microwave Screw L-G-1TTL0402418
...
W156
Electronic Part,unclassified L-G-4B70181A
...
3090
Cover Assembly,heater L-G-3551W0A008A
...
5019
Harness,single L-G-6877W3A006A
...
5082
Cover Assembly,heater L-G-3551W2A010A
...
5083
Cover Assembly,heater L-G-3551W2A011A

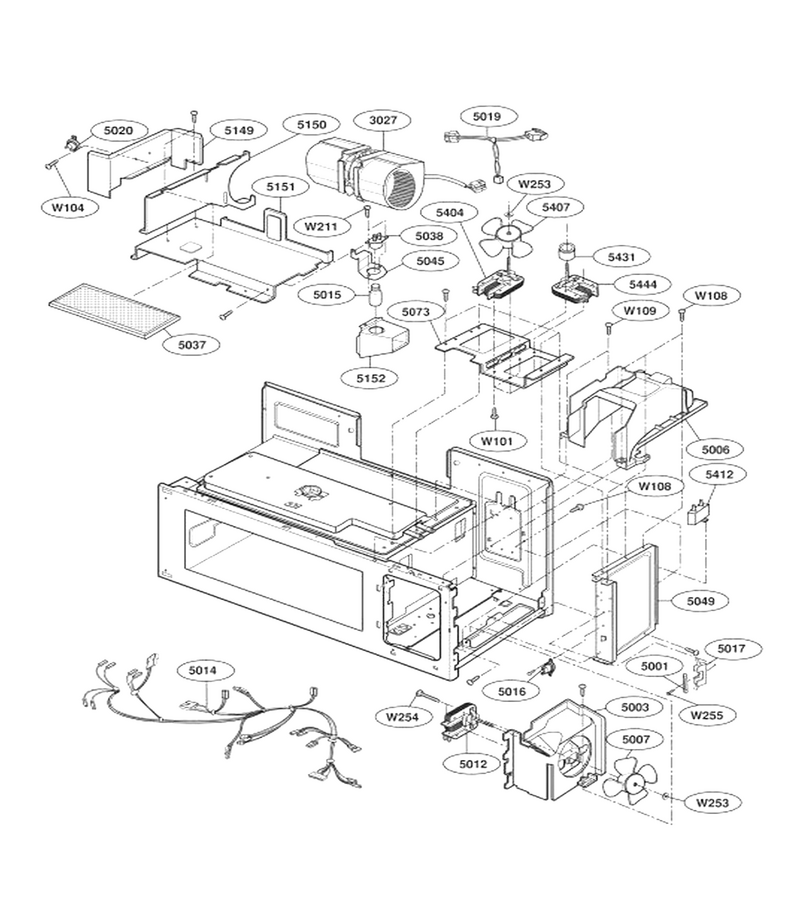

Interior Parts (3)

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W104
Screw L-G-1TPL0302018
...
W108
Microwave Screw L-G-1TTL0402418
...
W109
Microwave Screw L-G-1TTL0402818
...
W211
Screw,customized L-G-4B75675A
...
W253
Nut,common L-G-4B74694B
...
W254
Screw,tapping L-G-1TTL0403518
...
3027
Motor, Ac Ventilation L-G-6549W1V002A
...
5001
Fuse, 15a L-G-3B74133F
...
5003
Guide,suction L-G-4974W0S008A
...
5006
Duct L-G-5262W1A015A
...
5007
Blower Fan L-G-2B72279B
...
5012
Motor,ac Fan L-G-6549W2F005A
...
5014
Harness,single L-G-6877W1A001A
...
5015
Microwave Light Bulb L-G-6912W3Q001D
...
5016
Thermostat L-G-6930W1A003M
...
5017
Fuse Holder L-G-4930W3B005A
...
5037
Microwave/hood Charcoal Filter Assembly L-G-2B72706C
...
5038
Socket,lamp L-G-3B71048D
...
5045
Cover,lamp L-G-3550W3A040A
...
5049
Guide,air L-G-4974W2G011A
...
5073
Bracket,motor L-G-4810W2N013A
...
5149
Guide Assembly,chamber L-G-4974W2G028B
...
5150
Guide,air L-G-4974W1G025A
...
5151
Guide,air L-G-4974W1G026A
...
5152
Guide,air L-G-4974W2G029A
...
5404
Motor, Ac Circulation L-G-6549W2C001A
...
5407
Microwave Cooling Fan Blade L-G-2B72125A
...
5412
Capacitor,film,box L-G-3B72440A
...
5431
Pulley L-G-4560W3A002A
...
5444
Motor,ac Fan L-G-6549W2A002A

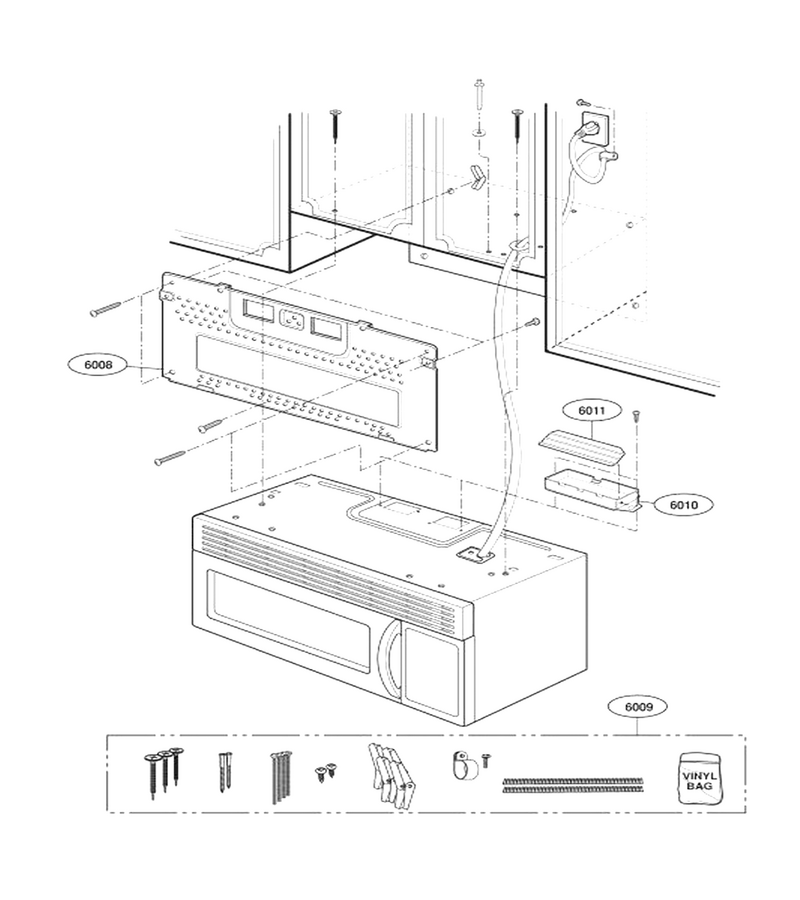

Installation Parts

...
...
6008
Plate,mount L-G-3300W0G039D
...
6009
Microwave Hardware Assembly Kit L-G-2B72771A
...
6010
Microwave Exhaust Damper Bracket L-G-3B72144A
...
6011
Microwave Vent Damper Door L-G-3B71432A

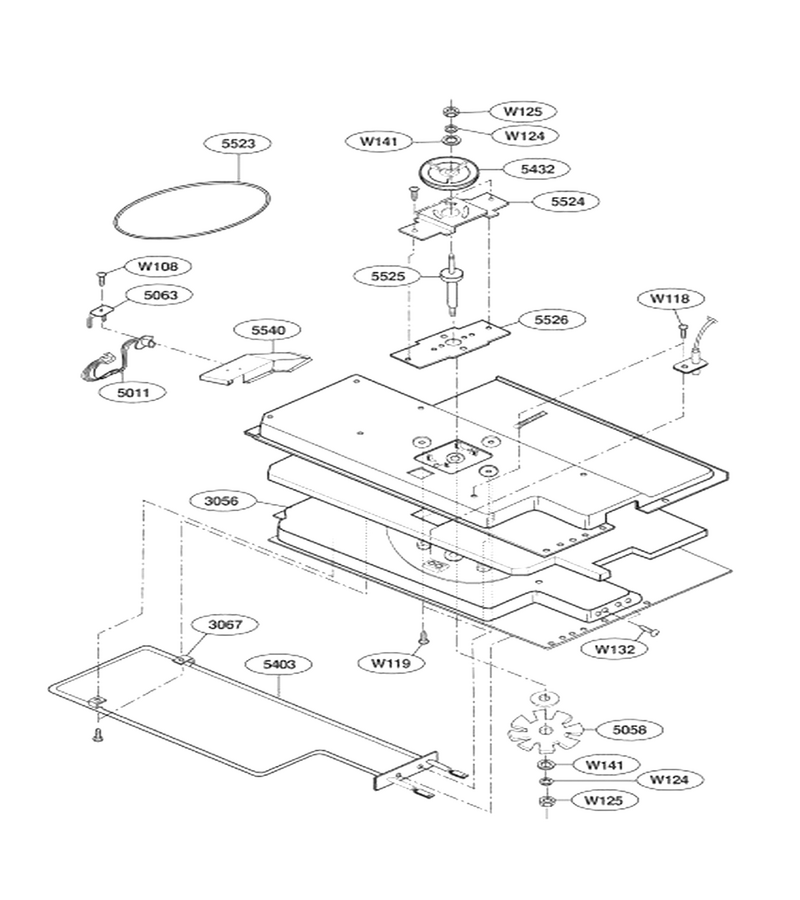

Plate Chamber Assy Parts

...
...
W108
Microwave Screw L-G-1TTL0402418
...
W118
Microwave Screw L-G-1TTG0402422
...
W119
Microwave Tapping Screw L-G-1TTG0402632
...
W124
Washer L-G-1WSD0400032
...
W132
Screw L-G-1MTC0402432
...
W141
Washer L-G-1WPL0500032
...
3056
Plate Assembly L-G-3301W1A005A
...
3067
Supporter L-G-4990W4A004A
...
5011
Sensor Assembly L-G-6501W3A004F
...
5058
Fan L-G-5900W3A004A
...
5063
Bracket,sensor L-G-4810W4G053A
...
5403
Heater,sheath L-G-5300W1S001A
...
5432
Pulley L-G-4560W3A001A
...
5523
Belt L-G-4400W3A001A
...
5524
Holder,bearing L-G-4281W4A001A
...
5525
Bearing L-G-4281W3A003A
...
5526
Bracket,idle L-G-4281W4A002A
...
5540
Duct Assembly L-G-5263W2A012A
