product name

LG KG8000R.AWYAKMT

Model: KG8000R.AWYAKMT

Save Part Not Listed?
product name

Main

...
...
35211A
Tube Assembly,suction L-G-5211A20130M
...
130410
(130410) Base Assembly,single L-G-3041A30011D
...
130910
Cabinet L-G-3091A30005D
...
135312
Grille Assembly L-G-3531A20034Y
...
147581
Louver L-G-4758A20002A
...
147582
Vane L-G-4758A30008A
...
159830
Room Air Conditioner Air Filter L-G-5231A20004A
...
249950
Case Assembly,control L-G-4995A10028M
...
264110
Power Cord L-G-2H00677P
...
268711A
Room Ac Pcb L-G-6871A20189B
...
268711B
Room Ac Pcb L-G-6871A20188F
...
346811
Room Air Conditioner Fan Motor L-G-4681A20073A
...
349001
Damper L-G-4901A30001A
...
349480
Orifice L-G-4948A30007A
...
349600
Motor Mount L-G-4960A20014A
...
352113
Tube Assembly,discharge L-G-5211A20708A
...
352390
Air Guide L-G-5239A30002D
...
354210
Evaporator Assembly,first L-G-5421A90030A
...
359012
Fan L-G-5900A10008A
...
550140
Room Air Conditioner Compressor Grommet L-G-5040AR4195A
...
552113
(552113) Tube Assembly,condenser(out) L-G-5211A10067G
...
554030
Condenser Assembly,first L-G-5403A20092A
...
554160
Compressor L-G-5416A20014B
...
559010
Room Air Conditioner Condenser Fan Blade L-G-5900A20015A
...
567480
Thermistor L-G-6323A20003D
...
567502
O.l.p L-G-6750A30001N

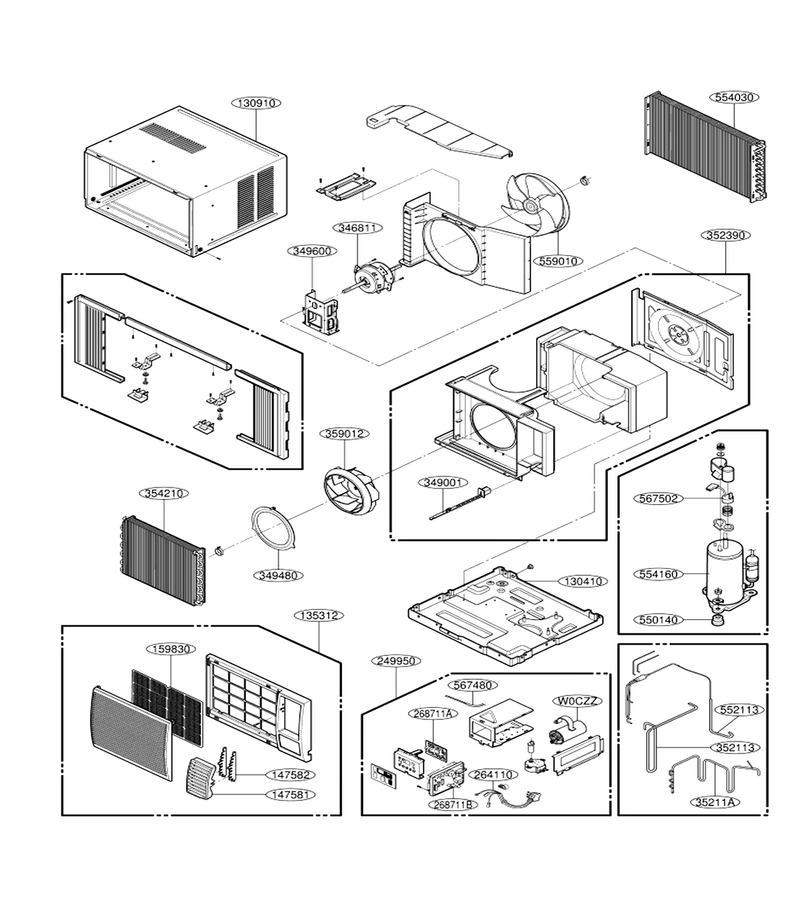

Schematic Image Zoomed
