LG KCMS185JBT-0.ABSEKAD

Model: KCMS185JBT-0.ABSEKAD

Save Part Not Listed?
product name

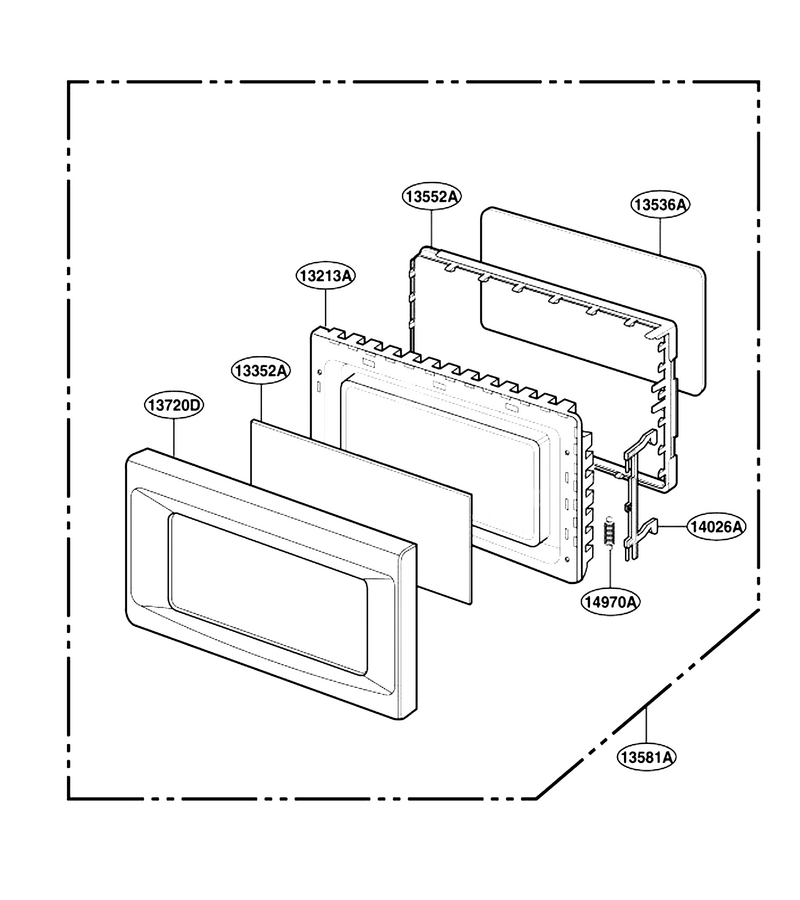

Door Parts

...
...
13213A
Frame Assembly,door L-G-3213W0A001H
...
13352A
Screen L-G-3352W1A092A
...
13536A
Seal Tape L-G-3536WRA001Q
...
13552A
Microwave Choke Cover L-G-3552W1A035A
...
13581A
Door Assembly L-G-3581W1A229C
...
13720D
Panel,door L-G-3720W0D160C
...
14026A
Latch L-G-4026W2A012A
...
14970A
Spring L-G-4970WRA001C

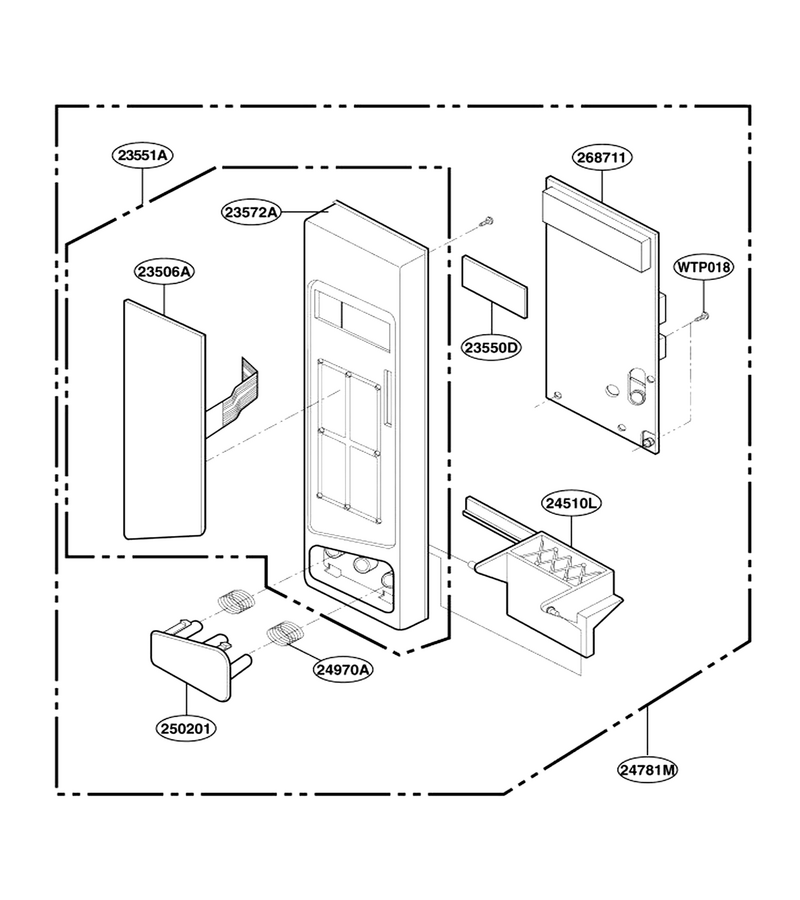

Control Panel Parts

...
...
WTP018
Screw L-G-1TPL0402818
...
23550D
Microwave Cover L-G-3550W4A029B
...
23572A
Panel,control L-G-3572W0A191C
...
24510L
Lever L-G-4510W3L002A
...
24781M
Controller Assembly,keypad L-G-4781W1M233C
...
24970A
Microwave Door Release Button Spring L-G-4B72023A
...
250201
Button L-G-5020W2A085D
...
268711
Pcb Assembly,sub L-G-6871W2S197C

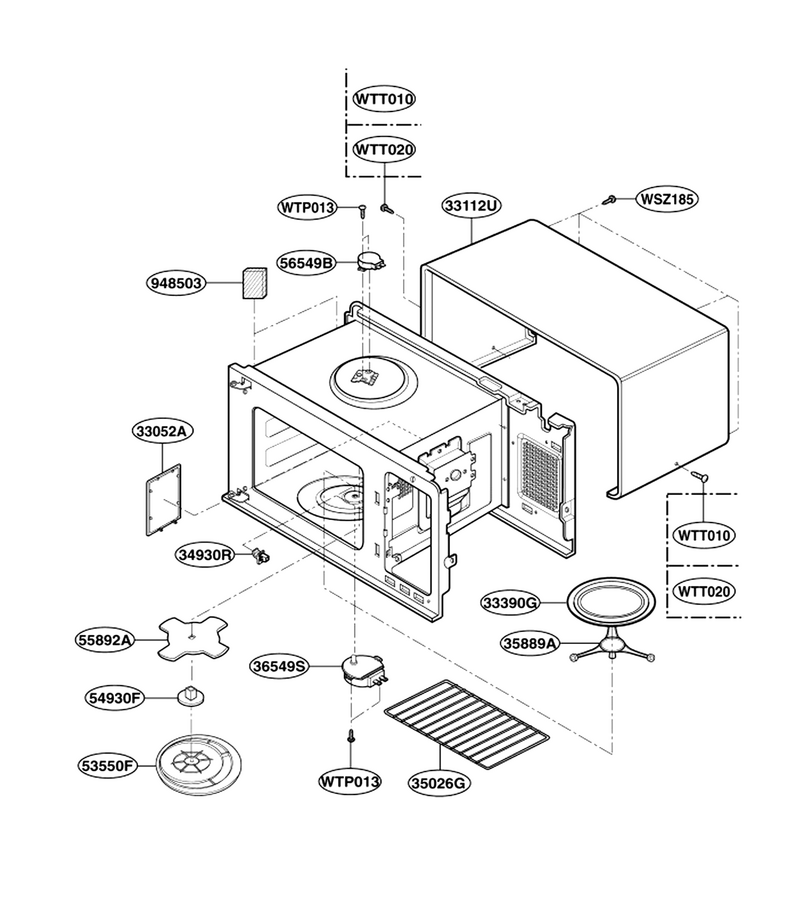

Oven Cavity Parts

...
...
WTT020
Microwave Screw L-G-1TTG0402422
...
WTP013
Microwave Screw L-G-1TPL0402418
...
WSZ185
Screw L-G-1SZZW2A002A
...
33112U
Case,u Bending L-G-3112W0U028G
...
33390G
Microwave Glass Turntable Tray L-G-3390W1G009C
...
34930R
Holder L-G-3B71271E
...
35889A
Turntable Assembly L-G-5889W2A011C
...
36549S
Motor, Ac Synchronous L-G-6549W1S011C
...
53550F
Stirrer Cover L-G-3550W1A077A
...
54930F
Holder,stirrer Fan L-G-4930W3B026C
...
55892A
Fan L-G-5892W3A002B
...
56549B
Motor(circ),synchronous L-G-6549W1S002D
...
948503
Cushion L-G-3B72244C

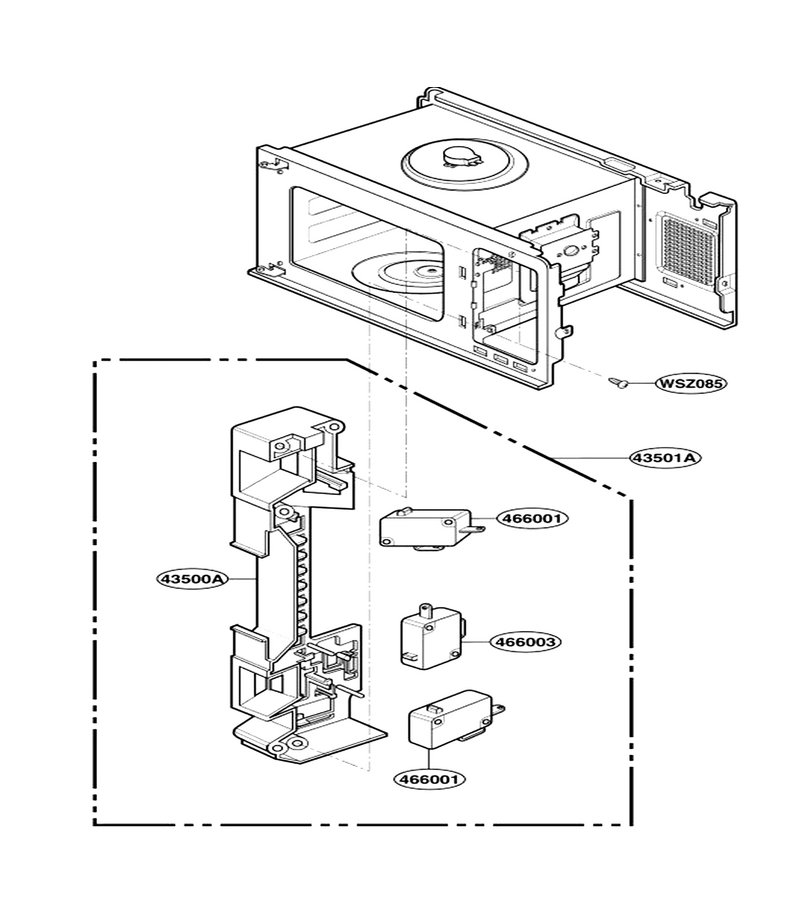

Latch Board Parts

...
...
WSZ085
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
43500A
Holder,locker L-G-3500W1A004A
...
43501A
Holder Assembly,locker L-G-3501W1A003H
...
466001
Microwave Micro Switch L-G-3B73362F
...
466003
Switch Micro L-G-3B73361E

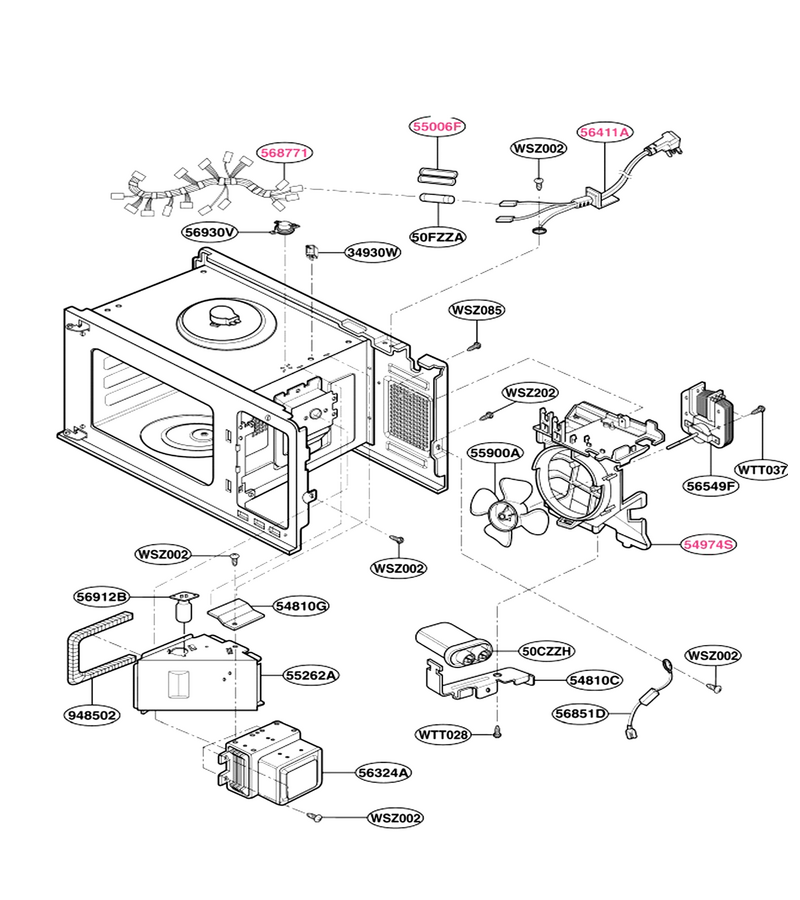

Interior Parts (i)

...
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
WSZ085
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
WSZ202
Screw,customized L-G-1SZZW2A002D
...
WTT028
Microwave Screw L-G-1TTL0402818
...
WTT037
Microwave Tapping Screw L-G-1TTL0403818
...
50CZZH
Microwave High-Voltage Capacitor L-G-0CZZW1H002J
...
50FZZA
Fuse[all] L-G-3B74133K
...
34930W
Holder L-G-4930W3B029A
...
54810C
Bracket L-G-4810W4C003A
...
54974S
Guide L-G-4974W1S010A
...
55006F
Fuse Cap L-G-5006WRA002A
...
55262A
Air Duct L-G-5262W2A020A
...
55900A
Microwave Cooling Fan Blade L-G-2B72125A
...
56324A
Microwave Magnetron L-G-6324W1A001B
...
56411A
Power Cord Assembly L-G-6411W1A018F
...
56549F
Motor L-G-6549W1F001E
...
56851D
Microwave High-Voltage Diode L-G-6021W3B001M
...
56912B
Microwave Light Bulb L-G-6912W3B002G
...
56930V
Thermostat L-G-6930WRT001C
...
568771
Harness,single L-G-6877W1A172A
...
948502
Cushion L-G-3B72244T

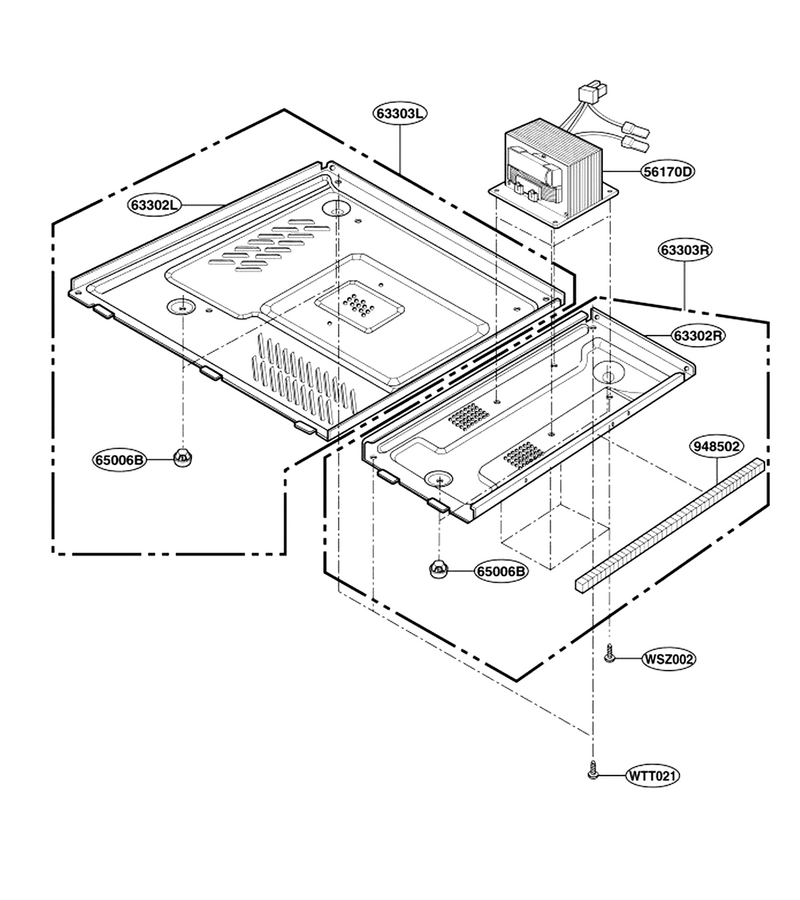

Base Plate Parts

...
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
WTT021
Microwave Screw L-G-1TTL0402418
...
56170D
Microwave High-Voltage Transformer L-G-6170W1D023B
...
63302L
Plate L-G-3302W0A014A
...
63302R
Plate,base L-G-3302W1A046A
...
63303L
Plate Assembly L-G-3303W0A010A
...
63303R
Plate Assembly,base L-G-3303W1A040A
...
65006B
Cap L-G-5006W3A016B
...
948502
Cushion L-G-3B72244T

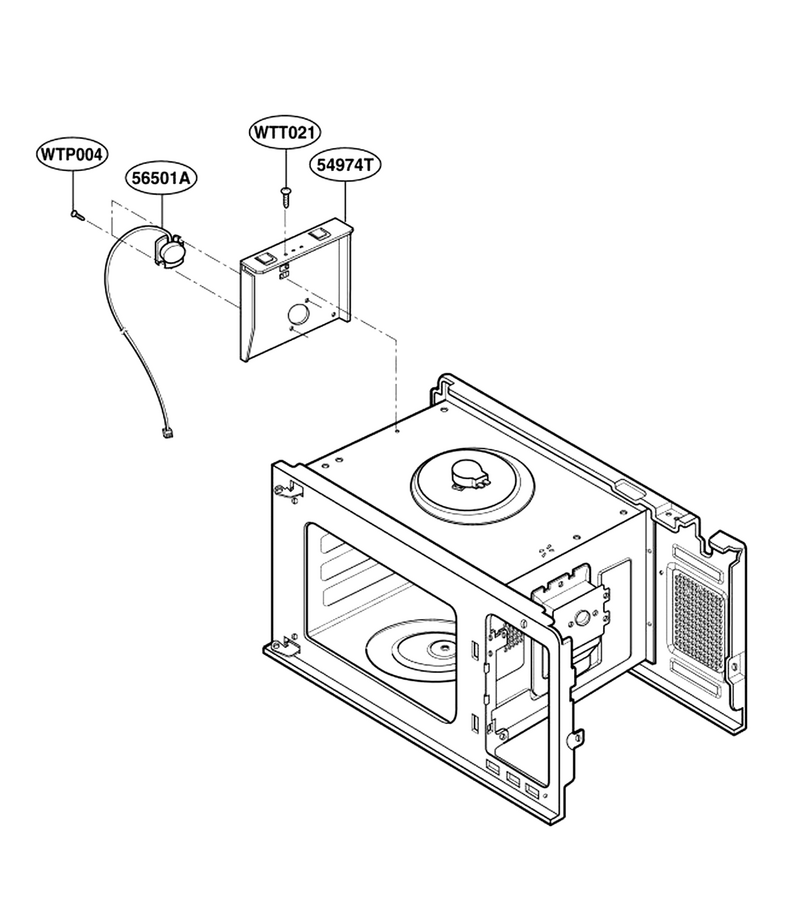

Sensor Parts

...
...
WTP004
Screw L-G-1TPL0302018
...
WTT021
Microwave Screw L-G-1TTL0402418
...
54974T
Bracket,sensor L-G-5208W1A004C
...
56501A
Microwave Humidity Sensor L-G-6501W1A006A
