product name

LG KCMS1555RBL.CB1EKAD

Model: KCMS1555RBL.CB1EKAD

Save Part Not Listed?
product name

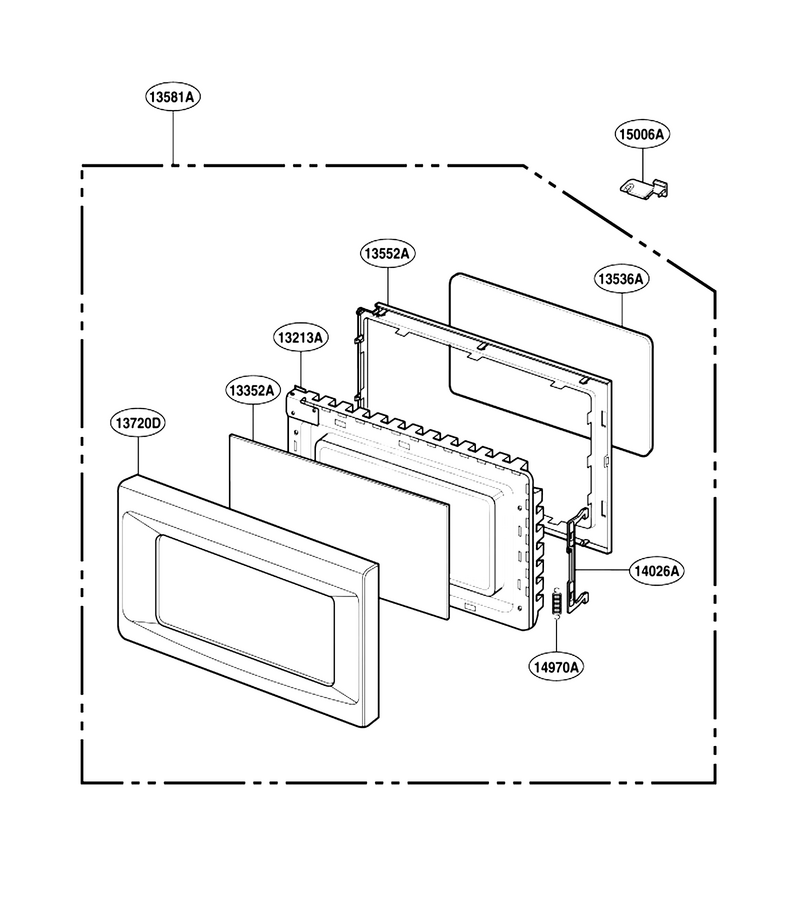

Door Parts (i)

...
...
13213A
Out Drive Frame L-G-3213W1A031P
...
13352A
Window,screen L-G-3352W1A142A
...
13536A
Seal Tape L-G-3536W1A004A
...
13552A
Cover,choke L-G-3552W1A062A
...
13581A
Door Assembly L-G-3581W1A159M
...
13720D
Panel,door L-G-3720W0D105F
...
14026A
Latch L-G-4026W2A016A
...
14970A
Spring L-G-4970WRA001B
...
15006A
Transformer L-G-5006W3A012A

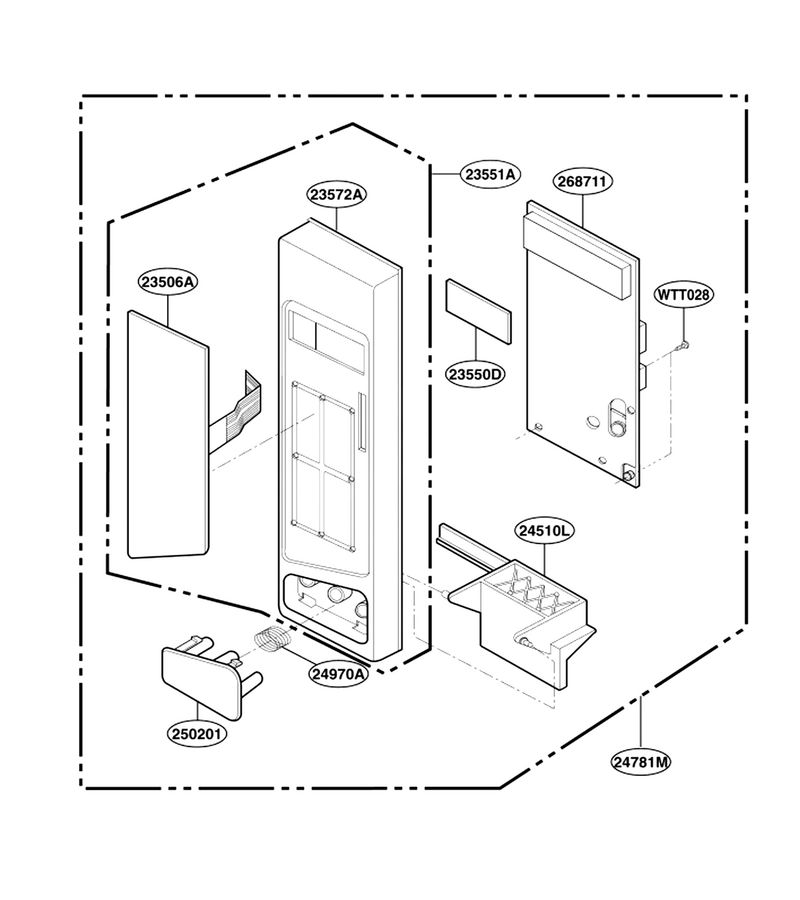

Control Panel Parts (i)

...
...
WTT028
Microwave Screw L-G-1TTL0402818
...
23506A
Membrane L-G-6638W2A349A
...
23550D
Cover L-G-3550W4A029L
...
23551A
Parts Assembly L-G-383EW5A236W
...
23572A
Panel,control L-G-3572W1A142F
...
24510L
Lever L-G-4510W3L003B
...
24781M
Controller Assembly,keypad L-G-4781W1M151P
...
24970A
Microwave Door Release Button Spring L-G-4B72023B
...
250201
Button L-G-5020W2A085K
...
268711
Pcb Assembly,sub L-G-6871W1S068Y

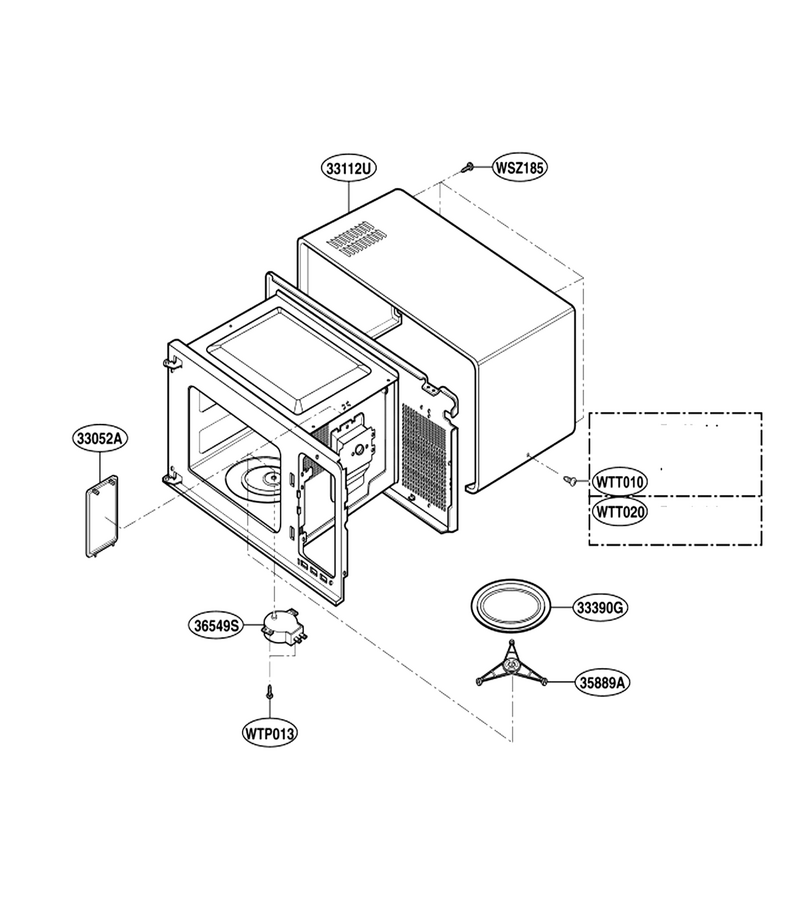

Oven Cavity Parts

...
...
WSZ185
Screw L-G-1SZZW2A002A
...
WTP013
Microwave Screw L-G-1TPL0402418
...
WTT020
Screw L-G-1TTL0402416
...
33052A
Canopy L-G-3052W2A021A
...
33112U
Case,u Bending L-G-3112W1U037Q
...
33390G
Microwave Glass Turntable Tray L-G-3390W1G004E
...
35889A
Microwave Turntable Tray Support L-G-5889W1A005B
...
36549S
Microwave Turntable Motor L-G-6549W1S011B

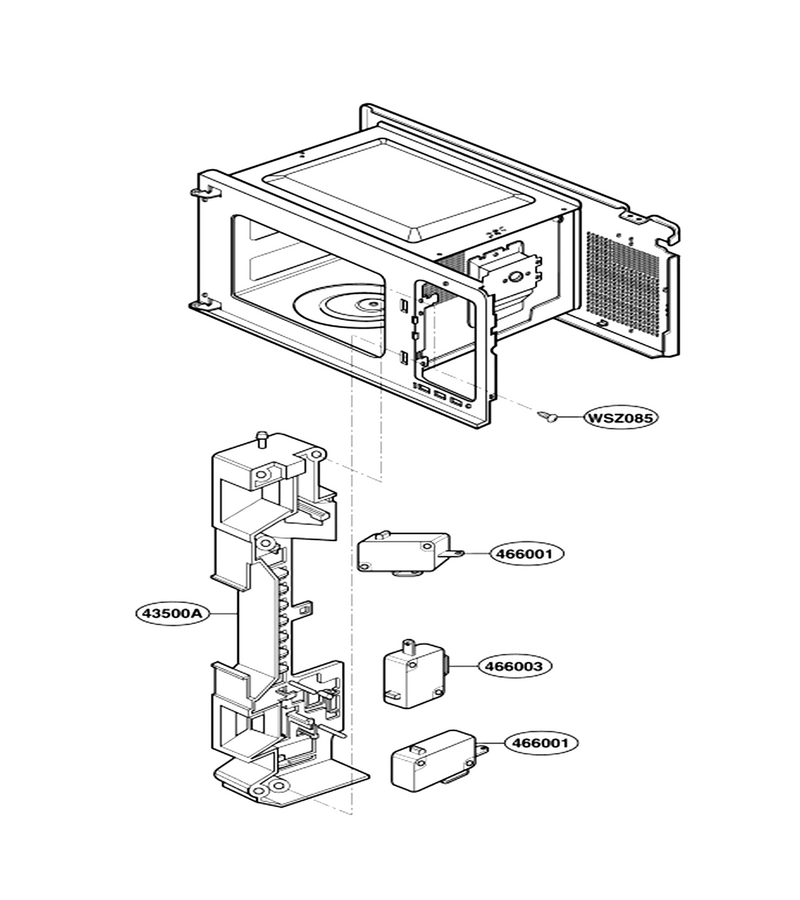

Latch Board Parts

...
...
WSZ085
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
43500A
Microwave Latch Board L-G-3500W1A018A
...
466001
Switch,micro L-G-6600W1K001D
...
466003
Microwave Door Interlock Switch L-G-6600W1K001C

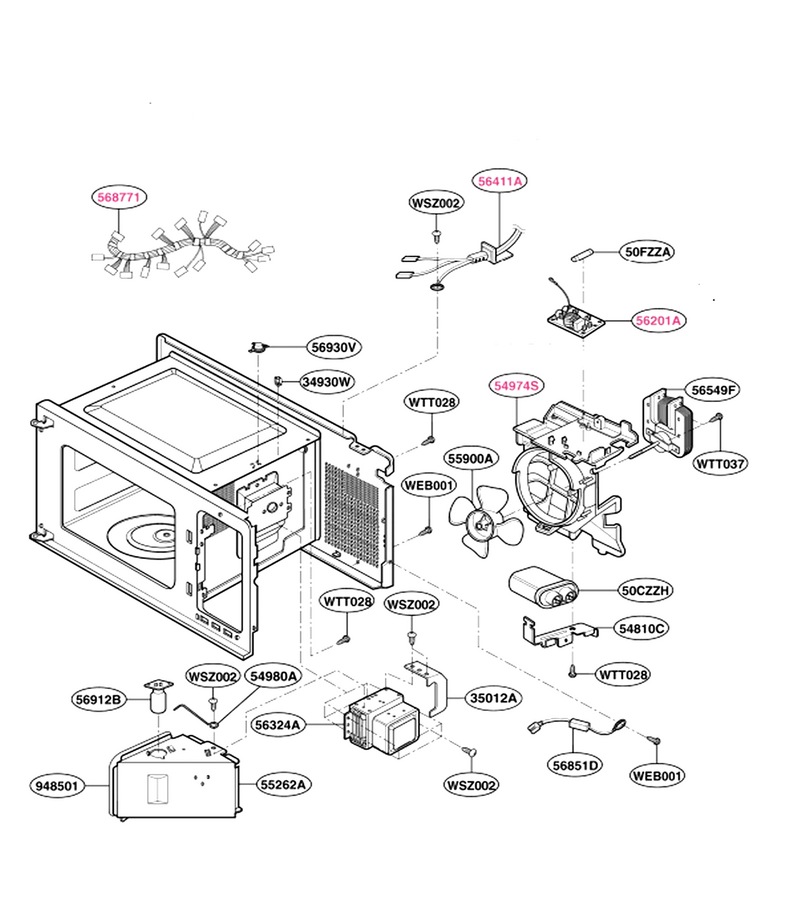

Interior Parts (ii)

...
...
WEB001
Screw L-G-1EBF0402494
...
WTT028
Microwave Screw L-G-1TTL0402818
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
50CZZH
Microwave High-Voltage Capacitor L-G-0CZZW1H004C
...
50FZZA
Fuse,drawing L-G-3B74133Q
...
34930W
Holder L-G-4930W3B029A
...
35012A
Insulator L-G-5012W3A020C
...
54810C
Bracket L-G-4810W4C003B
...
54974S
Guide,suction L-G-4974W0A003C
...
54980A
Supporter L-G-4980W3A038A
...
55262A
Duct L-G-5208W1A017A
...
55900A
Microwave Cooling Fan Blade L-G-5900W1A007B
...
56201A
Filter Assembly,noise L-G-6201W1A014A
...
56324A
Magnetron L-G-6324W1A001L
...
56411A
Power Cord Assembly L-G-6411W1A019V
...
56549F
Microwave Cooling Fan Motor L-G-EAU42744405
...
56851D
Microwave Diode L-G-6851W1A002A
...
56912B
Microwave Light Bulb L-G-6912W3B002L
...
56930V
Microwave Thermostat L-G-6930WRT002F
...
568771
Harness,single L-G-6877W1A506F
...
948501
Cushion L-G-3B72244T

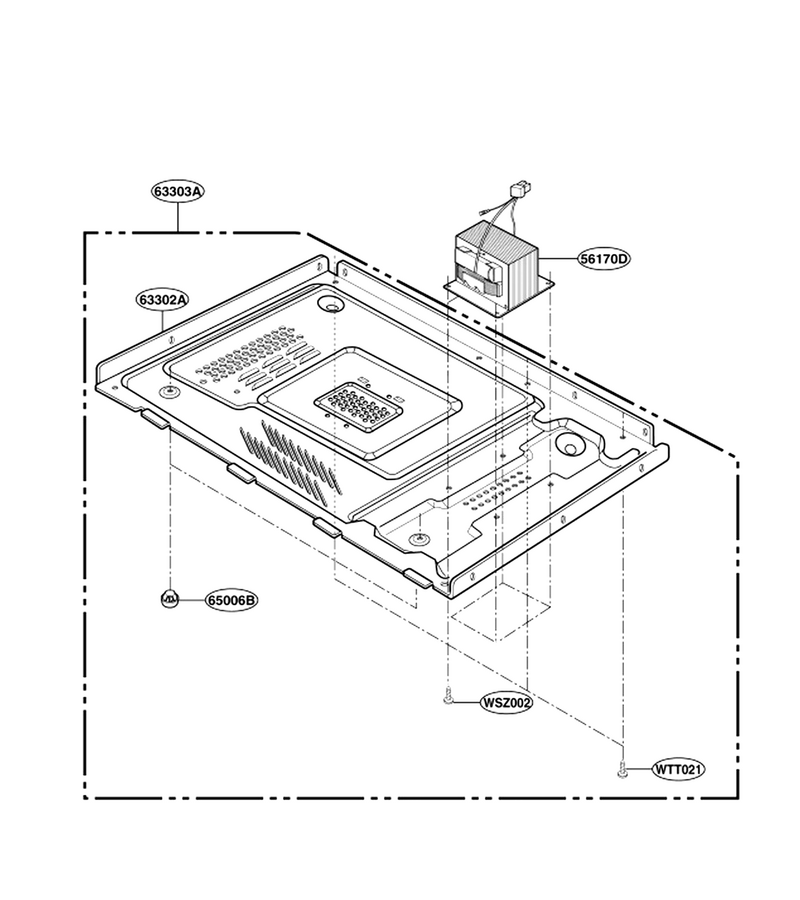

Base Plate Parts

...
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
WTT021
Microwave Screw L-G-1TTL0402418
...
56170D
Microwave High-Voltage Transformer L-G-6170W1D050M
...
63302A
Microwave Base Plate Assembly L-G-3302W0A036B
...
63303A
Microwave Base Plate Assembly L-G-3303W0A019B
...
65006B
Microwave Foot (white) L-G-5006W3A019A

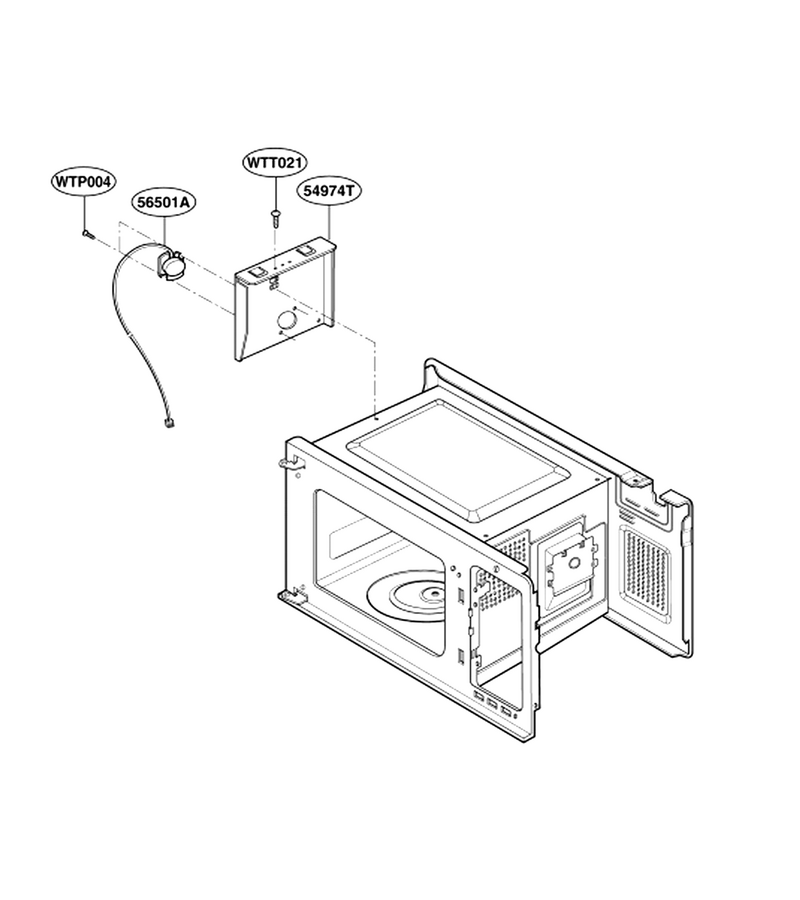

Sensor Parts

...
...
WTP004
Screw L-G-1TPL0302418
...
WTT021
Microwave Screw L-G-1TTL0402418
...
54974T
Duct L-G-5208W1A012B
...
56501A
Microwave Humidity Sensor L-G-6501W1A006A
