LG JVM1640AJ.AA1EGEU

Model: JVM1640AJ.AA1EGEU

Save Part Not Listed?
product name

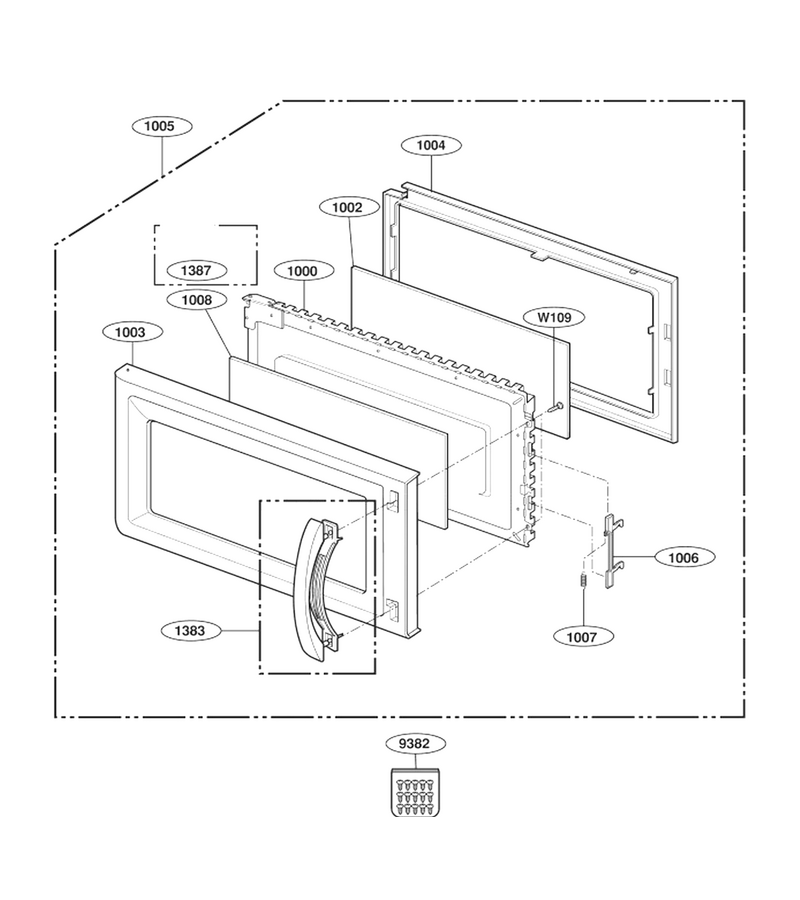

Door Parts

...
...
W109
Microwave Screw L-G-1TTL0402818
...
1000
Frame Assembly,door L-G-3213W1A035E
...
1002
Microwave Door Film L-G-3536WRA001R
...
1003
Panel,door L-G-3720W0D280D
...
1004
Microwave/hood Cover L-G-3552W1A032B
...
1005
Door Assembly L-G-3581W1A374D
...
1006
Microwave Door Latch Hook L-G-4026W2A015A
...
1007
Spring L-G-4970WRA001F
...
1008
Window,glass L-G-4890W1A039D
...
9382
Parts Assembly L-G-383EW1A081B

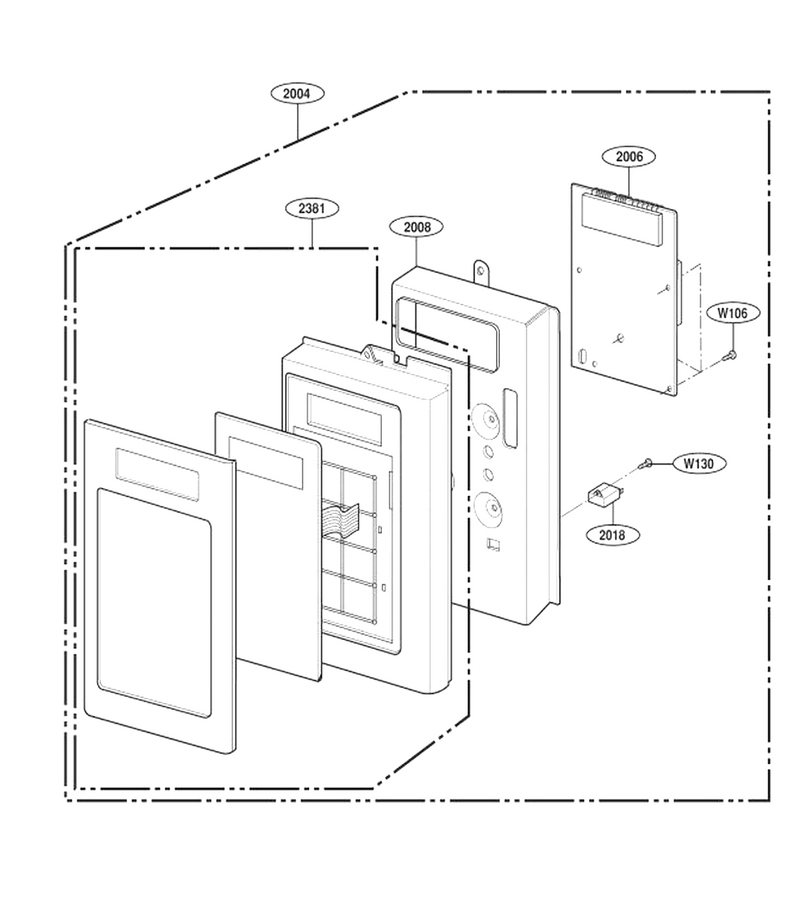

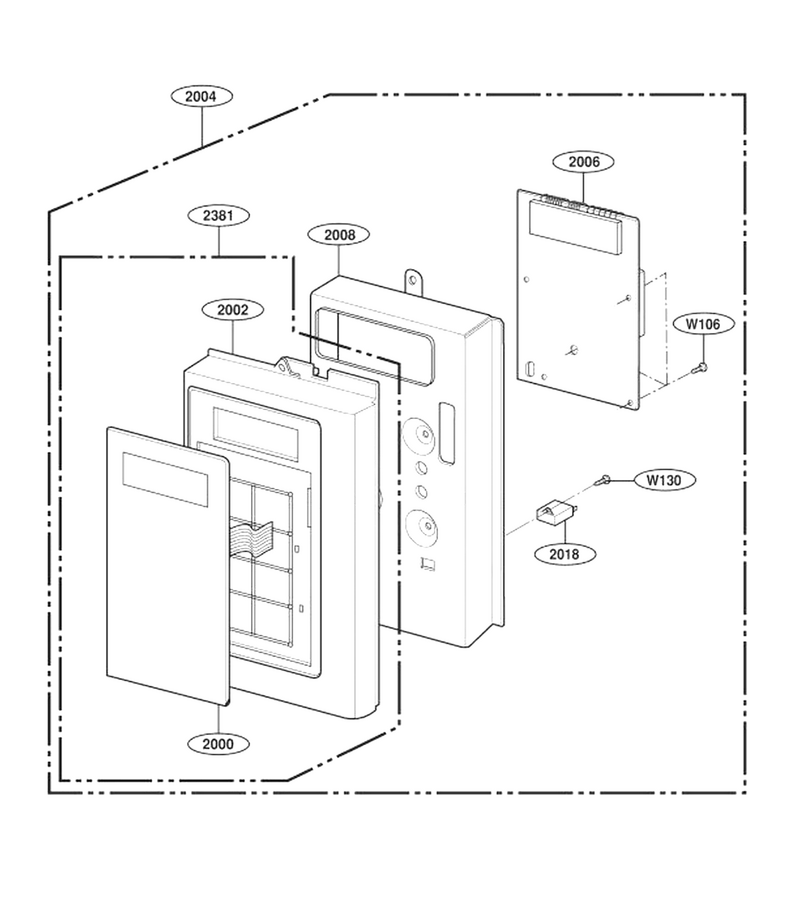

Controller Parts (i)

...
...
W106
Screw L-G-1TPL0402818
...
W130
Microwave Screw L-G-1TPL0402618
...
2000
Membrane L-G-3506W1A370D
...
2002
Panel,control L-G-3720W0C108D
...
2004
Controller Assembly,keypad L-G-4781W1M321G
...
2006
Pcb Assembly,sub L-G-6871W1S180A
...
2008
Bracket,control Panel L-G-4810W1A114A
...
2018
Microwave High-Voltage Capacitor L-G-0CZZW1M001C

Controller Parts (ii)

...
...
W106
Screw L-G-1TPL0402818
...
W130
Microwave Screw L-G-1TPL0402618
...
2004
Controller Assembly,keypad L-G-4781W1M321G
...
2006
Pcb Assembly,sub L-G-6871W1S180A
...
2008
Bracket,control Panel L-G-4810W1A114A
...
2018
Microwave High-Voltage Capacitor L-G-0CZZW1M001C

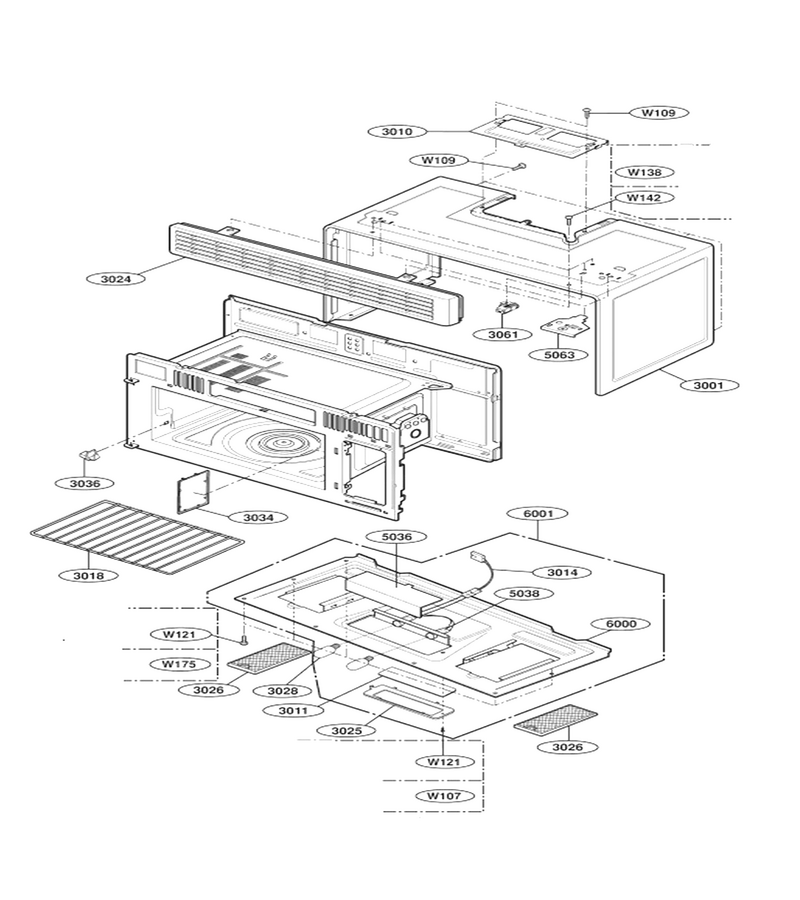

Oven Cavity Parts

...
...
W109
Microwave Screw L-G-1TTL0402818
...
W121
Microwave Screw L-G-1TTL0402422
...
3001
Case,flat L-G-3112W1F053K
...
3010
Microwave Vent Duct Cover L-G-4960W1A004B
...
3011
Oven Glass L-G-4890W4A001B
...
3014
Harness,single L-G-6877W1A340F
...
3018
Microwave Metal Rack L-G-5026W1A048C
...
3024
Grille,vent L-G-3530W0A032D
...
3025
Microwave Light Lens Bracket L-G-4810W3G100A
...
3026
Microwave Grease Filter L-G-2B72705B
...
3028
Lamp,incandescent L-G-6912W1Z002C
...
3034
Canopy L-G-3052W3A015A
...
3036
Holder L-G-4930W1A026A
...
3061
Holder Assembly L-G-4021W3A001B
...
5036
Cover,lamp L-G-3550W1A170A
...
5038
Microwave Light Socket L-G-6804W3A001A
...
5063
Bracket Assembly L-G-4811W1A004A
...
6000
Base Plate L-G-3302W0A013B
...
6001
Plate Assembly,base L-G-3303W1A041W

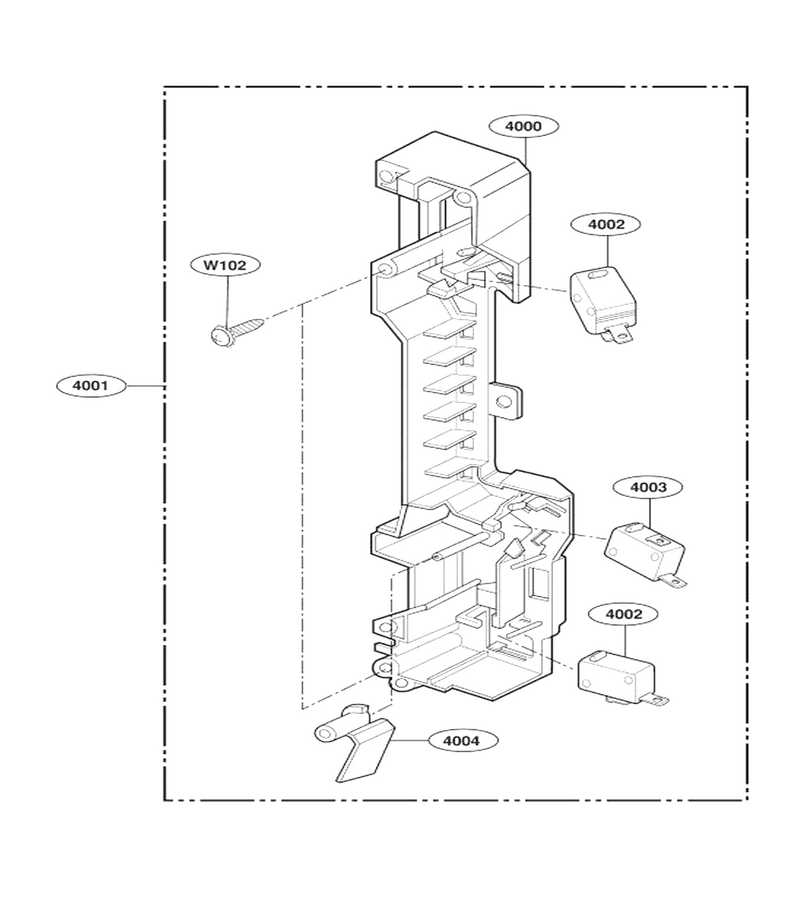

Latch Board Parts

...
...
W102
Screw L-G-4B70188B
...
4000
Microwave Door Latch Holder L-G-3500W1A013A
...
4001
Microwave Latch Body Assembly L-G-3501W1A019C
...
4002
Microwave Micro Switch L-G-6600W1K004C
...
4003
Microwave Door Interlock Switch L-G-6600W1K004B
...
4004
Lever L-G-4510W4A005A

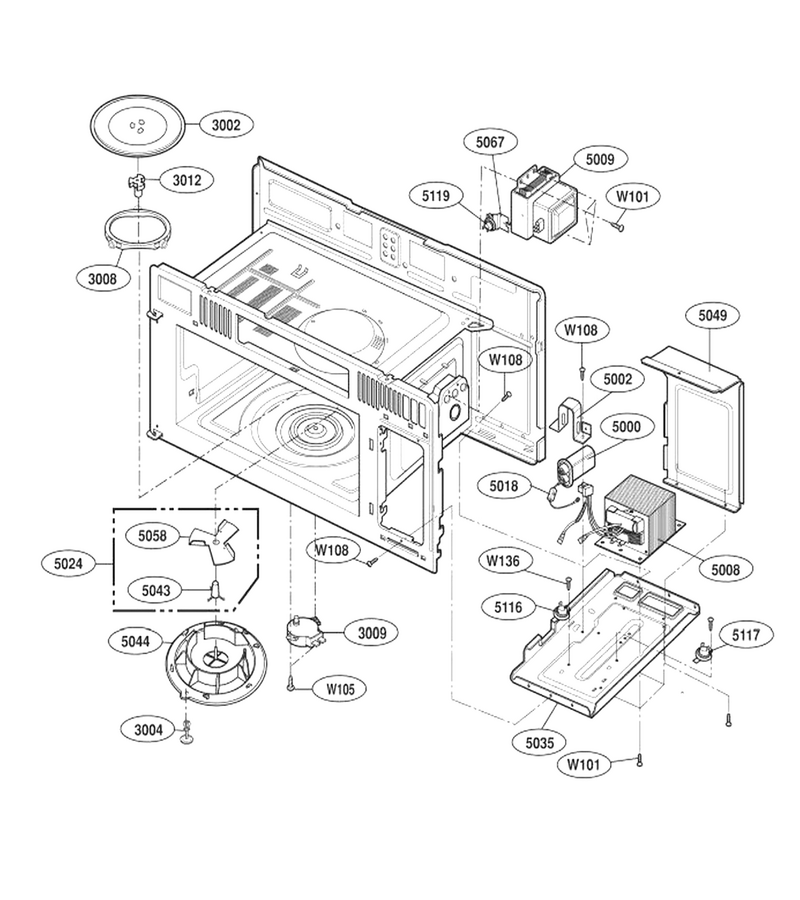

Interior Parts (i)

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W105
Microwave Screw L-G-1TPL0402418
...
W108
Microwave Screw L-G-1TTL0402418
...
W136
Screw L-G-1TPL0302418
...
3002
Tray,glass L-G-3390W1A019B
...
3004
Microwave Waveguide Cover Rivet L-G-4051W3A001A
...
3008
Microwave Turntable Tray Support L-G-5889W2A005J
...
3009
Motor, Ac Synchronous L-G-6549W1S015B
...
3012
Microwave Turntable Motor Coupler L-G-4370W3A001A
...
5000
Capacitor,high Voltage L-G-6120W3H003J
...
5002
Bracket L-G-4810W3C002A
...
5008
Transformer,high Voltage L-G-6170W1D052E
...
5009
Microwave Magnetron L-G-6324W1A001H
...
5018
Microwave High-Voltage Diode L-G-6021W3B001A
...
5024
Fan Assembly L-G-5893W3A002A
...
5035
Plate,bottom L-G-3300W1A035A
...
5043
Holder L-G-4930W3A013A
...
5044
Microwave/hood Cover L-G-3550W1S001A
...
5049
Guide,air L-G-4974W1A015B
...
5058
Fan L-G-5892W3A006A
...
5067
Bracket,?m L-G-4810W3G135A
...
5116
Microwave/hood Thermostat L-G-6930W1A003H
...
5117
Microwave Thermostat L-G-6930W1A003D
...
5119
Thermostat L-G-6930W1A002F

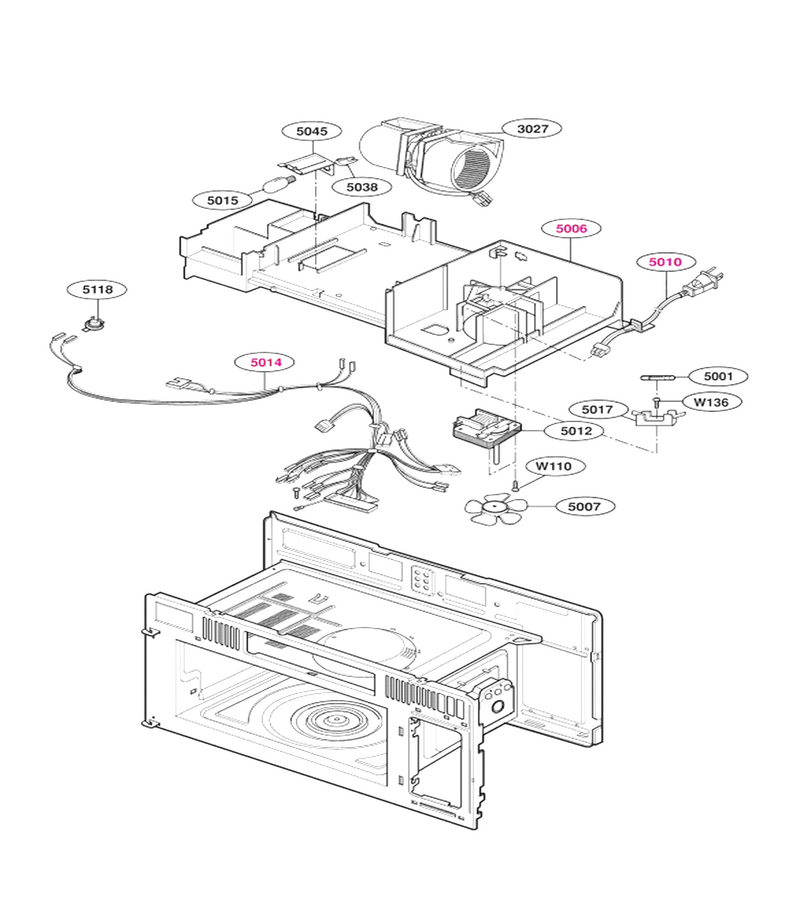

Interior Parts (ii-I)

...
...
W110
Microwave Tapping Screw L-G-1TTL0403818
...
W136
Screw L-G-1TPL0302418
...
3027
Motor L-G-6549W1V008C
...
5001
Fuse[all] L-G-3B74133K
...
5006
Duct L-G-5208W0A008A
...
5007
Fan L-G-5900W1A027B
...
5010
Ac Cord Assembly L-G-6411W1A014X
...
5012
Circulating Motor L-G-6549W1F009H
...
5014
Harness,single L-G-6877W1A457A
...
5015
Microwave Light Bulb L-G-6912W3Q001D
...
5017
Holder L-G-4930W3B025B
...
5038
Microwave Light Socket L-G-6804W3A001A
...
5045
Oven Cover L-G-3550W3A082A
...
5118
Microwave Thermostat L-G-6930WRT003C

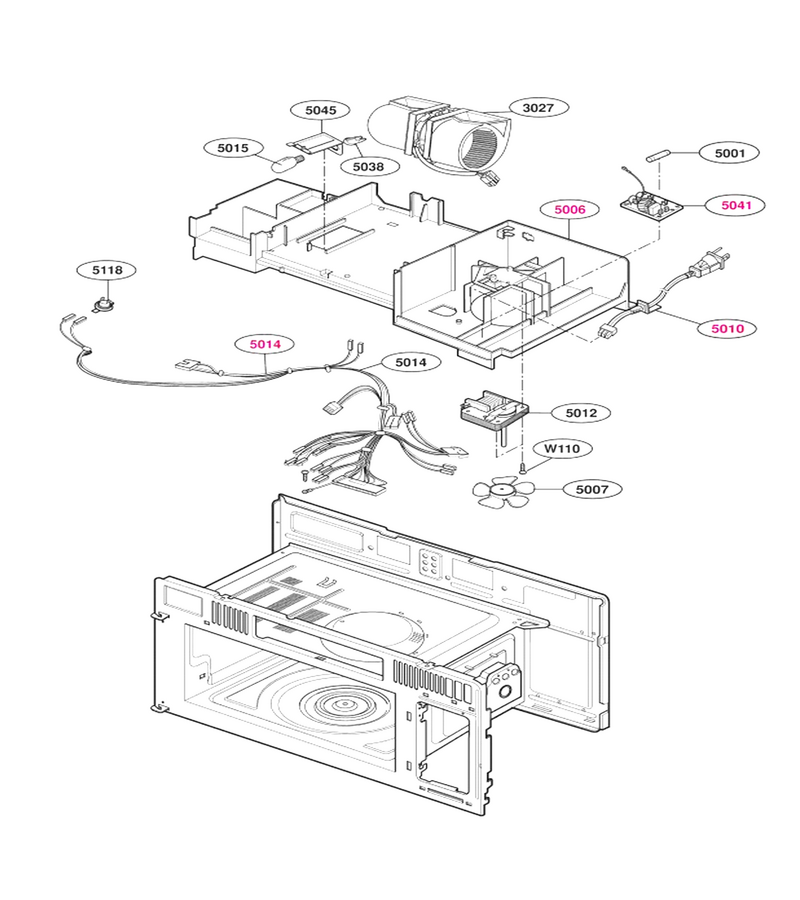

Interior Parts (ii-Ii)

...
...
W110
Microwave Tapping Screw L-G-1TTL0403818
...
3027
Motor L-G-6549W1V008C
...
5001
Fuse[all] L-G-3B74133K
...
5006
Duct L-G-5208W0A008A
...
5007
Fan L-G-5900W1A027B
...
5010
Ac Cord Assembly L-G-6411W1A014X
...
5012
Circulating Motor L-G-6549W1F009H
...
5014
Harness,single L-G-6877W1A457A
...
5015
Microwave Light Bulb L-G-6912W3Q001D
...
5038
Microwave Light Socket L-G-6804W3A001A
...
5045
Oven Cover L-G-3550W3A082A
...
5118
Microwave Thermostat L-G-6930WRT003C

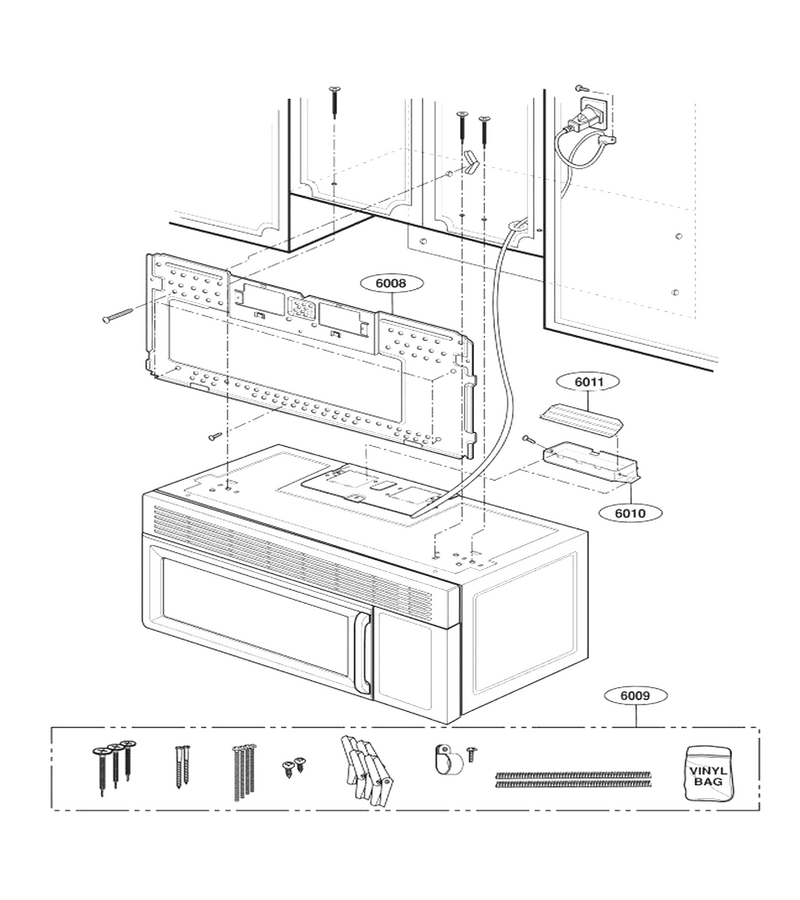

Installation Parts

...
...
6008
Mounting Plate L-G-3300W0M003A
...
6009
Kit Assembly L-G-3861W2A006A
...
6010
Microwave Exhaust Damper Bracket L-G-3B72144A
...
6011
Microwave Vent Damper Door L-G-3B71432A
