LG JVM1533BD.ABKEGEU

Model: JVM1533BD.ABKEGEU

Save Part Not Listed?
product name

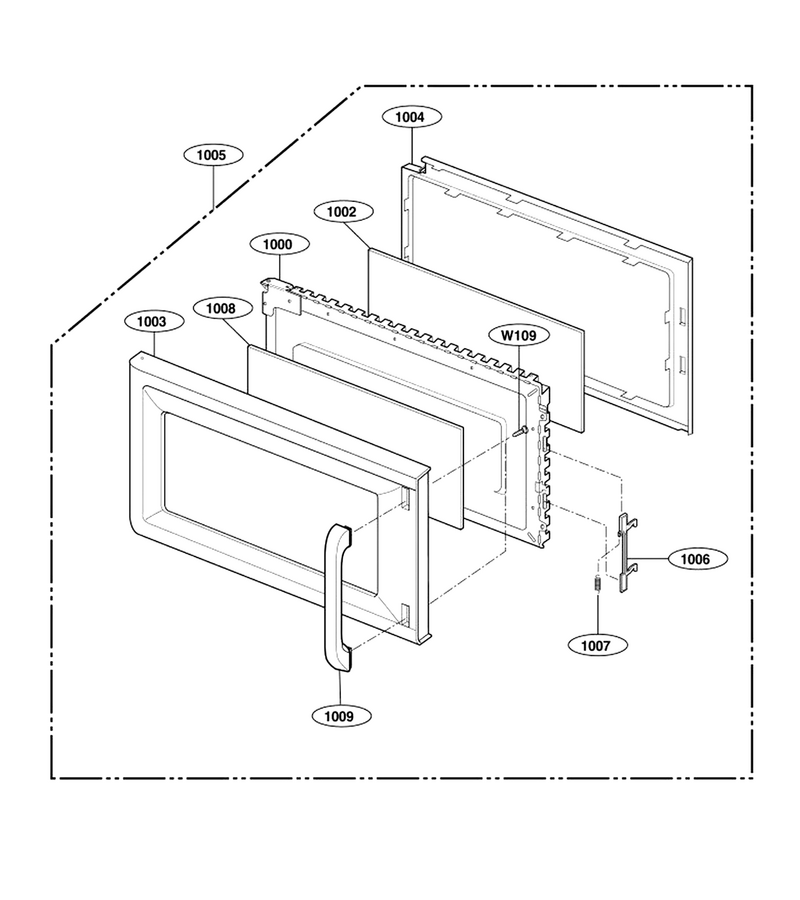

Door Parts

...
...
W109
Microwave Screw L-G-1TTL0402818
...
1000
Microwave Door Inner Frame L-G-3213W1A035D
...
1002
Microwave Door Film L-G-3536WRA001R
...
1003
Panel,door L-G-3720W0D193F
...
1004
Microwave/hood Cover L-G-3552W1A032B
...
1005
Door Assembly L-G-3581W1A280E
...
1006
Microwave Door Latch Hook L-G-4026W2A015A
...
1007
Microwave Door Latch Spring L-G-4970WRA001G
...
1008
Window,glass L-G-4890W1A054A
...
1009
Handle,door L-G-3650W1A054B

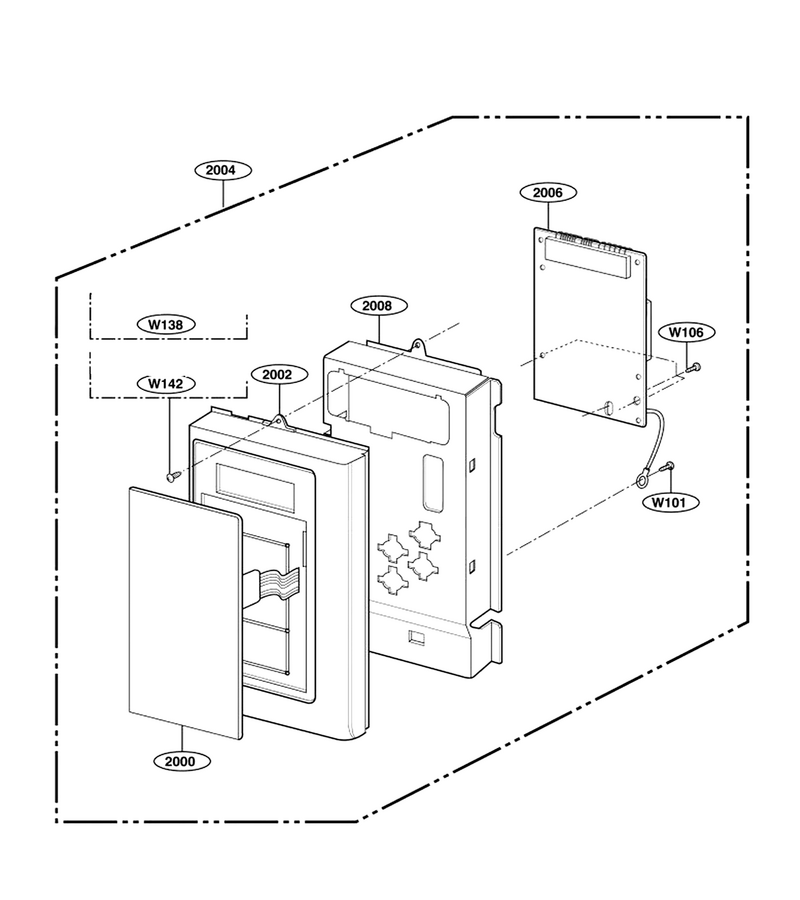

Controller Parts

...
...
W106
Screw L-G-1TPL0402818
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
2000
Membrane L-G-6638W1A067B
...
2002
Control Panel L-G-3572W1A174B
...
2004
Controller Assembly,sub L-G-4781W1A210E
...
2006
Pcb Assembly,sub L-G-6871W1S046C
...
2008
Bracket L-G-4810W1A017A

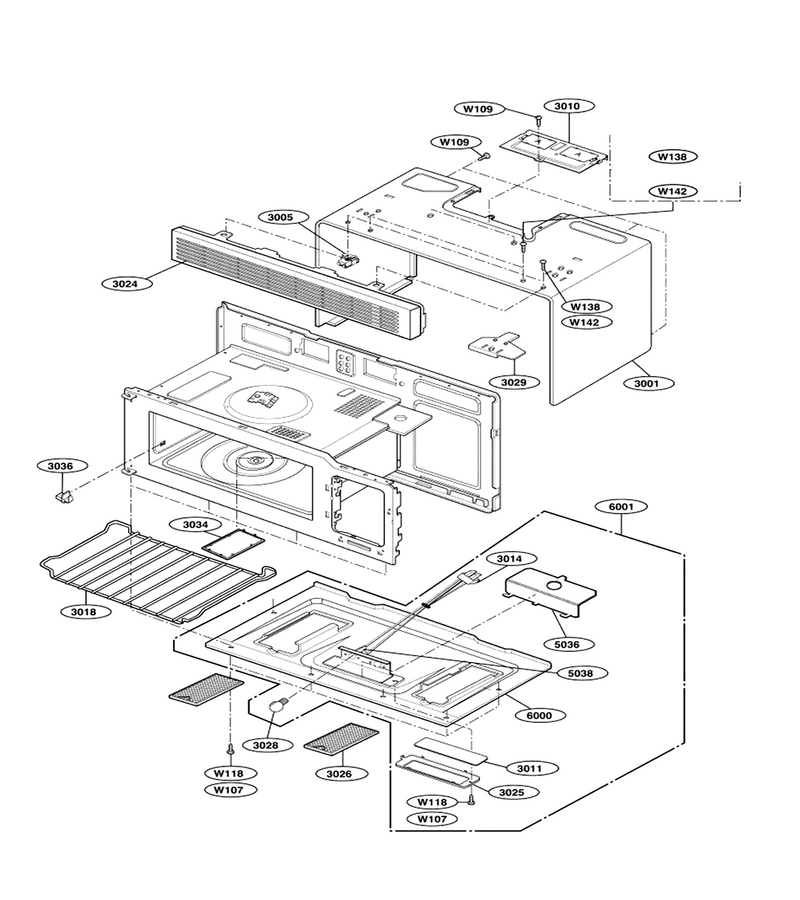

Oven Cavity Parts

...
...
W107
Screw L-G-1TTL0402416
...
W109
Microwave Screw L-G-1TTL0402818
...
3001
Flat Case L-G-3112W1F042B
...
3010
Microwave Vent Duct Cover L-G-4960W1A004A
...
3011
Oven Glass L-G-4890W4A001B
...
3014
Harness,single L-G-6877W1A340C
...
3018
Shelf L-G-3750W1A006F
...
3024
Microwave Vent Grille L-G-3530W0A018B
...
3025
Bracket L-G-4810W3G100B
...
3026
Microwave Grease Filter L-G-2B72705B
...
3028
Microwave Light Bulb L-G-6912W3Q001A
...
3029
Bracket,mount L-G-4810W1A015A
...
3034
Canopy L-G-3052W3A016A
...
3036
Holder L-G-3B71271E
...
5036
Cover L-G-3550W3A095A
...
5038
Microwave Light Socket L-G-6804W3A001A
...
6000
Plate,base L-G-3302W0A013J
...
6001
Plate Assembly,base L-G-3303W1A041Q

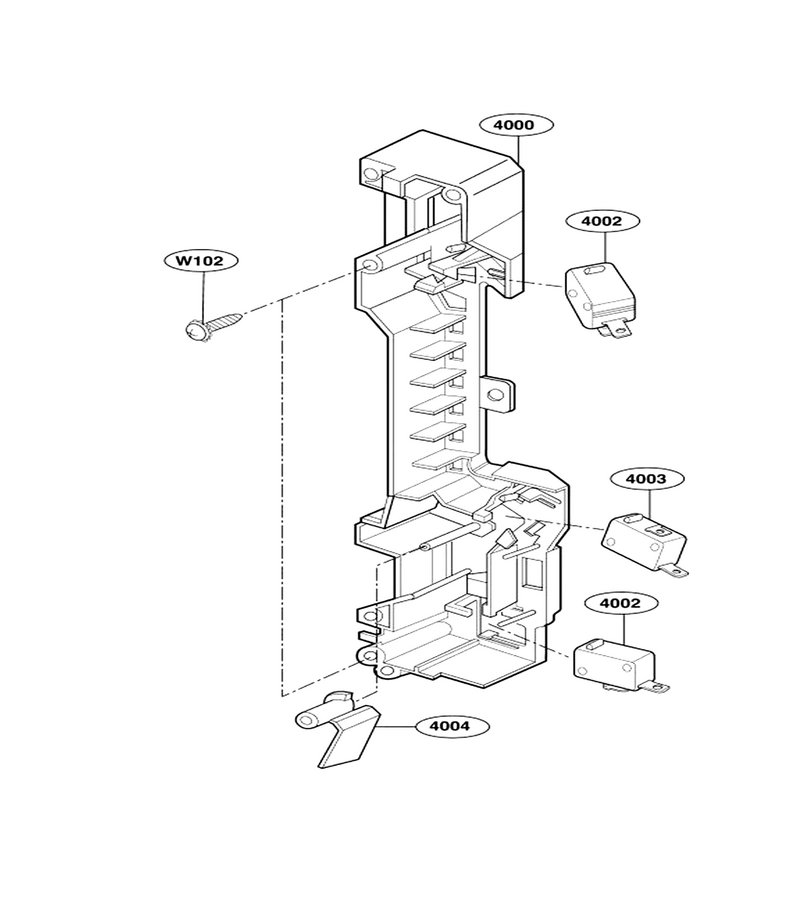

Latch Board Parts

...
...
4000
Microwave Door Latch Holder L-G-3500W1A013A
...
4002
Microwave Micro Switch L-G-6600W1K004C
...
4003
Microwave Door Interlock Switch L-G-6600W1K004B
...
4004
Lever L-G-4510W4A005A

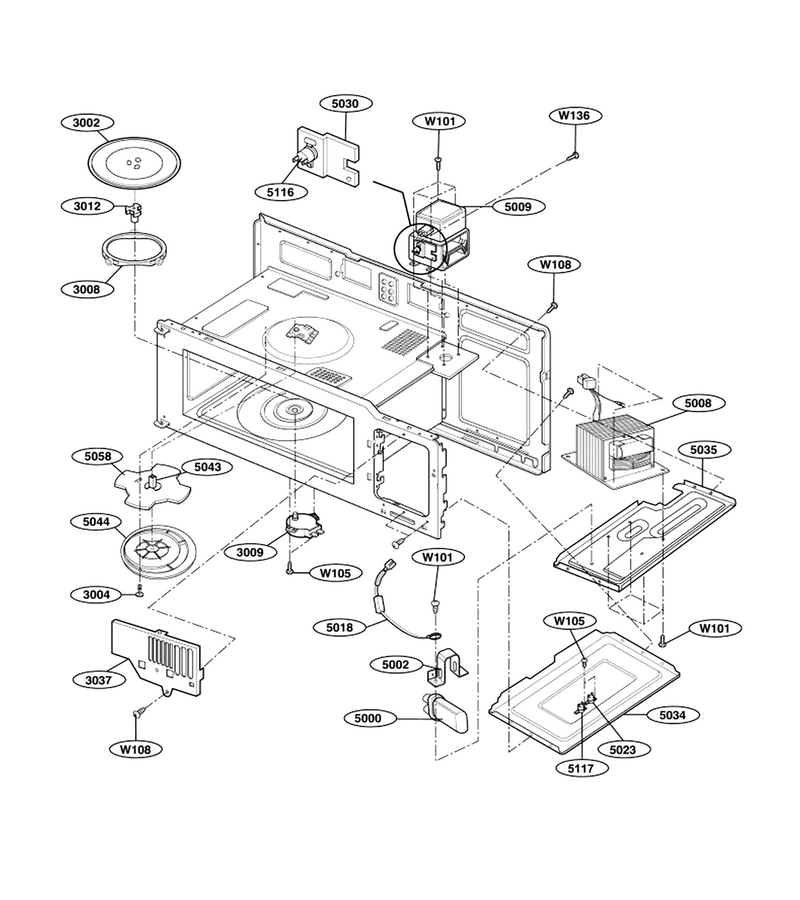

Interior Parts (1)

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W108
Microwave Screw L-G-1TTL0402418
...
W105
Microwave Screw L-G-1TPL0402418
...
3002
Microwave Glass Turntable Tray L-G-1B71961F
...
3004
Microwave Waveguide Cover Rivet L-G-4051W3A001A
...
3008
Ring Assembly L-G-5889W2A012A
...
3009
Circulating Motor L-G-6549W1S007G
...
3012
Microwave Turntable Motor Coupler L-G-4370W3A001A
...
3037
Protector L-G-3740W1A005A
...
5000
Capacitor,drawing[high Voltage L-G-0CZZW1H004B
...
5002
Bracket L-G-4810W3C002A
...
5008
Microwave High-Voltage Transformer L-G-6170W1D052B
...
5009
Microwave Magnetron L-G-2B71165L
...
5018
Microwave High-Voltage Diode L-G-6021W3B001A
...
5023
Microwave Thermostat L-G-6930W1A003D
...
5030
Bracket,?m L-G-4810W3G135A
...
5034
Plate,bottom L-G-3300W1A003B
...
5035
Plate L-G-3300W1A052A
...
5043
Holder,stirrer Fan L-G-4930W3B026D
...
5044
Stirrer Cover L-G-3550W1A077A
...
5058
Fan L-G-5892W3A002B
...
5116
Thermostat L-G-6930W1A002F
...
5117
Thermostat L-G-6930W1A002L

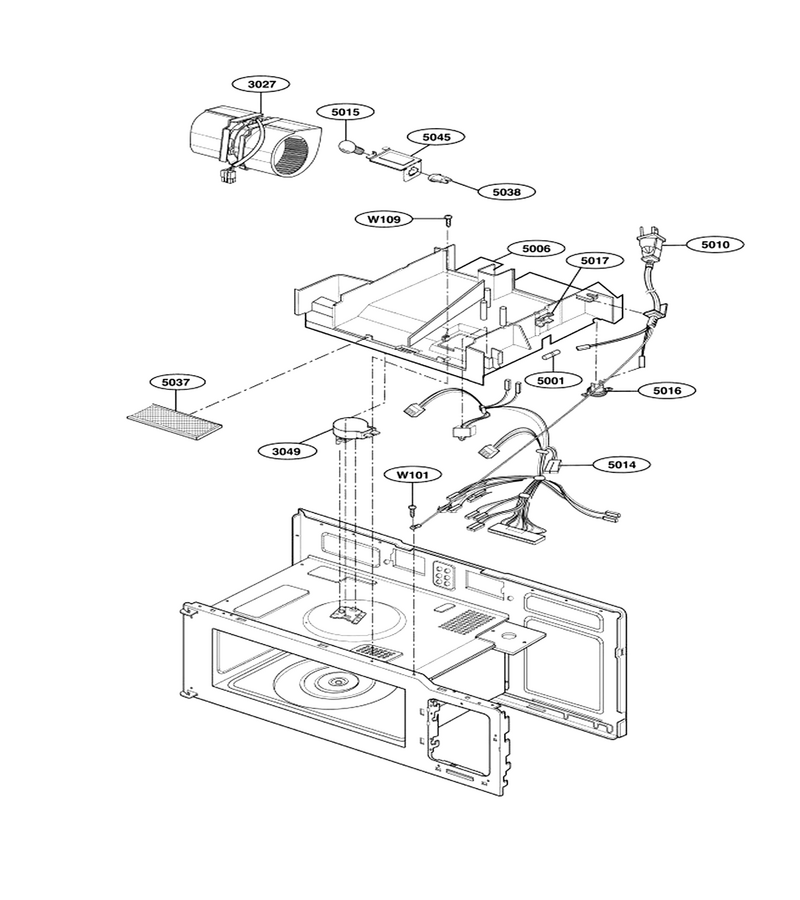

Interior Parts (2)

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
3027
Motor, Ac Ventilation L-G-6549W1V006G
...
3049
Motor, Ac Synchronous L-G-6549W1S002F
...
5001
Fuse[all] L-G-3B74133K
...
5006
Duct L-G-5208W0A005A
...
5010
Power Cord Assembly L-G-6411W1A010K
...
5014
Single Harness L-G-6877W1A342A
...
5015
Microwave Light Bulb L-G-3B70067A
...
5016
Thermostat L-G-6930W3A001S
...
5017
Holder L-G-4930W3B025B
...
5038
Microwave Light Socket L-G-6804W3A001A
...
5045
Oven Cover L-G-3550W3A082A

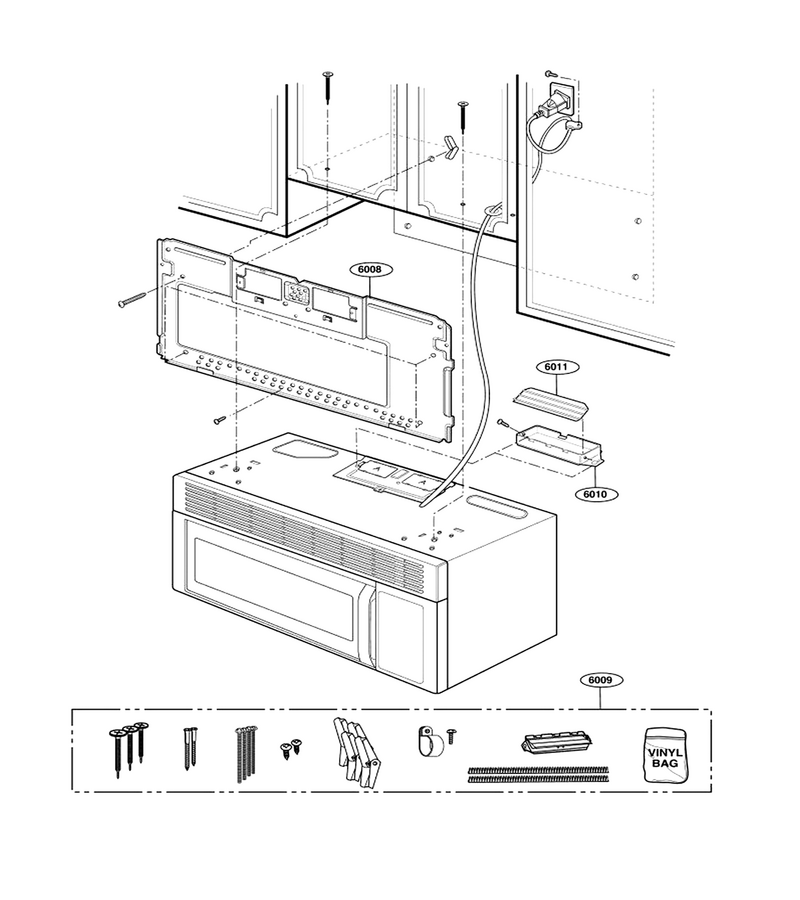

Installation Parts

...
...
6008
Mounting Plate L-G-3300W0M003A
...
6009
Kit Assembly L-G-3861W2A006A
...
6010
Microwave Exhaust Damper Bracket L-G-3B72144A
...
6011
Microwave Vent Damper Door L-G-3B71432A
