product name

LG JVM1490CH.ABSEGEU

Model: JVM1490CH.ABSEGEU

Save Part Not Listed?
product name

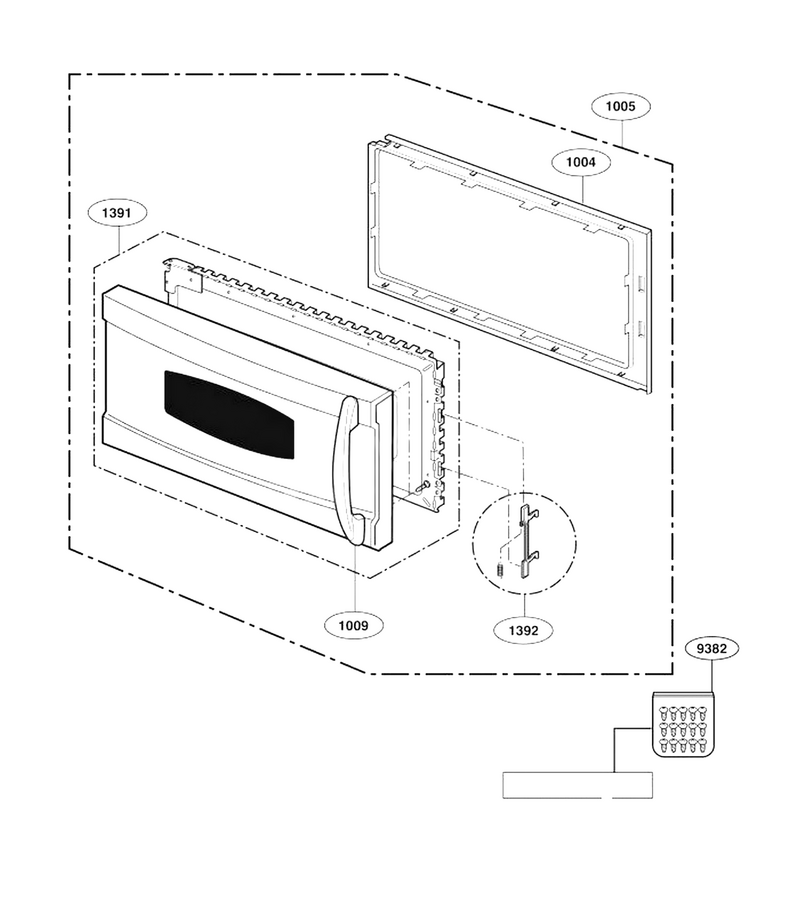

Door Parts

...
...
1004
Cover,choke L-G-3552W1A044B
...
1005
Door Assembly L-G-3581W0A095F
...
1009
Parts Assembly L-G-383EW1A075C
...
1391
Parts Assembly L-G-383EW1A074G
...
1392
Parts Assembly L-G-383EW2A001A
...
9382
Parts Assembly L-G-383EW1A081B

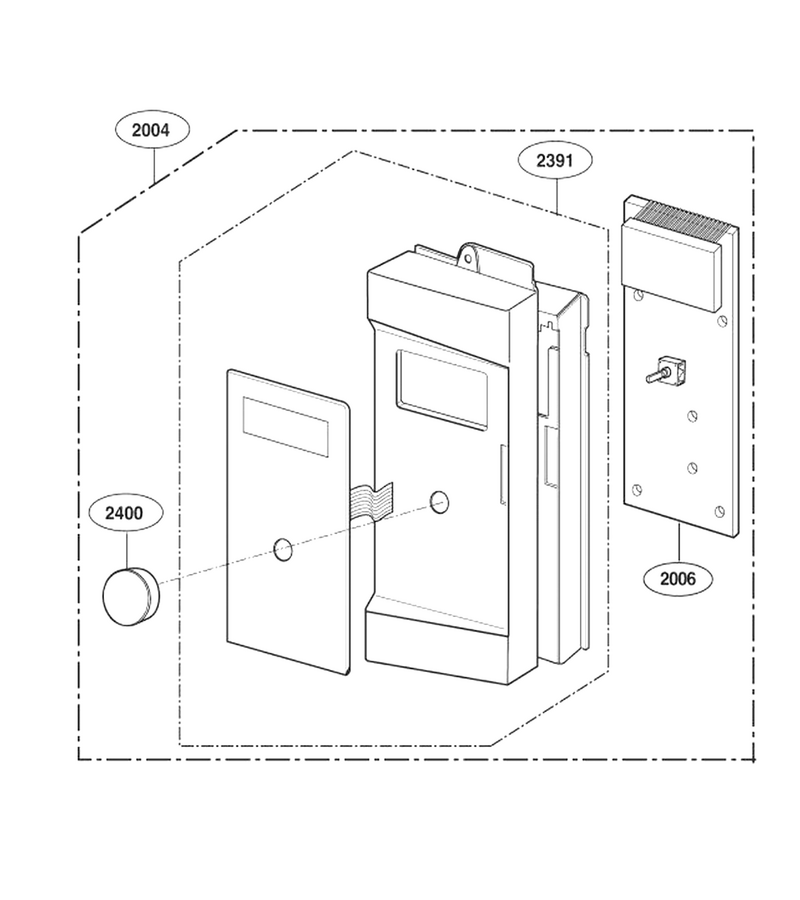

Controller Parts (1)

...
...
2004
Controller Assembly,keypad L-G-4781W1M350C
...
2006
Pcb Assembly,sub L-G-6871W1S298A
...
2391
Parts Assembly L-G-383EW1A016M
...
2400
Knob L-G-4940W3A019D

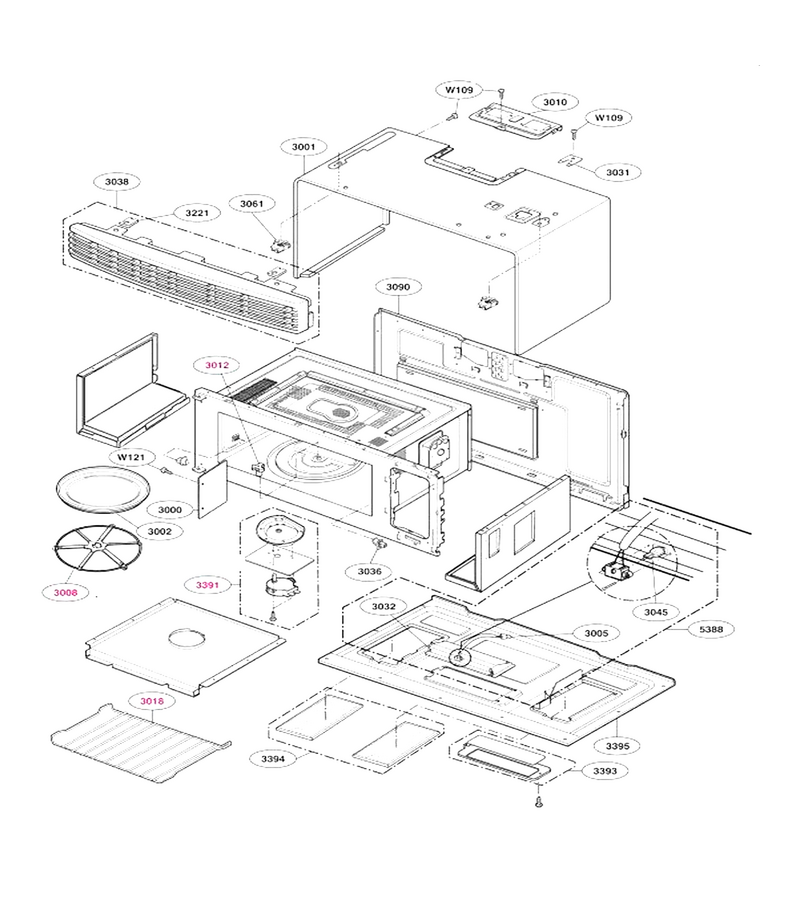

Oven Cavity Parts (1)

...
...
W109
Microwave Screw L-G-1TTL0402818
...
W121
Microwave Screw L-G-1TTL0402422
...
3000
Cover,insulator L-G-3052W3M025A
...
3001
Case,flat L-G-3112W0F015E
...
3002
Microwave Glass Turntable Tray L-G-1B71961E
...
3005
Holder Assembly L-G-4931W1A009A
...
3008
Turntable Assembly L-G-5889W1A001D
...
3010
Mount L-G-4960W1A008B
...
3012
Shaft,turntable L-G-4371W1A001A
...
3018
Shelf L-G-5026W1A044C
...
3031
Microwave Power Cord Cover L-G-3550W3A084A
...
3036
Holder,cook Auxiliary L-G-4930W1A008A
...
3038
Grille Assembly L-G-3531W1A017C
...
3061
Holder Assembly L-G-4021W3A001A
...
3090
Cover Assembly,rear L-G-3809W0A002D
...
3221
Bracket,idle L-G-4810W3G142A
...
3391
Parts Assembly L-G-383EW1A022A
...
3393
Parts Assembly L-G-383EW1A021A
...
3394
Parts Assembly L-G-383EW1A023A
...
3395
Parts Assembly L-G-383EW1A036E
...
5388
Parts Assembly L-G-383EW1A136A

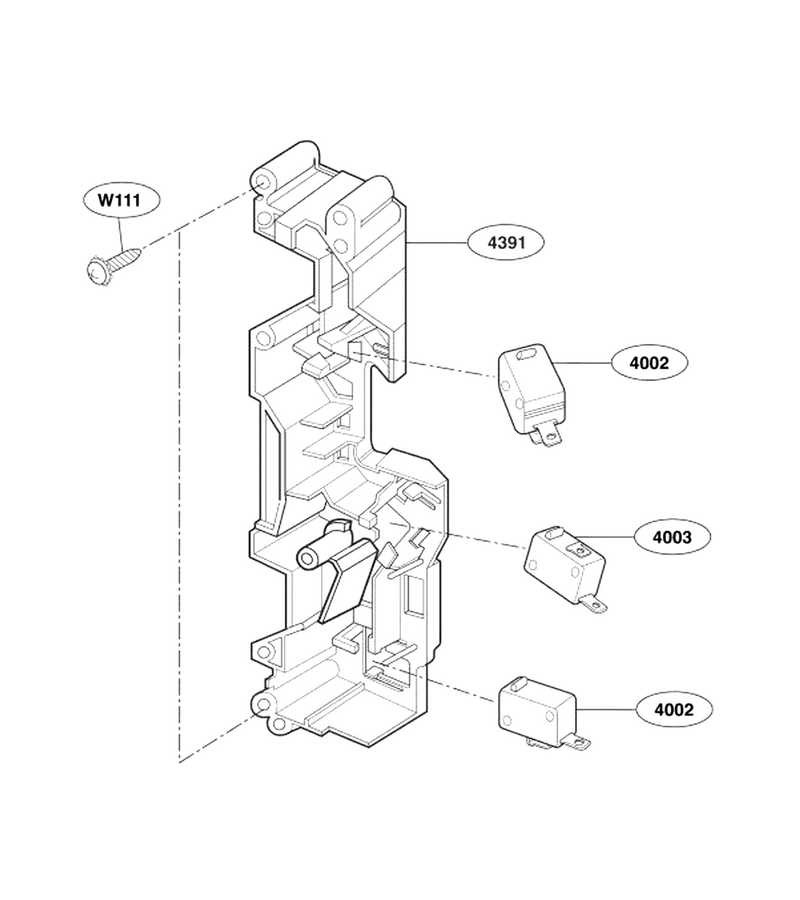

Latch Board Parts

...
...
W111
Screw L-G-4B70188B
...
4002
Microwave Micro Switch L-G-3B73362F
...
4003
Switch Micro L-G-3B73361E
...
4391
Parts Assembly L-G-383EW1A005A

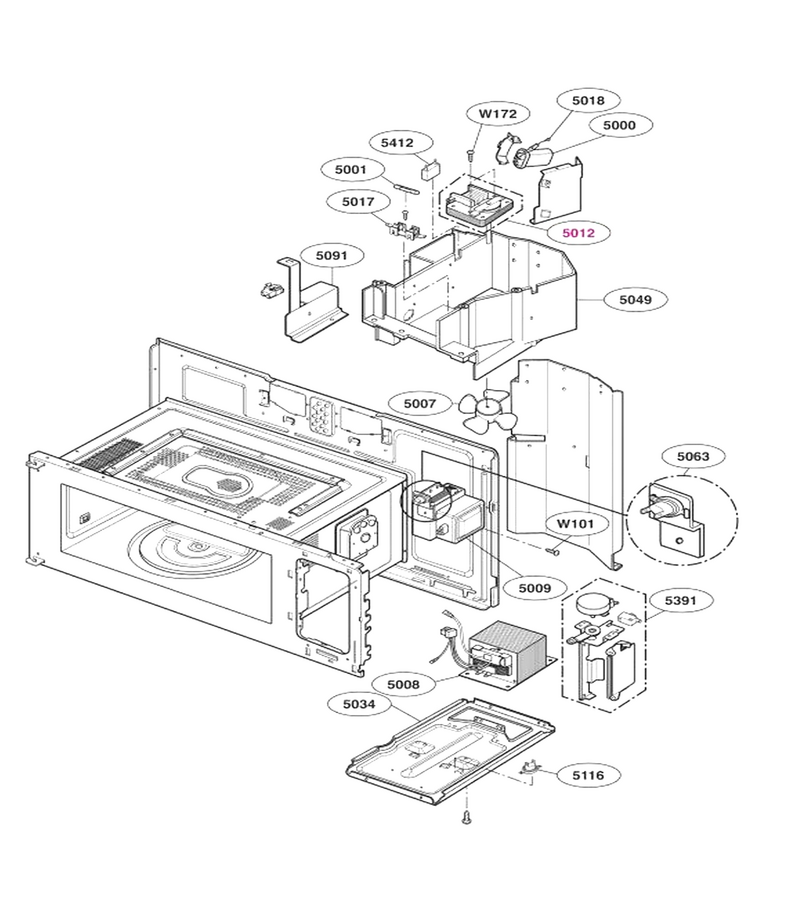

Interior Parts (1)

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
5000
Capacitor,drawing[high Voltage L-G-0CZZW1H004B
...
5001
Fuse[all] L-G-3B74133K
...
5007
Microwave Cooling Fan Blade L-G-2B72125A
...
5008
Transformer,high Voltage L-G-6170W1D052T
...
5009
Microwave Magnetron L-G-6324W1A001A
...
5012
Motor,ac Fan L-G-2B73670L
...
5017
Holder L-G-4930W3B025B
...
5018
Cable,assembly L-G-6021W3B001U
...
5034
Plate,bottom L-G-3300W1A001B
...
5049
Guide,suction L-G-4974W0A001A
...
5063
Bracket Assembly L-G-4811W3A016A
...
5091
Bracket,mount L-G-4810W2Q001A
...
5116
Dishwasher Thermostat L-G-3B70068V
...
5391
Parts Assembly L-G-383EW1A025A
...
5412
Microwave High-Voltage Capacitor L-G-0CZZW1M001C

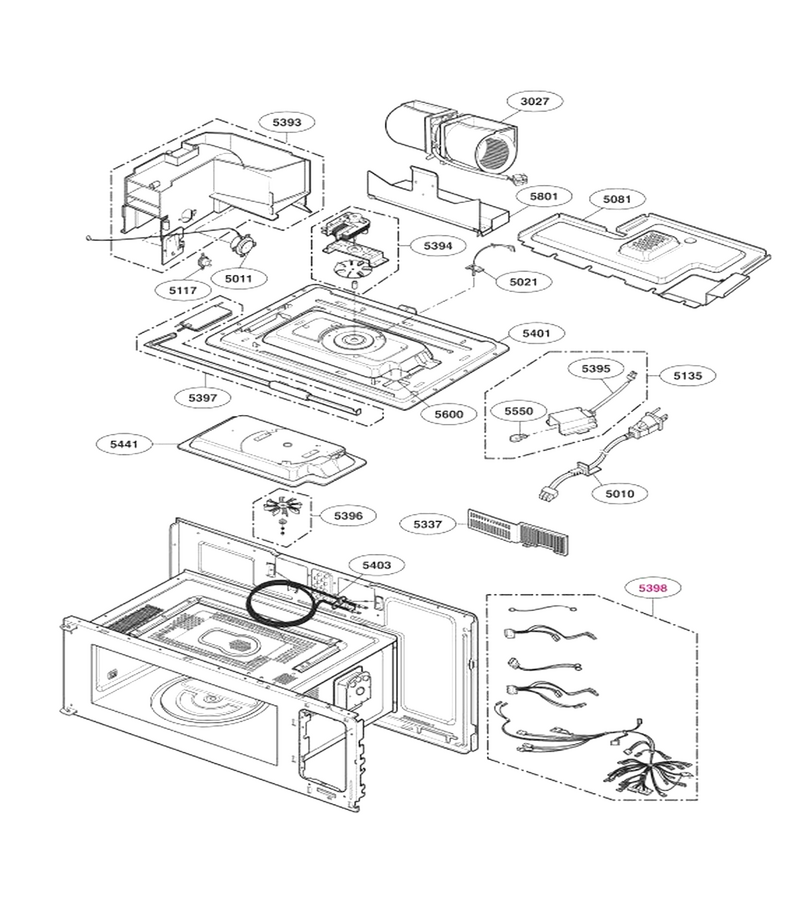

Interior Parts (2)

...
...
3027
Motor, Ac Ventilation L-G-6549W1V008H
...
5010
Power Cord Assembly L-G-6411W1A014U
...
5011
Humidity Sensor L-G-6501W1A004A
...
5021
Microwave Thermistor L-G-6322W2A001A
...
5081
Cover Assembly,heater L-G-3551W1A025A
...
5117
Microwave Thermostat L-G-6930W1A003D
...
5135
Reflector Assembly L-G-3035W1A008F
...
5337
Supporter L-G-3740W3A004A
...
5393
Parts Assembly L-G-383EW1A027A
...
5394
Parts Assembly L-G-383EW1A035A
...
5395
Parts Assembly L-G-383EW1A028C
...
5396
Parts Assembly L-G-383EW1A032B
...
5397
Parts Assembly L-G-383EW1A029A
...
5398
Parts Assembly L-G-383EW1A034C
...
5401
Chamber L-G-3504W0A001A
...
5403
Heater,sheath L-G-5300W1S006D
...
5441
Chamber L-G-3504W1A001A
...
5550
Microwave Light Bulb L-G-6912A40002D
...
5600
Window,glass L-G-4890W3A010A
...
5801
Plate L-G-4960W2A004A

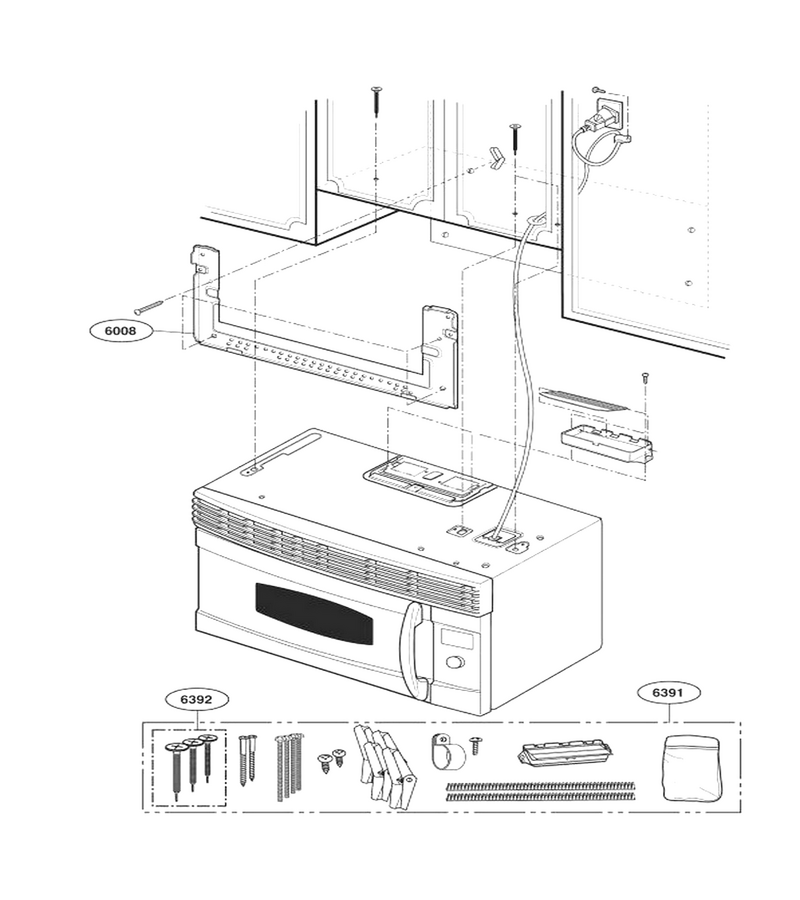

Installation Parts

...
...
6008
Plate Assembly L-G-3301W1A028A
...
6391
Parts Assembly L-G-383EW2A002A
...
6392
Parts Assembly L-G-383EW1A038A
