LG JMC8127DDB.ABKEJEN

Model: JMC8127DDB.ABKEJEN

Save Part Not Listed?
product name

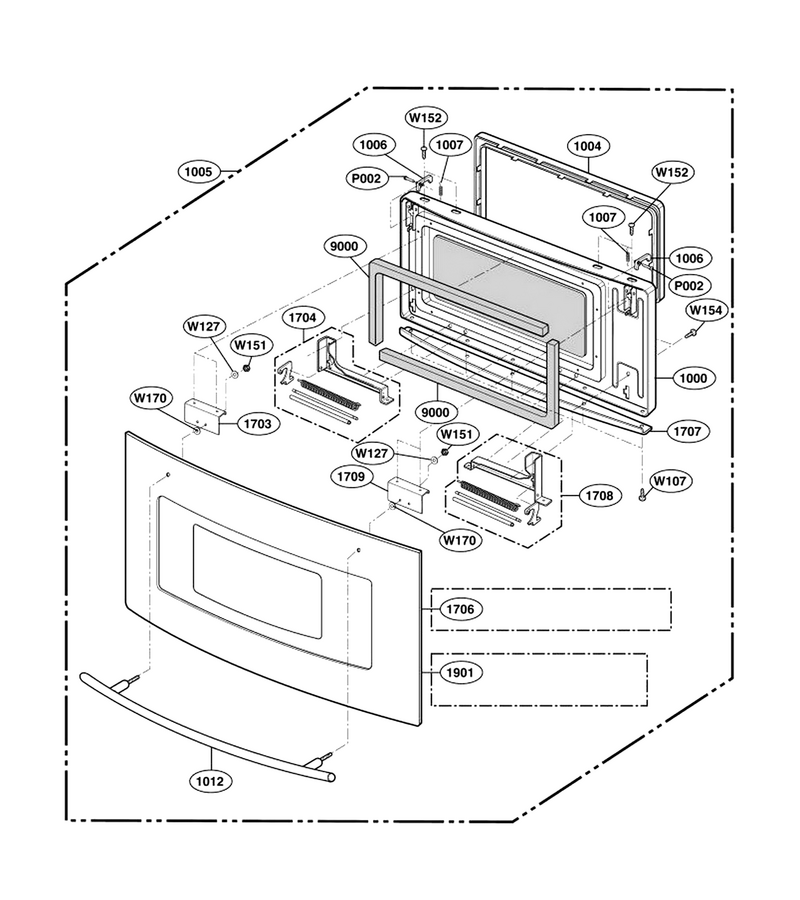

Door Parts

...
...
P002
Pin,common L-G-1PZZW3Z008C
...
W154
Screw,machine L-G-1MFC0402416
...
W152
Screw,machine L-G-1MTC0402416
...
W107
Screw L-G-1TTL0402416
...
W151
Nut,common L-G-4B71028A
...
1000
Frame Assembly,door L-G-3213W0A010C
...
1004
Cover,choke L-G-3552W0A011A
...
1005
Door Assembly L-G-ADC30953906
...
1006
Locker L-G-4026W1A030A
...
1007
Spring L-G-4970W1A003A
...
1012
Handle Assembly L-G-3651W1A013B
...
1703
Bracket,mount L-G-4810W1A109A
...
1704
Hinge Assembly L-G-4775W1A008C
...
1706
Window Assembly L-G-4891W0A003D
...
1708
Hinge Assembly L-G-4775W1A007C
...
1709
Bracket,mount L-G-4810W1A109B
...
9000
Damper L-G-4850W2A004F

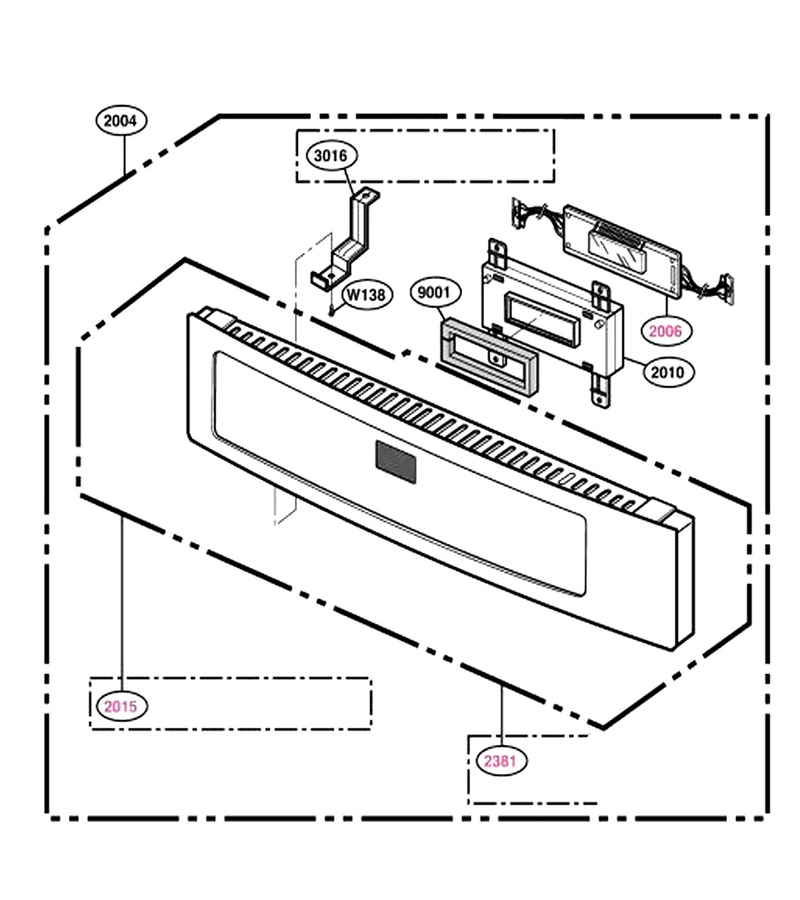

Controller Parts

...
...
2004
Controller Assembly,keypad L-G-4781W0M036M
...
2006
Pcb Assembly,sub L-G-6871W1S160B
...
2010
Holder,display L-G-4930W1A035A
...
2015
Controller Assembly,sub L-G-4781W0A013Q
...
9001
Damper L-G-3B72245G

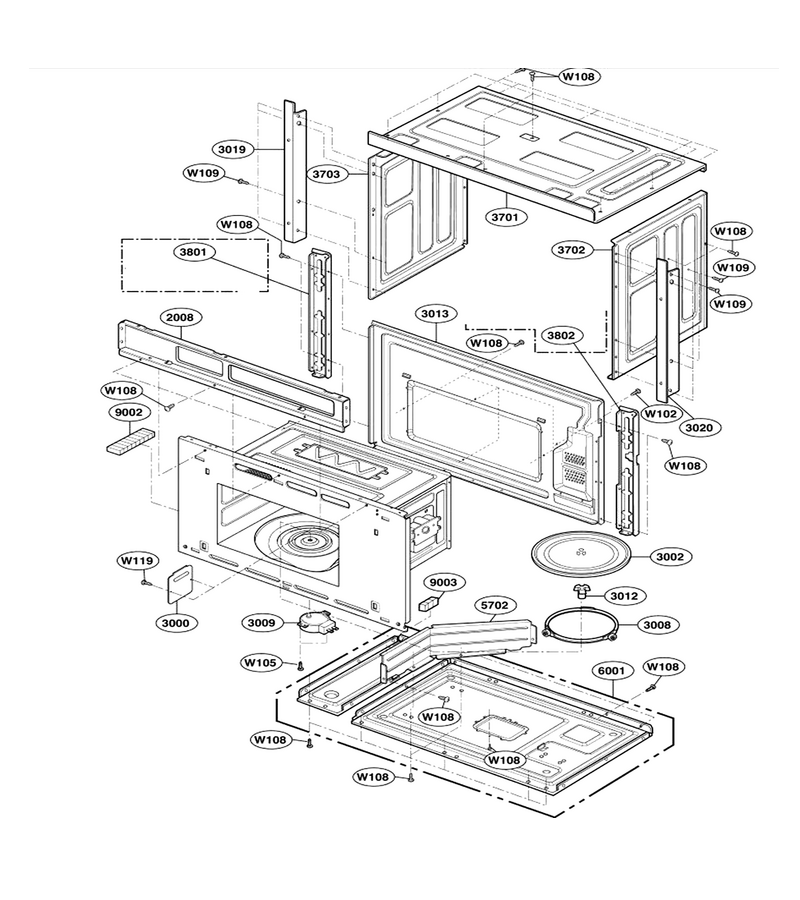

Oven Cavity Parts

...
...
W119
Microwave Tapping Screw L-G-1TTG0402632
...
W102
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
W109
Microwave Screw L-G-1TTL0402818
...
W105
Microwave Screw L-G-1TPL0402418
...
W108
Microwave Screw L-G-1TTL0402418
...
2008
Bracket,control Panel L-G-4810W0A001A
...
3000
Canopy L-G-3052W3M022A
...
3002
Microwave Glass Turntable Tray L-G-1B71961E
...
3008
Microwave Turntable Tray Support L-G-5889W2A017A
...
3009
Microwave Turntable Motor L-G-6549W1S013C
...
3012
Microwave Turntable Motor Coupler L-G-4370W3A001A
...
3019
Grille L-G-4918W1A013C
...
3020
Grille L-G-4918W1A013D
...
3701
Case L-G-3180W0A004A
...
3702
Case L-G-3180W0A006A
...
3703
Case L-G-3180W0A005A
...
5702
Barrier L-G-4790W1A008A
...
6001
Plate Assembly,base L-G-3303W0A024B
...
9002
Damper L-G-3B72246K
...
9003
Damper L-G-4850W4C001C

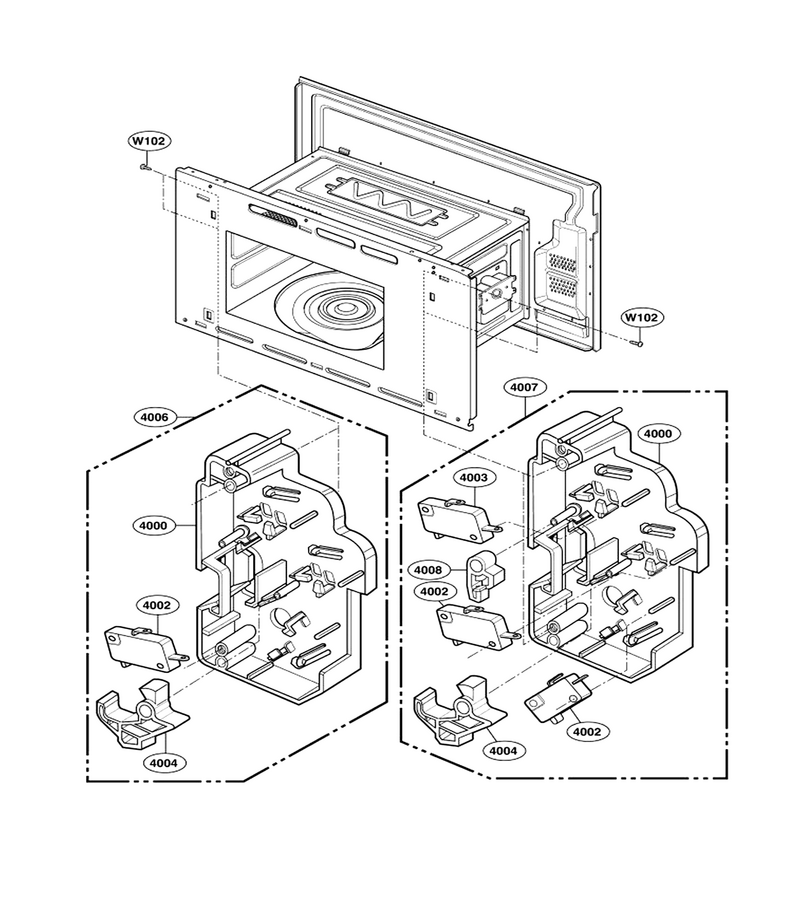

Latch Board Parts

...
...
W102
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
4000
Holder,locker L-G-3500W1A031A
...
4002
Micro Switch L-G-3B73362E
...
4003
Switch Micro L-G-3B73361E
...
4004
Lever L-G-4510W1A010A
...
4006
Holder Assembly,locker L-G-3501W1A031B
...
4007
Holder Assembly,locker L-G-3501W1A031A
...
4008
Lever L-G-4510W1A011A

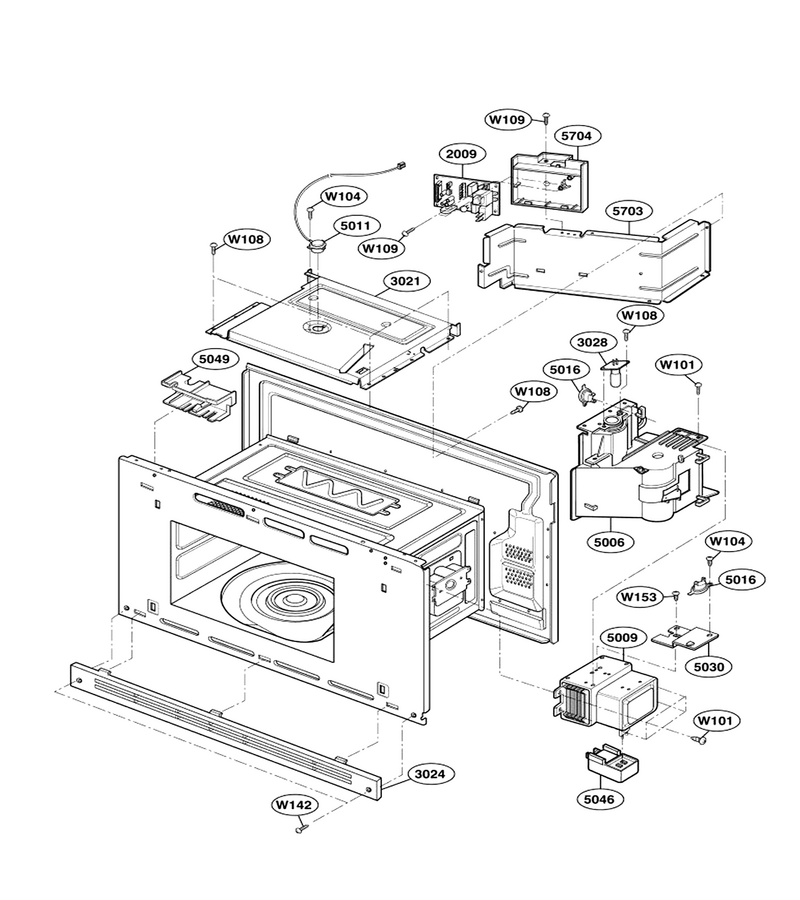

Interior Parts (i)

...
...
W142
Screw L-G-1TTL0402816
...
W153
Screw,taptite L-G-1SPF0302018
...
W109
Microwave Screw L-G-1TTL0402818
...
W108
Microwave Screw L-G-1TTL0402418
...
W104
Screw L-G-1TPL0302018
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
2009
Pcb Assembly,sub L-G-6871W1S161A
...
3021
Guide,air L-G-5264W1A015E
...
3024
Grille,vent L-G-3530W0A035A
...
3028
Lamp,incandescent L-G-6912W3B002H
...
5006
Duct L-G-3550W1A093B
...
5009
Microwave Magnetron L-G-6324W1A001H
...
5011
Sensor Assembly L-G-6501W1A004B
...
5016
Thermostat L-G-6930WRT003A
...
5030
Bracket,?m L-G-4810W3G135A
...
5046
Filter Assembly L-G-6201W2A019G
...
5049
Guide,air L-G-4974W1A018A
...
5703
Barrier L-G-4790W1A009A
...
5704
Base,pcb L-G-3040W1A027A

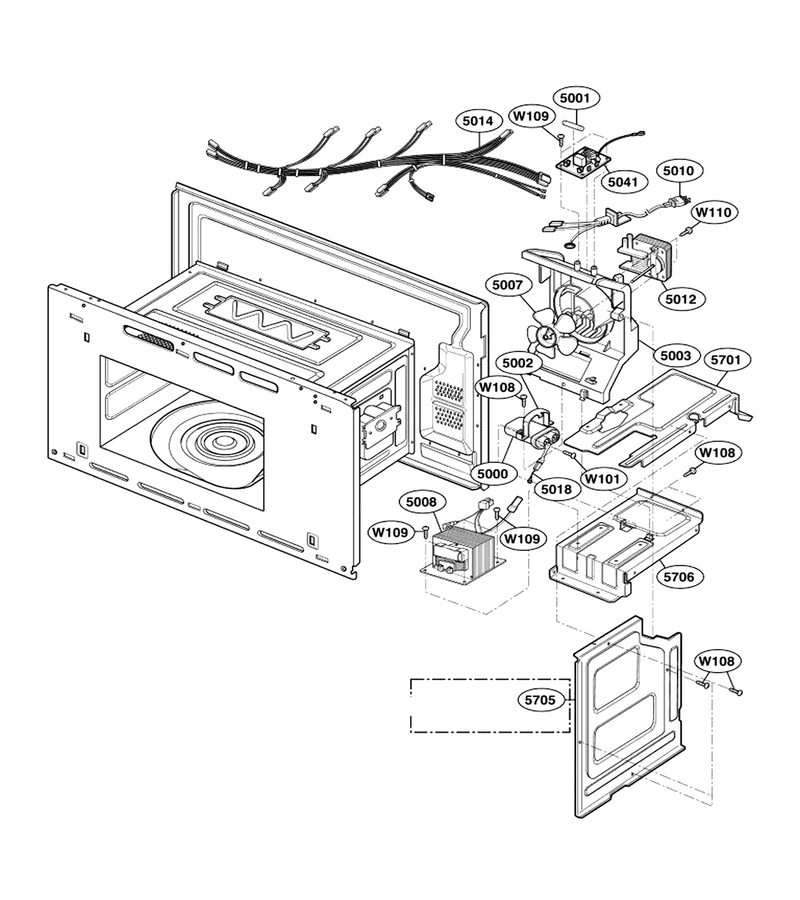

Interior Parts (ii)

...
...
W101
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
W108
Microwave Screw L-G-1TTL0402418
...
W109
Microwave Screw L-G-1TTL0402818
...
W110
Microwave Tapping Screw L-G-1TTL0403818
...
5000
Capacitor,drawing[high Voltage L-G-0CZZW1H004B
...
5001
Fuse[all] L-G-3B74133K
...
5002
Bracket,capacitor L-G-4810W3C007A
...
5003
Guide,suction L-G-4974W1A017A
...
5007
Fan L-G-5900W1A007A
...
5008
Transformer,high Voltage L-G-6170W1D050Y
...
5010
Power Cord Assembly L-G-6411W1A018L
...
5012
Motor,ac Fan L-G-6549W1F009A
...
5014
Harness,single L-G-6877W1A439A
...
5018
Microwave High-Voltage Diode L-G-6021W3B001Q
...
5041
Microwave Filter L-G-6201W2A018A
...
5701
Barrier L-G-4790W1A007A
...
5706
Base L-G-3080W1A001A
