LG JES739WJ.CW1EGEU

Model: JES739WJ.CW1EGEU

Save Part Not Listed?
product name

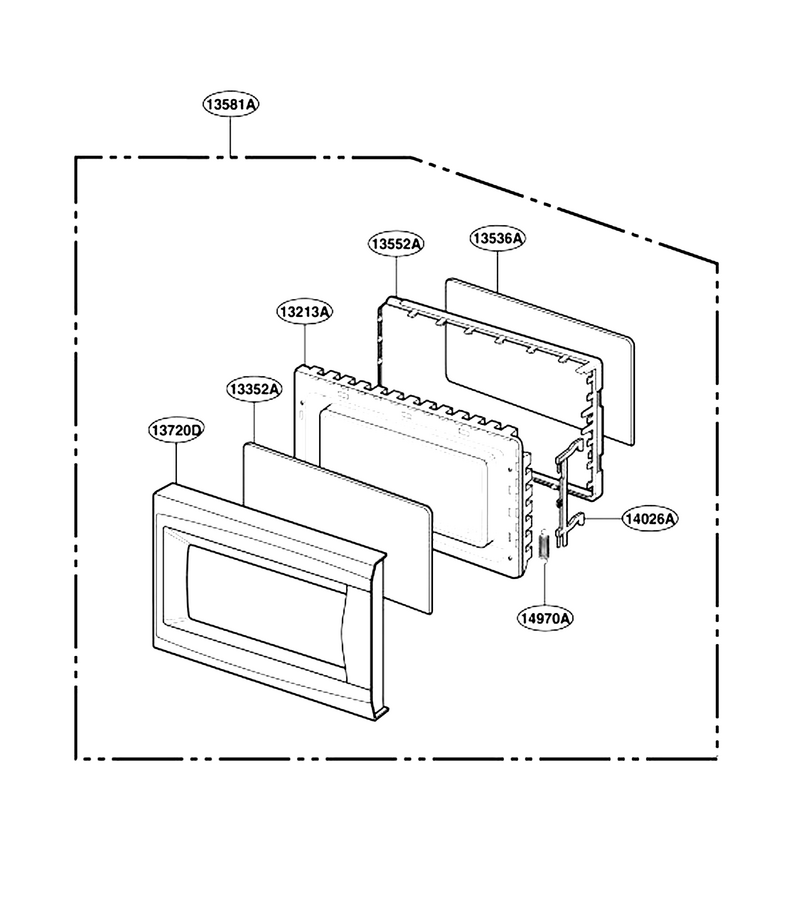

Door Parts

...
...
13213A
Frame Assembly,door L-G-3213W1A053C
...
13352A
Window,screen L-G-3352W1A152A
...
13536A
Tape,sealing L-G-3536W1A010A
...
13552A
Cover,choke L-G-3552W1A064A
...
13581A
Door Assembly L-G-3581W1A001J
...
13720D
Panel,door L-G-3720W0D363H
...
14026A
Locker L-G-4026W2A024A
...
14970A
Spring L-G-4970WRA001B

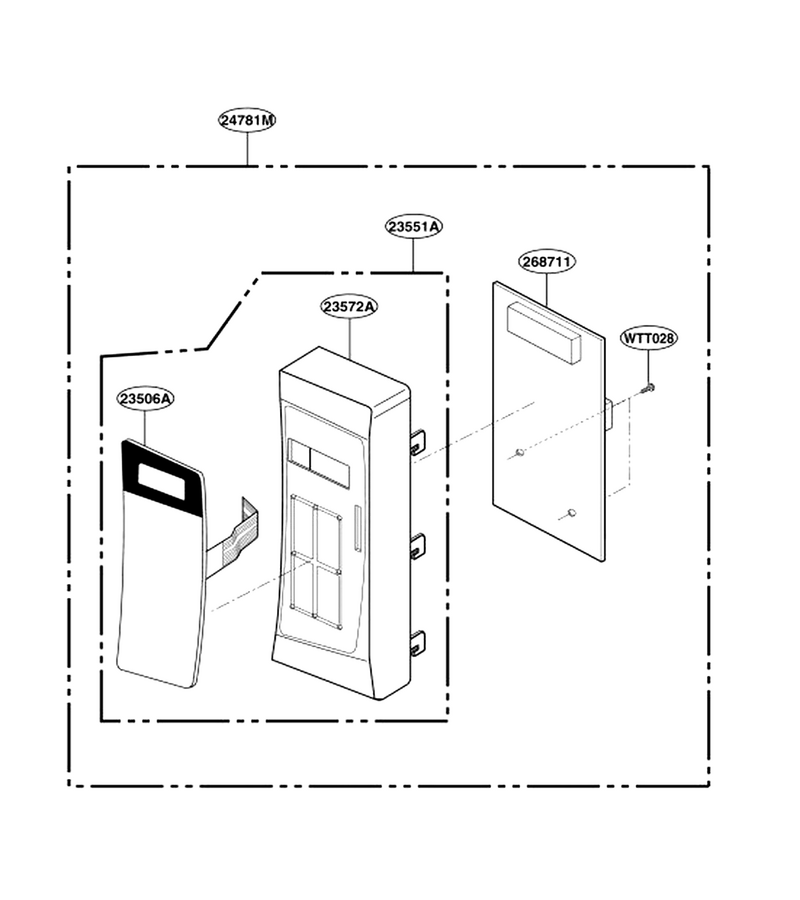

Control Panel Parts

...
...
WTT028
Microwave Screw L-G-1TTL0402818
...
23506A
Key Membrane L-G-3506W1A694A
...
23551A
Parts Assembly L-G-383EW5A255C
...
23572A
Panel,control L-G-3720W0C231A
...
24781M
Controller Assembly,key Pad L-G-4781W1M374J
...
268711
Pcb Assembly,sub L-G-6871W1S283B

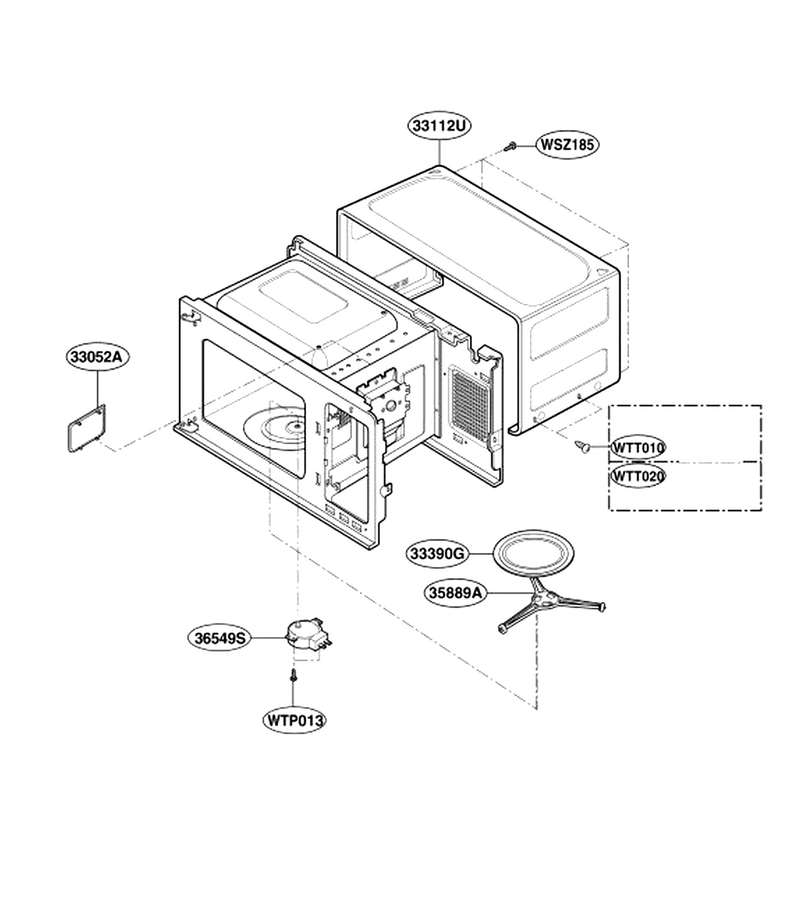

Oven Cavity Parts

...
...
WTP013
Microwave Screw L-G-1TPL0402418
...
WTT010
Screw L-G-1SZZW2A002A
...
WSZ185
Screw L-G-1SZZW2A002A
...
33052A
Cover,resin L-G-3052W1A006A
...
33112U
Case,u Bending L-G-3112W0U070A
...
33390G
Tray,glass L-G-3390W1A035A
...
35889A
Turntable Assembly L-G-5889W1A012A
...
36549S
Motor, Ac Synchronous L-G-6549W1S021B

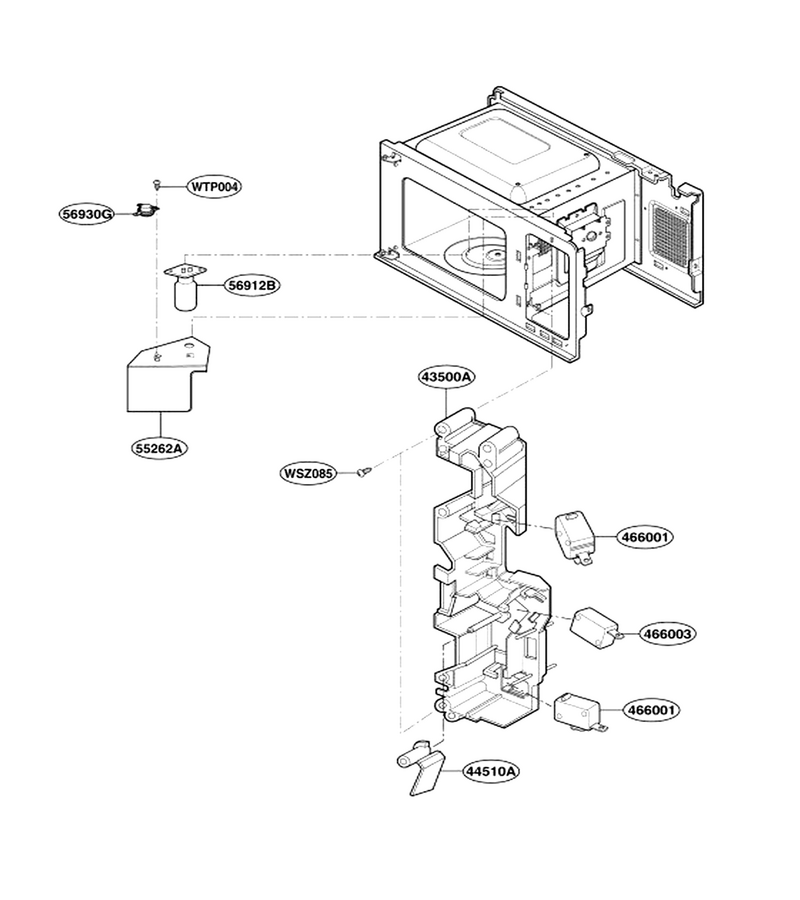

Latch Board Parts

...
...
WTP004
Screw L-G-1TPL0302418
...
WSZ085
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
43500A
Holder,locker L-G-3500W1A029A
...
44510A
Lever L-G-4510W3A012A
...
55262A
Duct L-G-5208W1A030A
...
56912B
Lamp,incandescent L-G-6912W3B002K
...
56930G
Thermostat L-G-6930W1A004M
...
466001
Switch,micro L-G-6600W1K001D
...
466003
Microwave Door Interlock Switch L-G-6600W1K001C

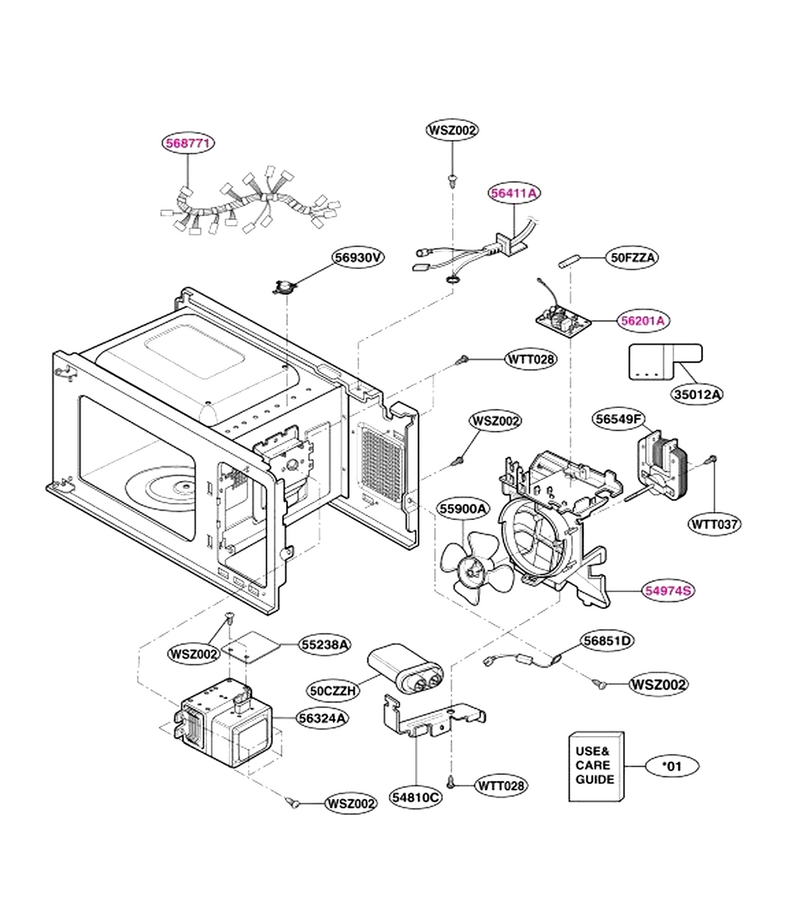

Interior Parts (i)

...
...
WTT037
Microwave Tapping Screw L-G-1TTL0403818
...
WTT028
Microwave Screw L-G-1TTL0402818
...
*01
Manual,owners L-G-3828W5A8158
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
50CZZH
Capacitor,high Voltage L-G-0CZZW1H001L
...
50FZZA
Fuse,time Delay L-G-3B74133P
...
35012A
Insulator L-G-5012W3A015B
...
54810C
Bracket,capacitor L-G-4810W1A253A
...
54974S
Guide,suction L-G-4974W1A030A
...
55238A
Guide,air L-G-4974W1A042A
...
55900A
Microwave Cooling Fan Blade L-G-5900W1A004A
...
56324A
Magnetron L-G-3B71077E
...
56411A
Power Cord Assembly L-G-6411W1A032D
...
56549F
Microwave Cooling Fan Motor L-G-6549W1F005B
...
56820A
Holder L-G-4930W3B025B
...
56851D
Microwave High-Voltage Diode L-G-6851W1A002B
...
568771
Harness L-G-6877W1A541A

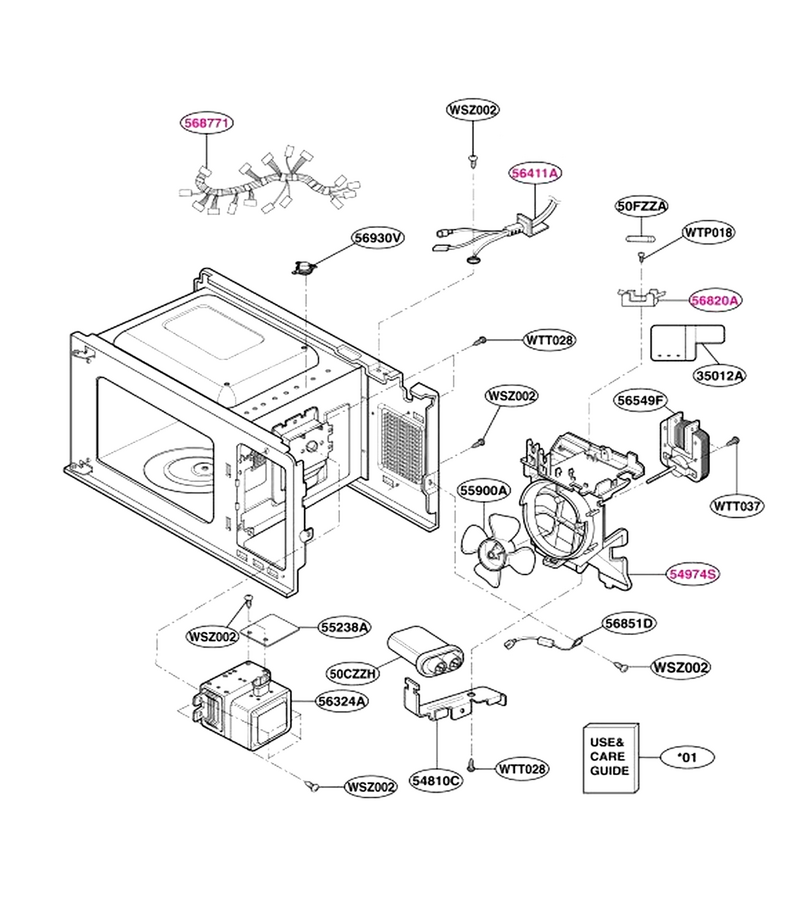

Interior Parts (ii)

...
...
WTT037
Microwave Tapping Screw L-G-1TTL0403818
...
WTT028
Microwave Screw L-G-1TTL0402818
...
*01
Manual,owners L-G-3828W5A8158
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
50CZZH
Capacitor,high Voltage L-G-0CZZW1H001L
...
50FZZA
Fuse,time Delay L-G-3B74133P
...
35012A
Insulator L-G-5012W3A015B
...
54810C
Bracket,capacitor L-G-4810W1A253A
...
54974S
Guide,suction L-G-4974W1A030A
...
55238A
Guide,air L-G-4974W1A042A
...
55900A
Microwave Cooling Fan Blade L-G-5900W1A004A
...
56324A
Magnetron L-G-3B71077E
...
56411A
Power Cord Assembly L-G-6411W1A032D
...
56549F
Microwave Cooling Fan Motor L-G-6549W1F005B
...
56851D
Microwave High-Voltage Diode L-G-6851W1A002B
...
56930V
Thermostat L-G-6930W3A001E
...
568771
Harness L-G-6877W1A541A

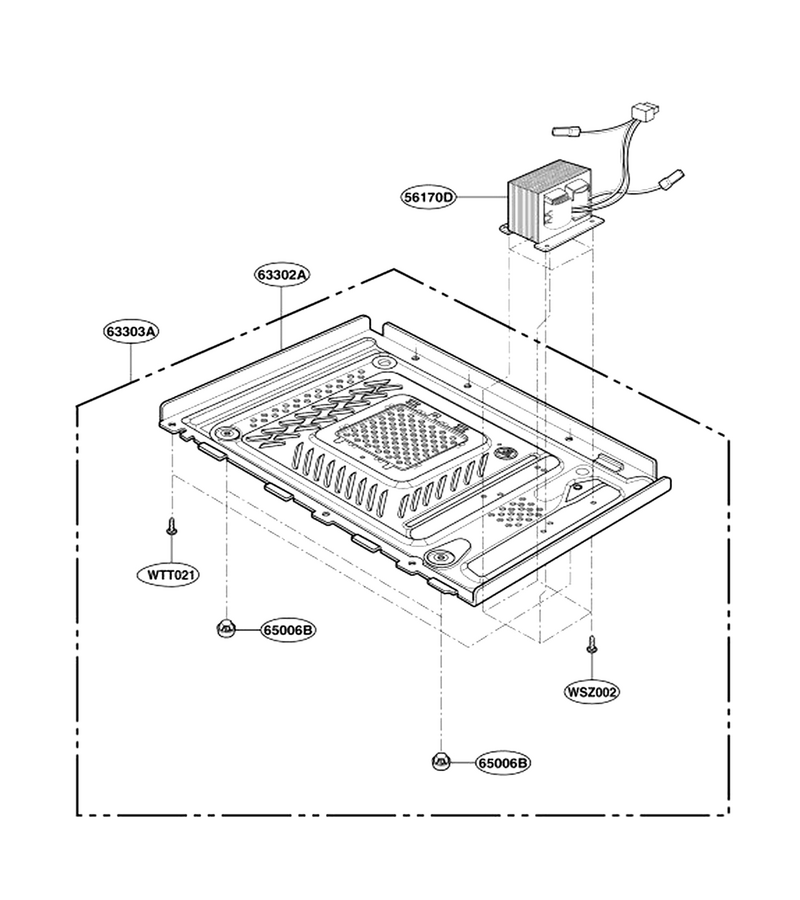

Base Plate Parts

...
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
WTT021
Microwave Screw L-G-1TTL0402418
...
56170D
Transformer,high Voltage L-G-6170W1D091B
...
63302A
Plate,base L-G-3302W0A052B
...
63303A
Plate Assembly,base L-G-3303W1A067C
...
65006B
Microwave Foot (white) L-G-5006W3A019A
