product name

LG JES1656SJ.CSTEGEU

Model: JES1656SJ.CSTEGEU

Save Part Not Listed?
product name

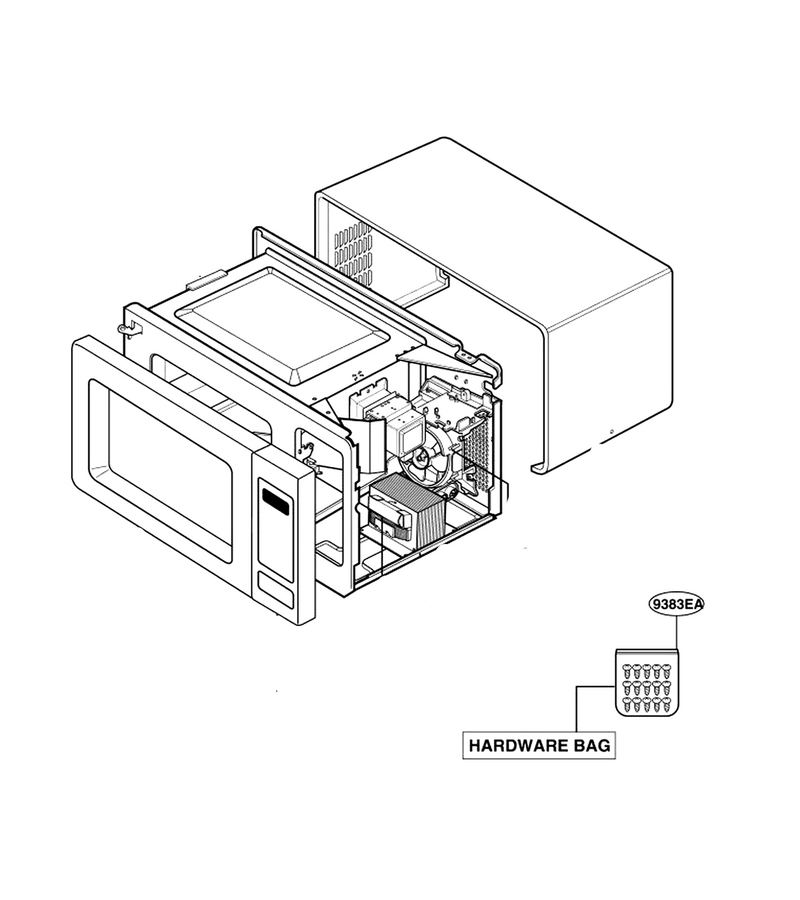

Main

...
...
9383EA
Parts Assembly L-G-383EW1A081A

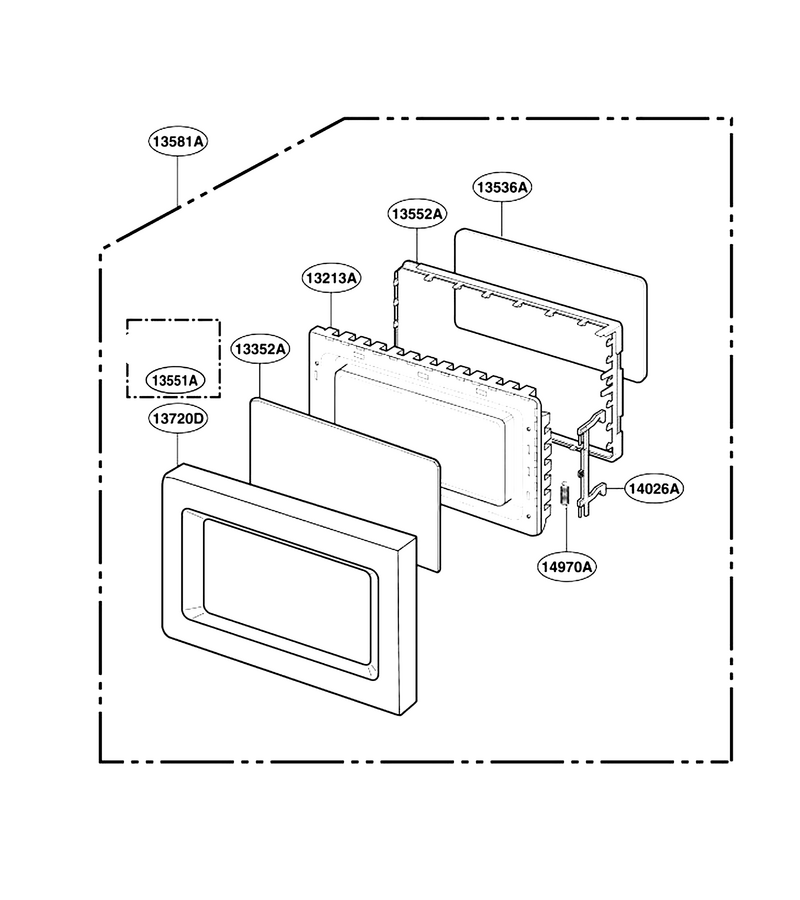

Door Parts

...
...
13213A
Frame Assembly,door L-G-3213W0A006D
...
13352A
Window,screen L-G-3352W1A141A
...
13536A
Tape,sealing L-G-3536W1A005A
...
13551A
Parts Assembly L-G-383EW5A220A
...
13552A
Cover,choke L-G-3552W0A006B
...
13581A
Door Assembly L-G-3581W1A392G
...
14026A
Latch L-G-4026W2A016A
...
14970A
Spring L-G-4970WRA001D

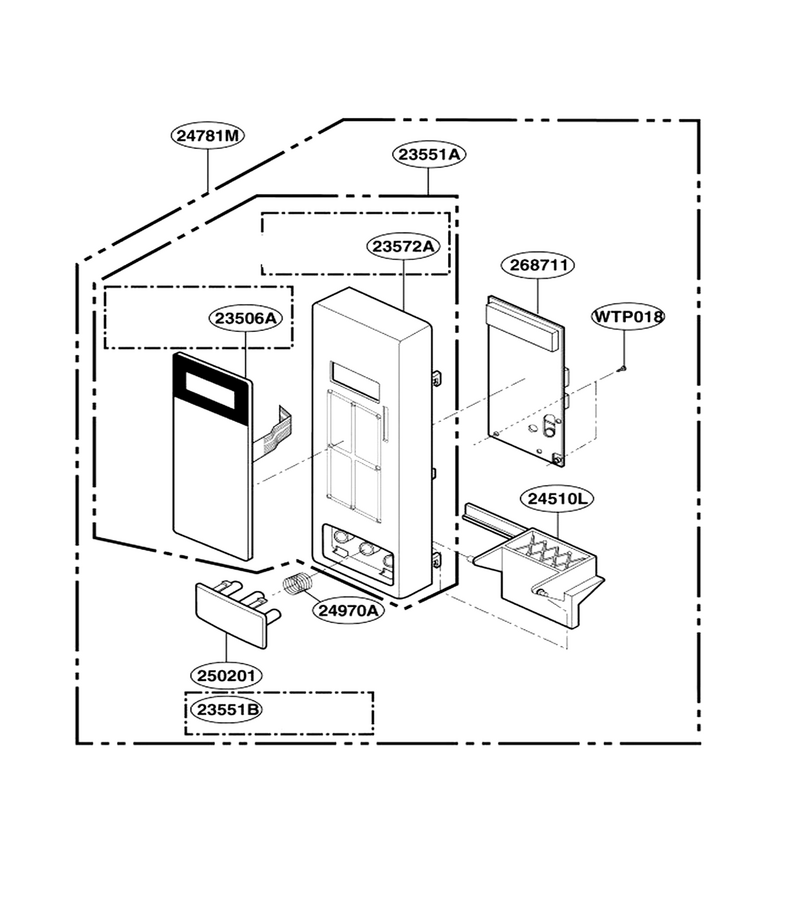

Control Panel Parts

...
...
WTP018
Screw L-G-1TPL0402818
...
23551A
Parts Assembly L-G-383EW5A221A
...
23551B
Parts Assembly L-G-383EW5A222A
...
24510L
Lever L-G-4510W3L003A
...
24781M
Controller Assembly,keypad L-G-4781W1M340G
...
24970A
Microwave Door Release Button Spring L-G-4B72023B
...
268711
Pcb Assembly,main L-G-EBR31507902

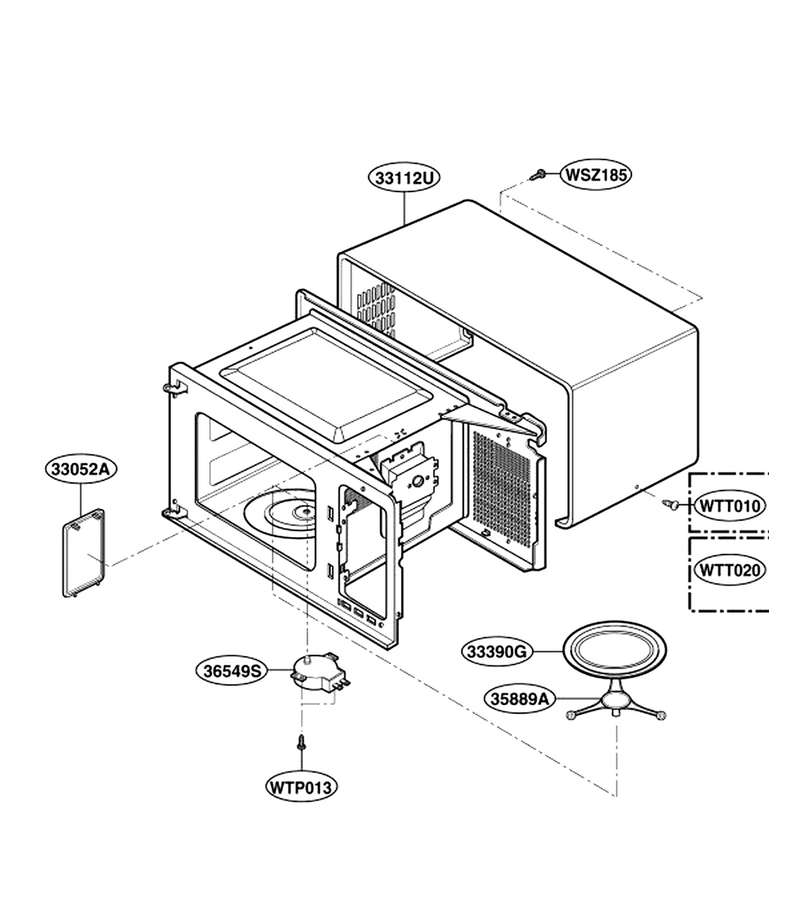

Oven Cavity Parts

...
...
WSZ185
Screw L-G-1SZZW2A002A
...
WTP013
Microwave Screw L-G-1TPL0402418
...
WTT010
Microwave Screw L-G-1TTG0402422
...
33052A
Canopy L-G-3052W2A021A
...
33112U
Case,flat L-G-3112W1F065A
...
33390G
Microwave Glass Tray L-G-3390W1A012D
...
35889A
Microwave Turntable Tray Support L-G-5889W1A003B
...
36549S
Microwave Turntable Motor L-G-6549W1S011B

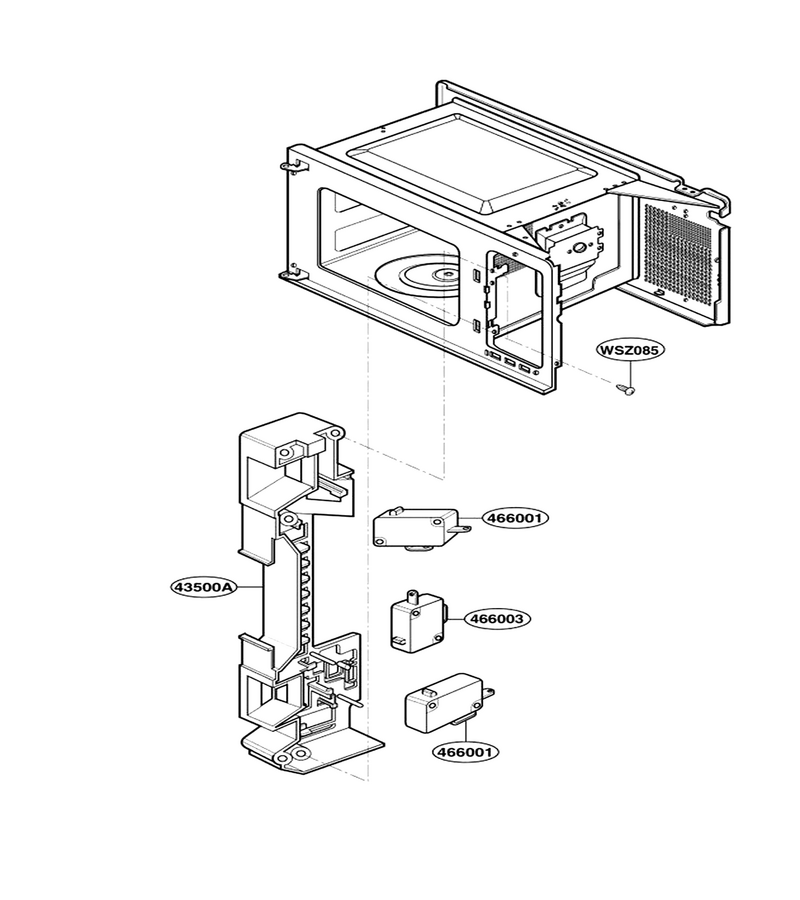

Latch Board Parts

...
...
WSZ085
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
43500A
Microwave Latch Board L-G-3500W1A018A
...
466001
Switch,micro L-G-6600W1K001D
...
466003
Microwave Door Interlock Switch L-G-6600W1K001C

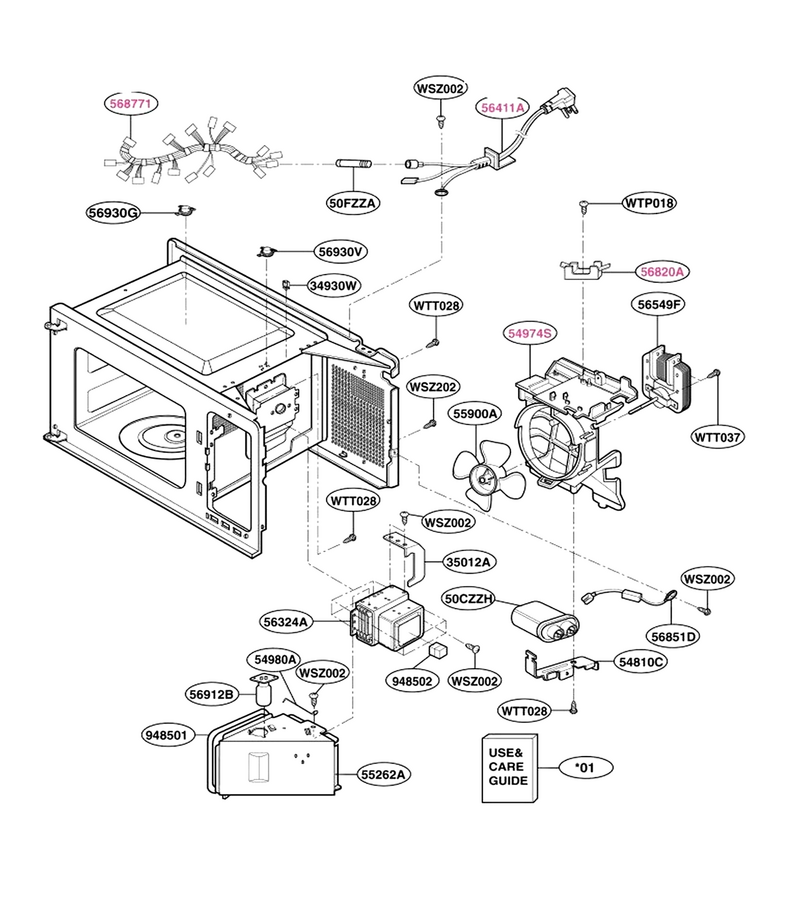

Interior Parts (1)

...
...
WTP018
Screw L-G-1TPL0402818
...
WTT037
Microwave Tapping Screw L-G-1TTL0403818
...
WTT028
Microwave Screw L-G-1TTL0402818
...
WSZ202
Screw,customized L-G-1SZZW2A002D
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
*01
Manual,owners L-G-3828W5A3371
...
50CZZH
Microwave High-Voltage Capacitor L-G-0CZZW1H005A
...
50FZZA
Fuse[all] L-G-3B74133K
...
34930W
Holder L-G-4930W3B029A
...
35012A
Insulator L-G-5012W3A020C
...
54810C
Bracket L-G-4810W4C003B
...
54974S
Guide L-G-4974W0A003B
...
54980A
Supporter L-G-4980W3A038B
...
55262A
Duct L-G-5208W1A017A
...
55900A
Microwave Cooling Fan Blade L-G-5900W1A007B
...
56324A
Microwave Magnetron L-G-6324W1A001A
...
56411A
Power Cord Assembly L-G-6411W1A031J
...
56549F
Motor,ac Fan L-G-6549W1F009C
...
56820A
Holder L-G-4930W3B025B
...
56851D
Microwave High-Voltage Diode L-G-6851W1A002B
...
56912B
Microwave Light Bulb L-G-6912W3B002L
...
56930G
Thermostat L-G-6930W1A002H
...
56930V
Thermostat L-G-6930W1A004K
...
568771
Harness,single L-G-6877W1A482E
...
948501
Damper L-G-4850W1A001H
...
948502
Cushion L-G-3B72244C

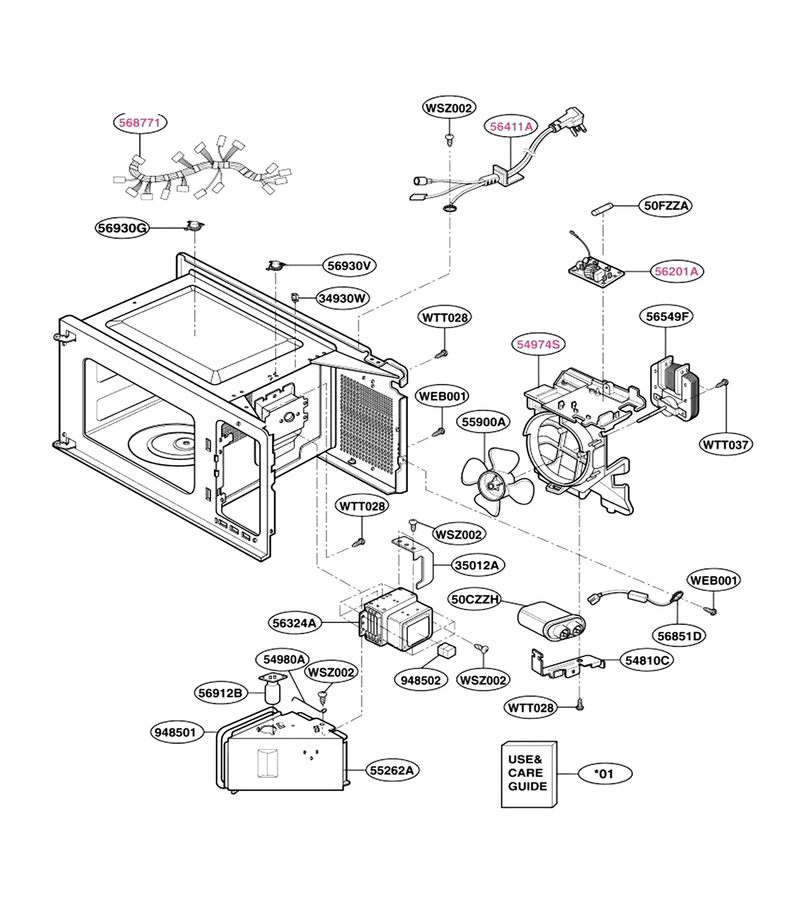

Interior Parts (2)

...
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
WTT037
Microwave Tapping Screw L-G-1TTL0403818
...
WTT028
Microwave Screw L-G-1TTL0402818
...
*01
Manual,owners L-G-3828W5A3371
...
50CZZH
Microwave High-Voltage Capacitor L-G-0CZZW1H005A
...
50FZZA
Fuse[all] L-G-3B74133K
...
34930W
Holder L-G-4930W3B029A
...
35012A
Insulator L-G-5012W3A020C
...
54810C
Bracket L-G-4810W4C003B
...
54974S
Guide L-G-4974W0A003B
...
54980A
Supporter L-G-4980W3A038B
...
55262A
Duct L-G-5208W1A017A
...
55900A
Microwave Cooling Fan Blade L-G-5900W1A007B
...
56324A
Microwave Magnetron L-G-6324W1A001A
...
56411A
Power Cord Assembly L-G-6411W1A031J
...
56549F
Motor,ac Fan L-G-6549W1F009C
...
56851D
Microwave High-Voltage Diode L-G-6851W1A002B
...
56912B
Microwave Light Bulb L-G-6912W3B002L
...
56930G
Thermostat L-G-6930W1A002H
...
56930V
Thermostat L-G-6930W1A004K
...
568771
Harness,single L-G-6877W1A482E
...
948501
Damper L-G-4850W1A001H
...
948502
Cushion L-G-3B72244C

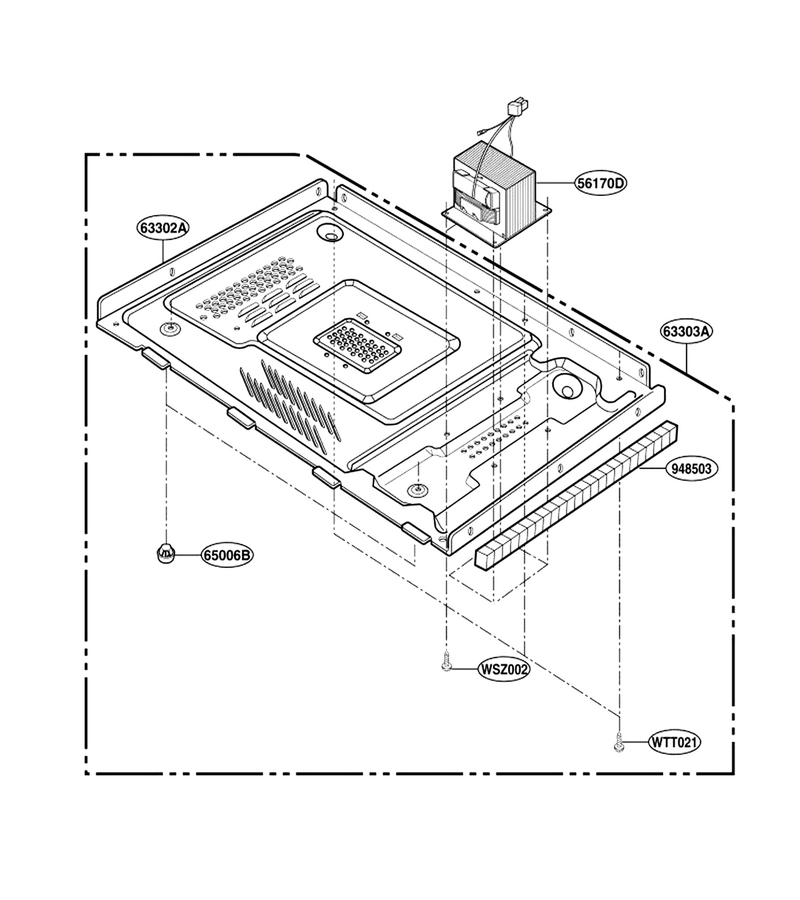

Base Plate Parts

...
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
WTT021
Microwave Screw L-G-1TTL0402418
...
56170D
Transformer,high Voltage L-G-6170W1D077C
...
63302A
Plate,base L-G-3302W0A035B
...
63303A
Plate Assembly,base L-G-3303W0A017C
...
65006B
Microwave Foot (white) L-G-5006W3A019A
...
948503
Cushion L-G-4850W1A001F

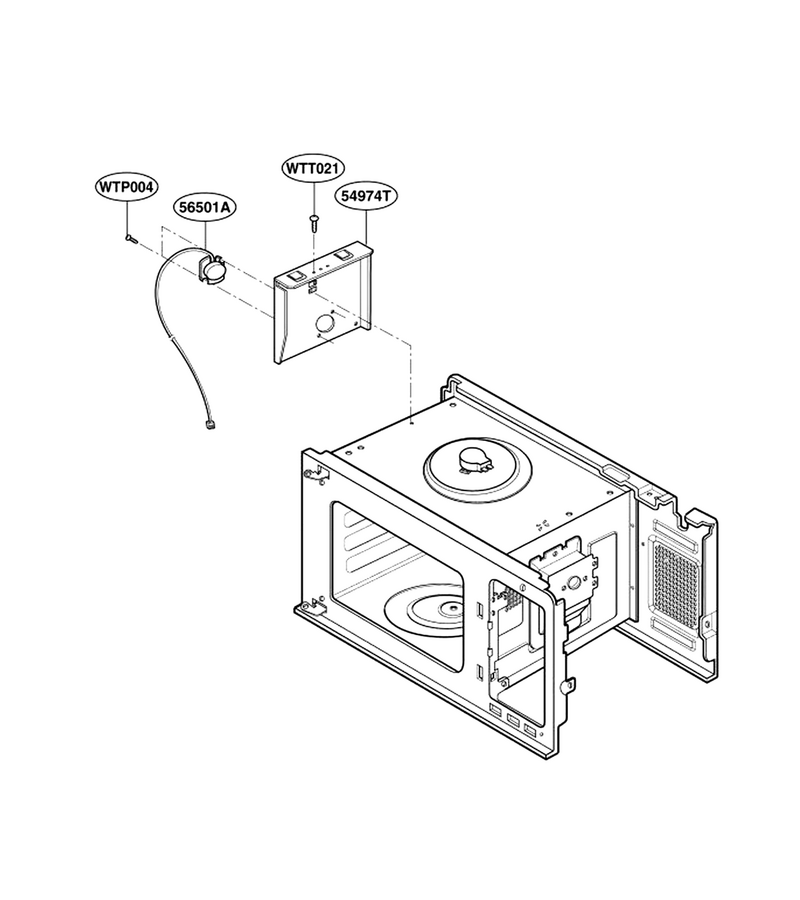

Sensor Parts

...
...
WTP004
Screw L-G-1TPL0302418
...
WTT021
Microwave Screw L-G-1TTL0402418
...
54974T
Duct L-G-5208W1A014B
...
56501A
Microwave Humidity Sensor L-G-6501W1A006A
