product name

LG JE1860WH.CWHEGEU

Model: JE1860WH.CWHEGEU

Save Part Not Listed?
product name

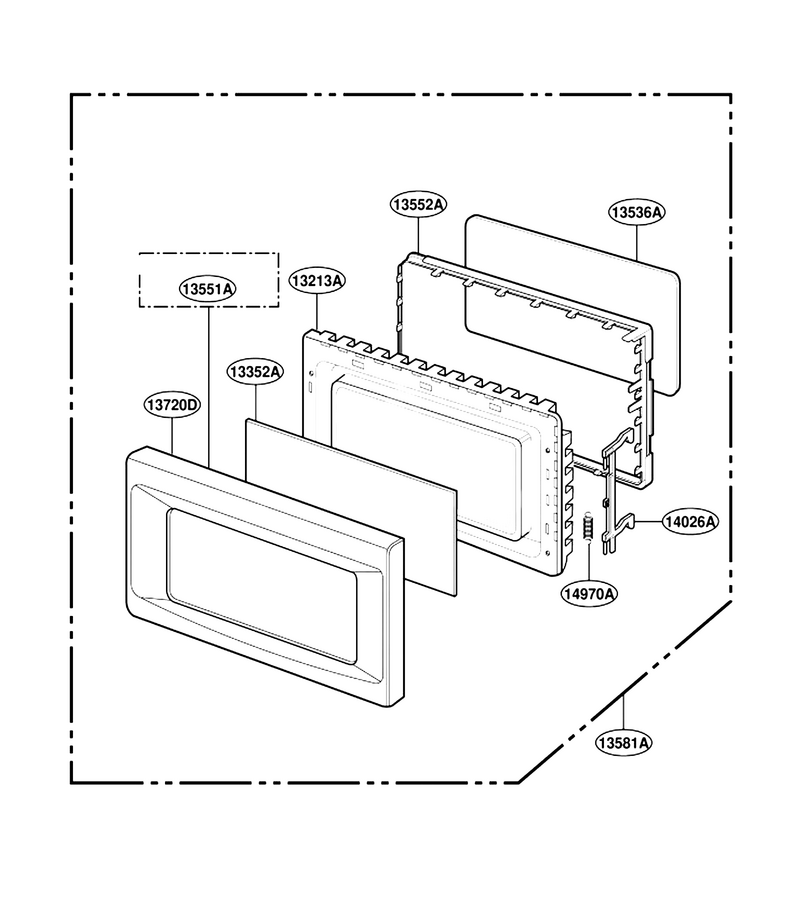

Door Parts

...
...
13213A
Frame Assembly,door L-G-3213W0A001K
...
13352A
Window,screen L-G-3352W1A151C
...
13536A
Seal Tape L-G-3536W1A009A
...
13552A
Microwave Choke Cover L-G-3552W1A035B
...
13581A
Door Assembly L-G-3581W1A436M
...
13720D
Panel,door L-G-3720W1D112H
...
14026A
Latch L-G-4026W2A016A
...
14970A
Spring L-G-4970WRA001B

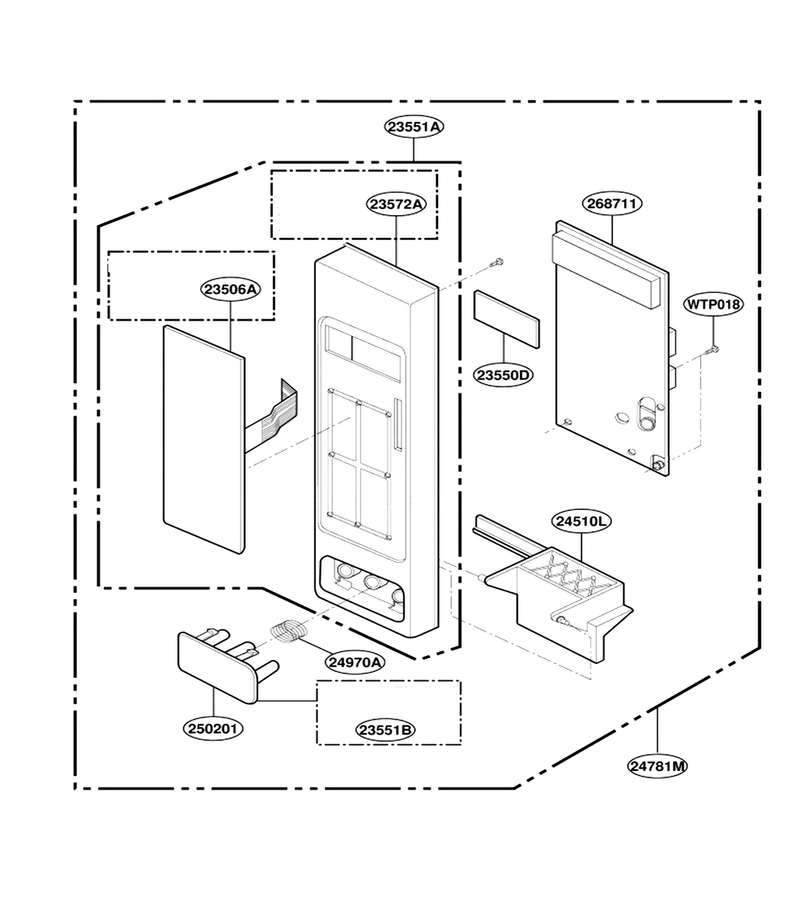

Controller Parts

...
...
WTP018
Screw L-G-1TPL0402818
...
23506A
Membrane L-G-6638W2A258D
...
23550D
Cover L-G-3550W4A029L
...
23572A
Panel,control L-G-3572W1A154L
...
24510L
Lever L-G-4510W3L003A
...
24781M
Controller Assembly,keypad L-G-4781W1M364P
...
250201
Button L-G-5020W2A102G
...
268711
Pcb Assembly,sub L-G-6871W1S068T

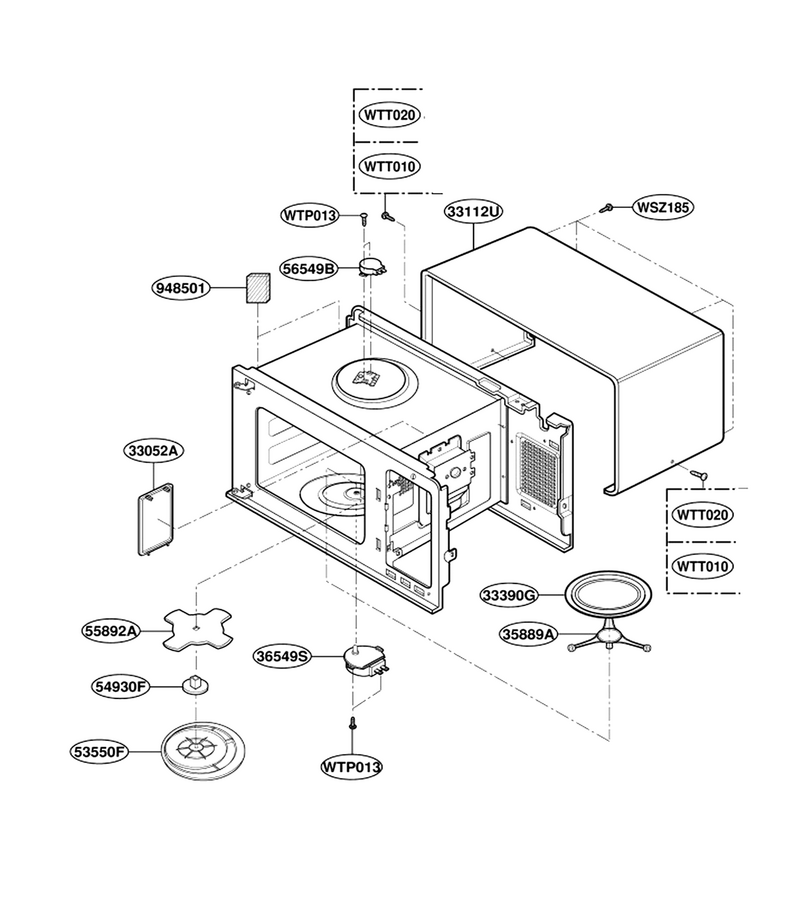

Oven Cavity Parts

...
...
WSZ185
Screw L-G-1SZZW2A002A
...
WTP013
Microwave Screw L-G-1TPL0402418
...
WTT010
Microwave Screw L-G-1TTG0402422
...
33052A
Canopy L-G-3052W2A021A
...
33112U
Case,u Bending L-G-3112W0U072B
...
33390G
Tray,glass L-G-3390W1G009D
...
35889A
Microwave Turntable Tray Support L-G-5889W2A014D
...
36549S
Microwave Turntable Motor L-G-6549W1S011B
...
53550F
Cover,stirrer Fan L-G-3550W1A211A
...
54930F
Holder,stirrer Fan L-G-4930W1A052A
...
55892A
Fan L-G-5892W3A002B
...
56549B
Motor(circ),synchronous L-G-6549W1S002D
...
948501
Cushion L-G-3B72244C

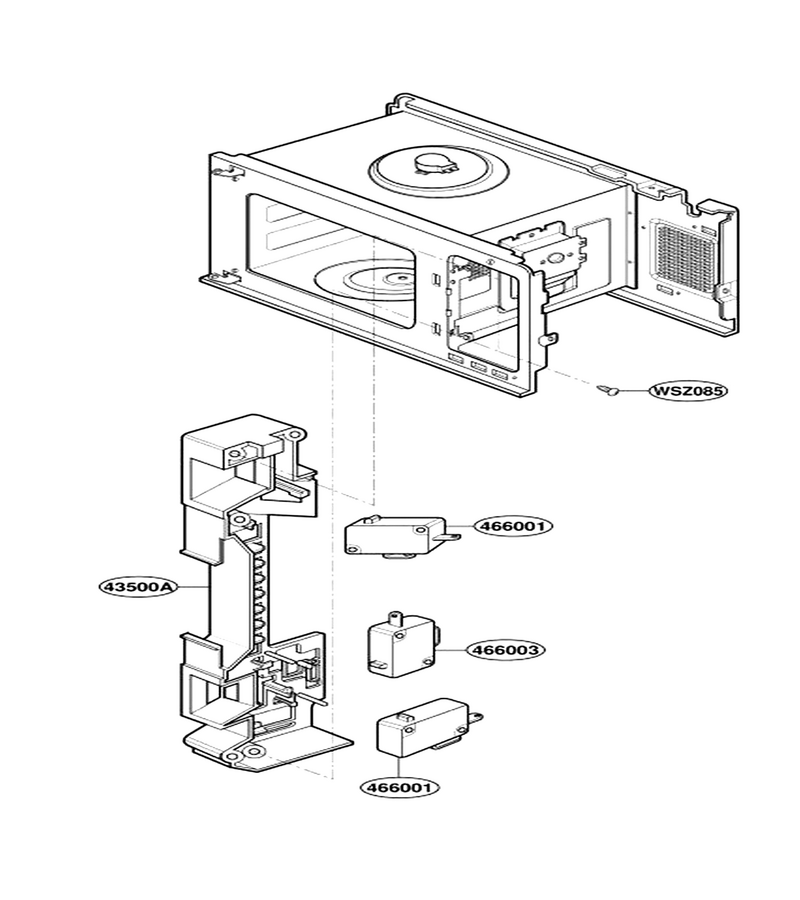

Latch Board Parts

...
...
WSZ085
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
43500A
Microwave Latch Board L-G-3500W1A018A
...
466001
Switch,micro L-G-6600W1K001D
...
466003
Microwave Door Interlock Switch L-G-6600W1K001C

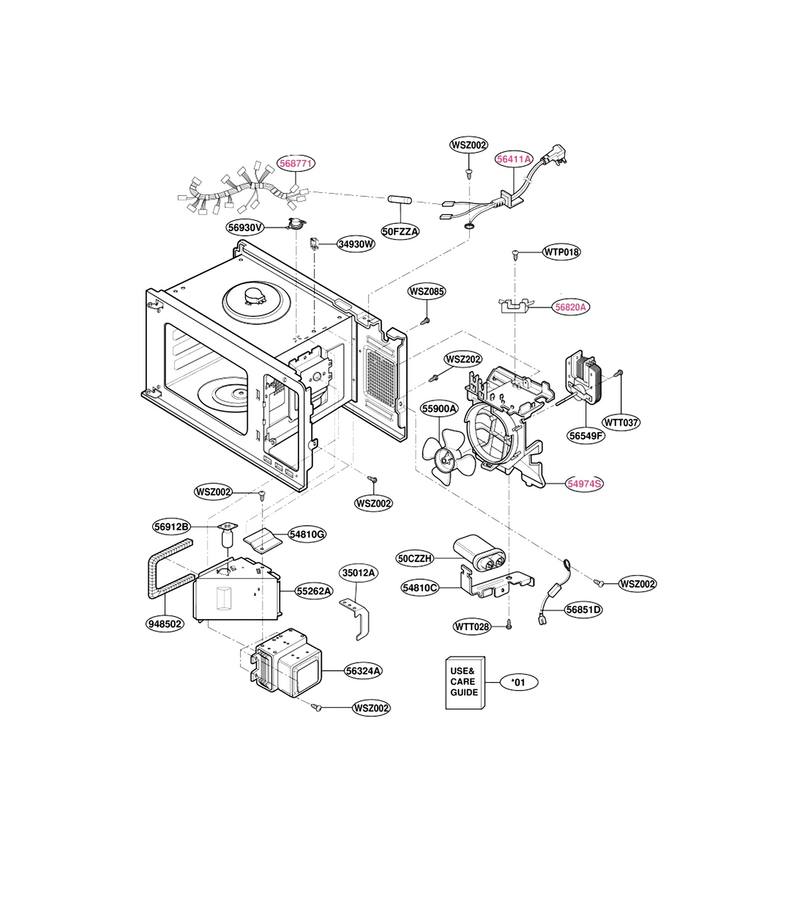

Interior Parts (i)

...
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
WSZ085
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
WSZ202
Screw,customized L-G-1SZZW2A002D
...
WTP018
Screw L-G-1TPL0402818
...
WTT028
Microwave Screw L-G-1TTL0402818
...
WTT037
Microwave Tapping Screw L-G-1TTL0403818
...
1
Manual,owners L-G-3828W5A3850
...
50CZZH
Microwave High-Voltage Capacitor L-G-0CZZW1H004C
...
50FZZA
Fuse[all] L-G-3B74133K
...
34930W
Holder L-G-4B72944B
...
35012A
Insulator L-G-5012W3A020C
...
54810C
Bracket L-G-4810W4C003B
...
54810G
Bracket,idle L-G-4810W2G052B
...
54974S
Stirrer Cover L-G-4974W1S048B
...
55262A
Duct L-G-5208W1A017A
...
55900A
Microwave Cooling Fan Blade L-G-5900W1A004A
...
56324A
Magnetron L-G-6324W1A001L
...
56411A
Power Cord Assembly L-G-6411W1A033J
...
56549F
Microwave Cooling Fan Motor L-G-6549W1F005B
...
56820A
Holder L-G-4930W3B025B
...
56851D
Cable,assembly L-G-6021W3B001G
...
56912B
Microwave Light Bulb L-G-6912W3B002L
...
56930V
Thermostat L-G-6930W1A001G
...
568771
Harness,single L-G-6877W1A536B
...
948502
Cushion L-G-3B72244T

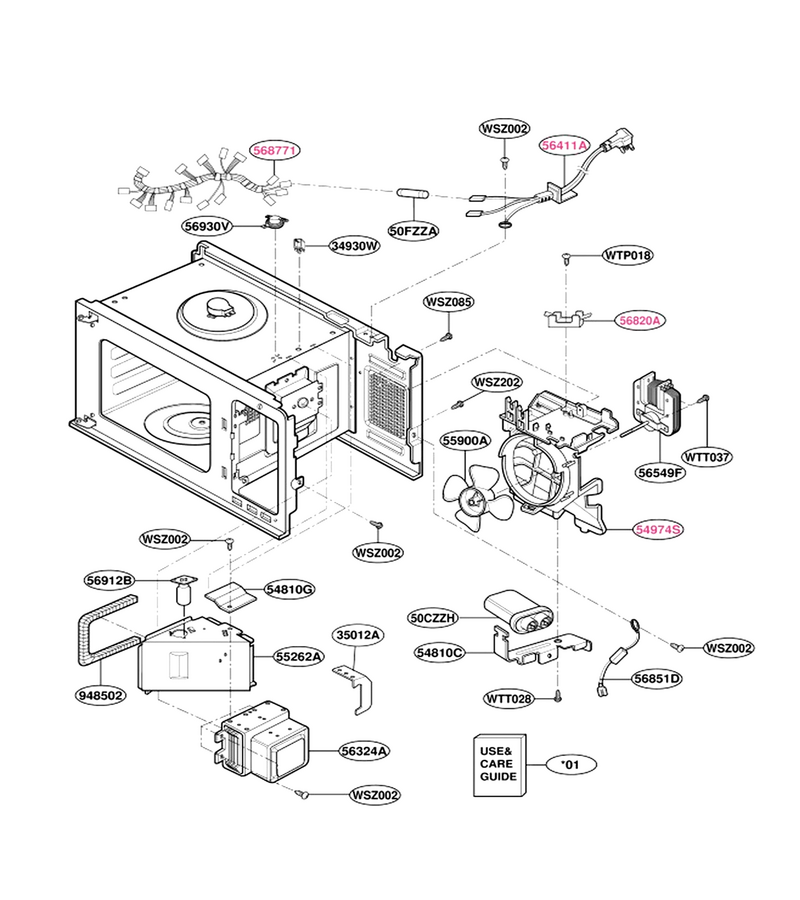

Interior Parts (ii)

...
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
WSZ085
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
WSZ202
Screw,customized L-G-1SZZW2A002D
...
WTP018
Screw L-G-1TPL0402818
...
WTT028
Microwave Screw L-G-1TTL0402818
...
WTT037
Microwave Tapping Screw L-G-1TTL0403818
...
1
Manual,owners L-G-3828W5A3850
...
50CZZH
Microwave High-Voltage Capacitor L-G-0CZZW1H004C
...
50FZZA
Fuse[all] L-G-3B74133K
...
34930W
Holder L-G-4B72944B
...
35012A
Insulator L-G-5012W3A020C
...
54810C
Bracket L-G-4810W4C003B
...
54810G
Bracket,idle L-G-4810W2G052B
...
54974S
Stirrer Cover L-G-4974W1S048B
...
55262A
Duct L-G-5208W1A017A
...
55900A
Microwave Cooling Fan Blade L-G-5900W1A004A
...
56324A
Magnetron L-G-6324W1A001L
...
56411A
Power Cord Assembly L-G-6411W1A033J
...
56549F
Microwave Cooling Fan Motor L-G-6549W1F005B
...
56820A
Holder L-G-4930W3B025B
...
56851D
Cable,assembly L-G-6021W3B001G
...
56912B
Microwave Light Bulb L-G-6912W3B002L
...
56930V
Thermostat L-G-6930W1A001G
...
568771
Harness,single L-G-6877W1A536B
...
948502
Cushion L-G-3B72244T

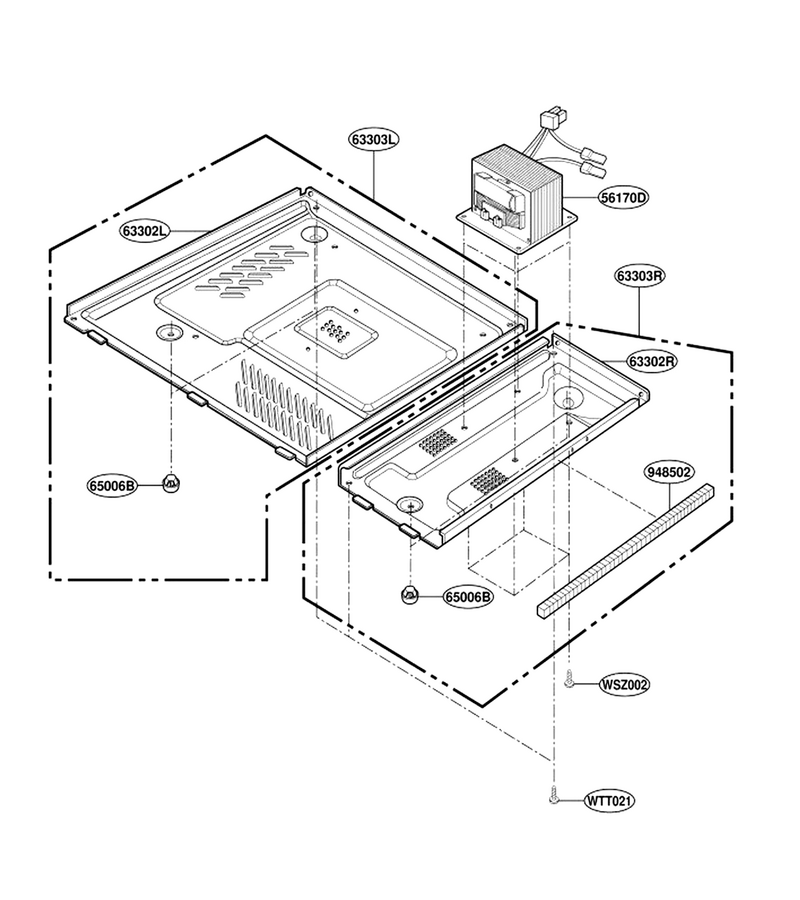

Base Plate Parts

...
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
WTT021
Microwave Screw L-G-1TTL0402418
...
56170D
Transformer L-G-6170W1D023K
...
63302L
Base Plate L-G-3302W0A014B
...
63302R
Plate,base L-G-3302W1A046D
...
63303L
Plate Assembly L-G-3303W0A010C
...
63303R
Plate Assembly,base L-G-3303W1A040D
...
65006B
Microwave Foot (white) L-G-5006W3A019A
...
948502
Cushion L-G-3B72244T

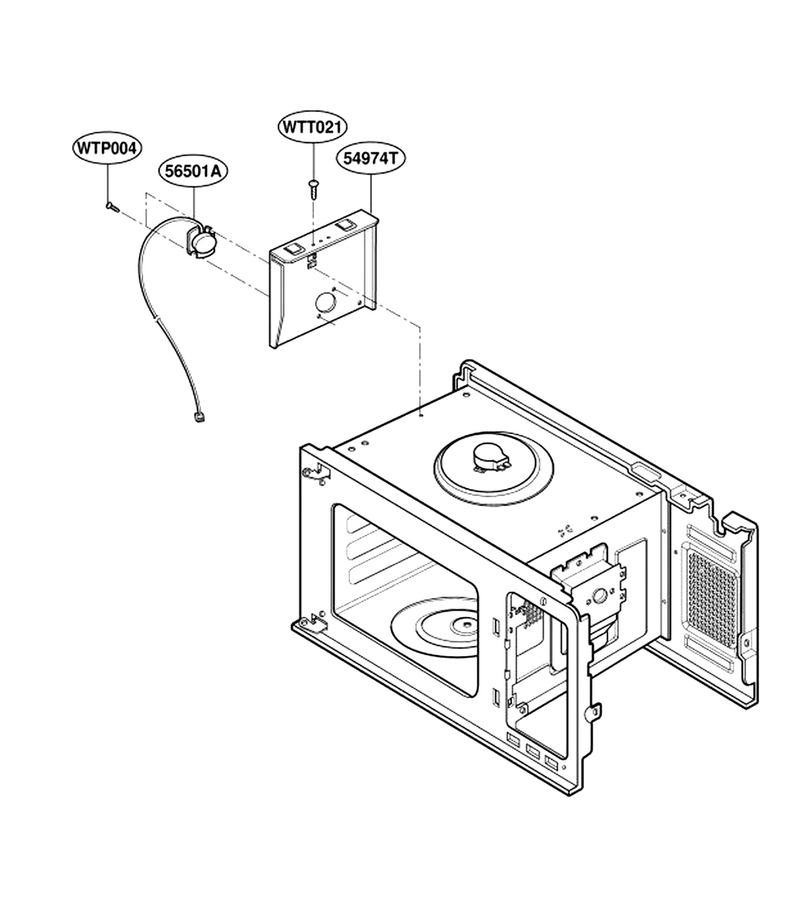

Sensor Parts

...
...
WTT021
Microwave Screw L-G-1TTL0402418
...
54974T
Guide,sensor L-G-4974W1A033B
...
56501A
Humidity Sensor L-G-6501W1A004A

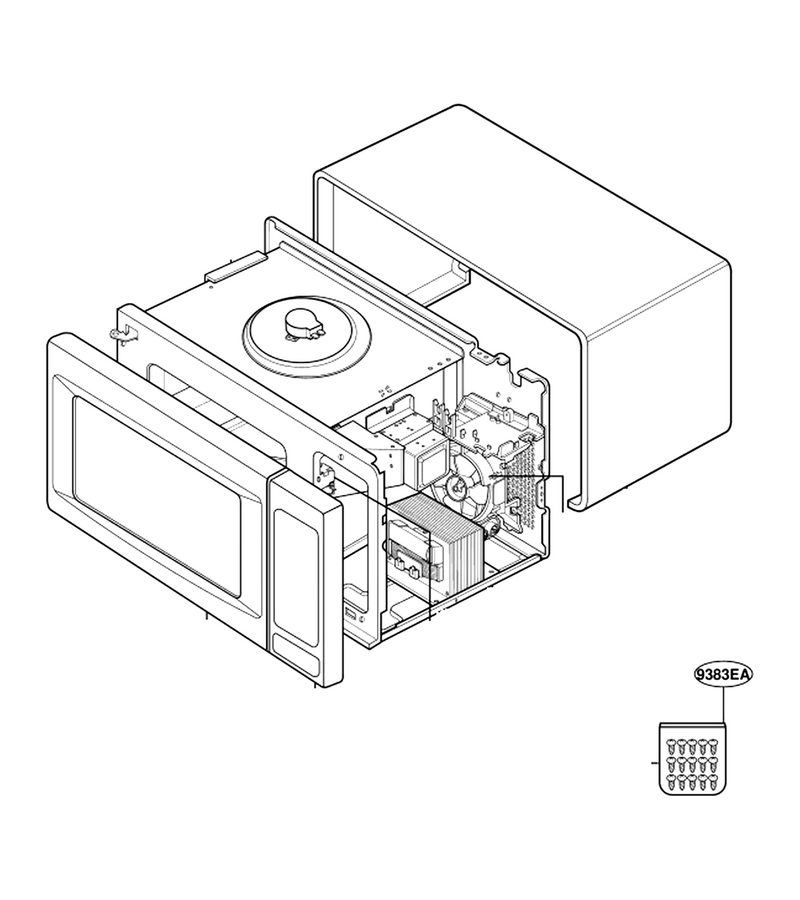

Main

...
...
9383EA
Parts Assembly L-G-383EW1A081A
