product name

LG JE1860CH.AT4EGEU

Model: JE1860CH.AT4EGEU

Save Part Not Listed?
product name

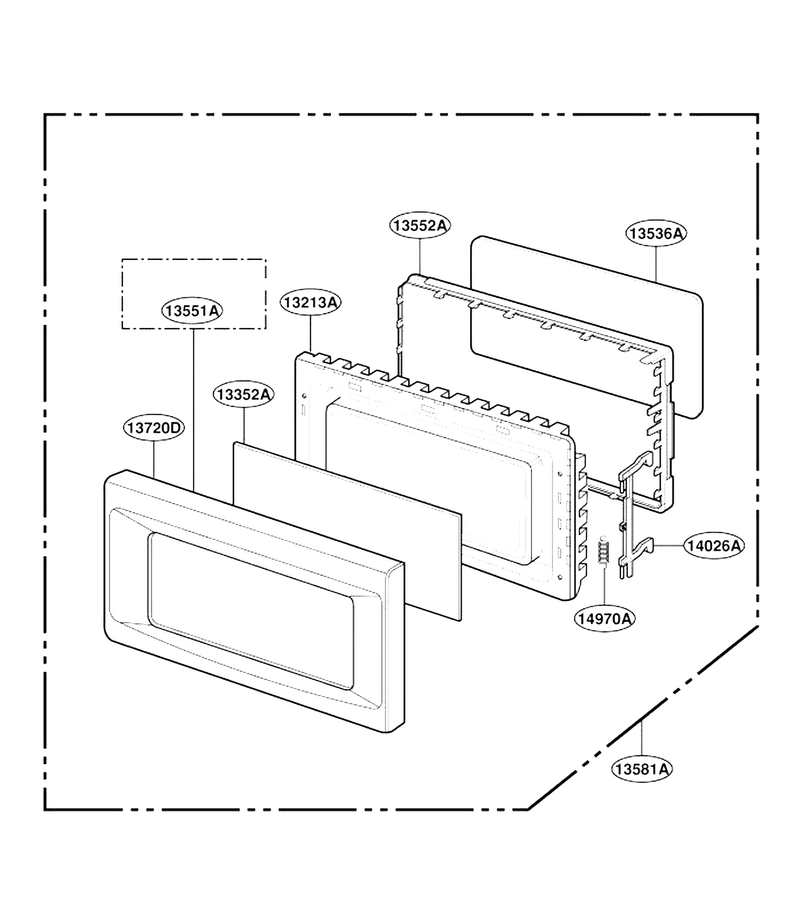

Door Parts

...
...
13213A
Frame Assembly,door L-G-3213W0A001H
...
13352A
Window,screen L-G-3352W1A092F
...
13536A
Seal Tape L-G-3536WRA001Q
...
13552A
Microwave Choke Cover L-G-3552W1A035A
...
13581A
Door Assembly L-G-3581W1A270S
...
13720D
Panel,door L-G-3720W1D112C
...
14026A
Latch L-G-4026W2A012A
...
14970A
Spring L-G-4970WRA001B

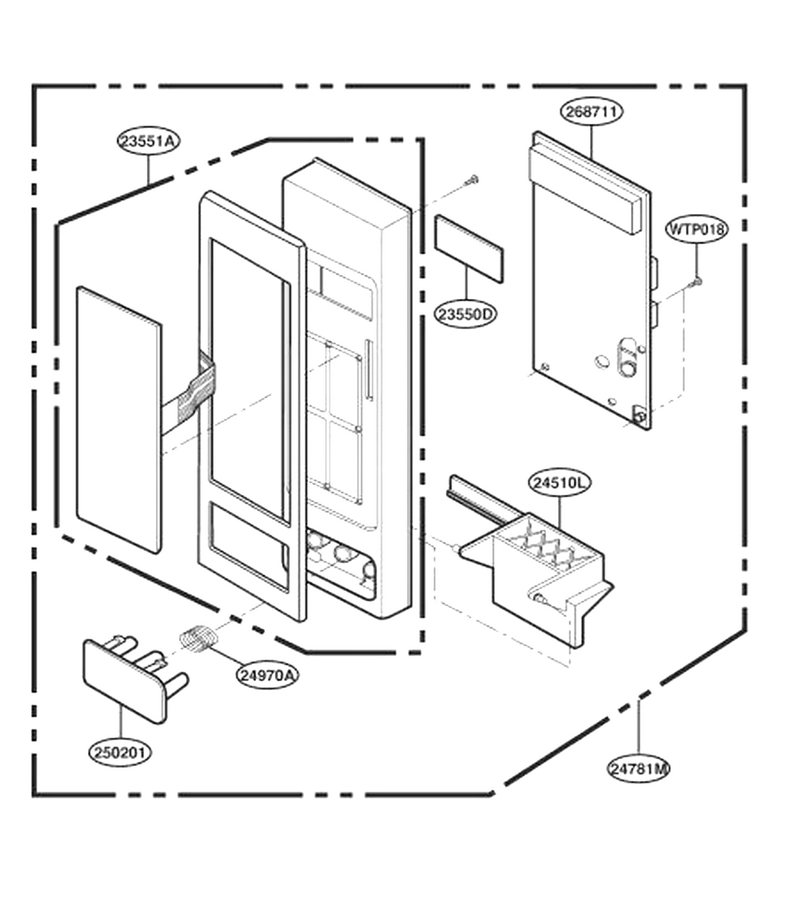

Control Panel Parts

...
...
WTP018
Screw L-G-1TPL0402818
...
23550D
Microwave Cover L-G-3550W4A029B
...
24510L
Lever L-G-4510W3L002A
...
24781M
Controller Assembly,keypad L-G-4781W1M299H
...
24970A
Microwave Door Release Button Spring L-G-4B72023A
...
250201
Button L-G-5020W2A102D
...
268711
Pcb Assembly,sub L-G-6871W1S068F

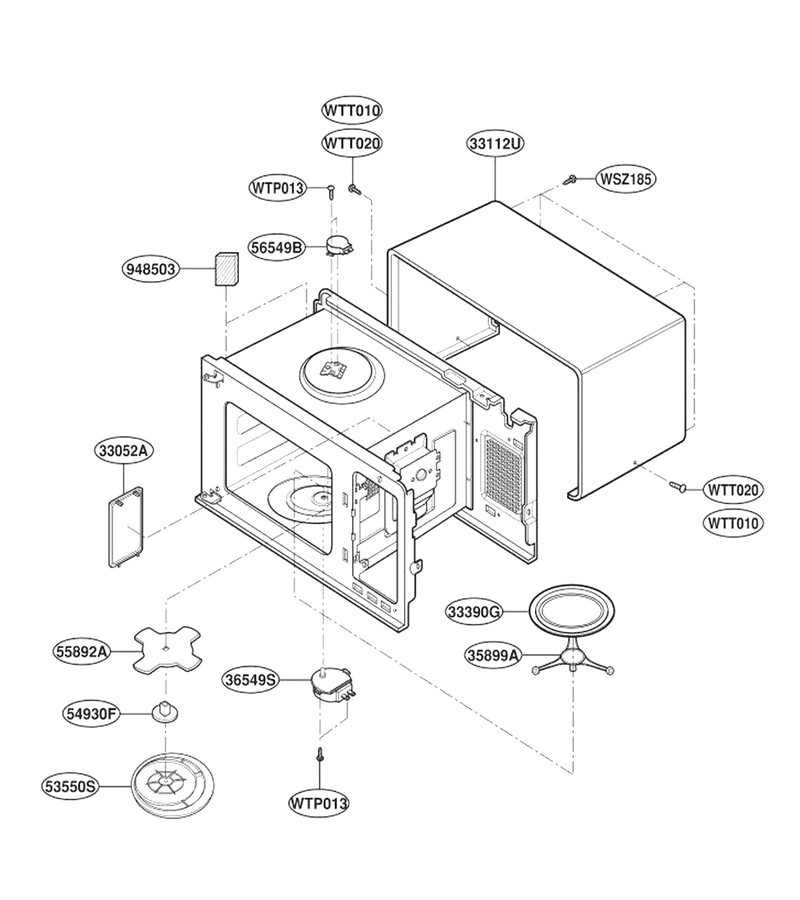

Oven Cavity Parts

...
...
WTT010
Microwave Screw L-G-1TTG0402422
...
WTP013
Microwave Screw L-G-1TPL0402418
...
WSZ185
Screw L-G-1SZZW2A002A
...
33052A
Canopy L-G-3052W3A015A
...
33112U
Case,u Bending L-G-3112W0U028Q
...
33390G
Microwave Glass Turntable Tray L-G-3390W1G009C
...
36549S
Motor L-G-6549W1S015A
...
53550S
Stirrer Cover L-G-3550W1A077A
...
54930F
Holder,stirrer Fan L-G-4930W3B026C
...
55892A
Fan L-G-5892W3A002B
...
56549B
Motor(circ),synchronous L-G-6549W1S002D
...
948503
Cushion L-G-3B72244C

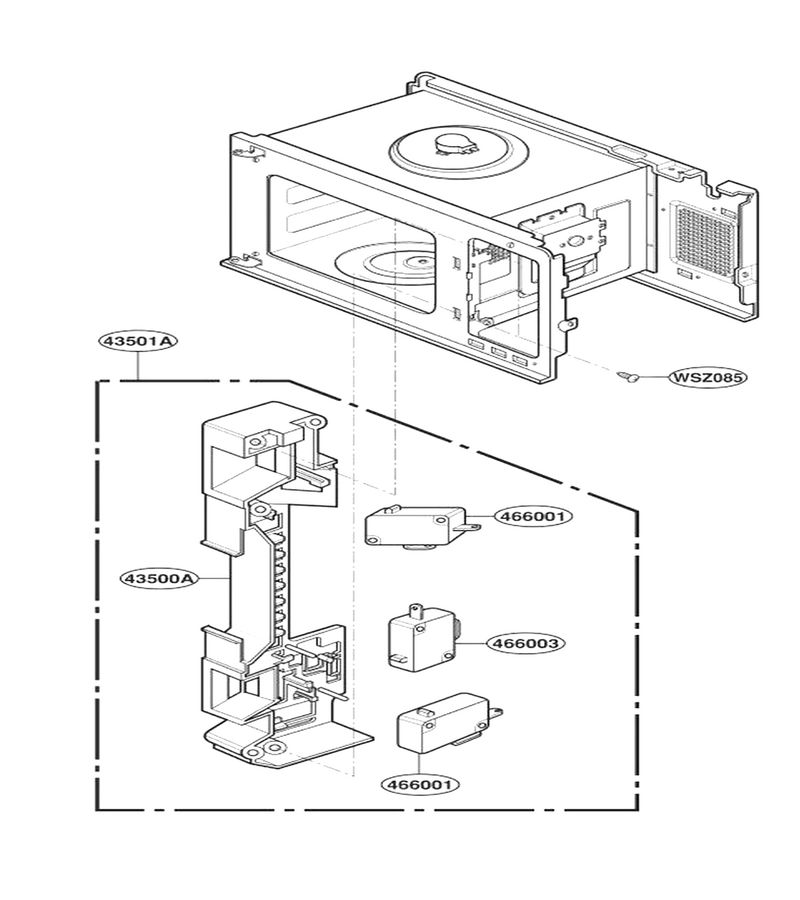

Latch Board Parts

...
...
WSZ085
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
43500A
Latch Board L-G-3500W1A008A
...
43501A
Holder Assembly,locker L-G-3501W1A003S
...
466001
Microwave Micro Switch L-G-3B73362F
...
466003
Switch Micro L-G-3B73361E

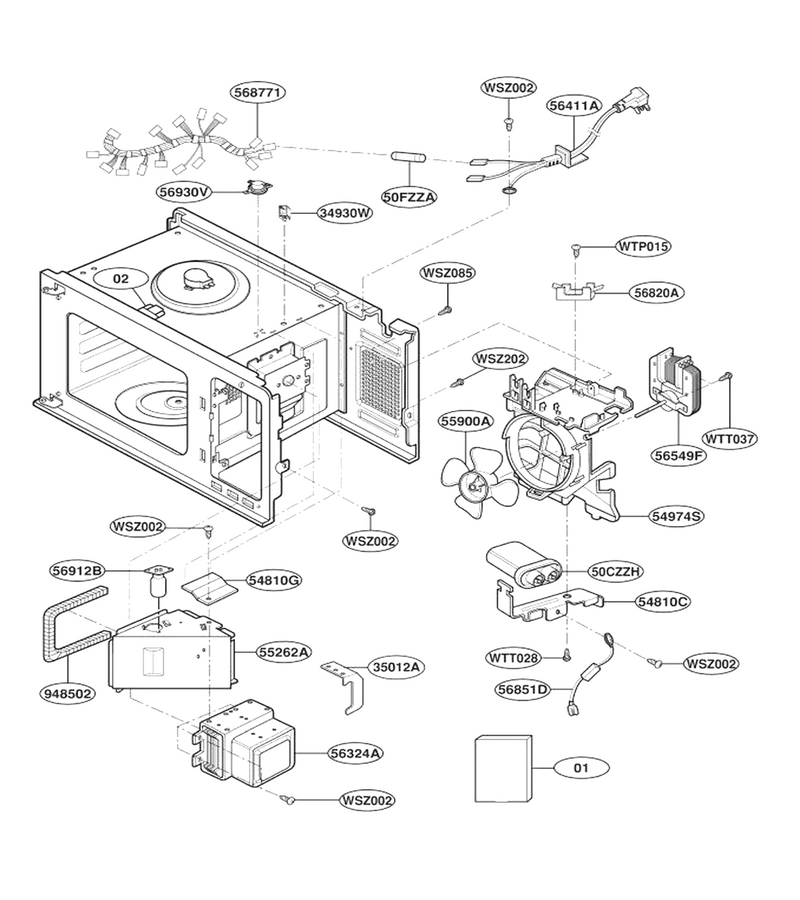

Interior Parts

...
...
WSZ202
Screw,customized L-G-1SZZW2A002D
...
WTP015
Microwave Screw L-G-1TPL0402618
...
WTT028
Microwave Screw L-G-1TTL0402818
...
WTT037
Microwave Tapping Screw L-G-1TTL0403818
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
*02
Manual,service L-G-3828W5S3190
...
*01
Manual,owners L-G-3828W5A3384
...
WSZ085
Special Screw-D Mv-1003t Mvh1 L-G-4B70188C
...
50CZZH
Microwave High-Voltage Capacitor L-G-0CZZW1H004C
...
50FZZA
Fuse[all] L-G-3B74133K
...
34930W
Holder L-G-4930W3B029A
...
35012A
Insulator L-G-5012W3A015A
...
54810C
Bracket L-G-4810W4C003A
...
54810G
Bracket L-G-4810W2G052A
...
54974S
Guide L-G-4974W1S010A
...
55262A
Air Duct L-G-5262W2A020A
...
55900A
Propeller L-G-2B72125B
...
56324A
Microwave Magnetron L-G-6324W1A001B
...
56411A
(56411a) Part L-G-6411W1A019H
...
56549F
Microwave Cooling Fan Motor L-G-6549W1F005B
...
56820A
Holder L-G-4930W3B025B
...
56851D
Microwave High-Voltage Diode L-G-6021W3B001A
...
56912B
Microwave Light Bulb L-G-6912W3B002G
...
56930V
Thermostat L-G-6930WRT001F
...
568771
Harness,single L-G-6877W1A172D
...
948502
Cushion L-G-3B72244T

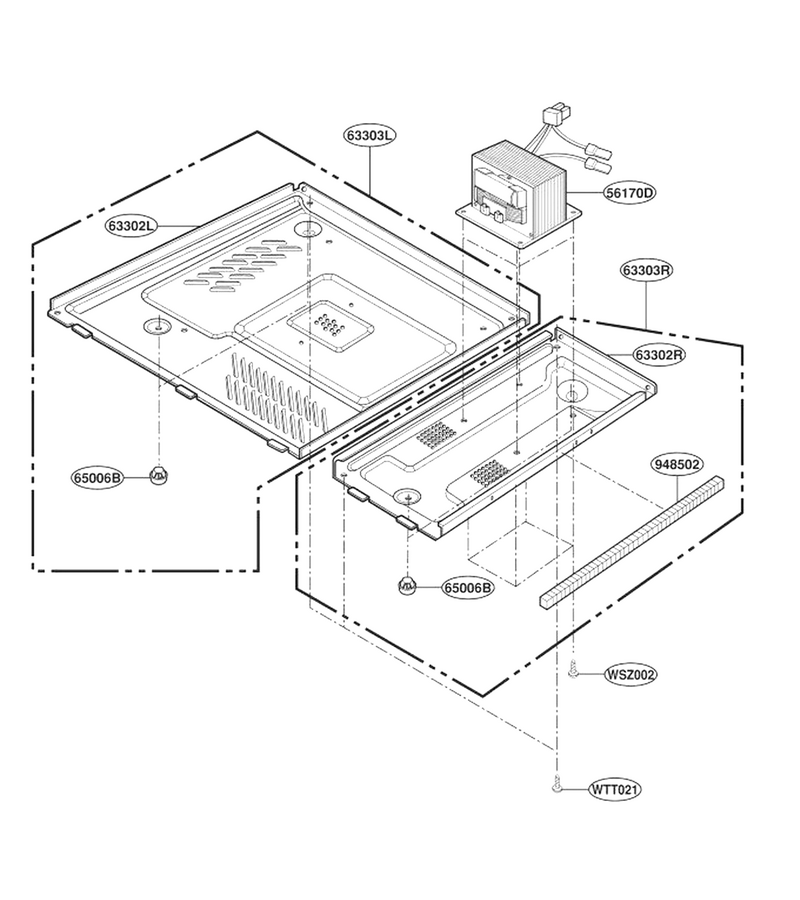

Base Plate Parts

...
...
WSZ002
Tap Tite Screw+d4.0 L8.0ma-117 L-G-1SBF0402418
...
WTT021
Microwave Screw L-G-1TTL0402418
...
56170D
Transformer L-G-6170W1D023K
...
63302L
Plate L-G-3302W0A014A
...
63302R
Plate,base L-G-3302W1A046A
...
63303L
Plate Assembly,base L-G-3303W0A010B
...
63303R
Plate Assembly,base L-G-3303W1A040A
...
65006B
Cap L-G-5006W3A016B
...
948502
Cushion L-G-3B72244T

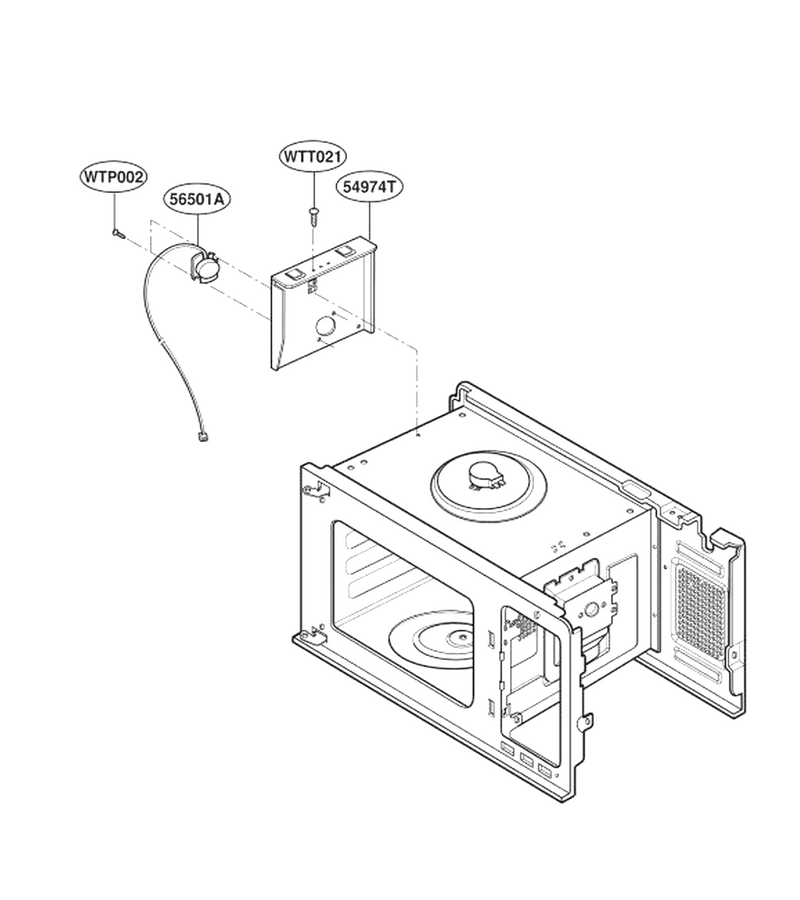

Sensor Parts

...
...
WTP002
Screw L-G-1TPL0302018
...
WTT021
Microwave Screw L-G-1TTL0402418
...
54974T
Guide,sensor L-G-5208W1A001B
...
56501A
Humidity Sensor L-G-6501W1A004A
